22.5X14.00
22.5X14.00 is a steel rim designed for heavy-duty truck applications, built to support high load ratings and compatible with standard 22.5 inch tyres. It features a 10-bolt pattern with a 33
Overview

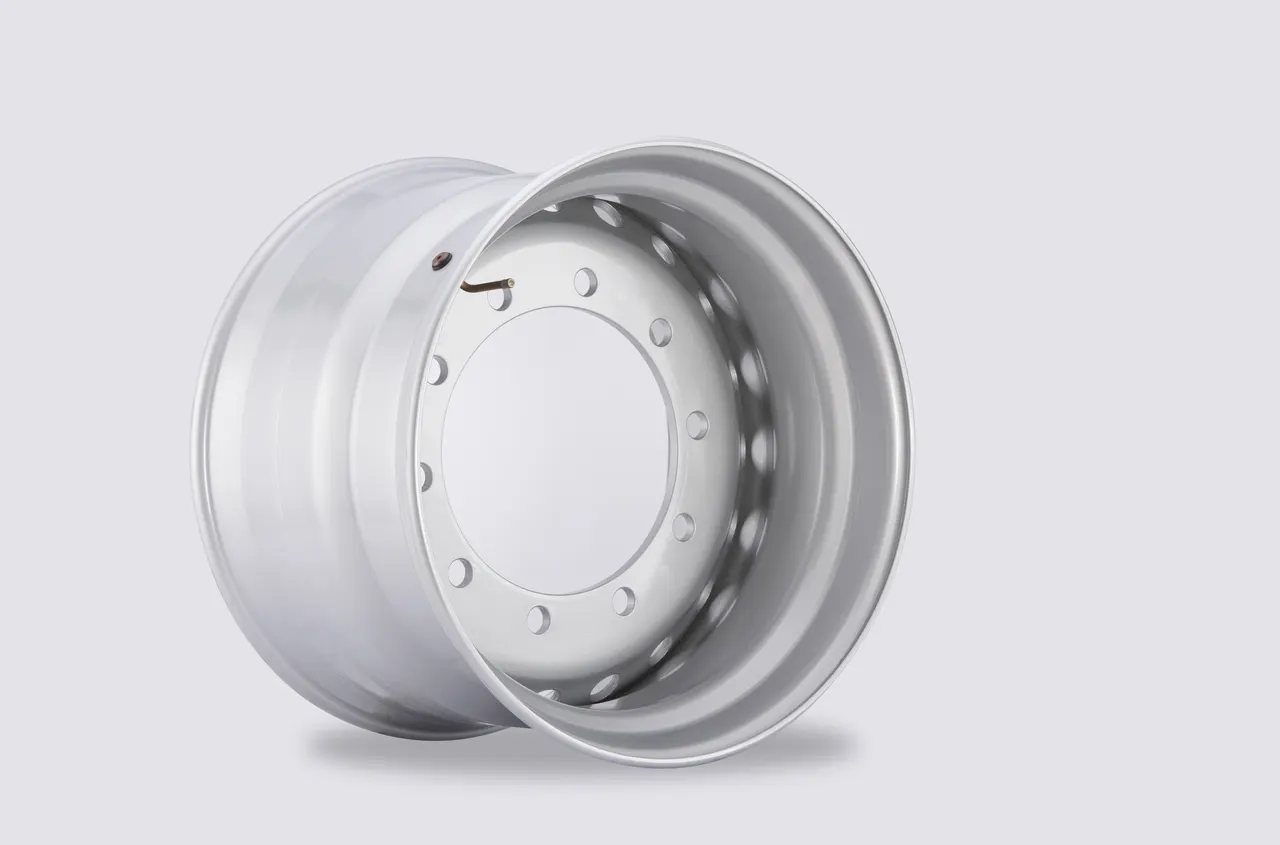

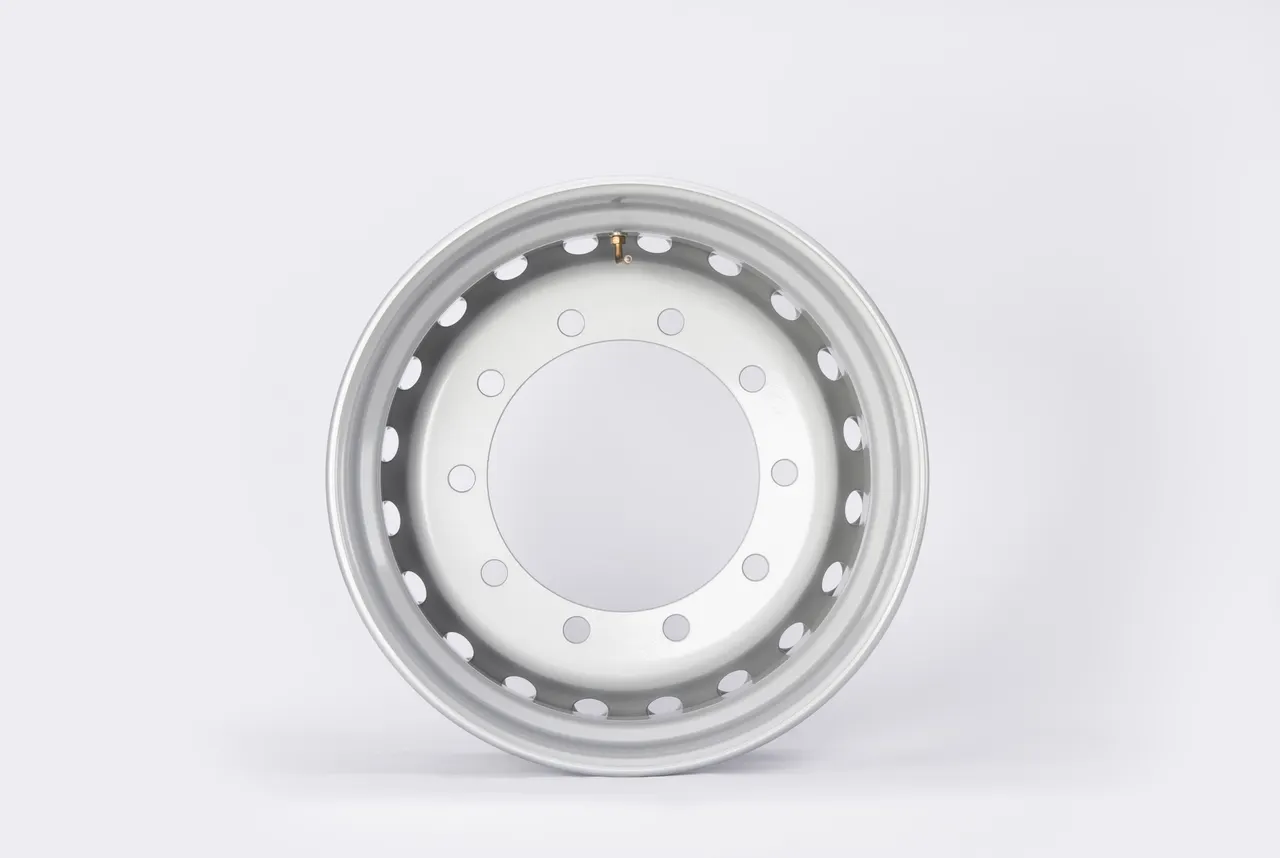

22.5X14.00 is a steel rim designed for heavy-duty truck applications, built to support high load ratings and compatible with standard 22.5 inch tyres. It features a 10-bolt pattern with a 335 mm pitch circle diameter and a 0 offset, ensuring stable mounting on drive and trailer axles. The rim is suitable for use in mixed road and rough terrain environments where durability and load capacity are critical.
- ISO9001
- ISO/TS16949
- CCC
- E-mark
- DOT
- GSO/GCC
- SONCAP
- INMETRO
- NOM
What 22.5X14.00 Gives the Operator
5600kg rated load supports heavy freight and long-haul operations
10-φ26 bolt pattern with φ335 PCD ensures compatibility with common truck axle hubs
0 offset provides balanced mounting on both drive and trailer axles
TR572C valve type allows for secure and reliable air retention
20-φ36 wind holes improve heat dissipation during prolonged high-speed operation
Application Scenarios
- Heavy-duty freight transport on paved highways with frequent loading and unloading
- Long-haul trucking where consistent load capacity and rim integrity are essential
- Fleet operations requiring durable, standardized rims across mixed vehicle models
Who It Is For
- Truck importers sourcing steel rims for container shipments
- Fleet operators replacing rims on 22.5 inch wheels in mixed axle positions
- Distributors needing a standard rim profile for multiple tyre sizes and brands
What It Is Meant To Fix
Rims that fail under high load due to inadequate rated capacity
Misalignment or poor fit caused by mismatched bolt patterns or offset
Overheating during long hauls due to insufficient ventilation in the rim design
Air leakage from improper valve type or poor sealing on the rim
Published Data For 22.5X14.00
These are the figures published for this product. Anything not listed here is confirmed in writing before an order.
- Model22.5×14.00
- Rated Load5600kg
- Distributed Circle (PCD)φ335
- Bolt Hole10-φ26
- Center Holeφ281
- Screw Hole Type1×45°
- Offset0
- Wind Hole Type20-φ36
- Valve TypeTR572C
Technical Features
- Model: 22.5×14.00 steel rim without inner tube
- Rated load: 5600kg at recommended pressure
- Bolt pattern: 10 holes, φ26 diameter, 335 mm pitch circle diameter
- Center hole: φ281 for hub alignment
- Screw hole type: 1×45° for secure fastening
- Offset: 0 mm for symmetrical mounting
- Wind hole type: 20 holes, φ36 diameter for improved heat dissipation
- Valve type: TR572C for standard valve stem compatibility
Customisation
- Rims can be packed in mixed configurations within a single container
- Surface finish options available upon request, including galvanization or paint
- Marking and labeling can be applied to suit destination market requirements
Quality Control
- Rim profile verified against dimensional standards during production
- Bolt hole alignment checked using precision gauges
- Surface finish inspected for cracks, burrs, or deformation
- Production conducted under ISO9001 and ISO/TS16949 quality systems
How It Compares
- Compared with A rim with a different bolt pattern or PCDThis rim ensures direct fitment with common 10-φ26 hubs, reducing installation risk
- Compared with A rim with negative or positive offset0 offset provides balanced load distribution, reducing stress on wheel bearings
- Compared with A rim without wind holes20-φ36 wind holes enhance heat dissipation during high-speed or heavy-load operation
Getting the Most Out Of It
- Install only on axles that match the 10-φ26 bolt pattern and φ335 PCD
- Ensure the center hole φ281 aligns with the hub to prevent misalignment
- Use TR572C valve stems for consistent air retention and compatibility
- Check bolt tightness regularly to prevent rim loosening during operation
22.5X14.00 Questions
What is the load rating for the 22.5X14.00 rim
The rim is rated for 5600kg at the recommended pressure and mounting conditions.
Which bolt pattern does this rim use
It uses a 10-φ26 bolt pattern with a 335 mm pitch circle diameter.
Is the offset positive or negative
The offset is 0 mm, meaning the rim is centered on the hub.
What type of valve is used on this rim
The rim uses a TR572C valve type, compatible with standard valve stems.
Can this rim be used on both drive and trailer axles
Yes, the 0 offset and 5600kg load rating make it suitable for both drive and trailer positions.
Does the rim have wind holes
Yes, it has 20 wind holes with a φ36 diameter for improved heat dissipation.
Get Pricing For 22.5X14.00
Send the sizes and quantity per size. We will confirm availability, the approval marking for your market and a container plan.
