22.5×11.75
22.5×11.75 is a steel rim designed for heavy-duty truck applications, featuring a 0 offset and a 10-bolt pattern with a φ335 PCD. It supports a rated load of 4250kg and is built for use with
Overview

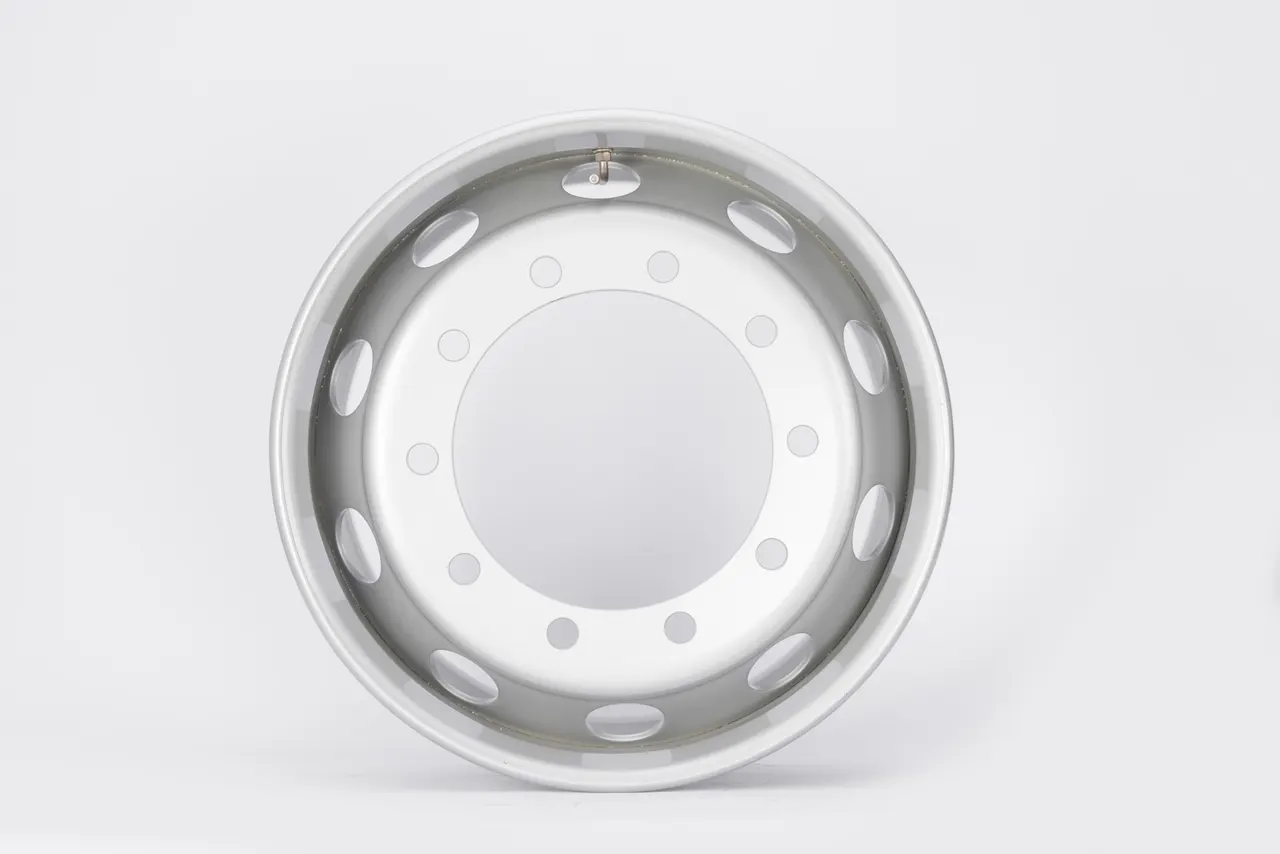

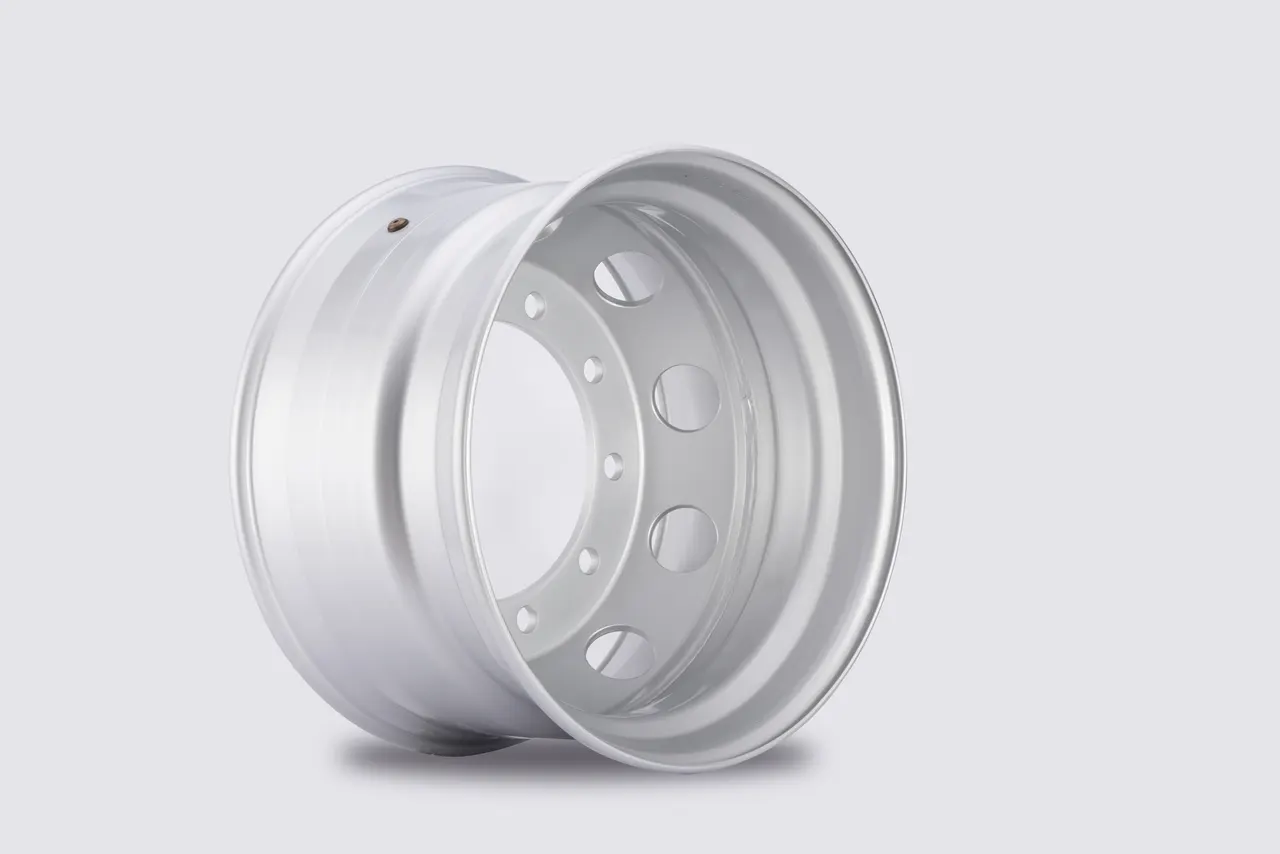

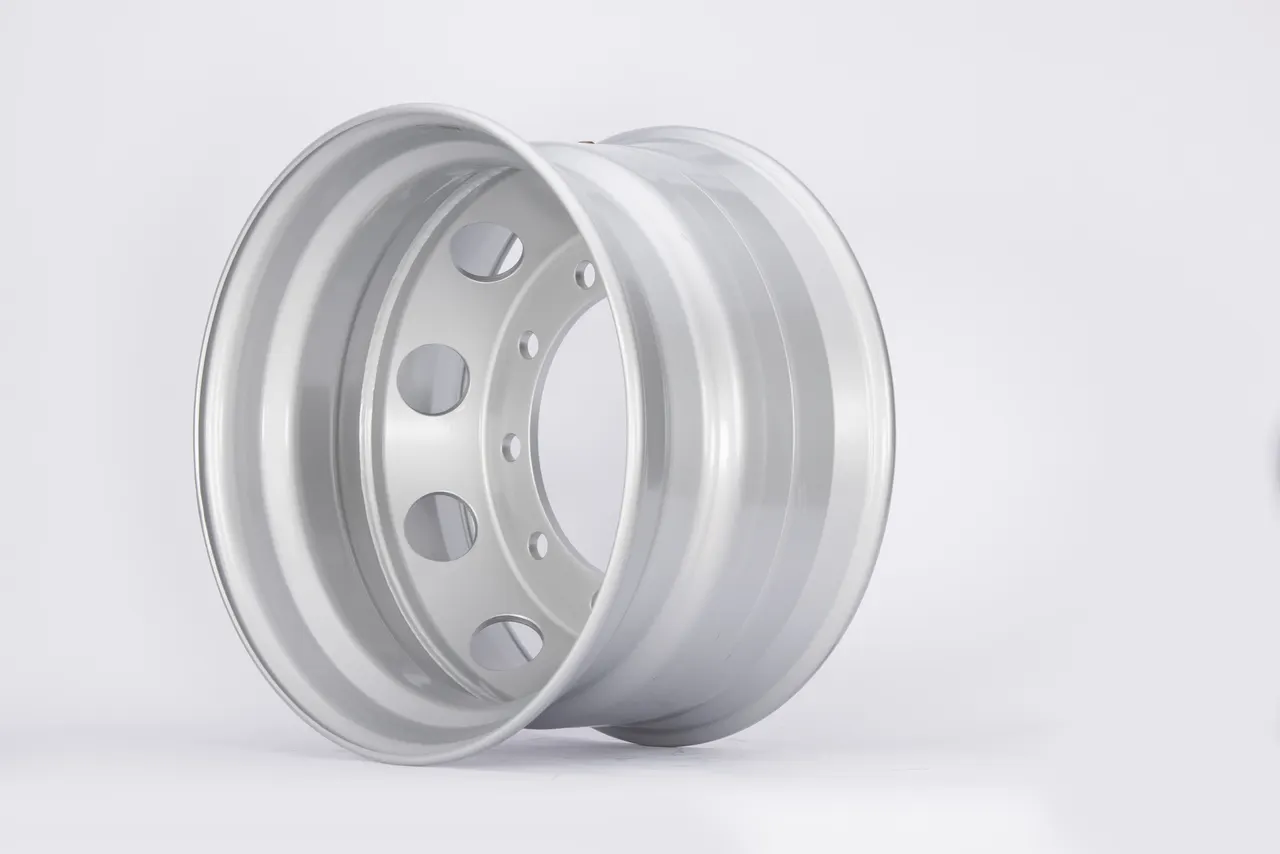

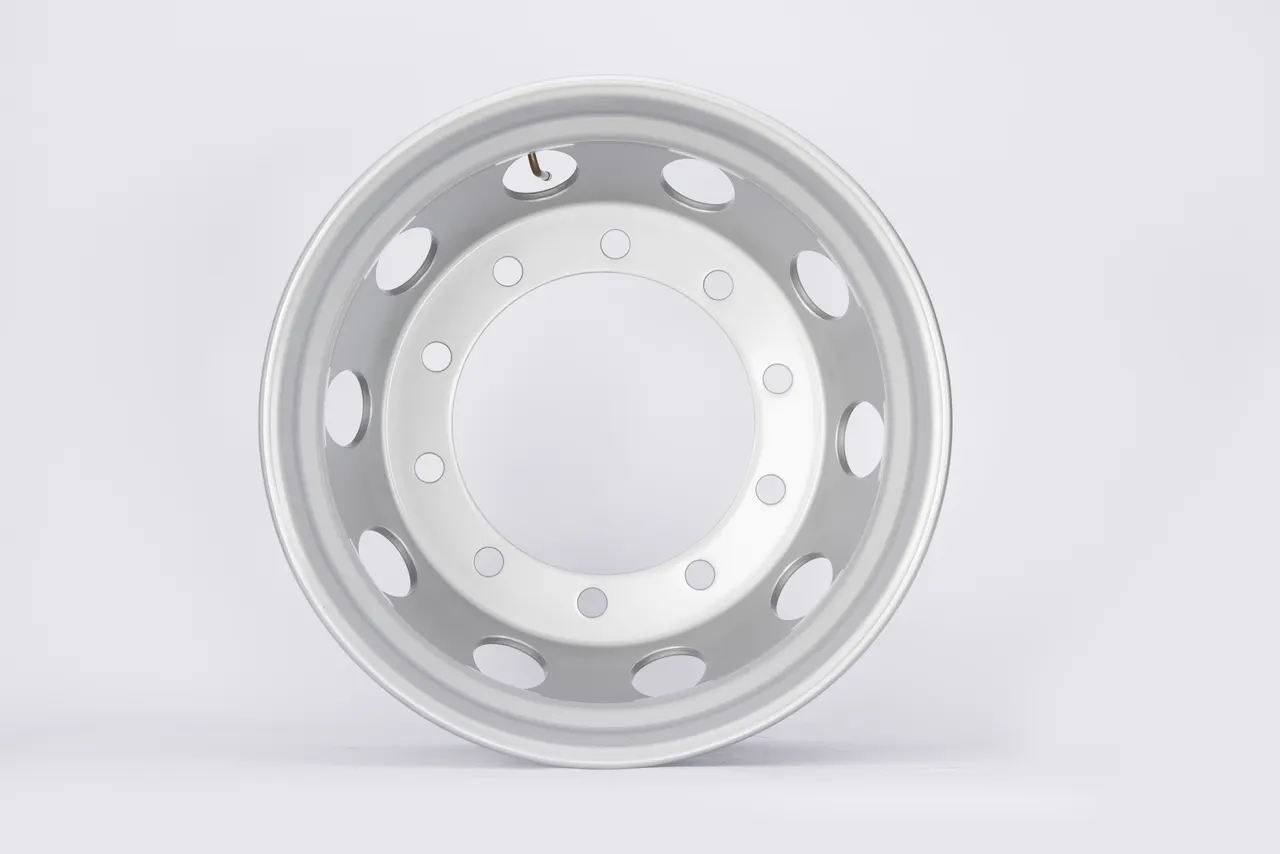

22.5×11.75 is a steel rim designed for heavy-duty truck applications, featuring a 0 offset and a 10-bolt pattern with a φ335 PCD. It supports a rated load of 4250kg and is built for use with tyres on drive, steer, or trailer axles depending on the vehicle configuration. The rim has a 11.75 inch width and a 22.5 inch diameter, suitable for radial and bias tyres in commercial transport and logistics fleets.
- ISO9001
- ISO/TS16949
- CCC
- E-mark
- DOT
- GSO/GCC
- SONCAP
- INMETRO
- NOM
What 22.5×11.75 Gives the Operator
0 offset provides balanced mounting for even load distribution across the axle
10-φ26 bolt hole pattern with φ335 PCD ensures compatibility with common truck wheel hubs
SR18 screw hole type allows secure fastening with standard truck wheel nuts
V3-20-5 valve type supports reliable air retention and easy inflation
18-φ36 wind hole design improves heat dissipation and reduces rim stress during high-speed operation
Application Scenarios
- Heavy-duty truck operations on paved highways and regional freight routes
- Fleet maintenance and replacement of rims in mixed-brand truck fleets
- Truck workshops sourcing durable rims for remanufacturing or new assembly
Who It Is For
- Tyre importers and distributors sourcing steel rims for container shipments
- Fleet operators replacing rims on drive or trailer axles in commercial trucks
- Workshop chains and wheel remanufacturers needing standardised rims for assembly
What It Is Meant To Fix
Rims with incorrect offset causing uneven tyre wear and axle misalignment
Incompatible bolt patterns leading to installation delays and safety risks
Poor valve design causing air leakage and frequent pressure checks
Rims lacking sufficient wind hole count, leading to overheating under heavy load
Published Data For 22.5×11.75
These are the figures published for this product. Anything not listed here is confirmed in writing before an order.
- Model22.5×11.75
- Rated Load4250kg
- Distributed Circle (PCD)φ335
- Bolt Hole10-φ26
- Center Holeφ281
- Screw Hole TypeSR18
- Offset0
- Wind Hole Type18-φ36
- Valve TypeV3-20-5
Technical Features
- 22.5 inch diameter and 11.75 inch width for standard truck wheel fitment
- 0 offset for symmetrical mounting and balanced axle load
- φ335 PCD with 10-φ26 bolt holes for compatibility with common truck hubs
- SR18 screw hole type for secure and standardised fastening
- V3-20-5 valve type for reliable air retention and easy maintenance
- 18-φ36 wind hole pattern to enhance cooling and reduce thermal stress
Customisation
- Rims can be packed in mixed sizes and patterns within a single container shipment
- Surface finish options available on request, including galvanised or painted finishes
- Marking and labelling can be adjusted to meet destination market requirements
Quality Control
- Rim profile checked for dimensional accuracy using calibrated measuring tools
- Bolt hole alignment verified to ensure even torque distribution
- Surface finish inspected for cracks, burrs, or defects before packaging
- Production follows ISO9001 and ISO/TS16949 standards
How It Compares
- Compared with A rim with non-standard PCD or bolt pattern22.5×11.75 ensures direct fitment with common truck hubs, reducing installation complexity
- Compared with A rim with negative or high offset0 offset maintains balanced load and alignment, reducing wear on bearings and tyres
- Compared with A rim with fewer wind holes or smaller valve type18-φ36 wind holes and V3-20-5 valve improve heat management and air retention
Getting the Most Out Of It
- Install only on axles where the rim profile and load rating match the vehicle's requirements
- Use the correct torque specification when tightening wheel nuts to prevent rim distortion
- Inspect rim surface regularly for cracks, corrosion, or deformation after heavy use
- Ensure the valve type matches the air fitting system used in the fleet
22.5×11.75 Questions
What is the rim width and diameter?
The rim is 22.5 inches in diameter and 11.75 inches in width, suitable for standard truck tyres.
What is the bolt pattern and PCD?
The rim has a 10-φ26 bolt hole pattern with a 335 mm PCD, compatible with many truck wheel hubs.
Is this rim suitable for drive, steer, or trailer axles?
The rim can be used on any axle position depending on the vehicle setup and tyre choice.
What certifications does this rim carry?
Resunyou rims comply with ISO9001 and ISO/TS16949 standards. Additional certifications may apply based on destination market requirements.
Can I mix this rim with other rim types in one container?
Yes, container shipments can include multiple rim types and sizes as part of a consolidated order.
What is the valve type and how does it affect installation?
The rim uses a V3-20-5 valve, which is standard for heavy-duty truck applications and compatible with most air fittings.
Get Pricing For 22.5×11.75
Send the sizes and quantity per size. We will confirm availability, the approval marking for your market and a container plan.
