22.5x11.75 20 Hand Holes

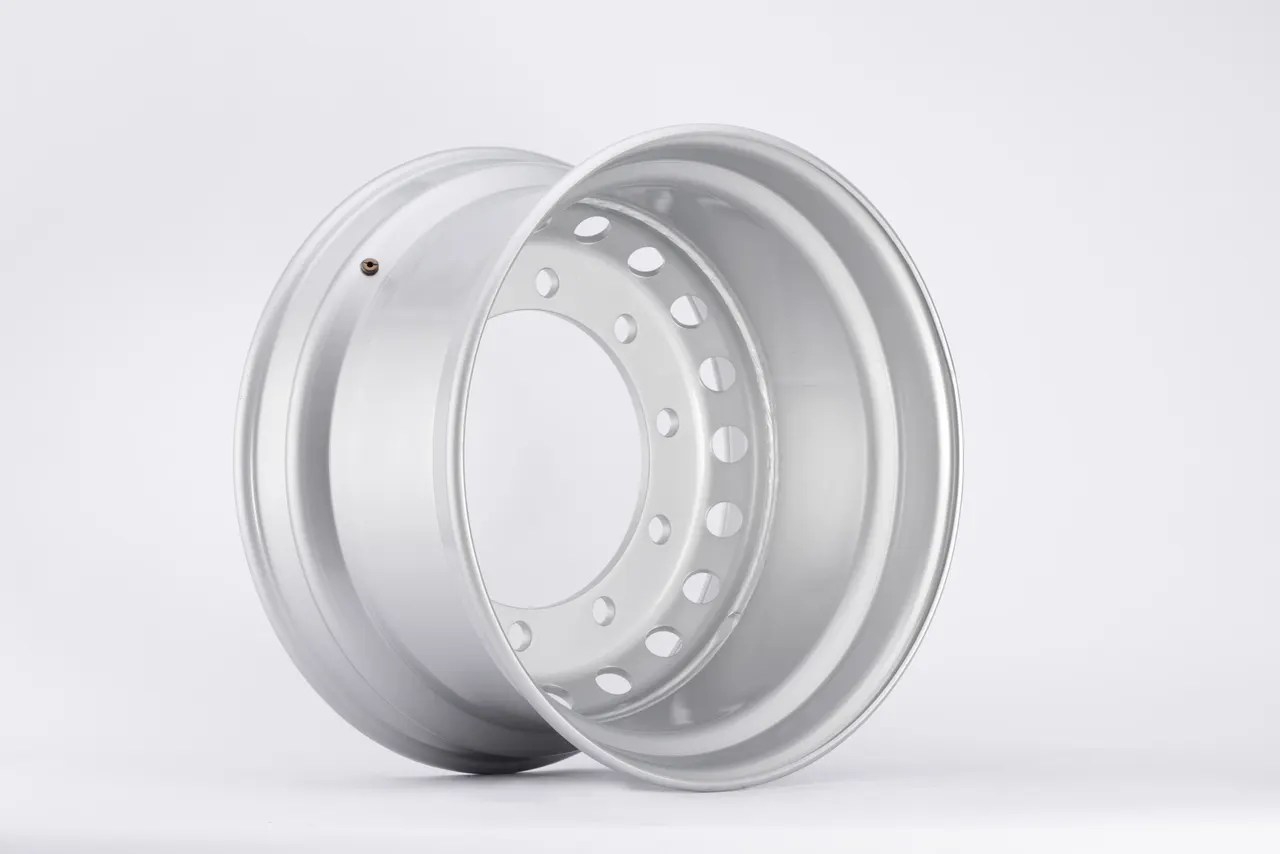

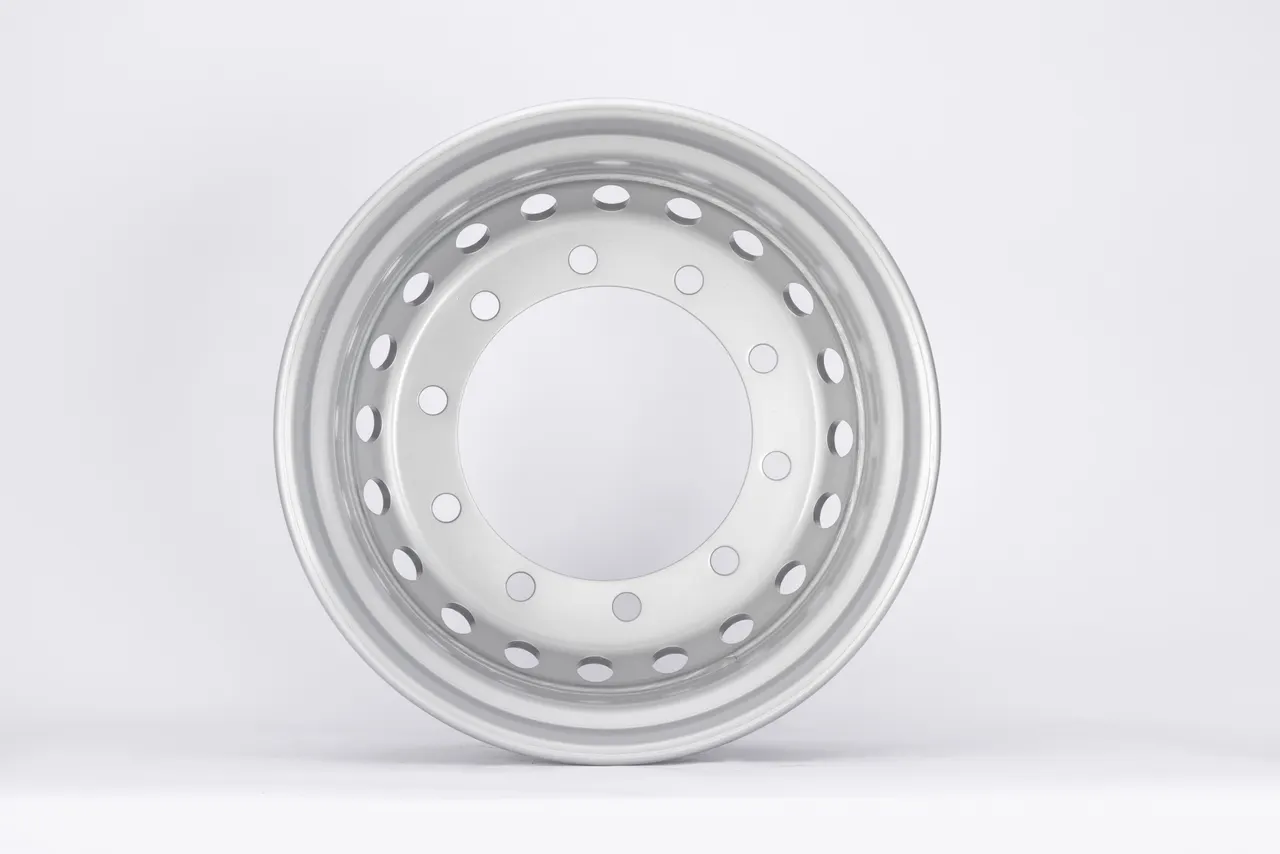

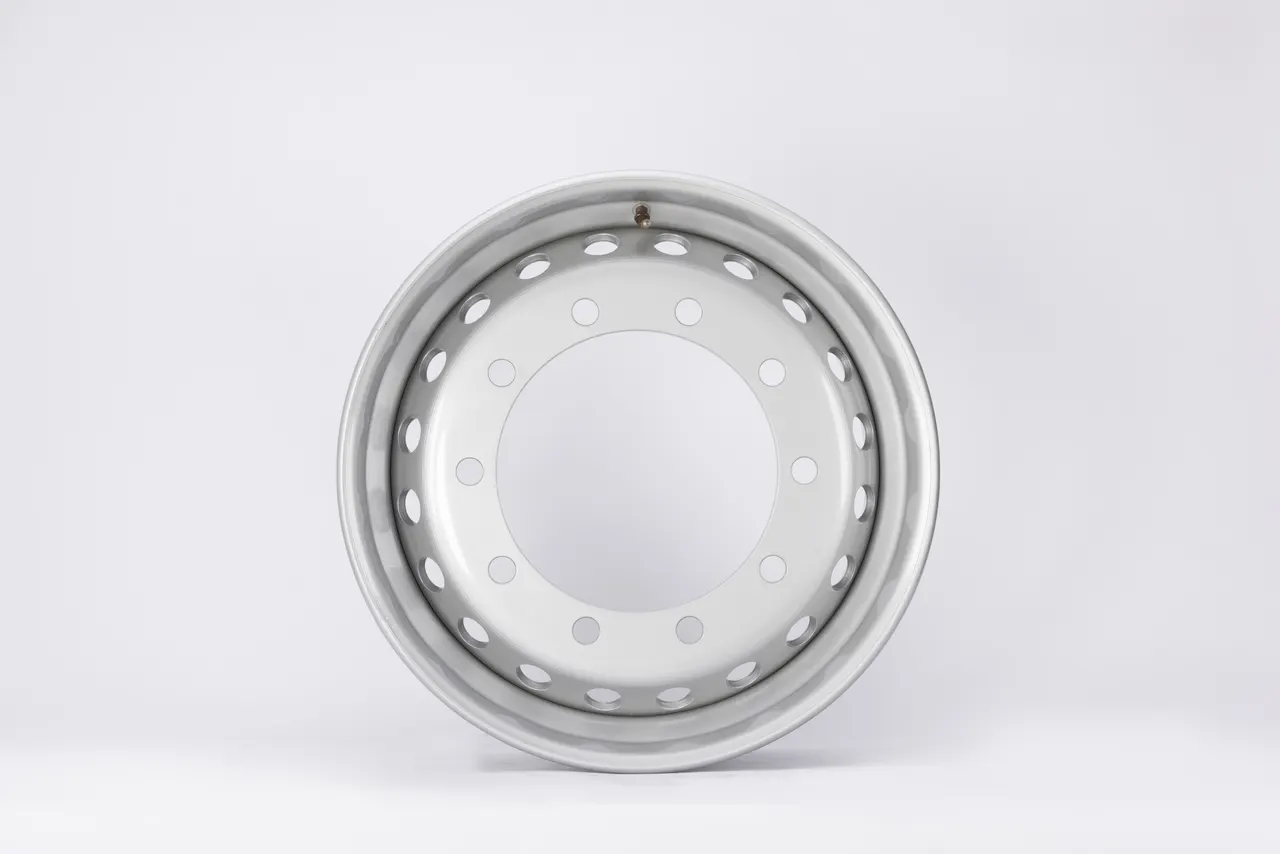

22.5×11.75(20) is a steel rim designed for heavy-duty truck applications, featuring a 20-hole wind pattern and a 120mm offset. It is built to support high load ratings and is compatible with
Overview
22.5×11.75(20) is a steel rim designed for heavy-duty truck applications, featuring a 20-hole wind pattern and a 120mm offset. It is built to support high load ratings and is compatible with standard 22.5 inch tyres. The rim profile ensures stable mounting and even load distribution on the axle, suitable for long-haul and regional transport operations.
- ISO9001
- ISO/TS16949
- CCC
- E-mark
- DOT
- GSO/GCC
- SONCAP
- INMETRO
- NOM
What 22.5x11.75 20 Hand Holes Gives the Operator
120mm offset provides balanced clearance and stability on drive and trailer axles
20-φ36 wind hole design improves heat dissipation and rim strength under heavy loads
10-φ26 bolt pattern with φ335 PCD ensures secure fitment on common truck hubs
V3-20-5 valve type allows reliable air retention and easy maintenance
Center hole of φ281 matches standard hub dimensions for smooth installation
Application Scenarios
- Long-haul freight transport on paved highways with consistent axle loading
- Regional distribution fleets operating on mixed road surfaces with frequent loading cycles
- Heavy-duty haulage where rim durability and load capacity are critical
Who It Is For
- Truck wheel importers sourcing steel rims for container shipments
- Fleet operators replacing rims on 22.5 inch wheels with high load requirements
- Distributors needing a standard rim with consistent fitment across multiple truck brands
What It Is Meant To Fix
Rims that warp or fail under repeated high load and temperature stress
Misalignment between rim and hub due to incorrect center hole or bolt pattern
Air leakage from improper valve fit or weak rim structure
Incompatibility with standard tyre sizes due to incorrect rim width or profile
Published Data For 22.5x11.75 20 Hand Holes
These are the figures published for this product. Anything not listed here is confirmed in writing before an order.
- Model22.5×11.75
- Rated Load4250kg
- Distributed Circle (PCD)φ335
- Bolt Hole10-φ26
- Center Holeφ281
- Screw Hole Type1×45°
- Offset120
- Wind Hole Type20-φ36
- Valve TypeV3-20-5
Technical Features
- Rim size 22.5×11.75 with 20-φ36 wind hole configuration for enhanced structural integrity
- Rated load capacity of 4250kg per rim, suitable for heavy-duty axle applications
- 10-φ26 bolt hole pattern with φ335 PCD for compatibility with common truck hubs
- 120mm offset for optimal wheel alignment and reduced stress on suspension
- V3-20-5 valve type integrated into the rim for reliable inflation and pressure retention
Customisation
- Rim finish available in standard black or zinc-coated for corrosion resistance
- Custom marking on rim flange available upon request for brand or fleet identification
- Container loading can include multiple rim sizes and patterns in one shipment
Quality Control
- Rim profile verified against dimensional standards during production
- Bolt hole and center hole dimensions checked for consistency across batches
- Surface finish inspected for cracks, burrs, or imperfections before coating
- Production conducted under ISO9001 and ISO/TS16949 systems
How It Compares
- Compared with A lighter alloy rim with lower load ratingThis steel rim offers higher load capacity and better durability under sustained heavy use
- Compared with A rim with fewer wind holesThe 20-hole design improves heat dissipation and rim rigidity during long hauls
Getting the Most Out Of It
- Install only on axles that match the 22.5 inch tyre size and 10-φ26 bolt pattern
- Ensure the hub center hole matches φ281 to prevent misalignment and vibration
- Use the correct torque specification when tightening bolts to avoid rim deformation
- Inspect the rim surface and valve area regularly for damage or corrosion
22.5x11.75 20 Hand Holes Questions
What is the rim size and width?
The rim is 22.5 inches in diameter with a width of 11.75 inches, suitable for standard truck tyres.
What is the bolt pattern and PCD?
The rim has a 10-φ26 bolt hole pattern with a distributed circle (PCD) of φ335.
What is the load rating?
The rim is rated for a maximum load of 4250kg per rim, suitable for heavy-duty applications.
Is the rim compatible with tubeless tyres?
Yes, this is a steel rim without inner tube, designed for use with tubeless tyres.
Can I mix different rim types in one container shipment?
Yes, container loading can include multiple rim types and sizes in a single order.
What certifications does the rim carry?
Resunyou rims comply with ISO9001 and ISO/TS16949 standards. Additional certifications may apply based on destination market.
Get Pricing For 22.5x11.75 20 Hand Holes
Send the sizes and quantity per size. We will confirm availability, the approval marking for your market and a container plan.
