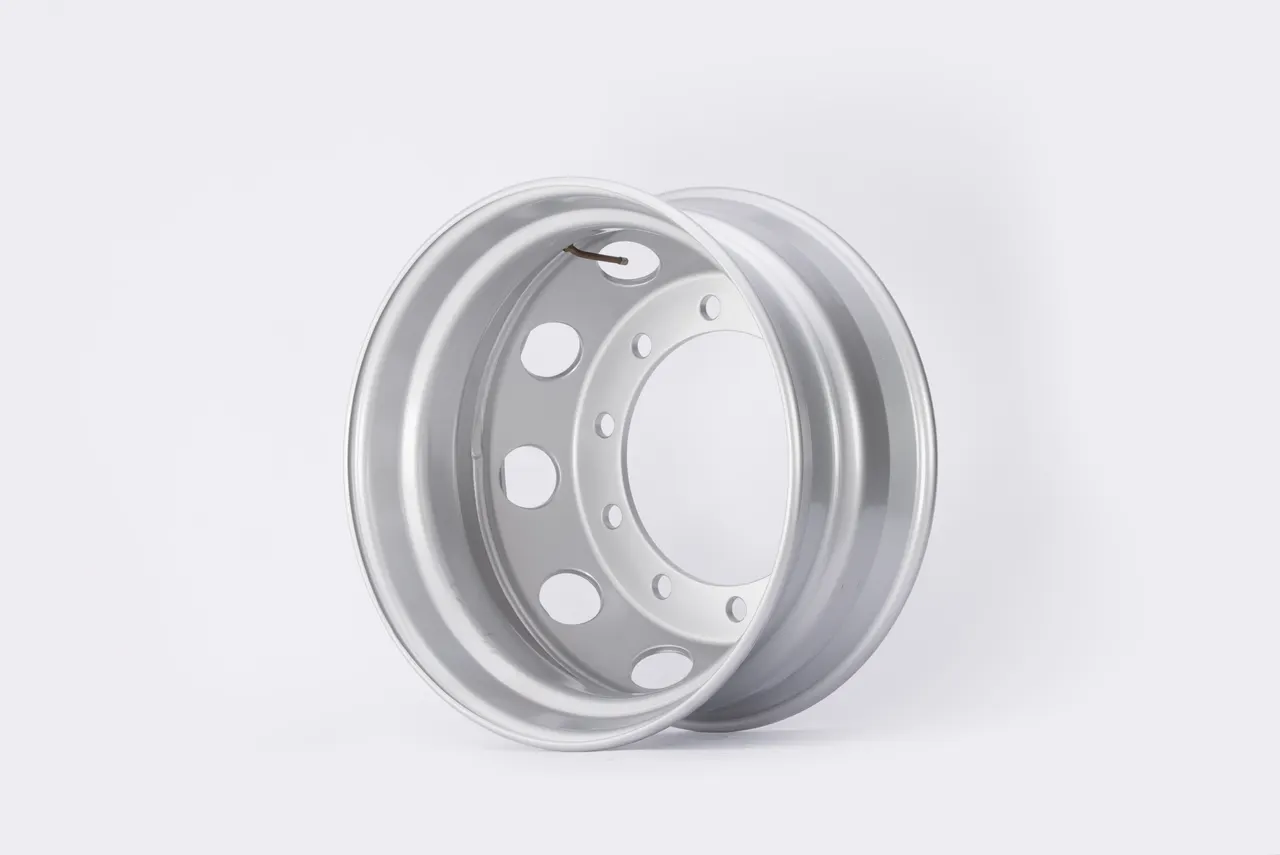

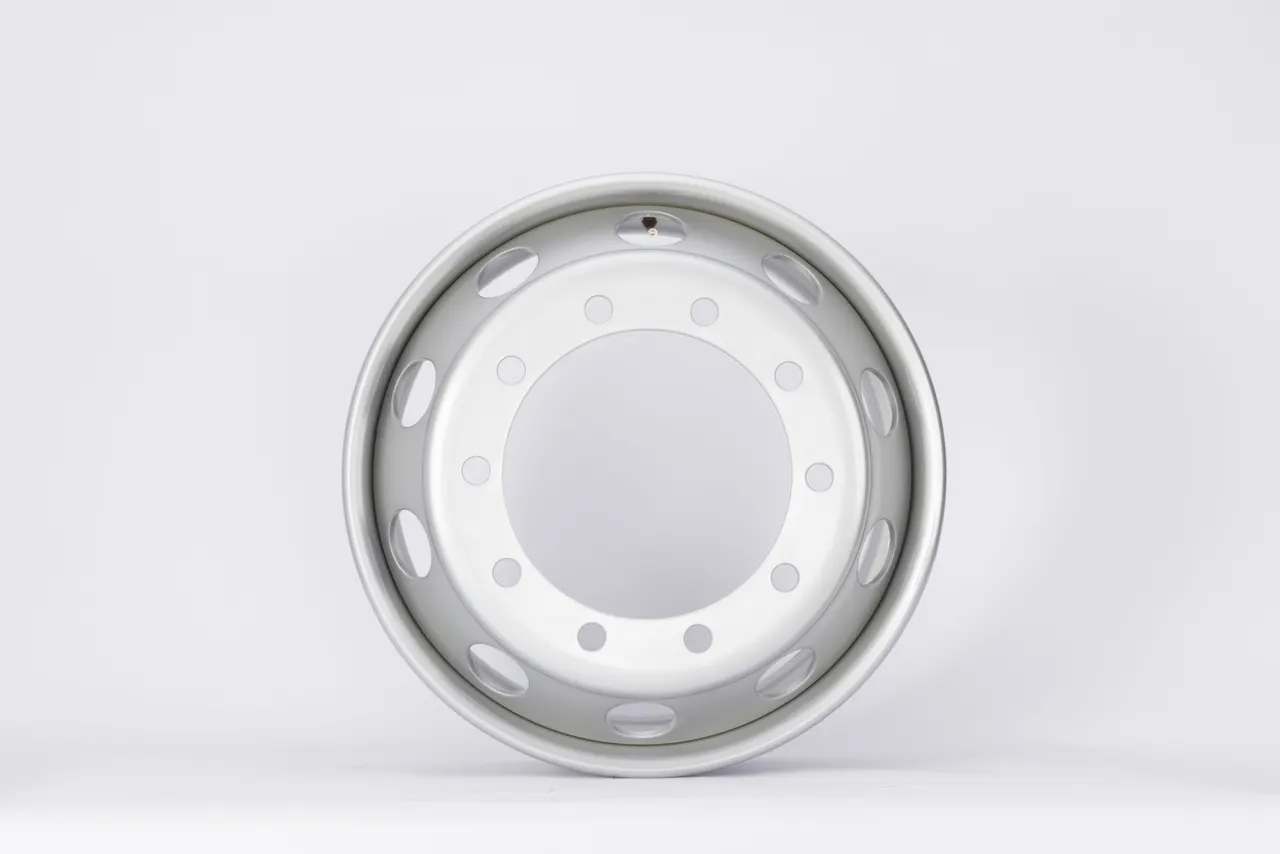

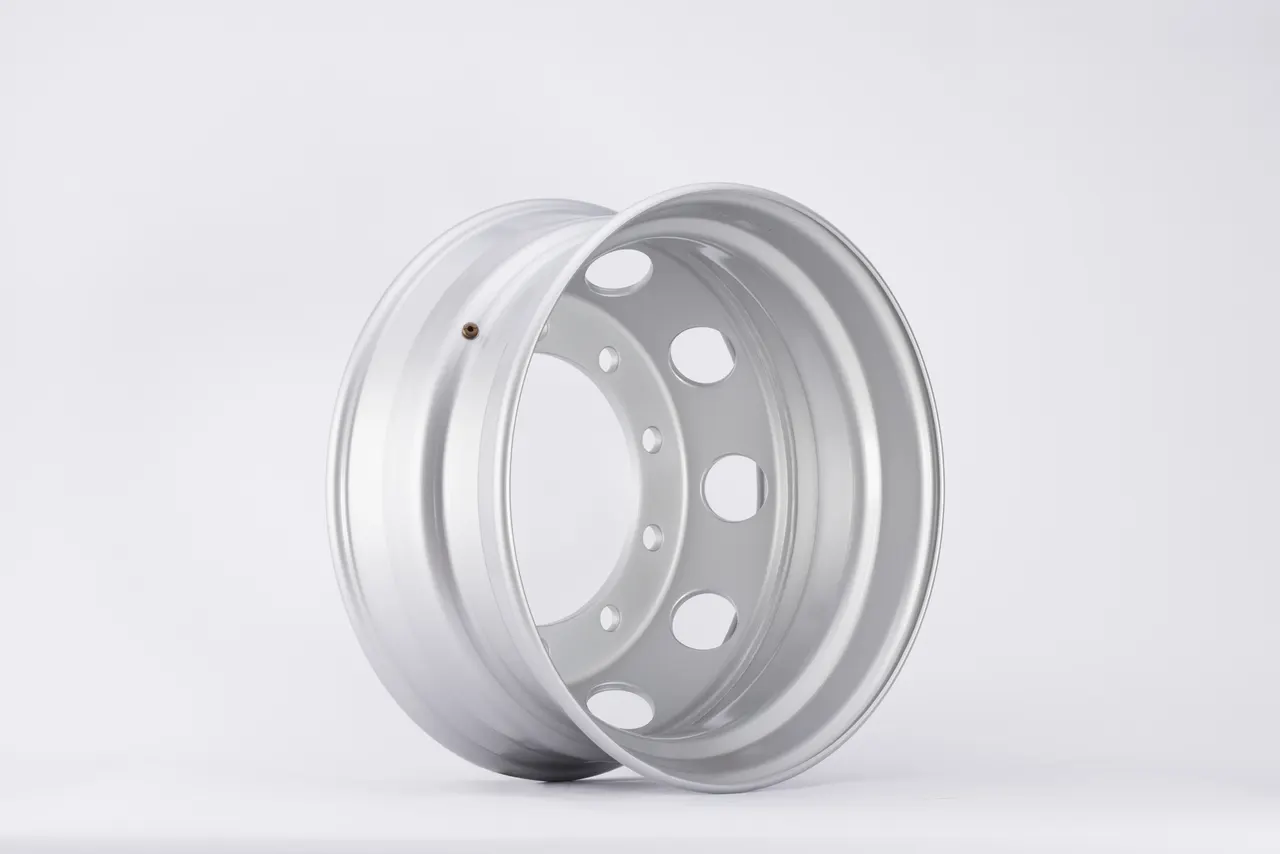

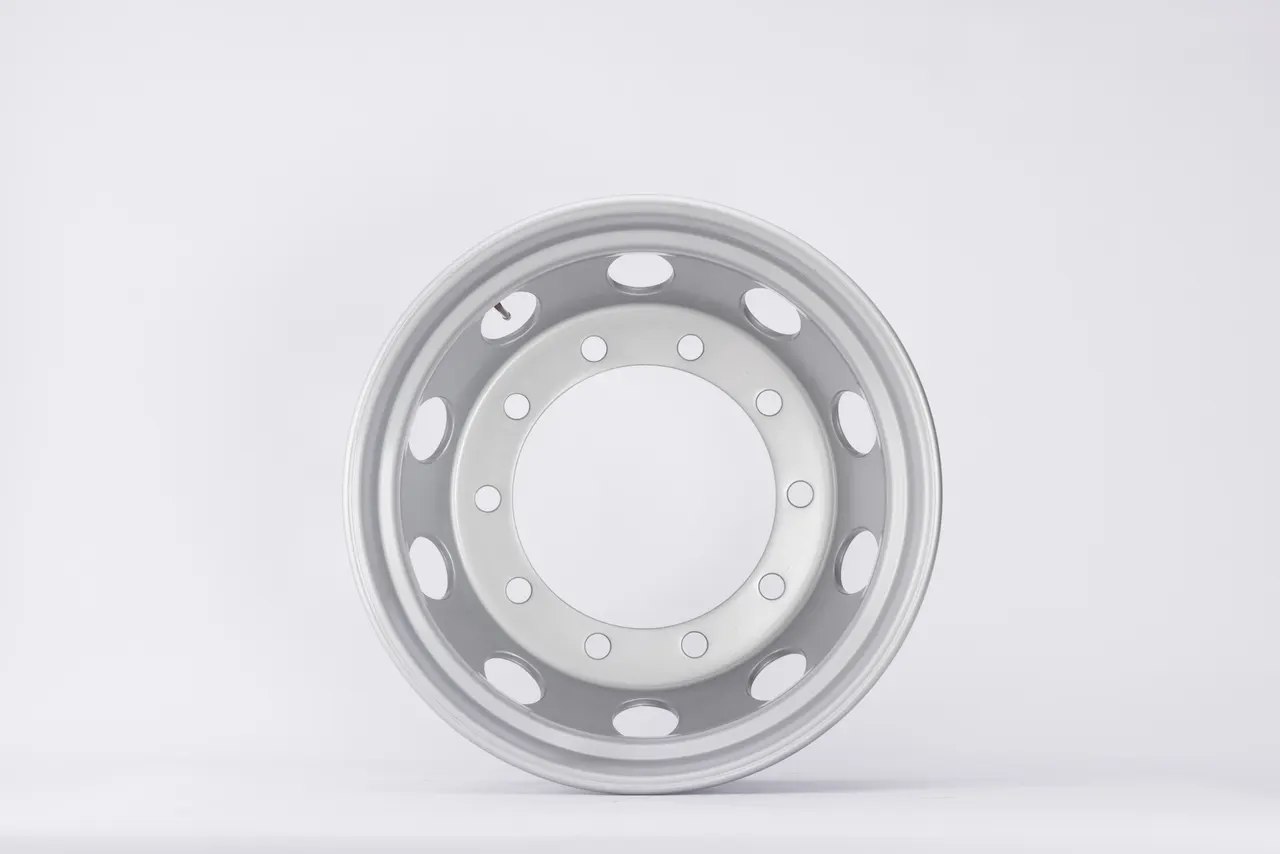

22.5×9.0
It features a 10-bolt pattern with a φ285.75 PCD and a 175 mm offset, suitable for drive and trailer axles. The rim is constructed for durability under heavy loads and consistent road use, w
Overview
It features a 10-bolt pattern with a φ285.75 PCD and a 175 mm offset, suitable for drive and trailer axles. The rim is constructed for durability under heavy loads and consistent road use, with a V3-20-6 valve type for secure air retention.
- ISO9001
- ISO/TS16949
- CCC
- E-mark
- DOT
- GSO/GCC
- SONCAP
- INMETRO
- NOM
What 22.5×9.0 Gives the Operator
175 mm offset ensures proper alignment with axle and hub for even load distribution
10-φ26 bolt holes with φ285.75 PCD match common truck wheel hubs in Europe and Asia
V3-20-6 valve type provides reliable sealing and compatibility with standard valve caps
φ220 center hole fits standard hub sizes used in commercial vehicle applications
1×45° screw hole type allows for secure fastening and alignment during mounting
Application Scenarios
- Heavy-duty truck operations on paved highways with consistent axle loading
- Fleet maintenance where consistent rim profiles reduce fitting errors and downtime
- Trailer applications requiring a robust, non-inflatable steel rim with high load capacity
Who It Is For
- Truck importers sourcing steel rims for container shipments
- Fleet operators replacing rims on trailers and drive axles with standard 22.5 inch tyres
- Distributors needing a uniform rim profile for mixed wheel and tyre orders
What It Is Meant To Fix
Mismatched rim offset causing uneven tyre wear and hub stress
Incorrect bolt pattern leading to unsafe wheel mounting and wheel loss
Incompatible valve types that cause air leakage or require special fittings
Rims with insufficient load rating failing under full axle weight
Lack of standardization across rim models leading to inventory complexity
Published Data For 22.5×9.0
These are the figures published for this product. Anything not listed here is confirmed in writing before an order.
- Model22.5×9.0
- Rated Load3750kg
- Distributed Circle (PCD)φ285.75
- Bolt Hole10-φ26
- Center Holeφ220
- Screw Hole Type1×45°
- Offset175
- Wind Hole Type10-φ64
- Valve TypeV3-20-6
Technical Features
- Rated Load: 3750 kg, suitable for full axle load applications
- Distributed Circle (PCD): φ285.75 mm, standard for many commercial truck hubs
- Bolt Hole: 10-φ26 mm, compatible with common 10-bolt wheel hubs
- Center Hole: φ220 mm, fits standard hub diameters
- Screw Hole Type: 1×45°, ensures secure and aligned fastening
- Offset: 175 mm, provides correct positioning relative to the hub
- Wind Hole Type: 10-φ64 mm, allows for proper wheel balancing and air flow
- Valve Type: V3-20-6, standard for steel rims with no inner tube
Customisation
- Rims can be packed in mixed configurations within a single container
- Surface finish options available upon request, including zinc coating or black paint
- Custom marking on rim flange for brand or fleet identification
Quality Control
- Rim profile verified against dimensional standards during production
- Bolt hole alignment checked for consistency across all units
- Surface finish inspected for defects and corrosion resistance
- Load rating tested under controlled conditions to meet stated capacity
How It Compares
- Compared with An aluminium rim of the same sizeThe steel rim is heavier but more durable under high load and rough road conditions
Getting the Most Out Of It
- Mount only on hubs with matching φ220 center hole and φ285.75 PCD
- Ensure all 10 bolts are tightened in a star pattern to prevent rim warping
- Use the V3-20-6 valve with a compatible cap to prevent air loss
- Inspect rim flanges for damage before mounting tyres to avoid bead failure
- Verify offset alignment with the axle to prevent uneven wear and handling issues
22.5×9.0 Questions
What load can this rim carry?
The rim is rated for a maximum load of 3750 kg, suitable for full axle applications.
What bolt pattern does it use?
It uses a 10-φ26 bolt hole pattern with a φ285.75 PCD, compatible with many truck hubs.
Can this rim be retreaded?
This is a rim, not a tyre. It is not retreaded. However, it supports retreadable tyre casings when mounted.
Can I mix this rim with other rim types in one container?
Yes, container loading can include multiple rim models and sizes in one shipment.
What certifications does this rim carry?
Resunyou rims comply with ISO9001 and ISO/TS16949 standards. Additional certifications depend on the destination market.
What is the offset value and why does it matter?
The offset is 175 mm, which determines how far the rim sits from the hub centerline. Correct offset ensures proper alignment and prevents wheel stress.
Get Pricing For 22.5×9.0
Send the sizes and quantity per size. We will confirm availability, the approval marking for your market and a container plan.
