Home/Wheels and Rims/Tubeless Steel Wheels/22.5×8.25
22.5×8.25

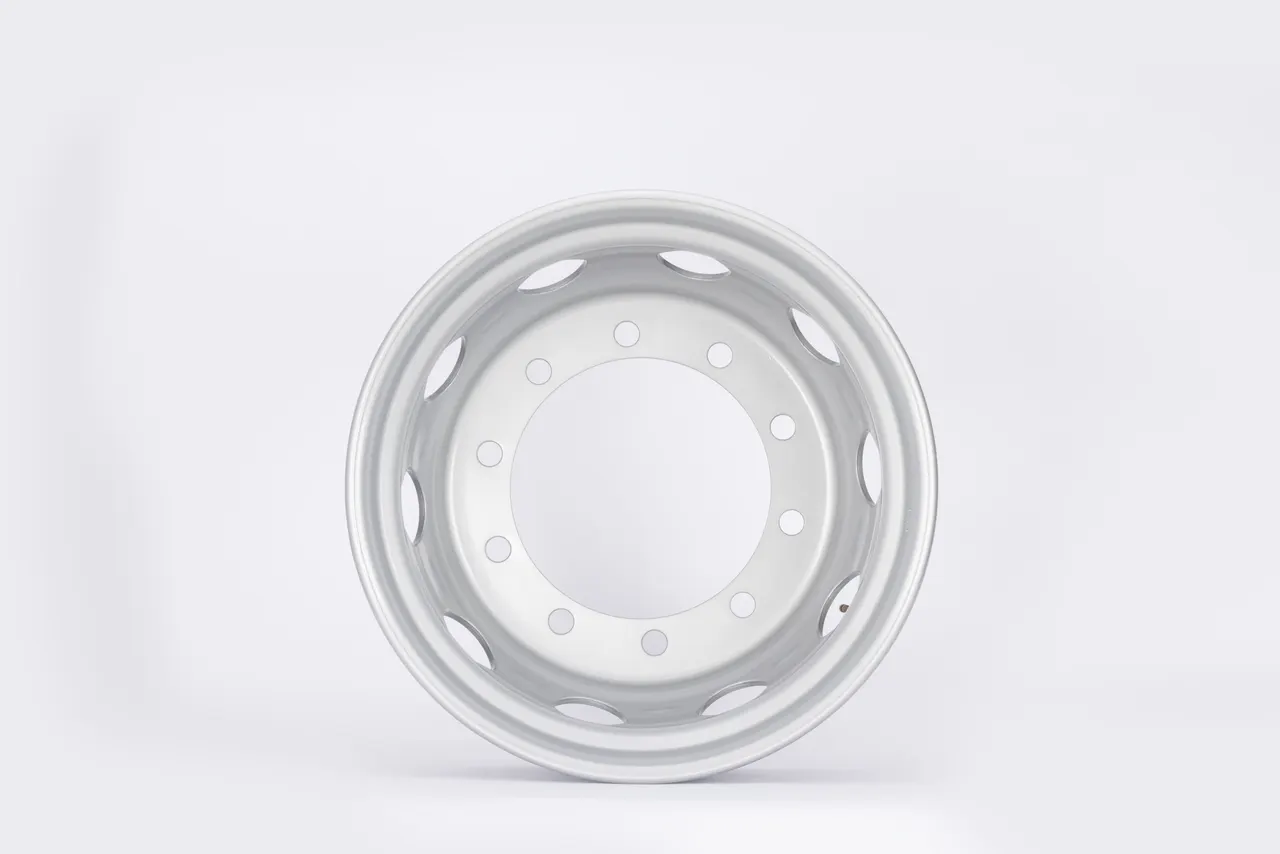

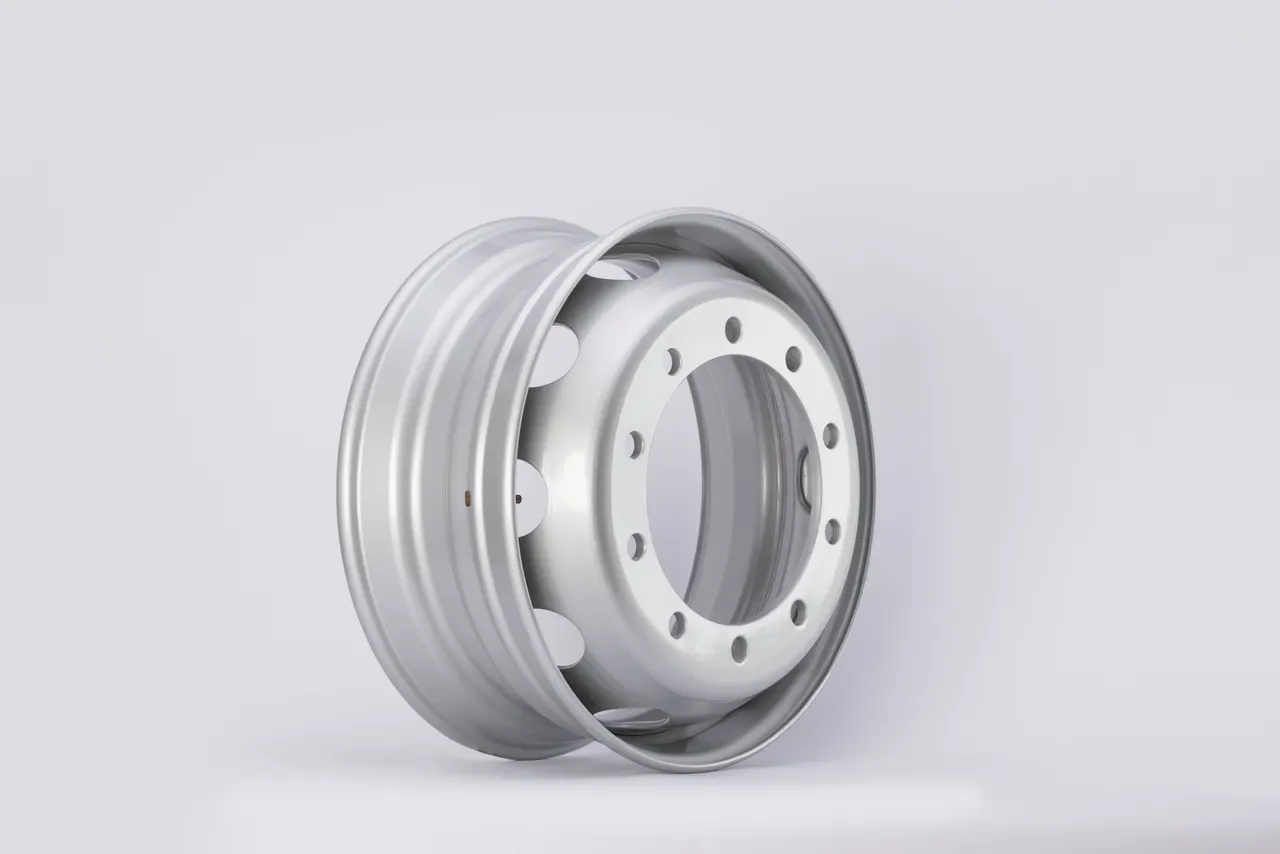

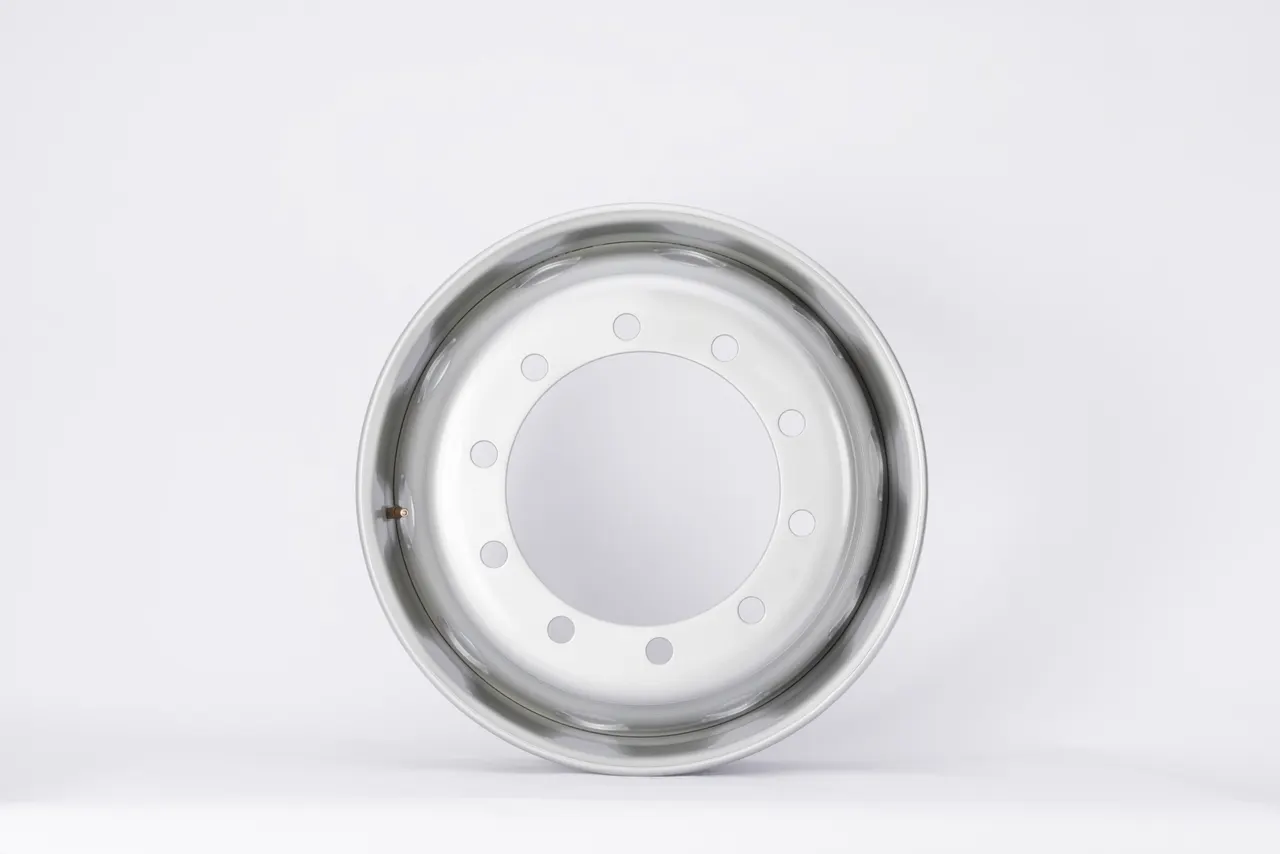

22.5×8.25 is a steel rim designed for truck wheel assemblies, featuring a 165mm offset and a 10-bolt pattern with a φ335 PCD. It supports a rated load of 3000kg and is built for use with tyr
Overview
22.5×8.25 is a steel rim designed for truck wheel assemblies, featuring a 165mm offset and a 10-bolt pattern with a φ335 PCD. It supports a rated load of 3000kg and is built for use with tyres on drive, steer, or trailer axles in commercial transport. The rim profile is compatible with standard 22.5 inch tyres and includes a V3-20-4 valve type for secure air retention.
- ISO9001
- ISO/TS16949
- CCC
- E-mark
- DOT
- GSO/GCC
- SONCAP
- INMETRO
- NOM
What 22.5×8.25 Gives the Operator
165mm offset provides balanced positioning for axle load distribution and steering geometry
10-φ26 bolt hole pattern with φ335 PCD ensures compatibility with common truck wheel hubs
φ281 center hole fits standard hub sizes used in freight and distribution fleets
V3-20-4 valve type allows reliable inflation and pressure monitoring
Steel construction offers durability under heavy-duty service and repeated loading cycles
Application Scenarios
- Truck fleets operating on paved highways with regular axle loading and high mileage
- Distribution and delivery operations requiring consistent rim performance across multiple vehicles
- Heavy-duty transport on mixed road surfaces where rim strength and stability are critical
Who It Is For
- Importers sourcing steel rims for truck wheel assemblies in bulk
- Distributors needing a standard rim for replacement or fleet maintenance
- Fleet operators replacing rims on trucks with 22.5 inch wheels and 10-bolt hubs
What It Is Meant To Fix
Rims that fail under repeated loading due to weak structural design or incorrect offset
Mismatched bolt patterns that prevent proper wheel mounting on standard truck hubs
Valve issues leading to air loss or difficulty in pressure checks during routine maintenance
Published Data For 22.5×8.25
These are the figures published for this product. Anything not listed here is confirmed in writing before an order.
- Model22.5×8.25
- Rated Load3000kg
- Distributed Circle (PCD)φ335
- Bolt Hole10-φ26
- Center Holeφ281
- Screw Hole Type1×45°
- Offset165
- Wind Hole Type10-φ70
- Valve TypeV3-20-4
Technical Features
- Model: 22.5×8.25 steel rim without inner tube
- Rated load capacity: 3000kg at standard operating pressure
- Distributed circle (PCD): φ335 with 10 bolt holes of φ26 diameter
- Center hole: φ281 to fit standard hub sizes
- Screw hole type: 1×45° for secure fastening
- Offset: 165mm for proper wheel alignment and axle balance
- Wind hole type: 10-φ70 for hub and wheel assembly stability
- Valve type: V3-20-4 for reliable air retention and pressure monitoring
Customisation
- Rims can be packed in mixed configurations within a container shipment
- Surface finish options available upon request, including zinc plating or black coating
- Marking and labelling on rims can be adapted for destination market requirements
Quality Control
- Rim profile inspected for dimensional accuracy before final assembly
- Bolt hole alignment verified to ensure proper hub and wheel fit
- Surface finish checked for defects and corrosion resistance
- Production conducted under ISO9001 and ISO/TS16949 systems
How It Compares
- Compared with A lighter aluminium rimSteel rim offers higher load capacity and durability under heavy-duty use, though it is heavier
- Compared with A rim with a different offset165mm offset ensures better alignment with standard truck axle setups, reducing steering drag and wear
Getting the Most Out Of It
- Install only on vehicles with matching hub size and bolt pattern
- Ensure the rim is clean and free of damage before mounting the tyre
- Use torque specifications recommended by the vehicle manufacturer when tightening bolts
- Check rim condition and bolt tightness during routine maintenance intervals
22.5×8.25 Questions
What is the rim size and model number
The rim is 22.5×8.25, model 22.5×8.25, designed for steel truck wheels without inner tube
What load can this rim carry
The rim is rated for 3000kg at standard operating pressure
What bolt pattern does it use
It has a 10-bolt pattern with a φ335 PCD and φ26 bolt hole diameter
Is this rim suitable for drive, steer, or trailer axles
It is suitable for all axle positions, provided the vehicle and tyre combination match the load and speed rating
Can the rim be retreaded
Rims are not retreaded. They are reused as structural components in wheel assemblies
Can I mix this rim with other rim types in one container
Yes, multiple rim types and sizes can be included in a single container shipment
Get Pricing For 22.5×8.25
Send the sizes and quantity per size. We will confirm availability, the approval marking for your market and a container plan.
