22.5×11.75 10 Hand Holes

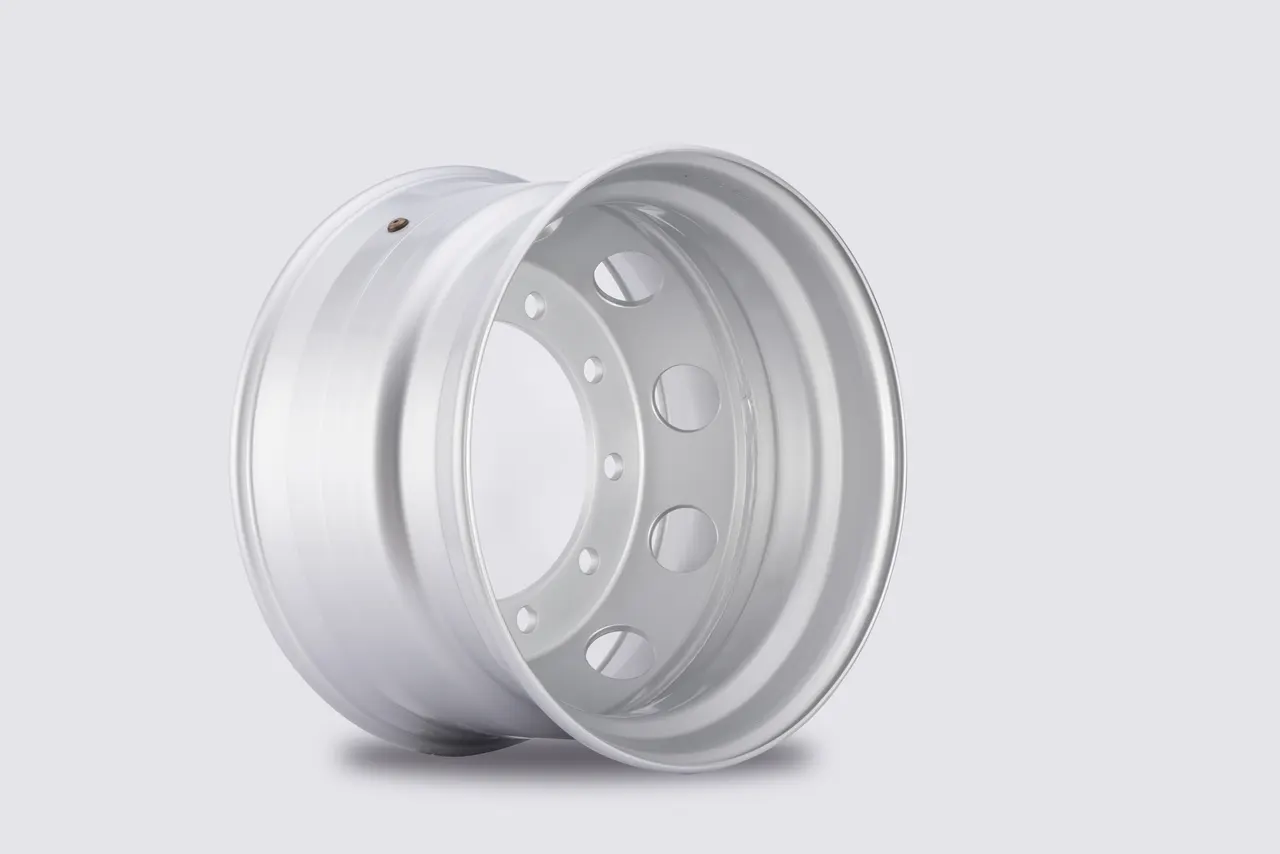

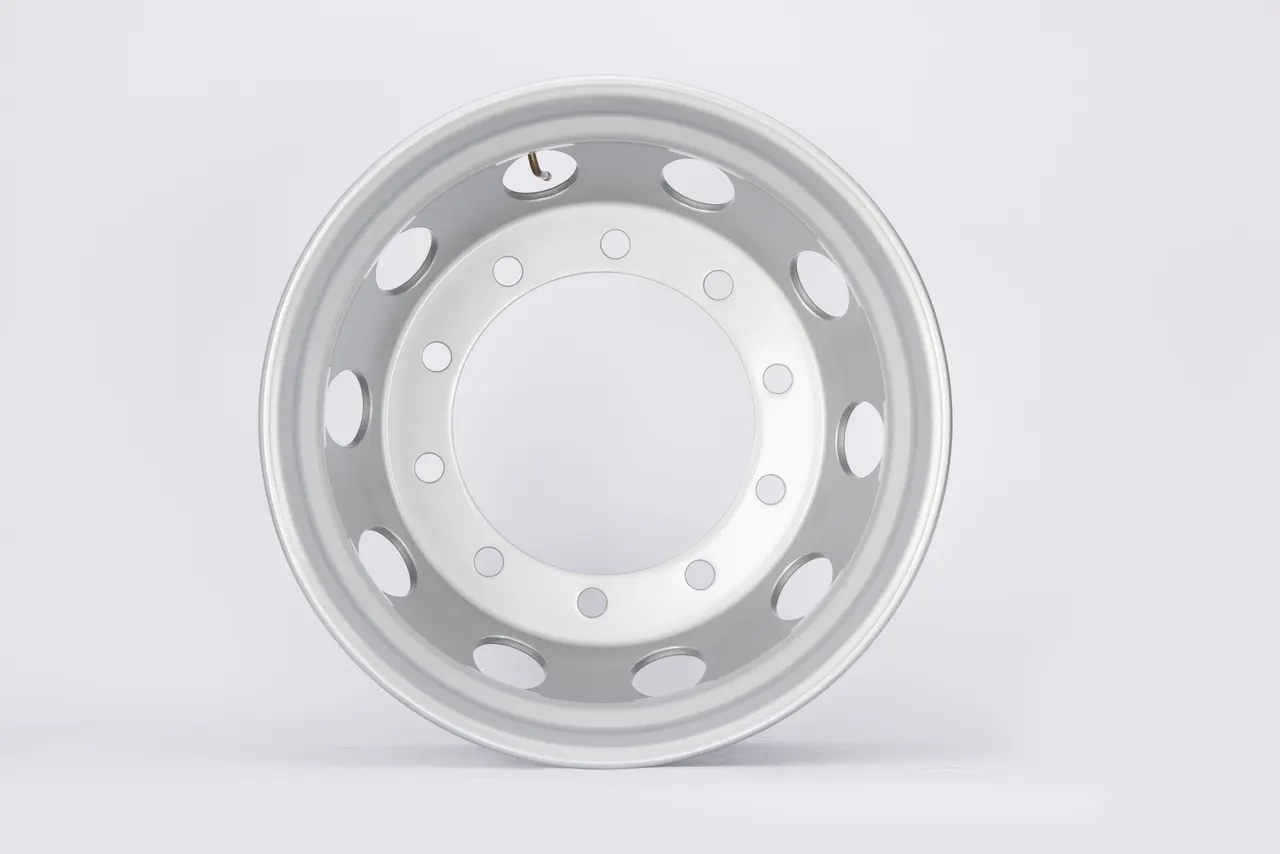

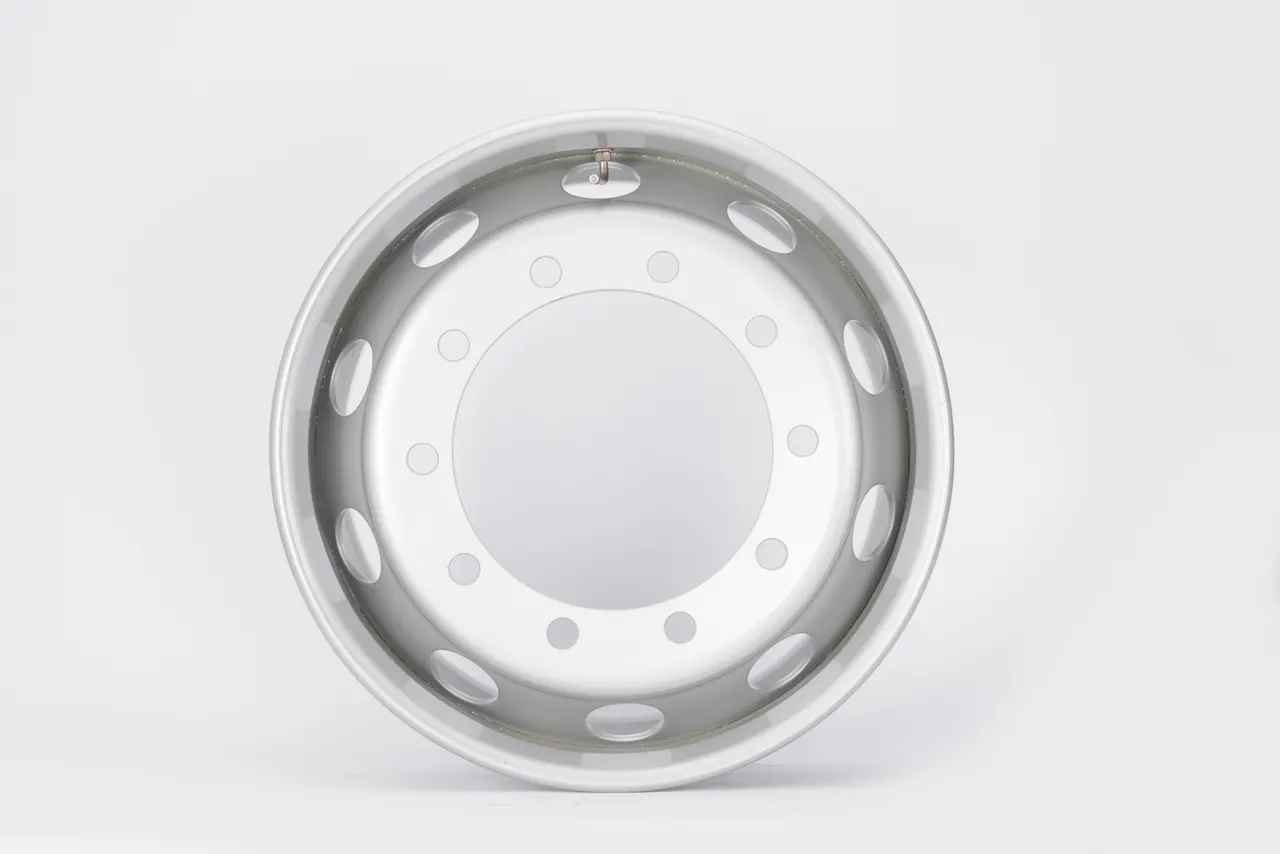

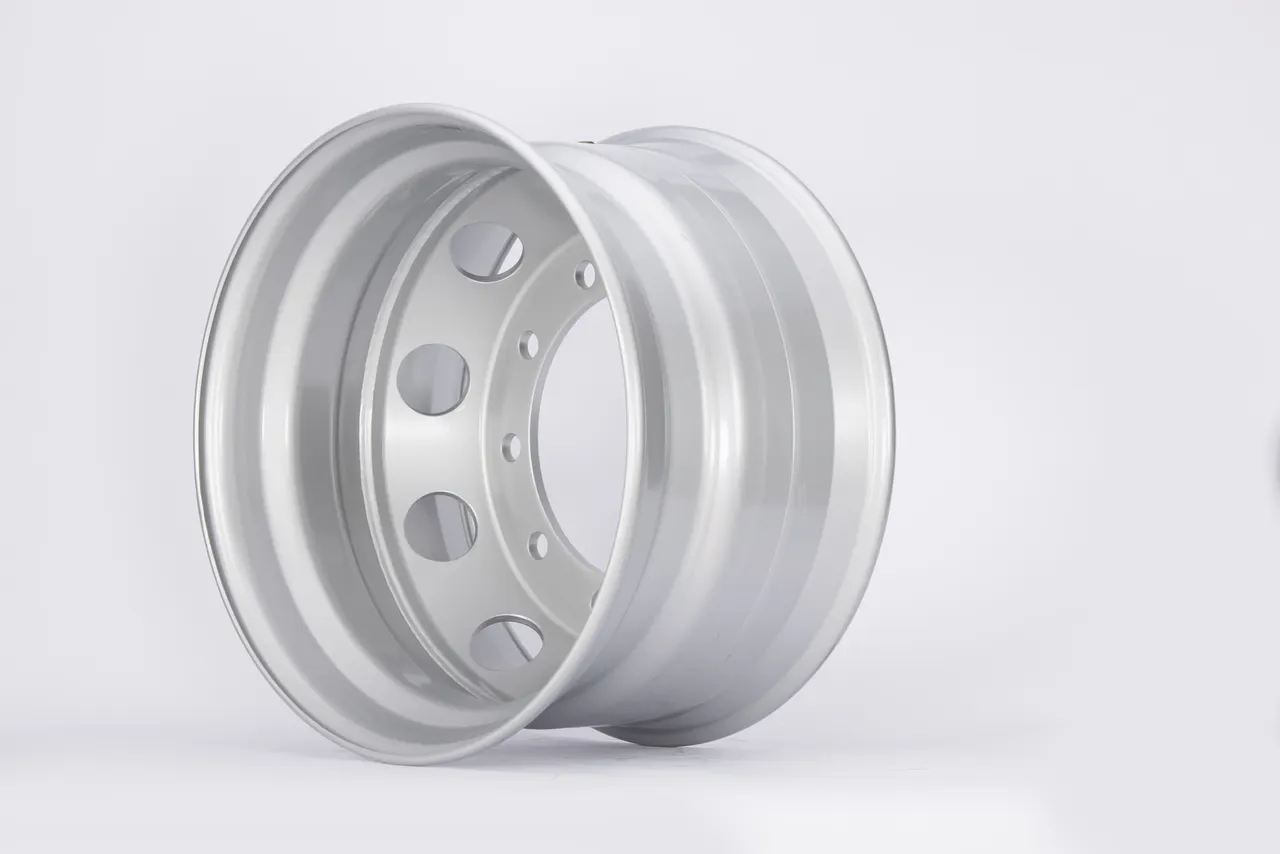

22.5×11.75 is a steel truck rim designed for heavy-duty applications on paved and mixed road surfaces. Built for consistent load support and secure wheel mounting, it features a 120mm offset
Overview
22.5×11.75 is a steel truck rim designed for heavy-duty applications on paved and mixed road surfaces. Built for consistent load support and secure wheel mounting, it features a 120mm offset and a TR572C valve for reliable air retention. The rim profile supports high load ratings and is suitable for use in drive, steer, and trailer positions across various truck and trailer configurations.
- ISO9001
- ISO/TS16949
- CCC
- E-mark
- DOT
- GSO/GCC
- SONCAP
- INMETRO
- NOM
What 22.5×11.75 10 Hand Holes Gives the Operator
120mm offset provides balanced clearance and stability on axle assemblies
TR572C valve type ensures secure air retention and compatibility with standard valve caps
10-φ26 bolt hole pattern with φ335 PCD offers strong mounting integrity on heavy-duty axles
Center hole of φ281 fits common hub sizes used in 22.5 inch wheel systems
Steel construction delivers durability under high load and repeated stress
11.75 inch width supports wide tread tyres commonly used in long-haul and regional transport
Application Scenarios
- Heavy-duty long-haul transport on paved highways with consistent axle loading
- Regional distribution fleets operating on mixed road surfaces including gravel access roads
- Truck and trailer fleets requiring durable, standardised rims for consistent fit and performance
- Fleet maintenance operations where rim consistency reduces downtime and fitting errors
Who It Is For
- Truck and trailer importers sourcing standard steel rims for container shipments
- Fleet operators replacing rims across multiple vehicle types with a single standard size
- Distributors needing a reliable, high-load rim for resale in markets with strict safety standards
- Workshop chains requiring durable rims for repair and replacement in commercial vehicle fleets
What It Is Meant To Fix
Rims that fail under high load due to weak bolt patterns or poor offset design
Inconsistent fit between rim and hub causing vibration and premature wear
Valve leaks or incompatibility due to non-standard valve types
Mismatched rim profiles leading to improper tyre seating and air loss
Lack of standardisation across rim sizes causing inventory complexity and ordering delays
Published Data For 22.5×11.75 10 Hand Holes
These are the figures published for this product. Anything not listed here is confirmed in writing before an order.
- Model22.5×11.75
- Rated Load4250kg
- Distributed Circle (PCD)φ335
- Bolt Hole10-φ26
- Center Holeφ281
- Screw Hole Type1×45°
- Offset120
- Wind Hole Type10-φ70
- Valve TypeTR572C
Technical Features
- Model: 22.5×11.75 steel rim without inner tube
- Rated load capacity: 4250kg per rim
- Bolt hole pattern: 10-φ26 with φ335 PCD
- Center hole: φ281 for hub compatibility
- Offset: 120mm for balanced axle positioning
- Wind hole type: 10-φ70 for improved structural integrity
- Valve type: TR572C for standard air fitting and sealing
- Screw hole type: 1×45° for secure fastening and alignment
Customisation
- Rims can be packed in mixed configurations within a single container shipment
- Surface finish options available upon request, including zinc coating or paint
- Custom marking on rim flange or hub face for brand or fleet identification
Quality Control
- Rim profile verified against dimensional standards during production
- Bolt hole and PCD checked for accuracy using calibrated gauges
- Surface finish inspected for cracks, burrs, or defects before packaging
- Production conducted under ISO9001 and ISO/TS16949 systems
How It Compares
- Compared with A lighter aluminium rimSteel rim offers higher load capacity and better resistance to impact damage, though it is heavier
Getting the Most Out Of It
- Mount only on axles rated for 4250kg per rim and ensure proper torque on all bolts
- Use TR572C valve caps to prevent air leakage and contamination
- Inspect rim flanges and bead seats before mounting tyres to avoid damage
- Ensure hub and rim center hole alignment to prevent vibration and uneven wear
- Do not use on vehicles exceeding the rated load or with mismatched wheel assemblies
22.5×11.75 10 Hand Holes Questions
What is the load rating of the 22.5×11.75 rim
The rim is rated for 4250kg per unit under standard operating conditions.
Which wheel positions can this rim be used in
It is suitable for drive, steer, and trailer positions on trucks and trailers.
What bolt pattern does this rim have
It has a 10-φ26 bolt hole pattern with a 335mm PCD.
Is the rim compatible with standard truck tyres
Yes, it is designed for 22.5 inch tyres and compatible with standard rim profiles used in commercial vehicles.
What certifications does the rim carry
Resunyou rims comply with ISO9001 and ISO/TS16949. Additional certifications may apply based on destination market.
Can I mix this rim with other rim types in one container
Yes, container shipments can include multiple rim types and sizes as part of a consolidated order.
Get Pricing For 22.5×11.75 10 Hand Holes
Send the sizes and quantity per size. We will confirm availability, the approval marking for your market and a container plan.
