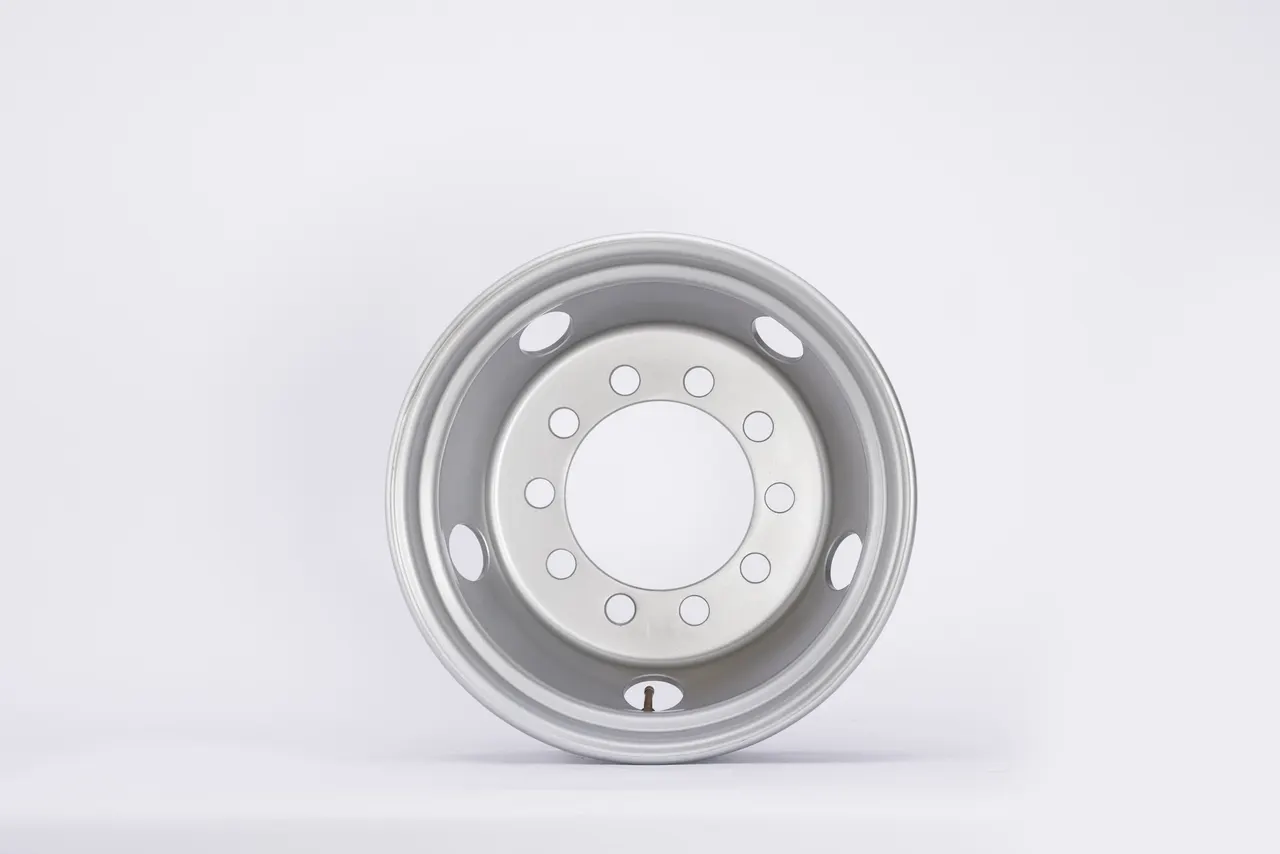

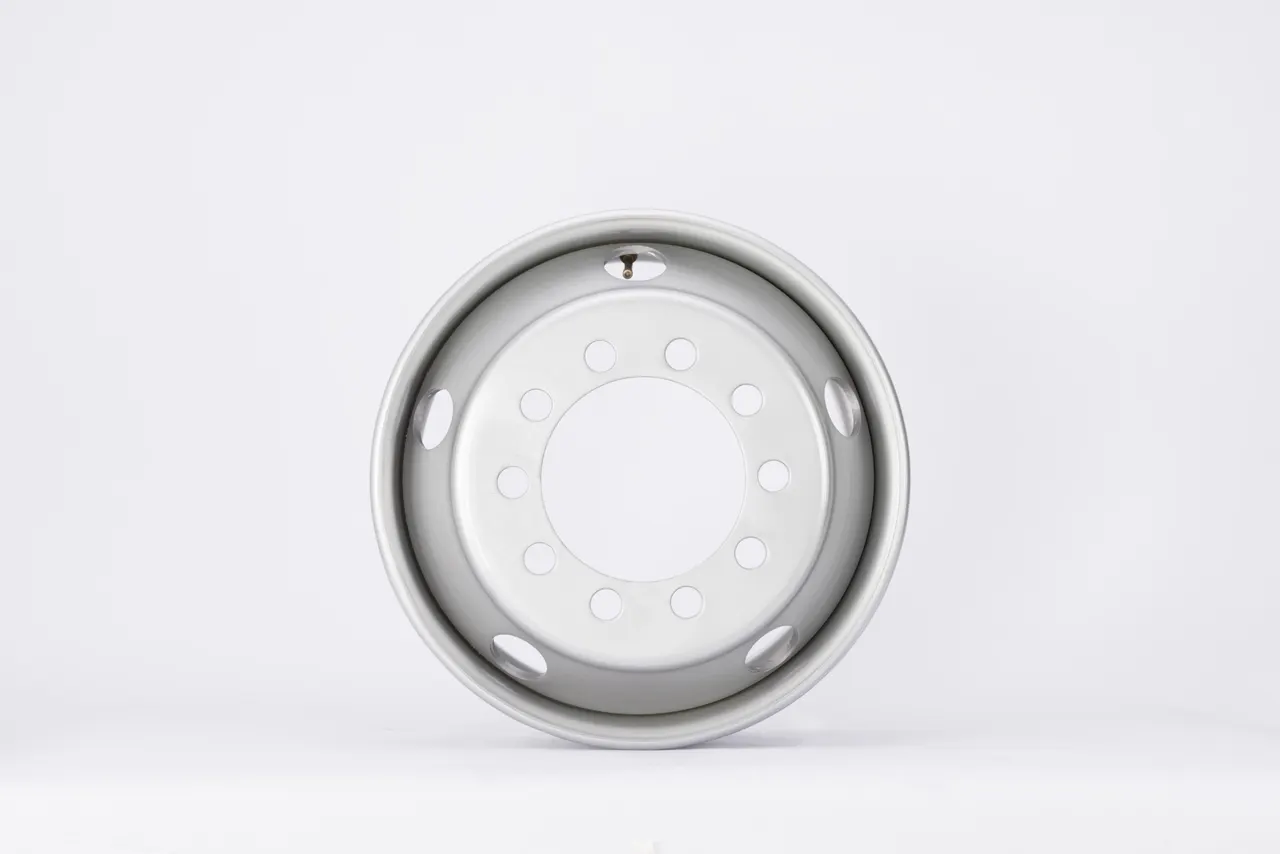

17.5×6.75
The 17.5×6.75 steel rim is designed for medium-duty trucks and buses operating on paved and mixed road surfaces. It features a V3-20-4 offset profile, a 10-φ26 bolt pattern, and a φ225 PCD f
Overview
The 17.5×6.75 steel rim is designed for medium-duty trucks and buses operating on paved and mixed road surfaces. It features a V3-20-4 offset profile, a 10-φ26 bolt pattern, and a φ225 PCD for secure mounting on standard axles. The rim supports a rated load of 2000kg and is built for durability in regional distribution and urban transport applications.
- ISO9001
- ISO/TS16949
- CCC
- E-mark
- DOT
- GSO/GCC
- SONCAP
- INMETRO
- NOM
What 17.5×6.75 Gives the Operator
V3-20-4 offset profile ensures stable fit on drive and trailer axles with minimal lateral movement
10-φ26 bolt hole pattern provides strong connection to hub and reduces loosening under vibration
φ225 PCD matches common axle standards in medium-duty truck fleets across Asia, Africa and Latin America
5-φ55/ valve type allows easy valve stem installation and sealing in high-pressure environments
Steel construction with no inner tube design reduces weight and eliminates puncture risk from inner tube failure
Application Scenarios
- Medium-duty urban delivery trucks operating on city streets with frequent stops and starts
- Regional distribution fleets running on paved and lightly graded roads with moderate axle loads
- Bus operators using 17.5 inch rims on city and intercity routes with consistent load profiles
Who It Is For
- Importers sourcing steel rims for medium-duty truck and bus fleets in emerging markets
- Distributors needing a reliable rim for replacement or fleet maintenance in 17.5 inch applications
- Fleet operators replacing rims on older models with 17.5×6.75 specifications
What It Is Meant To Fix
Rims that wobble or misalign due to poor offset or bolt pattern mismatch on axle hubs
Inner tube failures in rim systems that increase downtime and maintenance costs
Incompatible bolt patterns that prevent mounting on standard truck axles across different regions
Published Data For 17.5×6.75
These are the figures published for this product. Anything not listed here is confirmed in writing before an order.
- Model17.5×6.75
- Rated Load2000kg
- Distributed Circle (PCD)φ225
- Bolt Hole10-φ26
- Center Holeφ176
- Screw Hole Type1×45°
- Wind Hole Type142
- Valve Type5-φ55/Oval
- OffsetV3-20-4
Technical Features
- 17.5×6.75 rim size with V3-20-4 offset for balanced load distribution and axle stability
- φ225 PCD with 10-φ26 bolt holes for secure and reliable hub connection
- Center hole of φ176 to fit standard axle shafts without additional adapters
- Screw hole type 1×45° for proper alignment during tightening and torque application
- Wind hole type 142 for consistent rim-to-tire bead seating and air retention
Customisation
- Rims can be packed in mixed configurations within a single container for multi-item orders
- Surface finish available in black, galvanized, or powder-coated options upon request
- Rim marking and branding can be added to match customer specifications or fleet identity
Quality Control
- Rim profile checked for dimensional accuracy using calibrated gauges before final inspection
- Bolt hole alignment verified with PCD gauge to ensure compatibility with standard hubs
- Surface finish inspected for cracks, burrs or welding defects before coating application
- Production carried out under ISO9001 and ISO/TS16949 systems with documented traceability
How It Compares
- Compared with An aluminium rimSteel rim is heavier but more durable under heavy loads and rough road conditions, while aluminium is lighter but more prone to denting
- Compared with A rim with inner tubeThis no-inner-tube design reduces weight and eliminates inner tube punctures, but requires a compatible tubeless tyre
Getting the Most Out Of It
- Ensure the rim is compatible with the axle hub's PCD and center hole size before mounting
- Use a torque wrench to tighten bolts to the manufacturer's recommended specification
- Inspect the rim surface and bead seat for damage before mounting a new tyre
- Verify that the valve stem fits the 5-φ55/ type and is sealed properly to prevent air loss
17.5×6.75 Questions
What is the load rating of the 17.5×6.75 rim
The rim has a rated load of 2000kg, suitable for medium-duty truck and bus applications.
Which vehicles use a 17.5×6.75 rim
Commonly used on medium-duty trucks, city buses, and regional delivery vehicles with 17.5 inch wheel systems.
What is the bolt pattern and PCD of this rim
The rim has a 10-φ26 bolt hole pattern and a φ225 PCD, standard for many medium-duty axles.
Is this rim compatible with tubeless tyres
Yes, the rim is designed for tubeless operation with a sealed bead seat and compatible valve type.
Can the rim be used on both drive and trailer axles
Yes, the 17.5×6.75 rim is suitable for both drive and trailer axles when used with appropriate load-rated tyres.
What certifications does this rim carry
Resunyou rims comply with ISO9001 and ISO/TS16949 standards. Additional certifications depend on the destination market and are confirmed per order.
Get Pricing For 17.5×6.75
Send the sizes and quantity per size. We will confirm availability, the approval marking for your market and a container plan.
