Spout Pouches and Bag in Box

BIB Packing With Spout

BIB packing with spout is a multilayer food grade aluminum bag in box liner with heat sealed edges and a butterfly shape valve for dispensing. It packs juice wine water milk jam and oil in capacities from 2L to 220L and ships flat for

Request A Quote Request A Sample

Product Overview

BIB packing with spout is a multilayer food grade aluminum bag in box liner with heat sealed edges and a butterfly shape valve for dispensing. It packs juice wine water milk jam and oil in capacities from 2L to 220L and ships flat for loading into an outer carton. The outer surface uses gravure printing and structures combine NY VMPET and PE films.

Key Benefits

  • Holds bulk liquids from 2L to 220L inside a carton so rigid drums and bottles are replaced
  • Four side heat sealing with butterfly valve gives controlled dispensing without removing the bag
  • Multiple layer food grade aluminum structure protects juice wine milk jam and oil during storage
  • Gravure printed outer surface carries your brand graphics directly on the bag in box liner
  • Flat empty bags pack 180 to 350 pieces per export carton to cut inbound freight volume
  • Standard dimensions from 280x320mm to 490x670mm match listed export carton sizes

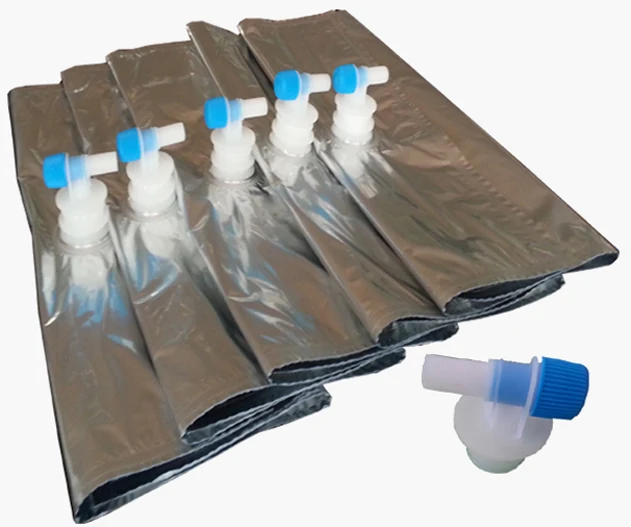

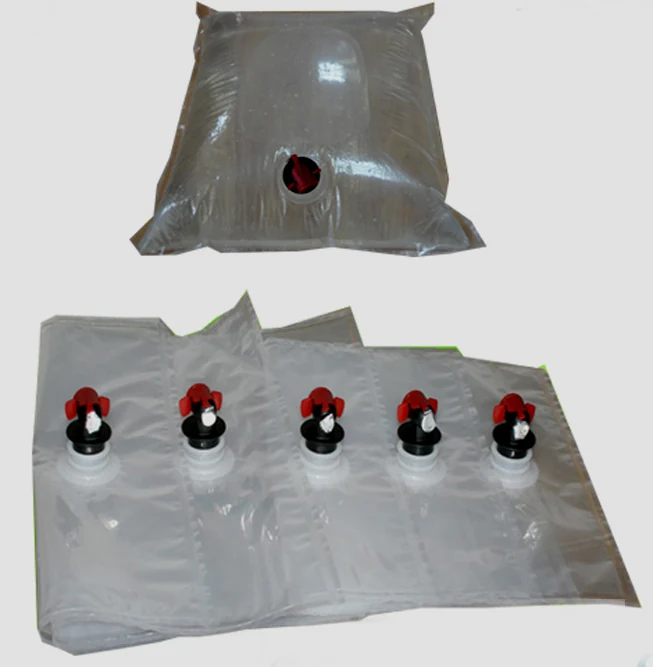

Silver foil bag-in-box liner with black dispensing spout and spout detail on white backgroundFive silver foil bags with white and blue dispensing taps on white backgroundTransparent plastic bag-in-box liners with red and black dispensing taps on white background

Problems It Solves

  • Rigid drums waste freight space while empty flat BIB bags pack hundreds per carton
  • Single layer liners leak or let in oxygen while multilayer NY VMPET PE resists failure
  • Pouring from bulk packs spills product while butterfly valve gives controlled portion dispensing
  • Unprinted bulk bags hide branding while gravure printing puts graphics on the liner surface
  • Mixed carton sizes complicate export while listed dimensions and carton counts simplify planning

Who It Is For

  • Beverage brands and co-packers filling juice wine water and milk into bag in box
  • Food processors packing jam and edible oil who need a heat sealed bulk liner
  • Importers and distributors sourcing 2L to 220L dispenser bags for resale to fillers
  • Catering and vending operators dispensing drinks from a carton housed spout bag
Application

Where This Format Is Used

  • Juice and wine packed in 3L to 10L bags dispensed through a box tap at retail
  • Drinking water stored in 10L to 25L liners for office and household dispensers
  • Milk and liquid dairy filled into food grade aluminum bags for bulk catering supply
  • Jam and edible oil packed in 5L to 20L heat sealed bags for food service distribution
  • Large volume 50L to 220L bags used for bulk transport of water juice or oil
Construction

Technical Features

  • Four side sealing construction forms a closed liner fitted with butterfly shape valve
  • Multiple layer food grade aluminum structures combine NY VMPET and PE films
  • Heat sealing closes all edges to hold liquids from 2L up to 220L capacity
  • Gravure printing applied to the outer surface for bag in box product identification
  • Documented structures include PE35 VMPET12 PE35 plus PE50 for 1L to 10L sizes
  • Larger 20L and 25L sizes use added PE50 layer with dimensions up to 490x670mm
Data

Specifications

Figures below are the documented values for this format. Anything not listed is made to your drawing.

ItemBib Packing, Bag in box packing, aseptic Bag, BIB bag in box spout dispenser packing bag
Capacity2L,3L,5L,10L,20L,50L,220L
MaterialNY/VMPET/PE+PE, NY/PE+PE
Style4 sides sealing with butterfly shapes valve
Surface HandlingGravure Printing
Sealingheat sealing
Applicationjuice/wine/water/milk/jam/oil
MOQ20000 pcs
PackagingExport carton
1L-3L StructurePE35/VMPET12/PE35+PE50
1L-3L Dimensions280*320mm
1L-3L Carton550*450*380mm 350PCS/CTN 15KG
5L StructurePE35/VMPET12/PE35+PE50
5L Dimensions320*380mm
5L Carton600*470*340mm 200PCS/CTN 17KG
10L StructurePE35/VMPET12/PE35+PE50
10L Dimensions490*410mm
10L Carton590*410*510mm 180PCS/CTN 16KG
20L StructurePE35/VMPET12/PE35+PE50+PE50
20L Dimensions490*625mm
20L Carton720*410*400mm 200PCS/CTN 30KG
25L StructurePE35/VMPET12/PE35+PE50+PE50
25L Dimensions490*670mm
25L Carton720*410*400mm 200PCS/CTN 30KG

Materials

  • NY outer film provides strength for the multilayer food grade BIB liner structure
  • VMPET interlayer adds aluminum based barrier inside the PE35 VMPET12 PE35 combination
  • PE sealant layers including PE50 form the heat sealed food contact interior surface
  • Combined NY PE plus PE option covers applications listed without VMPET barrier layer

Customisation

  • Capacity selected from 2L 3L 5L 10L 20L 50L and 220L bag options
  • Dimensions matched to listed sizes from 280x320mm to 490x670mm formats
  • Structure chosen between NY VMPET PE plus PE and NY PE plus PE
  • Gravure printed surface carries your layout for product and brand identification
  • Valve and heat sealing configuration set for juice wine water milk jam or oil
In the Factory

How This Format Is Made

  1. Confirm capacity structure and dimensions from the 1L to 25L specification table
  2. Prepare artwork for gravure printing on the outer surface handling
  3. Combine multilayer films in NY VMPET PE plus PE or NY PE plus PE
  4. Apply gravure printing to the liner surface before bag forming
  5. Form bags with four side heat sealing and fit butterfly shape valve
  6. Pack flat bags into export cartons per listed pieces per carton counts
Control

Quality Checks on This Run

Trade Offs

Compared With the Alternatives

Rigid drum or jerrycanDrums stack without outer carton but cost more freight empty while flat BIB bags save volume
Stand up spout pouchRetail spout pouches stand on shelf alone while BIB liners need a carton box to dispense
Single layer PE linerSingle PE costs less but lacks VMPET barrier while multilayer aluminum structure protects oxygen sensitive liquids
Before You Order

Use Guide

  1. Select capacity first from 2L 3L 5L 10L 20L 50L or 220L range
  2. Match dimensions and structure to the table such as 320x380mm for 5L size
  3. State liquid type among juice wine water milk jam or oil for structure selection
  4. Supply artwork for gravure printing with text and graphics ready for printing
  5. Confirm MOQ of 20000 pcs and destination port so export carton quantity can be planned
Answers

BIB Packing With Spout — Buyer Questions

What capacities can you supply in BIB packing with spout?

We supply 2L, 3L, 5L, 10L, 20L, 50L and 220L. Listed dimensions cover 1L-3L to 25L, for example 280*320mm for 1L-3L and 490*670mm for 25L.

What material structures do you use?

Multiple layer food grade aluminum structures in NY/VMPET/PE+PE and NY/PE+PE, including PE35/VMPET12/PE35+PE50 for 1L to 10L sizes.

What is your MOQ?

MOQ is 20000 pcs. Export cartons pack 180 to 350 pieces per carton depending on size.

How are the bags packed for export?

Bags ship flat in export cartons. For example 5L uses 600*470*340mm cartons at 200PCS/CTN 17KG and 10L uses 590*410*510mm at 180PCS/CTN 16KG.

Which liquids is this bag for?

Industrial use covers juice, wine, water, milk, jam and oil dispensed through the butterfly shapes valve.

What sealing and printing do you use?

Bags use 4 sides sealing with butterfly shapes valve closed by heat sealing, with gravure printing on the surface handling.

Related

Other Formats Buyers Compare

Background Reading

Guides Behind This Format

Quote BIB Packing With Spout to Your Drawing

Send the size or fill volume, film structure, print colour count, quantity and destination port and we will price it properly.
