Aseptic Bag in Box Packing

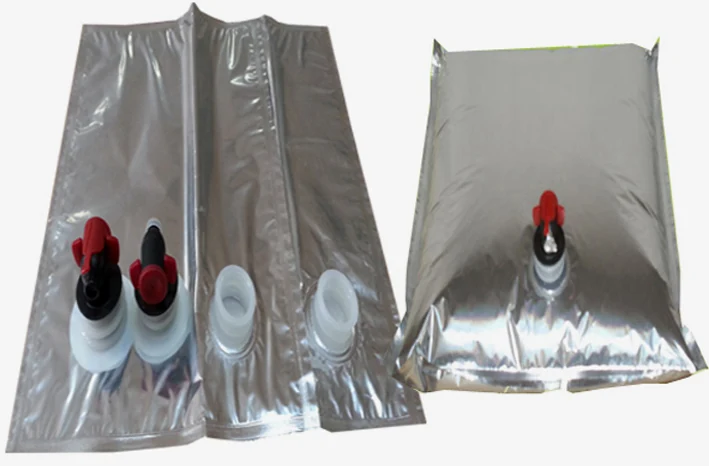

Aseptic bag in box packing is a multilayer BIB bag with spout dispenser and butterfly shapes valve, sealed on four sides for bulk liquid packing.
Product Overview
Aseptic bag in box packing is a multilayer BIB bag with spout dispenser and butterfly shapes valve, sealed on four sides for bulk liquid packing. It is made in NY/VMPET/PE+PE and NY/PE+PE with gravure printing and heat sealing, in capacities from 2L, 3L, 5L, 10L, 20L, 50L to 220L. It packs juice, wine, water, milk, jam and oil for box supported transport in export cartons.
Key Benefits
- Covers 2L to 220L in one BIB format so bulk juice wine water milk jam and oil share one pack type
- Four side sealing with butterfly shape valve dispenses liquid without removing the bag from the box
- Multilayer NY VMPET PE structure supports aseptic bag in box packing for liquid food and oil products
- Gravure printed surface carries your brand graphics directly on the BIB bag inside the outer carton
- Heat sealed seams close the NY PE and VMPET webs for contained transport of 1L to 25L sizes
- Export carton packing from 180 to 350 pieces per carton simplifies inbound handling and storage planning
Problems It Solves
- Rigid bottles and drums waste space and weight when shipping water milk juice wine and oil
- Single layer bags leak under bulk load while NY VMPET PE multilayer film contains 2L to 220L
- Pouring from open bags spills product while butterfly shapes valve gives controlled box dispensing
- Unprinted bulk bags hide brand identity while gravure printing puts graphics on the BIB bag
- Loose bags damage in transit while export carton counts from 180 to 350 pieces protect handling
Who It Is For
- Beverage brands packing juice wine water and milk in 2L to 20L dispensing bags for box sale
- Food processors packing jam and oil in multilayer BIB bags with heat sealed seams and valve
- Importers and distributors buying 180 to 350 pieces per export carton for bulk liquid resale
- Co-packers filling 1L to 25L sizes to listed dimensions such as 320*380mm and 490*625mm
Application
Where This Format Is Used

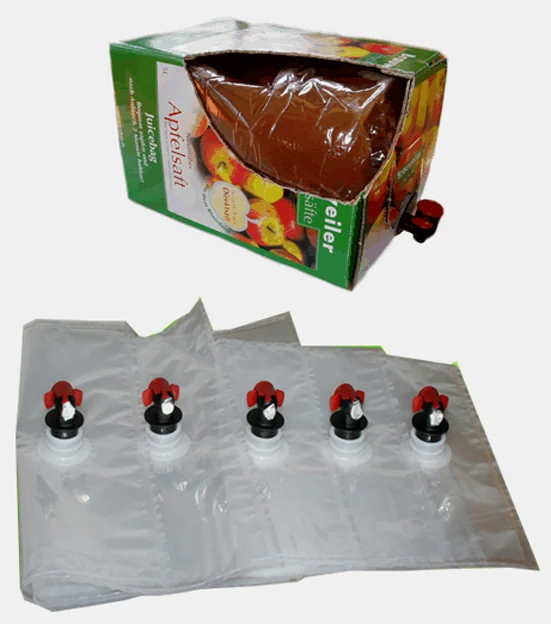

- Juice and wine packed in 2L to 10L BIB bags dispensed from the box for retail and foodservice use
- Water and milk packed in 5L to 20L bags for bulk distribution without rigid bottles or jerrycans
- Jam packed in bag in box with butterfly valve for controlled dispensing in catering and processing lines
- Edible oil packed in 10L to 25L multilayer bags shipped in export cartons for distributor handling
- Bulk liquids held in 20L 25L 50L and 220L sizes where box support replaces drums and rigid tanks
Construction
Technical Features
- Four side sealing construction in dimensions from 280*320mm to 490*670mm by volume size

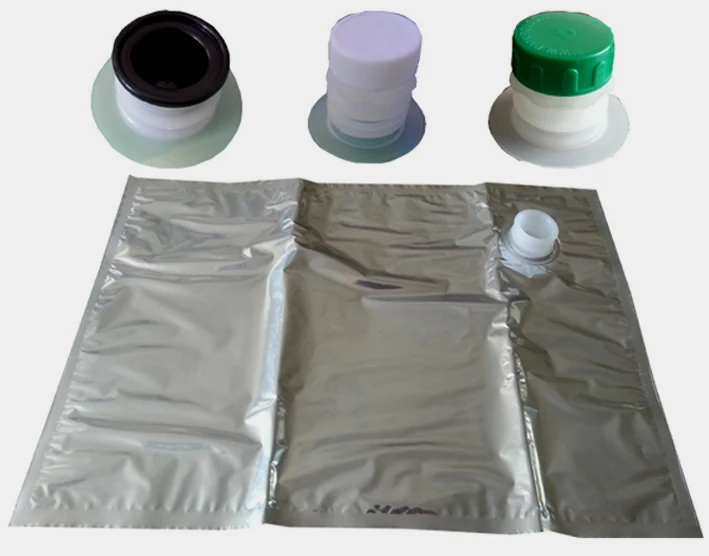

- Butterfly shapes valve fitted for spout dispenser packing and dispensing from inside the box
- Material options NY VMPET PE plus PE and NY PE plus PE for multilayer BIB bags
- Detailed structures PE35 VMPET12 PE35 plus PE50 with extra PE50 on 20L and 25L sizes
- Gravure printing surface handling for graphics with heat sealing to close seams and edges
- Capacity range 2L 3L 5L 10L 20L 50L and 220L for juice wine water milk jam and oil
Data
Specifications
Figures below are the documented values for this format. Anything not listed is made to your drawing.
| Item | Aseptic Bag, Bib Packing, BIB bag in box spout dispenser packing bag |
|---|---|
| Capacity | 2L, 3L, 5L, 10L, 20L, 50L, 220L |
| Material | NY/VMPET/PE+PE, NY/PE+PE |
| Style | 4 sides sealing with butterfly shapes valve |
| Surface Handling | Gravure Printing |
| Sealing | heat sealing |
| Industrial Use | juice/wine/water/milk/jam/oil |
| MOQ | 20000 pcs |
| Packaging | Export carton |
| 1L-3L Bag Size | 280*320mm |
| 5L Bag Size | 320*380mm |
| 10L Bag Size | 490*410mm |
| 20L Bag Size | 490*625mm |
| 25L Bag Size | 490*670mm |
| 1L-3L Structure | PE35/VMPET12/PE35+PE50 |
| 20L Structure | PE35/VMPET12/PE35+PE50+PE50 |
| 1L-3L Export Packing | 350PCS/CTN |
| 10L Export Packing | 180PCS/CTN |
| 5L Carton Size | 600*470*340mm |
| 10L Carton Size | 590*410*510mm |
| 20L Carton Size | 720*410*400mm |
Materials
- NY ply in NY VMPET PE plus PE and NY PE plus PE structures forms the outer strength layer
- VMPET ply in PE35 VMPET12 PE35 construction provides the metallised middle barrier ply
- PE sealant plies including PE50 with added second PE50 on 20L and 25L bag sizes
- Multiple layer food grade aluminum BIB bag construction for juice wine water milk jam oil contact
Customisation
- Capacity selected from 2L 3L 5L 10L 20L 50L and 220L to match your filling and dispensing need
- Dimensions matched to volume such as 280*320mm for 1L-3L and 490*625mm for 20L bags
- Structure chosen between NY VMPET PE plus PE and NY PE plus PE with PE50 combinations
- Gravure printed graphics customised on the bag surface with heat sealed four side construction
In the Factory
How This Format Is Made
- Gravure printing applied to the film surface to carry graphics before bag making and sealing
- Four side sealing converts film to listed bag sizes such as 280*320mm 320*380mm and 490*410mm
- Butterfly shapes valve inserted as spout dispenser with heat sealing to close seams and edges
- Finished bags counted into export cartons from 180 to 350 pieces per carton by volume size
Control
Quality Checks on This Run
Trade Offs
Compared With the Alternatives
| Rigid jerrycan or drum | Drums stack without a box but weigh more empty; BIB bags ship flat in cartons and dispense through a valve |
|---|---|
| Stand up spout pouch | Spout pouches stand on shelf for retail; bag in box suits 2L to 220L bulk volumes supported by an outer box |
| Single layer PE bag | Single PE costs less for short use but multilayer NY VMPET PE contains juice wine milk jam and oil better |
Before You Order
Use Guide
- Send target capacity from 2L 3L 5L 10L 20L 50L or 220L before we confirm dimensions and carton count
- State product among juice wine water milk jam and oil so the NY VMPET PE structure can be matched
- Confirm structure choice such as PE35 VMPET12 PE35 plus PE50 for your volume and handling route
- Supply artwork for gravure printing with fonts outlined so the bag graphics separate correctly
- Plan orders around 20000 pcs MOQ and export carton sizes from 550*450*380mm to 720*410*400mm
Answers
Aseptic Bag in Box Packing — Buyer Questions
What capacities can you supply in bag in box?
We supply 2L, 3L, 5L, 10L, 20L, 50L and 220L, with listed bag sizes from 280*320mm for 1L-3L to 490*670mm for 25L.
What material structures do you use?
We use NY/VMPET/PE+PE and NY/PE+PE, including PE35/VMPET12/PE35+PE50 and added PE50 on 20L and 25L sizes.
What valve and sealing do the bags use?
Bags use 4 sides sealing with butterfly shapes valve and heat sealing to close seams for spout dispenser packing.
What products are these bags for?
They are for juice, wine, water, milk, jam and oil packed as aseptic BIB bag in box with spout dispenser.
What is your MOQ?
MOQ is 20000 pcs. Confirm your capacity mix so carton counts from 180 to 350 pieces can be planned.
How are the bags packed for export?
In export cartons: 350PCS/CTN for 1L-3L, 200PCS/CTN for 5L, 180PCS/CTN for 10L, and 200PCS/CTN for 20L and 25L.
