Inverter Power Supply
A variable-frequency AC source that can stand in for the mains of any destination market — and for 400 Hz aircraft, marine and communications buses.
Built for the bench that has to look like every grid
The HPA series delivers maximum rated power for any output voltage up to 300 VAC (520 VAC per phase) and at any frequency between 40 Hz and 499.9 Hz. Input frequency is listed as 50 Hz, 60 Hz or 400 Hz.
Output is a galvanically isolated sine wave. PWM keeps the cabinet compact; an IGBT module is specified for efficiency, low noise and reliability. A 300% overload capability is published, with electronic / instant-trip / alarm protection for overload, over-temperature, instant cut-off and short circuit.
Published behaviour
| Family | HPA series variable frequency converters |
|---|---|
| Role | Simulate the AC voltage and frequency used in all countries; R&D, production test, QA |
| Input frequency | 50 Hz, 60 Hz or 400 Hz |
| Output voltage | 0–300 VAC selectable (520 VAC per phase on the published high figure) |
| Output frequency | 40–499.9 Hz; programmable key-lock setting |
| Waveform | Pure and stable sine wave, galvanically isolated |
| Topology notes | PWM; IGBT module |

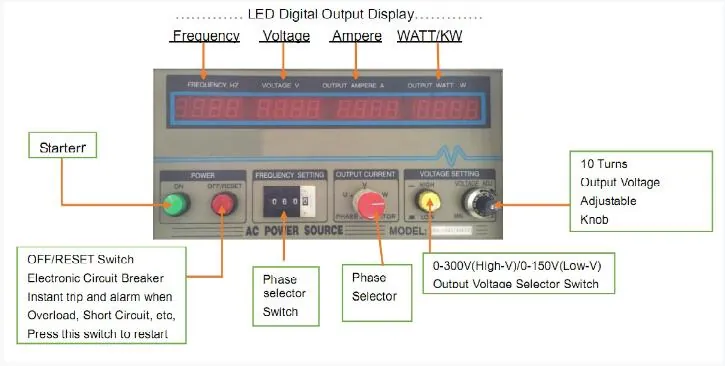

| Metering | LED display of output voltage, frequency, ampere, wattage and power factor |
| Overload | Sustained 300% overload capability |
| Load types | Resistive, capacitive, inductive and non-linear |
| Start-up | Self-test at power on |
kVA frame sizes for the HPA family are not printed on the live product page. Ask for the rating table with the enquiry.
Questions buyers actually ask
Can one cabinet cover 50 Hz export goods and 400 Hz avionics?
The published output range is 40–499.9 Hz and the copy lists commercial 50/60 Hz plus communication, military, avionics and marine 400 Hz. Confirm the current rating for the 400 Hz point before treating it as dual-use.
Is the output isolated?
Yes. The page states galvanically isolated, with a no-harmonic-distortion (EMI, EMC) claim attached to that sentence.
