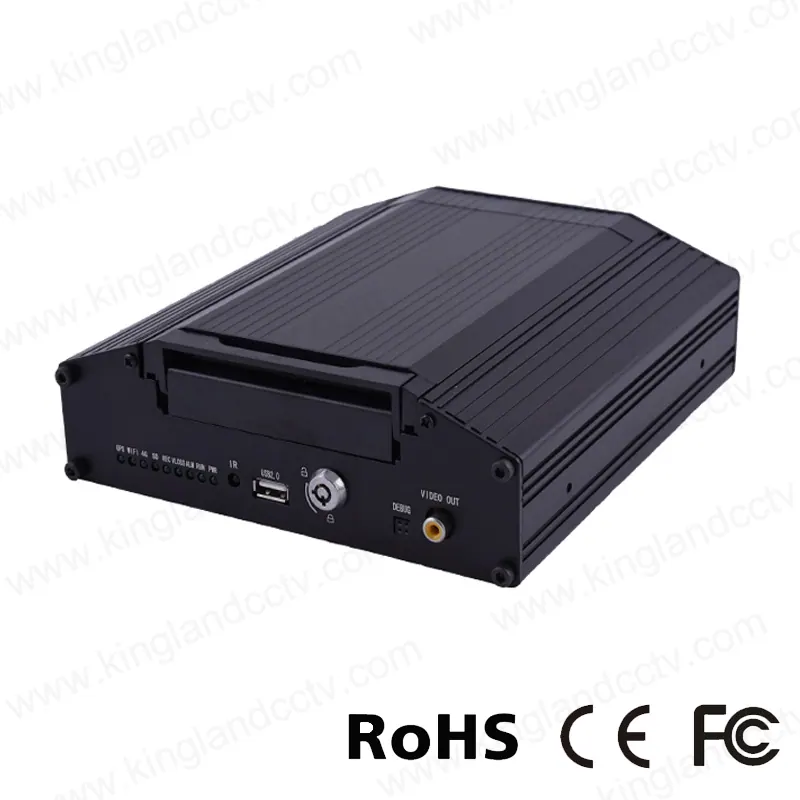

8CH 720P MDVR GPS 3G 4G WIFI Mobile DVR
- H.264 video compression, multi code stream
- Support 8CH 1080P/720P HD real-time video inputs
- 8-36V wide voltage power supply, super low power consumption
- Support a 2T 2.5 -inch HDD and 1 256G SD card storage
OEM and ODM available on this model: branding, firmware, cable length and housing changes are handled by our own engineers.
Specifications
| Video Rate PAL | 100 fps,CCIR625line,50 scenes |
|---|---|
| NTSC | 120 fps,CCIR525line,60 scenes |
| CIF | 256Kbps - 1.5Mbps,8 grades image quality for optional |
| HD1 | 600Kbps - 2.5Mbps,8 grades image quality for optional |
| D1 | 800Kbps - 3Mbps,8 grades image quality for optional |
| 720P | 800Kbps - 4Mbps,8 grades image quality for optional |
| Power and Consumption Input Voltage DC | +8V - +36V |
Product Description:
- H.264 video compression, multi code stream.
- Support 8CH 1080P/720P HD real-time video inputs. Also, support 8CH analog cameras inputs or compound inputs for 4CH HD cameras and 4CH analog cameras. 3.1CH VGA output is optional.
- With exclusive pre-allocated type vehicle file system technology, it solved the file fragmentation problems which caused by overwrite, SD card data loss and SD card couldn’t be found, keep the data completed and stable. 5.8-36V wide voltage power supply, super low power consumption. With overload/ undervoltage/ shortcircuit/ reversing protection, support all vehicles.
- Support a 2T 2.5 -inch HDD and 1 256G SD card storage 7.With watchdog abnormal restart protection function, it can better protect the machine and video.
- Delayed video recording functions when vehicle is shut down (time settings can be up to 24 hours).
- Various video recording modes to meet different demands, such as automatic recording, manual recording, alarm recording, etc.
- Support 4CH alarming inputs and 1CH independent alarm input.
- Optional for 1CH RS232 Serial port or 1CH RS485 extension.
- Support GPS/G-Sensor.
- Support remote operation and monitoring by 3G and 4G.
- Support Wifi and automatic data download.
- Support ministry of communications agreement, support SMS remote configuration and equipment control.
- Support voice broadcast, intercom and text schedule dispatch.
- Support fuel sensor, temperature sensor, POS, LED advertising screen.
- Support shockproof aviation connector, easy to plug or pull out, with best quality and best price, stable and reliable.
- With full enclosed lock design, it can prevent the man-made sabotage effectively; Support mouse operating.
- Support all vehicles, including bus, taxi, truck, school bus, etc.
Specifications:
Operating System Linux
Language English, Chinese or Customized language.
Video Compression H.264
OSD Support time, date, vehicle ID, image, etc.
GUI OSD Interface Can external connect to LCD and set the system specifications by
remote
Video and Recording Video Input 8CH 720P AHD/Analog/Compound video input, aviation connector,
1.0Vp-p, 75Ω
Video Output 1CH Compound video output with optional VGA output, 1.0Vp-p, 75Ω.
Support 1CH full screen and 4CH division.
Preview Single/4CH Pictures Preview, support full screen of event trigger orback
Where It Is Used
Send this model name with your enquiry together with the quantity and the destination market, and we will confirm availability and OEM options.
