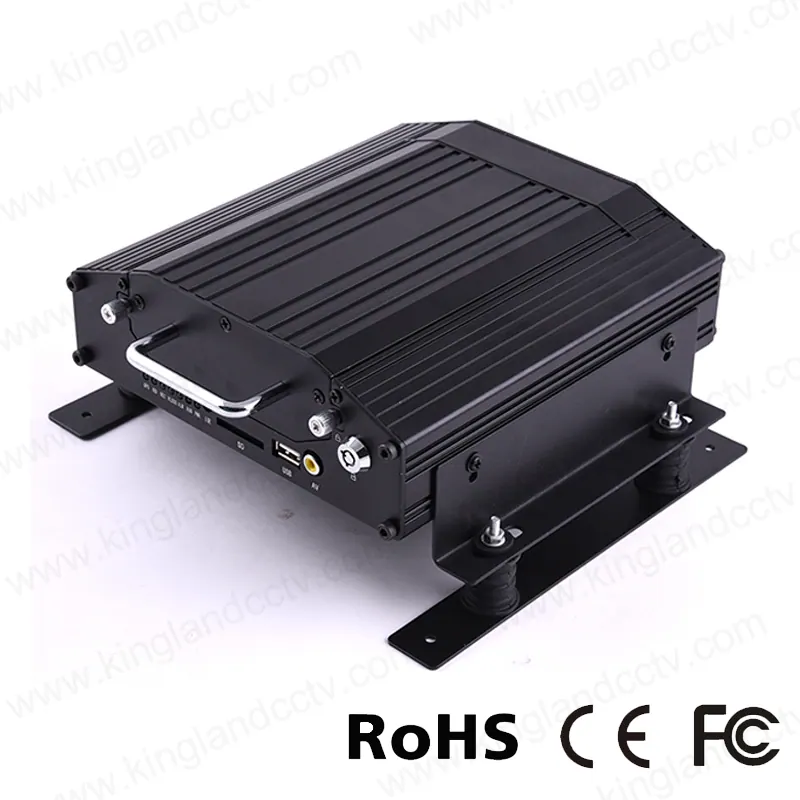

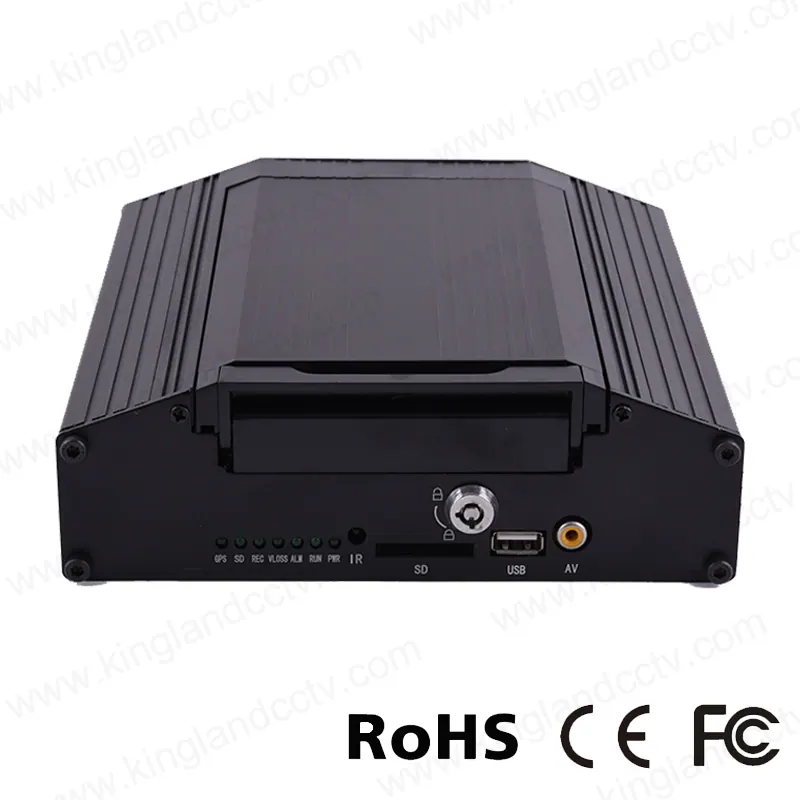

4CH 720P HDD SD Card 3G WIFI G-Sensor Vehicle MDVR
- H.264 video compression, multi code stream.
- Support 4CH 720P HD real-time video inputs
- 8-36V wide voltage power supply, super low power consumption
- Support a 2T 2.5 -inch HDD and 1 256G SD card storage
OEM and ODM available on this model: branding, firmware, cable length and housing changes are handled by our own engineers.
Specifications
| Video Rate PAL | 100 fps,CCIR625line,50 scenes |
|---|---|
| NTSC | 120 fps,CCIR525line,60 scenes |
| CIF | 256Kbps - 1.5Mbps,8 grades image quality for optional |
| HD1 | 600Kbps - 2.5Mbps,8 grades image quality for optional |
| D1 | 800Kbps - 3Mbps,8 grades image quality for optional |
| 720P | 800Kbps - 4Mbps,8 grades image quality for optional |
| Input Voltage DC | +8V - +36V |
4CH 720P HDD SD Card 3G WIFI G-Sensor Vehicle MDVR
1. H.264 video compression, multi code stream.
2. Support 4CH 720P HD real-time video inputs. Also, support 4CH analog cameras inputs or compound inputs for 2CH HD cameras and 2CH analog cameras.
3. 1CH VGA output is optional.
4. With exclusive pre-allocated type vehicle file system technology, it solved the file fragmentation problems which caused by overwrite, SD card data loss and SD card couldn’t be found, keep the data completed and stable.
5. 8-36V wide voltage power supply, super low power consumption. With overload/ under voltage/ short-circuit/ reversing protection, support all vehicles.
6. Support a 2T 2.5 -inch HDD and 1 256G SD card storage
7. With watchdog abnormal restart protection function, it can better protect the machine and video.
8. Delayed video recording functions when vehicle is shut down (time settings can be up to 24 hours).
9. Various video recording modes to meet different demands, such as automatic recording, manual recording, alarm recording, etc.
10. Support 4CH alarming inputs and 1CH independent alarm input.
11. Optional for 1CH RS232 Serial port or 1CH RS485 extension.
12. Support GPS/G-Sensor.
13. Support remote operation and monitoring by 3G.
Where It Is Used
Send this model name with your enquiry together with the quantity and the destination market, and we will confirm availability and OEM options.
