UK 45W/65W GaN Slim Wall Charger With Foldable Prongs
The UK-plug version of the K26 GaN platform: 45W to 65W in four port configurations, foldable prongs, universal 100-240V input.
Product Overview
The UK three-pin body is the hardest of the three plug types to make foldable, because the pins are larger and the fused plug standard leaves less room. This is the K26 GaN platform built into that body, with the same four published configurations: 65W on one Type-C, 65W as Type-C plus USB-A, 45W as dual Type-C and 45W as Type-C plus USB-A. Input is 100-240V, so the unit travels even though the plug does not.
Key Benefits
- UK three-pin body with foldable prongs, which is rare at this size
- Four port configurations from 45W to 65W
- GaN power stage, so 65W fits a slim housing
- Universal 100-240V input
- Same platform as the EU and US versions, so a multi-market range needs one qualification
At A Glance
- Family
- GaN Wall Charger
- Category
- KIKOO Charger
- Models
- K26-GaN-65W1C1A, K26-GaN-65W1C, K26-GaN-45W2C, K26-GaN-45W1C1A
- Plug type
- UK
- Input
- 100V-240V ~ 50-60Hz 1.5A
- Type-C output (65W)
- 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A (65W max)

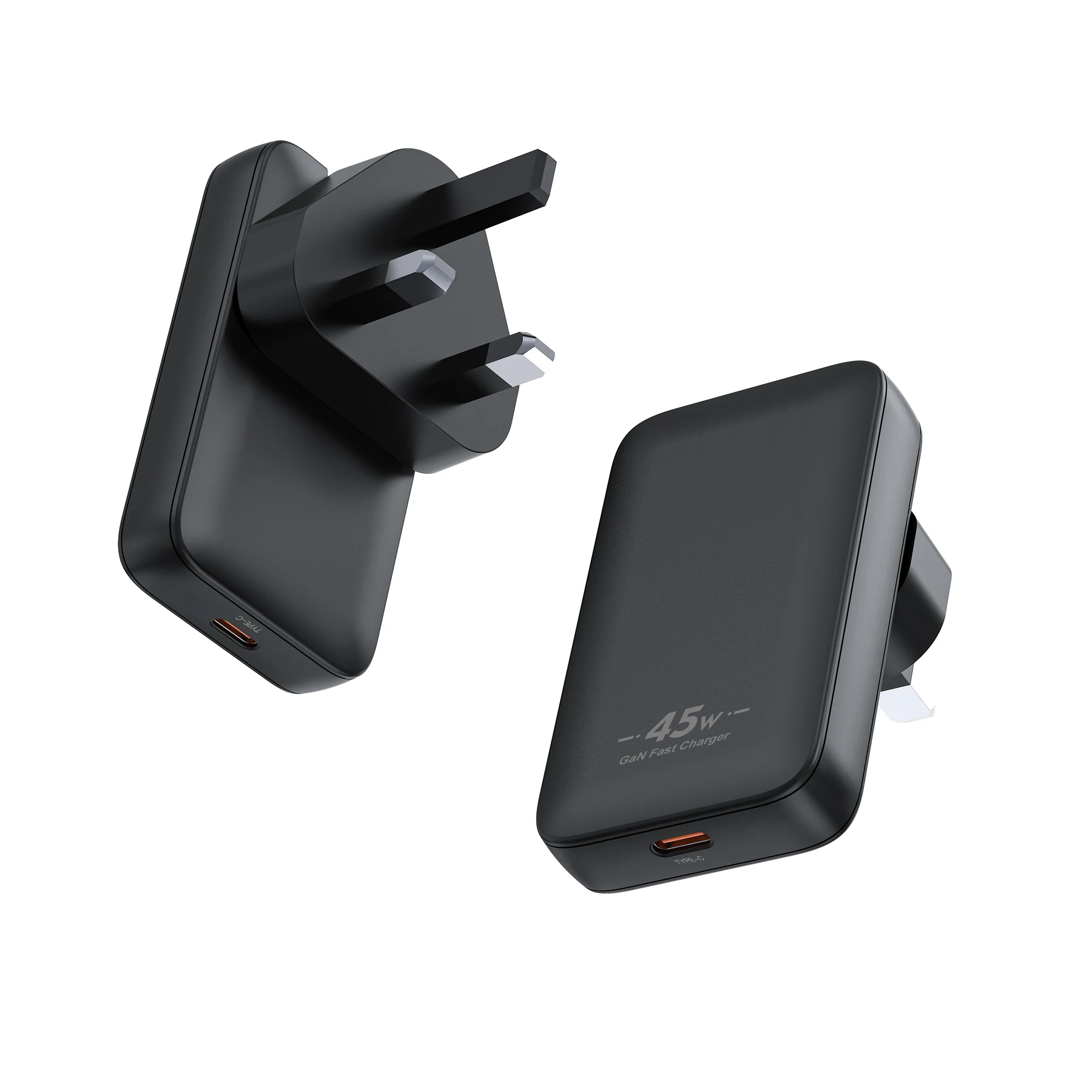

What It Looks Like
Photographs of the product as it is produced. Nothing here is a rendering of a product that does not exist yet.
Who It Is For
- Brands selling into the UK and other BS 1363 markets
- UK distributors and marketplace sellers
- Corporate and education buyers
- Hospitality operators fitting rooms with a fixed charger
Problems It Solves
- UK plug chargers are usually bulky because the pins are large
- A single wattage will not serve both phone users and laptop users
- Non-folding UK pins are the worst offenders in a laptop bag
- Multi-market ranges normally mean unrelated products per region
Application Scenarios
- UK and Ireland retail, and markets using the same plug standard
- Corporate IT standardising one adapter across UK offices
- Travel kits for UK-based users
- Retail bundles beside phones and laptops sold without a charger
Technical Features
- GaN power stage
- Input 100-240V ~ 50-60Hz 1.5A
- 65W single Type-C: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A
- 45W dual Type-C: C1+C2 as PD20W+PD20W
- 45W Type-C plus USB-A: 30W+12W combined
- Foldable UK prongs
Published Specification
Every row below is reproduced from the factory specification for this model. Rows shown in italics are figures the specification does not publish; we confirm those in writing rather than estimating them here.
| Models | K26-GaN-65W1C1A, K26-GaN-65W1C, K26-GaN-45W2C, K26-GaN-45W1C1A |
| Plug type | UK |
| Input | 100V-240V ~ 50-60Hz 1.5A |
| Type-C output (65W) | 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A (65W max) |
| USB-A output | 5V/2.4A, 12W max |
| Type-C output (45W) | 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A (45W max) |
| Dual C combination | USB-C1 + USB-C2: PD20W + PD20W |
| C+A combination | Type-C + USB-A: 30W + 12W |
| Prongs | Foldable |
| Certification | Confirmed per order; not published on the source page |
Use Guide
- Use the 65W single-C configuration for a laptop
- Loading both ports on the 45W dual-C model gives PD20W + PD20W
- USB-A is capped at 12W
- Fold the pins before putting the charger in a bag
- Order the EU or US version of the same platform for other markets
Quality Control
- PD negotiation verified at every published step
- High-voltage and leakage test on every unit
- Prong mechanism cycle-tested on the UK pin geometry
- Temperature rise checked at continuous full load
How It Compares With The Alternatives
A technical comparison against other ways of solving the same problem, including the other products in this range. Nothing here is a performance claim against a named competitor product.
| Against the EU and US versions | Identical electrical platform with a UK plug body |
| Against a bulky UK laptop charger | A fraction of the size for the same 65W, and the pins fold |
| Against a travel adapter stack | One product, no loose parts |
| Against a 20W phone charger | Runs a laptop as well as a phone |
Customisation And Supply
- Packing as bulk, poly bag or retail pack, specified per order
- Printed or laser-marked housings where the tooling allows it
- Specification sheet supplied by email before the order, not after it
- Samples of the exact configuration before mass production
- Shipped from Shenzhen, China by sea or air
UK 45W/65W GaN Slim Wall Charger With Foldable Prongs Questions
Do the UK pins really fold?
Is the electrical specification the same as the EU version?
Can one order mix UK, EU and US plugs?
Which certifications are on file?
