45W/65W GaN Slim Wall Charger With Foldable Prongs, US Plug
A GaN wall charger in four published configurations from 45W to 65W, with foldable prongs and a slim body. Models K26-GaN-65W1C1A, K26-GaN-65W1C, K26-GaN-45W2C and K26-GaN-45W1C1A.
Product Overview
Gallium nitride switches faster and runs cooler than silicon, which is why a 65W charger can now be the size a 30W charger used to be. This platform is published in four port configurations so a range can cover a laptop user and a two-phone household from one tool: 65W on a single Type-C, 65W as Type-C plus USB-A, 45W as two Type-C ports, and 45W as Type-C plus USB-A. Prongs fold flat for a bag. Input is universal, 100-240V 50-60Hz, so the same unit works anywhere the plug fits.
Key Benefits
- GaN construction gives 65W in a body that fits a laptop bag pocket
- Four published port configurations from one platform, which covers a whole range with one approval
- Foldable prongs, so the charger does not tear the lining of a bag
- Universal 100-240V input for international travel
- Type-C runs the full PD ladder to 20V/3.25A rather than stopping at 9V
At A Glance
- Family
- GaN Wall Charger
- Category
- KIKOO Charger
- Models
- K26-GaN-65W1C1A, K26-GaN-65W1C, K26-GaN-45W2C, K26-GaN-45W1C1A
- Input
- 100V-240V ~ 50-60Hz 1.5A
- Type-C output (65W)
- 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A (65W max)
- USB-A output (65W 1C1A)
- 5V/2.4A, 12W max

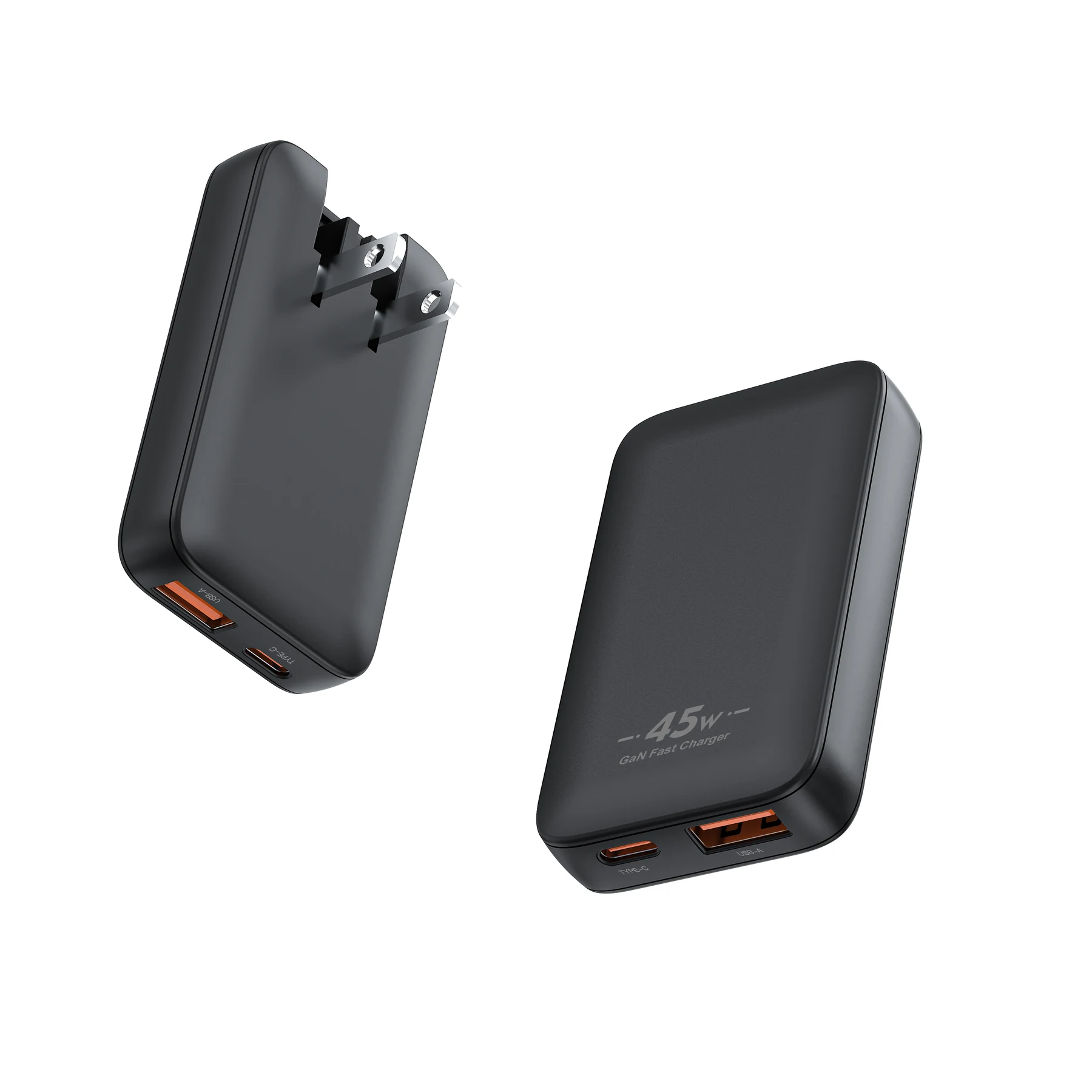

What It Looks Like
Photographs of the product as it is produced. Nothing here is a rendering of a product that does not exist yet.
Who It Is For
- Accessory brands that need a GaN charger family rather than one SKU
- Retailers stocking a wattage ladder from 45W to 65W
- Corporate IT buyers standardising on one adapter
- Distributors covering several port layouts from one tool
Problems It Solves
- Laptop chargers are too big to carry and phone chargers are too slow for a laptop
- Building a wattage range normally means several unrelated products
- Fixed prongs damage bags and break in transit
- Region-locked input voltage blocks a travel range
Application Scenarios
- Laptop and phone charged from one 65W adapter on a desk or in a hotel
- Two-device households charging from a single socket
- Travel kit replacing three separate adapters
- Retail bundles sold with phones that ship without a charger
Technical Features
- GaN power stage
- Input 100-240V ~ 50-60Hz 1.5A
- 65W single Type-C: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A
- 65W Type-C plus USB-A: USB-A at 5V/2.4A, 12W max
- 45W dual Type-C: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A; C1+C2 as PD20W+PD20W
- 45W Type-C plus USB-A: Type-C plus USB-A at 30W+12W
- Foldable prongs
Published Specification
Every row below is reproduced from the factory specification for this model. Rows shown in italics are figures the specification does not publish; we confirm those in writing rather than estimating them here.
| Models | K26-GaN-65W1C1A, K26-GaN-65W1C, K26-GaN-45W2C, K26-GaN-45W1C1A |
| Input | 100V-240V ~ 50-60Hz 1.5A |
| Type-C output (65W) | 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A (65W max) |
| USB-A output (65W 1C1A) | 5V/2.4A, 12W max |
| Type-C output (45W 2C) | 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A (45W max) |
| Dual C combination | USB-C1 + USB-C2: PD20W + PD20W |
| Type-C output (45W 1C1A) | 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A (45W max) |
| C+A combination | Type-C + USB-A: 30W + 12W |
| Prongs | Foldable |
| Plug type | US |
| Certification | Confirmed per order; not published on the source page |
Use Guide
- For a laptop at full speed use the single Type-C 65W configuration; adding a second device splits the budget
- A 45W dual-C charger gives 20W plus 20W when both ports are loaded, not 45W to one of them
- USB-A is capped at 12W on every configuration, so keep it for accessories
- Fold the prongs before packing; do not force them against the stop
- Pick the plug configuration per market: this is the US version, and EU and UK versions are separate products
Quality Control
- PD negotiation verified at every published voltage step
- High-voltage and leakage test on every unit
- Prong folding mechanism cycle-tested
- Temperature rise checked at continuous full load
How It Compares With The Alternatives
A technical comparison against other ways of solving the same problem, including the other products in this range. Nothing here is a performance claim against a named competitor product.
| Against a silicon 65W charger | Substantially smaller and cooler for the same output |
| Against a 20W phone charger | Charges a laptop as well as a phone; larger and more expensive |
| Against the EU and UK versions | Identical electrical platform with a US plug body |
| Against a multi-port desk hub | Portable and pocketable; a desk hub serves more devices at once |
Customisation And Supply
- Packing as bulk, poly bag or retail pack, specified per order
- Printed or laser-marked housings where the tooling allows it
- Specification sheet supplied by email before the order, not after it
- Samples of the exact configuration before mass production
- Shipped from Shenzhen, China by sea or air
45W/65W GaN Slim Wall Charger With Foldable Prongs, US Plug Questions
Does the 45W dual-C model give 45W to one port?
What is the USB-A port good for?
Are the four model codes four separate products?
Which certifications does it carry?
Products Buyers Shortlist Alongside This One
EU 45W/65W GaN Slim Wall Charger With Foldable Prongs
The EU-plug version of the K26 GaN platform: 45W to 65W in four port configurations, foldable prongs, universal 100-240V input.
See the specification
UK 45W/65W GaN Slim Wall Charger With Foldable Prongs
The UK-plug version of the K26 GaN platform: 45W to 65W in four port configurations, foldable prongs, universal 100-240V input.
See the specification
KIKOO 20000mAh 22.5W Power Bank With Two Built-In Cables
A 20000mAh power bank that carries its own Type-C and Lightning cables, so the traveller who forgot theirs still charges. 22.5W fast charging, three ports and a digital percentage display.
See the specificationRequest 45W/65W GaN Slim Wall Charger With Foldable Prongs, US Plug
Send the quantity, the destination market and the packing you need. A quotation and the full specification sheet come back by email.
