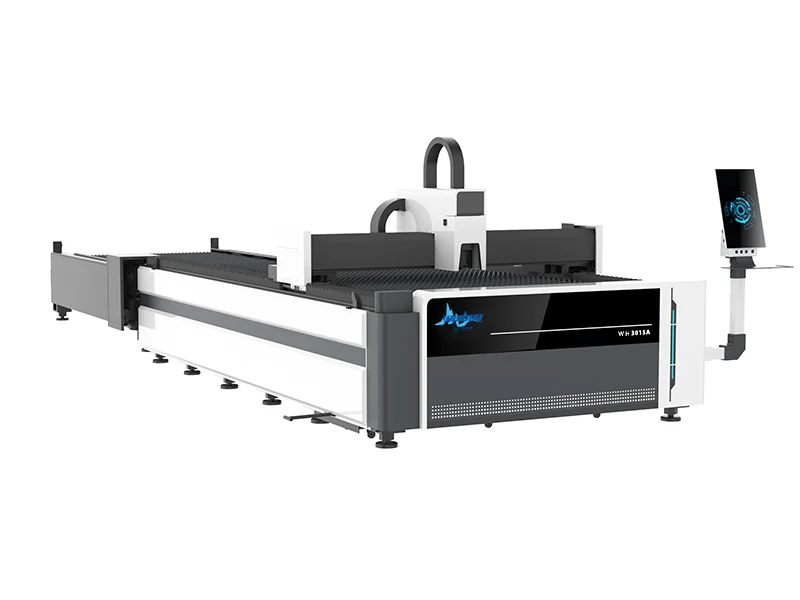

3015A Fiber Laser Cutter With Exchange Table
The WH-3015A is a fiber laser cutter with an open exchange table and a 1500 x 3000 mm rated sheet size. The machine bed uses an overall welding structure verified by CAE analysis, annealed to eliminate internal stress before precision machining.
Product Overview
What This Machine Is Built To Do
The WH-3015A is a fiber laser cutter with an open exchange table and a 1500 x 3000 mm rated sheet size. The machine bed uses an overall welding structure verified by CAE analysis, annealed to eliminate internal stress before precision machining. This process stabilizes the bed geometry, supporting 0.02 mm repeat positioning accuracy and 1.2 G acceleration. The system includes a Raytools auto-focus head that adjusts focus ten times faster than manual methods, allowing operators to switch between material thicknesses without stopping the machine for long setups.

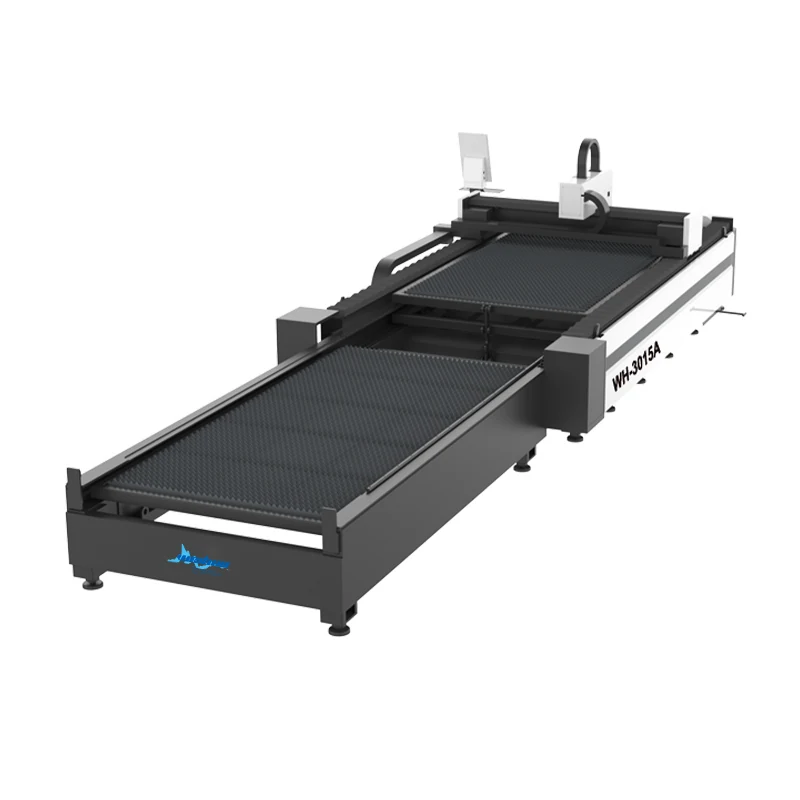

- Open exchange table allows loading new sheets while the current sheet is cutting, reducing idle time
- CAE-verified annealed bed maintains 0.02 mm repeat positioning accuracy for consistent hole patterns

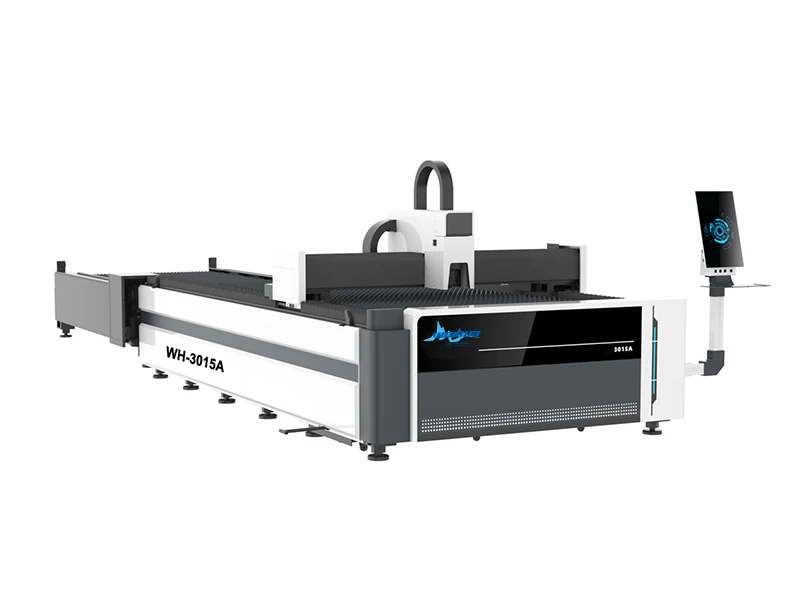

- Raytools auto-focus head adjusts lens position ten times faster than manual focus for mixed batches
- Aviation aluminum extrusion structure lowers moving mass to support 1.2 G acceleration on contours
- Closed-loop servo motors provide reliable motion control and precise positioning during cutting runs
- Three bed sizes available up to 2500 x 6000 mm to handle larger sheet metal formats
Where It Is Used
Application Scenarios
- Sheet metal fabricators cutting high-volume orders that require continuous loading and unloading
- Job shops processing mixed-thickness stainless steel and carbon steel plates in single batches
- Electrical cabinet manufacturers cutting perforated panels where hole position accuracy is critical
- Kitchen equipment producers cutting stainless steel panels that need clean edges for welding
- Agricultural machinery workshops cutting thick carbon steel brackets and plates up to 2700 kg
Buyer Fit
Who It Is For
- Machine dealers who need a fiber laser cutter with a recognized laser head brand and exchange table
- Sheet metal subcontractors replacing punching lines to avoid tooling costs for custom hole patterns
- Fabricators whose current single-table cutter loses time waiting for manual load and unload
- Workshops requiring stable bed geometry to prevent accuracy drift over years of operation
Process Problems
Problems It Solves
- Single-table cutters stop for loading and unloading, leaving the laser source idle during setup
- Manual focus adjustment wastes minutes on every thickness change during mixed-order production days
- Welding stress in machine beds causes slow accuracy loss that results in scrap parts after a year
- Heavy gantries cannot accelerate quickly enough to maintain precision on small contours and holes
- Plasma cut edges require deburring and secondary machining before welding or coating applications
Engineering
Technical Features
- High-temperature heat treatment bed annealed to eliminate internal stress and enhance rigidity
- Third generation aviation aluminum extrusion process structure for lightweight high hardness design
- Raytools auto-focus laser head that automatically adjusts the focusing lens for different thicknesses
- Servo motors with closed-loop control and dynamic response acceleration for precise motion
- Laser dedicated control system with handheld terminal for specific laser cutting functions
- Overall welding structure verified by multiple CAE analyses for equipment stability
Specifications
Published Figures For 3015A Fiber Laser Cutter With Exchange Table
Every value below is taken from the machine data sheet. Where a range is given the exact figure depends on the model and power you order.
| Model | WH-3015A |
|---|---|
| Rated Sheet Size | 1500 x 3000 mm |
| Machine Tool Travel | X 1530 mm, Y 3050 mm, Z 260 mm |
| X/Y Maximum Positioning Speed | 100 m/min |
| Linkage Maximum Positioning Speed | 130 m/min |
| Max Acceleration | 1.2 G |
| Positioning Accuracy | 0.03 mm/m |
| Repeat Positioning Accuracy | 0.02 mm |
| Max Load of Worktable | 800 kg |
| Laser Head | Raytools auto-focus |
Materials
Materials It Handles
- Carbon steel plate
- Stainless steel sheet
- Aluminium alloy sheet
Working Process
From File To Finished Part
Load sheet onto the exchange table while the previous sheet finishes cutting
Import DXF or AI part geometry into the laser dedicated control system
Nest parts on the 1500 x 3000 mm sheet to reduce offcut waste
Set power and assist gas by material and thickness on the handheld terminal
Raytools head auto-focuses for the loaded plate thickness without manual adjustment
Cut with closed-loop servo motion at up to 100 m/min positioning speed
Quality Control
Quality Control Before Shipment
- Machine bed structure verified by multiple CAE analyses before final assembly
- Bed annealed to eliminate internal stress generated from welding and machining
- Positioning and repeat positioning accuracy checked before machine leaves workshop
- Secondary configuration check carried out before each machine runs idle
- Every additional component counted before packaging to prevent missing parts
Options
Customisation Options
- Select WH-4020A, WH-6020A or WH-6025A for larger sheet formats up to 2500 x 6000 mm
- Voltage and plug configuration set for your specific destination market
- English user manuals and video guidance supplied with the machine
- Remote technical support and spare parts supply available for maintenance
Comparison
How It Compares With The Alternatives
| Single platform fiber laser cutter | The exchange table allows loading while cutting, increasing throughput for high-volume orders |
|---|---|
| CO2 laser cutting machine | The fiber source cuts metal faster and has lower operating costs but cannot cut acrylic or wood |
| Plasma cutting machine | Laser cutting provides 0.02 mm repeat accuracy and clean edges without secondary deburring |
Operating Notes
Use Guide
- Match assist gas to material: oxygen for thicker carbon steel, nitrogen for oxide free stainless
- Let the Raytools head reset focus after every thickness change instead of running previous setting
- Keep the protective lens clean since spatter on the lens is the most common cause of lost power
- Clear slag from the support slats regularly so thin sheet stays flat on the bed
- Check water chiller temperature before long runs to keep source output stable
- Ensure exchange table locks securely before starting the cutting cycle
Buyer Questions
3015A Fiber Laser Cutter With Exchange Table FAQ
What is the repeat positioning accuracy of the machine?
The machine holds 0.02 mm repeat positioning accuracy, which keeps hole patterns interchangeable across a whole production batch.
How fast does the auto-focus head adjust?
The Raytools auto-focus head adjusts the lens position ten times faster than manual adjustment, reducing setup time between thicknesses.
What is the maximum load capacity of the table?
The WH-3015A model has a maximum worktable load of 800 kg. Larger models in the series support up to 2700 kg.
Do you provide CE certification?
Yes, Weihua Laser provides a CE certificate for laser cutting machines, ensuring compliance with export requirements.
What warranty is included with the machine?
The machine comes with a two-year warranty on the whole machine and free lifetime technical support.
How is the machine shipped overseas?
We ship by sea, air, or international express, depending on your destination and the lead time required.
Is remote support available for installation?
Yes, we provide English user manuals, video guidance, and remote technical support, with on-site service when required.
