A01 Elegant Chandelier Light-9D with nine E14 lamp positions and clear crystal elements on a steel frame

Model JD1810CH-8+1D

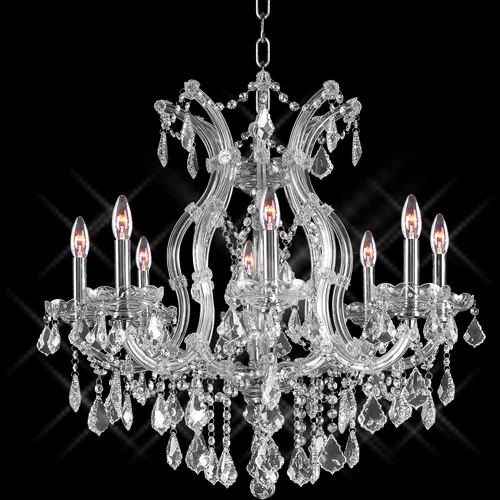

A01 Elegant Chandelier Light-9D

A01 Elegant Chandelier Light-9D is a 9-light chandelier with a symmetrical steel frame and clear crystal elements, 660.40 mm wide and 660.40 mm in fixture height. The fitting is designed for central placement in high-ceilinged rooms where the chandelier is read as a sculptural object during the day and a light source at night. It features a 2000 mm chain for adjustable hanging height. Model number is JD1810CH-8+1D.

Width660.40mm
Fixture Height660.40mm
MaterialSteel + clear crystal
FinishChrome
Lamp holder9 x E14
Ingress ProtectionIP20

Request A Quote Email This Model

Custom size and finish are quoted against your drawing. Send the ceiling height or room dimension with your enquiry.

Key Benefits

What This Model Gives You

Nine E14 LED positions provide even light distribution across a large room without hot spots
Clear crystal elements reflect light in a controlled way, avoiding glare while maintaining visual interest
660.40 mm width fills a large ceiling void without requiring multiple fittings
2000 mm chain allows for precise drop adjustment to match ceiling height
Chrome finish is factory applied so no site touch-up is needed after installation
Custom size available on request to match exact ceiling or room dimensions

Problems It Solves

What Goes Wrong Without It

A single small pendant looks lost in a high-ceilinged room and fails to anchor the space
Multiple small pendants over one area increase installation complexity and alignment risk
Standard catalogue sizes rarely match actual ceiling heights, leading to incorrect drop
Non-uniform lighting from a single source creates dark zones in large rooms
Lack of adjustability in chain length forces on-site cutting or misalignment

Specification

Recorded Specification

Width	660.40mm
Fixture Height	660.40mm
Material	Steel + clear crystal
Finish	Chrome
Lamp holder	9 x E14
Bulb	LED 3.5W
Chain Length	2000mm
Ingress Protection	IP20
Crystal option	Swarovski Crystal \| Egyptian Crystal \| K9 Crystal
Finish option	Chrome \| Gold \| others

Recorded notes

Custom size available

Materials

Steel frame and structural components for the chandelier body
Clear crystal elements in Swarovski, Egyptian, or K9 options, selected at order stage
Chrome finish as standard, with gold and other finishes available on request

Technical Features

Nine E14 lamp positions with LED 3.5W bulbs
Steel frame with clear crystal elements, 660.40 mm wide and 660.40 mm in fixture height
2000 mm chain for adjustable hanging height
IP20 rating for dry indoor use only
Chrome finish as standard, with gold and other finishes available on request
Crystal options include Swarovski, Egyptian, or K9 crystal, selected at order stage

Where It Goes

Application Scenarios

Typical Locations

Hotel ballroom with a high ceiling where the chandelier is the focal point from both floor and mezzanine levels
Residential living room with a double-height ceiling and a central seating area
Commercial showroom with a central display zone requiring a single prominent lighting fixture
Villa entrance hall where the chandelier is seen from multiple angles and distances
Retail store with a high ceiling and a need for a feature lighting piece that does not require multiple units

Who It Is For

Hotel FF&E buyers specifying central lighting for public and guest areas
Interior contractors fitting out high-end residential and commercial spaces
Lighting wholesalers building a curated chandelier range for their catalogue
Developers standardising lighting across a residential or commercial project

In Place

Fittings Of This Type On Site

Jedaz fittings installed on site — Jedaz fittings of this type photographed in place

Customisation

What Can Be Changed

Custom overall width and height available to match your ceiling or room dimensions
Custom chain length available to suit your ceiling height
Crystal option selected from Swarovski, Egyptian, or K9 at order stage
Finish in chrome, gold, or another finish on request
Production to your own approved drawing if you are working to an interior design package

How An Order Runs

You send a drawing or the ceiling height and the fitting is re-drawn to suit
Drawings are returned for your written approval before anything is cut
Crystal elements are selected and prepared according to your chosen option
The steel frame is fabricated and finished, then the crystal and lamp holders are fitted
The fitting is assembled and lamped up before packing

Quality Control

What Is Checked Before Packing

A QC team checks the fitting against the approved drawing before it is packed
Dimensions are verified against the specification you signed off
Finish and colour are checked across the item to ensure consistency
The lamp holder and light source are checked against the specification recorded for this model

Comparison

How It Compares With The Alternatives

Alternative	Honest trade off
Crystal chandelier with smaller crystal elements	Smaller crystals give more sparkle but less structural presence; this model has larger elements that read as a single object
Cluster of pendant lights	A cluster allows layout flexibility but requires more ceiling penetrations and alignment; this chandelier is one unit with one point of attachment
Simple metal chandelier without crystal	Metal-only fittings are cheaper and lighter, but lack the reflective depth and visual interest of crystal elements

Use Guide

Before and After Installation

Measure floor to ceiling and confirm the drop before ordering to avoid on-site adjustments
Ensure the chandelier does not hang too low in walkways or under beams
Use dimmable LED 3.5W E14 bulbs if the room is used in both daylight and evening hours
Keep the fitting in dry indoor environments only, as it is rated IP20
Clean the crystal with a dry soft cloth; avoid solvents or abrasive cleaners

Questions Buyers Ask

Elegant Chandelier Light-9D Questions

Can you change the drop to fit our ceiling height?

Yes. Custom size is available on this model. Send us the floor to ceiling height and the desired drop, and the fitting is re-drawn before production.

Can we choose the crystal type?

Yes. Crystal options include Swarovski, Egyptian, or K9 crystal. Select your preferred type at order stage.

Can we have it in gold instead of chrome?

Yes. Chrome is the standard finish and gold is available. Other finishes can be quoted if you send the reference.

Are the bulbs included?

The fitting uses LED 3.5W E14 bulbs. Confirm at order stage whether you want them supplied or if you are lamping on site.

Is it suitable for a bathroom or outdoor area?

No. This fitting is rated IP20, which is for dry indoor use only. Ask us for an alternative if the location is damp or exposed.

We are working to an interior designer's drawing, can you build to it?

Yes. Customised products are made to your approved drawings. Send the drawing and our engineer team will return a production drawing for your written approval.
