2p 4p Time Adjustable Mini Automatic Circuit Breaker
The 2P and 4P Time Adjustable Mini Automatic Circuit Breaker is a compact device for single-phase 230V 50Hz circuits up...
Product Overview
What This Model Does
The 2P and 4P Time Adjustable Mini Automatic Circuit Breaker is a compact device for single-phase 230V 50Hz circuits up to 63A that combines overload and short-circuit protection with a built-in timer. Designed to IEC60898-1 and GB10963.1, it is suitable for unattended or time-limited applications where manual switching is impractical. The unit maintains standard DIN rail mounting and mechanical operation, with a green indicator light showing closed status and a manual handle for isolation.
Key Benefits
- Automatically cuts power after a user-set time to prevent overuse of connected equipment
- Reduces energy waste by turning off pumps, chargers, and appliances after a fixed period
- Provides overload and short-circuit protection as a standard MCB, with no additional components needed
- Simple knob adjustment allows time setting without a smartphone or app
- Maintains full manual control and mechanical isolation even when timer is active
- Suitable for unattended sites where remote monitoring is not available
Who It Is For
- Electrical wholesalers adding time-controlled breakers to their conventional MCB range
- Panel builders integrating automatic timing into distribution boards for water or pump circuits
- Solar and pump installers needing automatic shutdown after a fixed run time
- Facility managers responsible for unattended equipment in remote or outdoor sites
- OEM/ODM buyers developing time-limited control systems for appliances or equipment
Problems It Solves
- An appliance continues to draw power after the task is complete, leading to energy waste
- Manual switching is required to turn off equipment in unattended or remote locations
- Timer relays add extra wiring, space, and cost to a panel for simple on-off timing
- No built-in timing function in standard MCBs forces buyers to use external timers
- Equipment left on during off-hours increases risk of overheating or fire
Application Scenarios
- Water pumps in irrigation systems switched on for a set time and then automatically off
- Electric vehicle or battery chargers turned off after a fixed charging duration
- Outdoor lighting or neon signs powered only during specific hours without a timer relay
- Household appliances like cookers or fans switched off after cooking or cooling cycles
- Industrial equipment in remote locations that must run for a set time and then shut down
Technical Features
How It Is Built

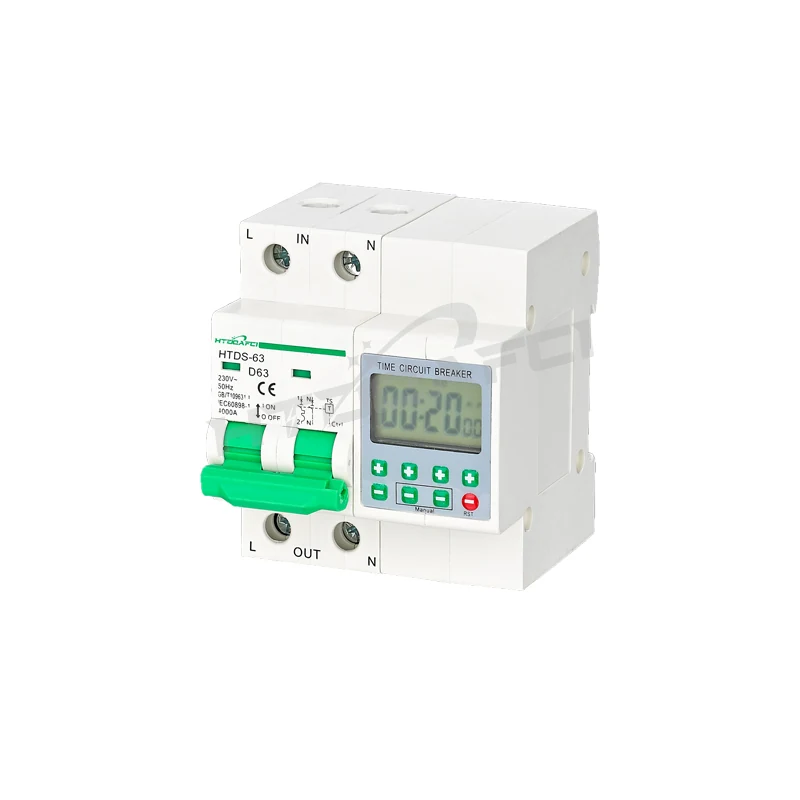

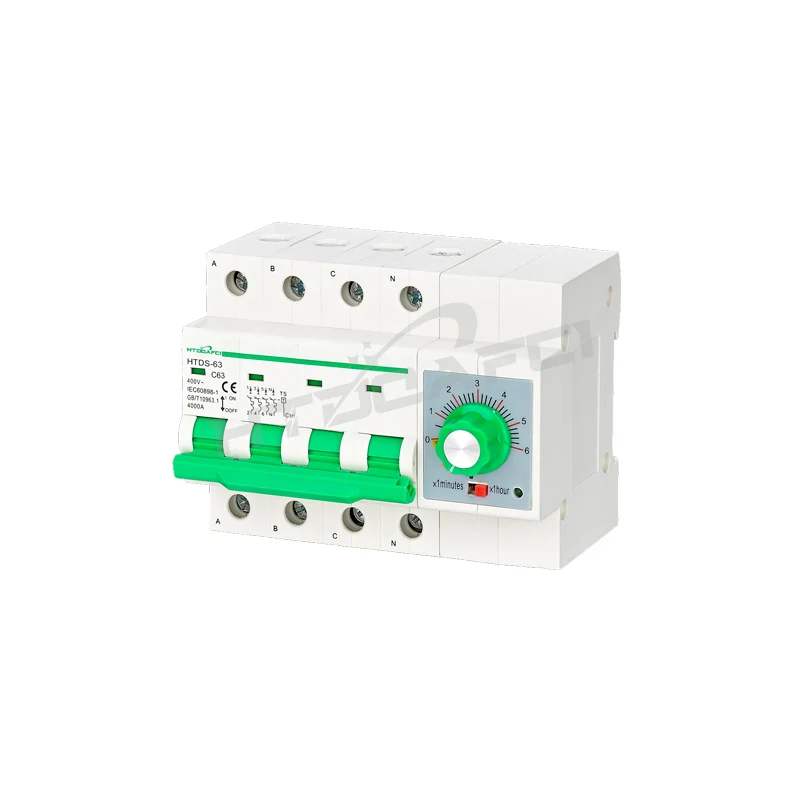

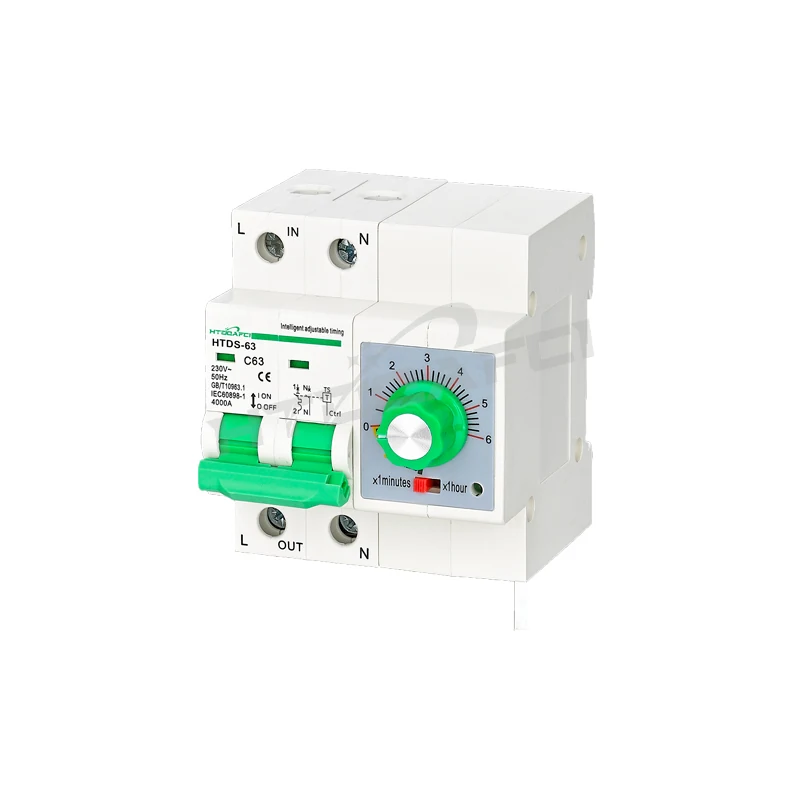

- Two poles for single-phase 230V 50Hz circuits, or four poles for three-phase applications
- Rated current up to 63A with a 63A rack rating
- Green indicator light shows closed (on) state; handle position indicates open (off)
- Mechanical operation with manual handle for isolation and reset
- Pollution degree 2 and compliance with GB10963.1 and IEC60898-1
Materials and Construction
- Silver-alloy contacts with a thermal-magnetic trip mechanism
- Mechanical time knob and internal timing release mechanism
- Internal wiring and terminal blocks for power and load connections
Quality Control
- Trip characteristic verified against GB10963.1 and IEC60898-1 requirements
- Insulation and dielectric withstand test performed before packing
Specifications
Stated Ratings for This Model
| Model Number | HTDS-63 |
|---|---|
| Pole Count | 2P, 4P |
| Rated Voltage | AC 230V |
| Rated Frequency | 50Hz |
| Rated Current | Up to 63A |
| Rack Rated Current | 63A |
| Instantaneous Trip Type | C |
| Pollution Level | 2 |
| Control Mechanism | Mechanical knob |
| Indicator Light | Green LED for closed state |
| Standards Compliant | IEC60898-1, GB10963.1 |
Ratings are as published for this model. Where a value is not published we mark it TBC rather than estimating it.
Values that could not be confirmed against the published catalogue text for this model are marked TBC and confirmed by email before order: Rated Short-circuit Breaking Capacity, Rated Impulse Withstand Voltage, Protection Level, Specified Use Temperature, Adjustable Time Range, Mounting Type.
Manufacturing Process
- Moulding and machining of the breaker housing and internal components
- Assembly of the thermal-magnetic trip unit and contact system
- Installation of the mechanical time adjustment knob and release mechanism
- Calibration of the trip characteristic against the Type C curve
- Routine dielectric and operation testing before packing
Customization Options
- Pole count supplied as 2P or 4P from the same series
- ODM branding on housing print and packaging
- Packaging and carton marking to the buyer's own specification
Comparison
How It Compares
| Conventional MCB | Adds automatic time-off function without extra components, though at a higher unit cost |
|---|---|
| MCB plus external timer relay | One device instead of two, with less wiring and space required |
| Smart MCB with app control | No app or network needed; simple knob adjustment works in areas without internet |
Use Guide
- Connect the 230V power supply to the top terminals: left to live (phase), right to neutral
- Connect the load (e.g. charger, pump, fan) to the bottom terminals
- Turn the handle down to close the circuit and start the timer
- The breaker will automatically open after the set time, cutting power to the load
- Manual reset is required after a trip or after automatic time-off
Related Products
Tuya WIFI Smart Circuit Breakers
Thermal Actuated Condensed Aerosol Fire Suppression Device
The Thermal Actuated Condensed Aerosol Fire Suppression Device is a compact, self-activated fire protection unit...
View Product
Mini Circuit Breaker(MCB)
DZ47Z-63 Solar MCB
The DZ47Z-63 Solar MCB is a DC miniature circuit breaker designed for over-current protection in direct current control...
View Product
Zigbee Smart Circuit Breaker
Zigbee Smart MCB
The Zigbee Smart MCB is a single-pole or double-pole circuit breaker with remote control and scheduling via a Zigbee...
View ProductFAQ
Questions About the 2p 4p Time Adjustable Mini Automatic Circuit Bre
Does it still protect the circuit if the timer fails
Yes. Overload and short-circuit protection are mechanical and function independently of the timer.
Can we have it supplied under our own brand
Yes. We offer ODM services and can print your branding on the housing and packaging. Send your artwork and required ratings.
What is the maximum rated current
The maximum rated current is 63A, with a 63A rack rating.
What are the minimum order quantity and lead time
Both depend on the current rating and branding. Email [email protected] with your model list and quantities for a current answer.
How do we get a price for this model
Email [email protected] with the rated current, pole count and quantity you need and we will quote this model directly.
Can this be supplied under our own brand
Yes. We run ODM projects and can print your branding on the housing and packaging.
Get a Quotation for the 2p 4p Time Adjustable Mini Automatic Circuit Bre
Tell us the ratings, pole counts and quantities you need and we will price this model directly.
