Pressureless Sintered Silicon Carbide
Sintered Silicon-Wear Sleeves
Silicon carbide wear sleeves for rotating support, aligning, anti-thrust and seal of the axle of submerged electric pumps in the oil field.
Product Overview
Sintered Silicon-Wear Sleeves
Silicon Carbide (SiC) is one of the most popular high performance tribo-materials, which has been commercially available for more than twenty-five years.
The wear sleeve used in rotating support, aligning, anti-thrust and seal of the axle of motor, centrifuge, protector and separator of the submerged electric pump in the adverse working conditions of high speed rotation, sand lash abrasion and gas corrosion in the oil field, such as slide bearing sleeve, motor axle sleeve, aligning bearing sleeve, anti-thrust bearing sleeve and seal axle sleeve.
The product which is made of good quality material has good wear and corrosion resistance and outstanding mechanic properties, and is worn only slightly through a long time running with higher accuracy.
Key Benefits
Why This Part Lasts
- Excellent abrasion and wear resistance
- Excellent corrosion resistance
- Low coefficient of friction
- Low coefficient of thermal expansion
- High thermal conductivity
Application Scenarios
Where It Is Used
Slide Bearing Sleeve
Rotating support inside submerged electric pumps.
Motor Axle Sleeve
Protection of the motor axle against sand lash abrasion.
Aligning Bearing Sleeve
Aligning duty on pump and motor shafts.
Anti-Thrust Bearing Sleeve
Anti-thrust duty under high speed rotation.
Seal Axle Sleeve
Sealing of the axle against gas corrosion in the oil field.
Types We Produce
- Normal straight axle sleeve
- Cylindrical axle sleeve with slot
- Axle sleeve with convex stage
- Axle sleeve with slot and convex stage
- Non-standard axle sleeve
Specifications
Silicon Carbide Technical Data
| Operating Limits | Units | SSiC | RBSiC |
|---|---|---|---|
| Volume Density | g/cm³ | 3.08~3.15 | ≥3.03 |
| Hardness | HRA | ≥92 | ≥90 |
| Indicated Porosity | % | <0.2 | <0.2 |
| Compressive Strength | Mpa | ≥2400 | ≥2000 |
| Flexural Strength | Mpa | >400 | >350 |
| Free-Si content | % | <0.1 | <12 |
| Purity (SIC Percentage) | % | ≥99 | ≥98 |
| Elastic Modulus | GPa | ≥400 | 350 |
| Thermal Conductivity | w/m.k | 90-110 | 50-100 |
| Coefficient of Thermal | 10⁶.1/°C | 4.0 | 4.0 |
| Maximum Service Temp Air | °C | 1600 | 1000 |
Data as published for our silicon carbide grades. Confirm the working values for your medium and temperature with our team before ordering.

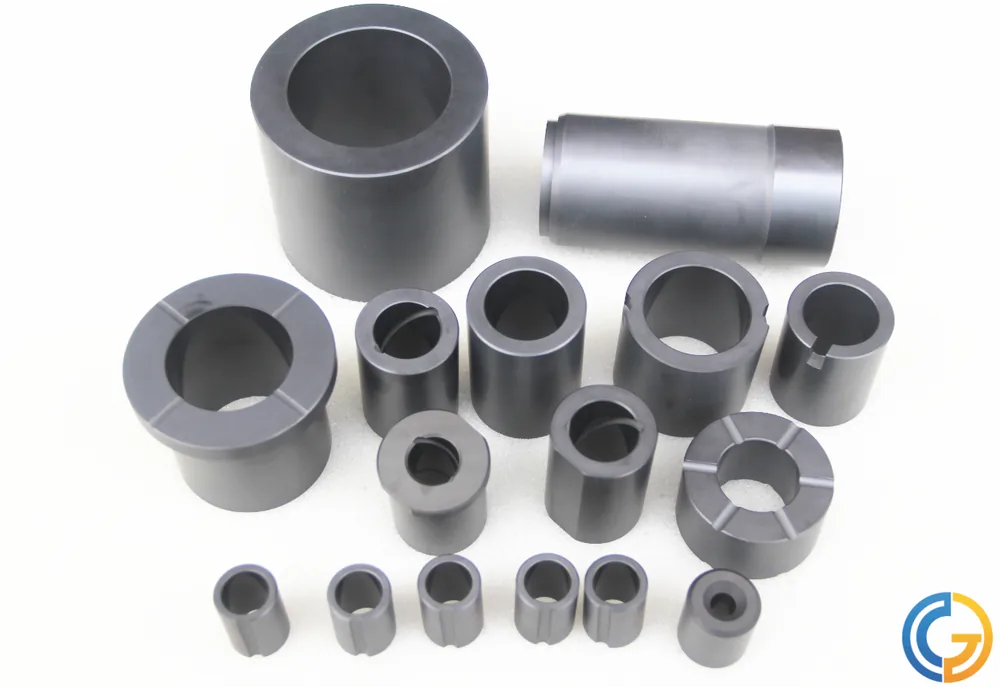

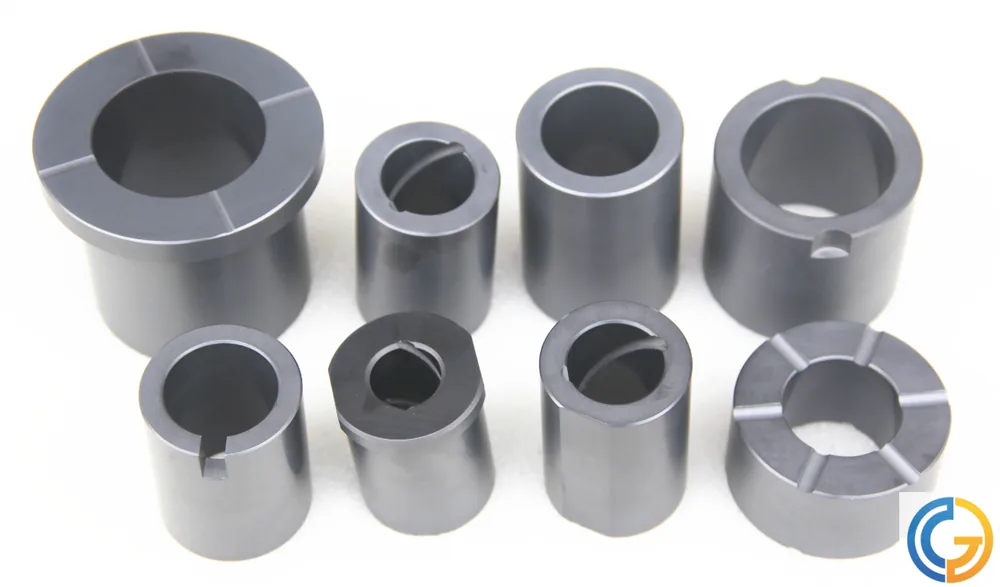

Gallery
Product Photos
Manufacturing and Quality Control
How This Part Is Made
Production begins with the raw materials in powder form and finishes with a sintered carbide component that achieves all OEM specifications.
1
Powder Preparation
Production begins with the raw materials in powder form, prepared on the spray granulator.
2
Forming
The prepared powder is formed into green parts on the dry press.
3
Sintering
High temperature vacuum sintering in the sintering stove.
4
Grinding And Polishing
CNC grinding and polishing bring the seal faces to final geometry.
5
Testing
Hardness testing and physical testing before the parts are released.
Related Products
Other Silicon Carbide Parts
Sintered Silicon-Nozzle
Sintered silicon carbide nozzles with high flexing strength at elevated temperatures and high thermal shock resistance — for burners, kiln furniture and drill bits.
View Product
Reaction Bonded Sintered Silicon Carbide
Reaction bonded sintered silicon carbide (RBSiC) — an economical high density ceramic for medium acid or mild alkaline medium.
View ProductFAQ
Sintered Silicon-Wear Sleeves FAQ
Which Grades Of Silicon Carbide Are Available
Reaction Bonded Silicon Carbide (RB SiC), a very economical material with excellent wear characteristics and good chemical resistance, and Sintered Silicon Carbide (SSiC), where the absence of free silicon makes it most resistant to chemically-aggressive fluids and ideal for high temperature applications.
What Sleeve Types Do You Make
Normal straight axle sleeve, cylindrical axle sleeve with slot, axle sleeve with convex stage, axle sleeve with slot and convex stage, and non-standard axle sleeve.
Where Are The Sleeves Used
In rotating support, aligning, anti-thrust and seal of the axle of motor, centrifuge, protector and separator of the submerged electric pump in the oil field.
How Well Do They Hold Accuracy
The product is worn only slightly through a long time running, so it keeps higher accuracy.
Do You Make Non-Standard Sleeves
Yes. We produce the products according to the drawings and requirements of our customers, and we also recommend, design and develop new types against the customer needs.
Get a Quote for Sintered Silicon-Wear Sleeves
Send your drawing or your existing part dimensions together with the medium and the operating temperature.
