Reaction Bonded Sintered Silicon Carbide
Reaction bonded sintered silicon carbide (RBSiC) — an economical high density ceramic for medium acid or mild alkaline medium.
View Product
Product Category
Reaction Bonded Silicon Carbide

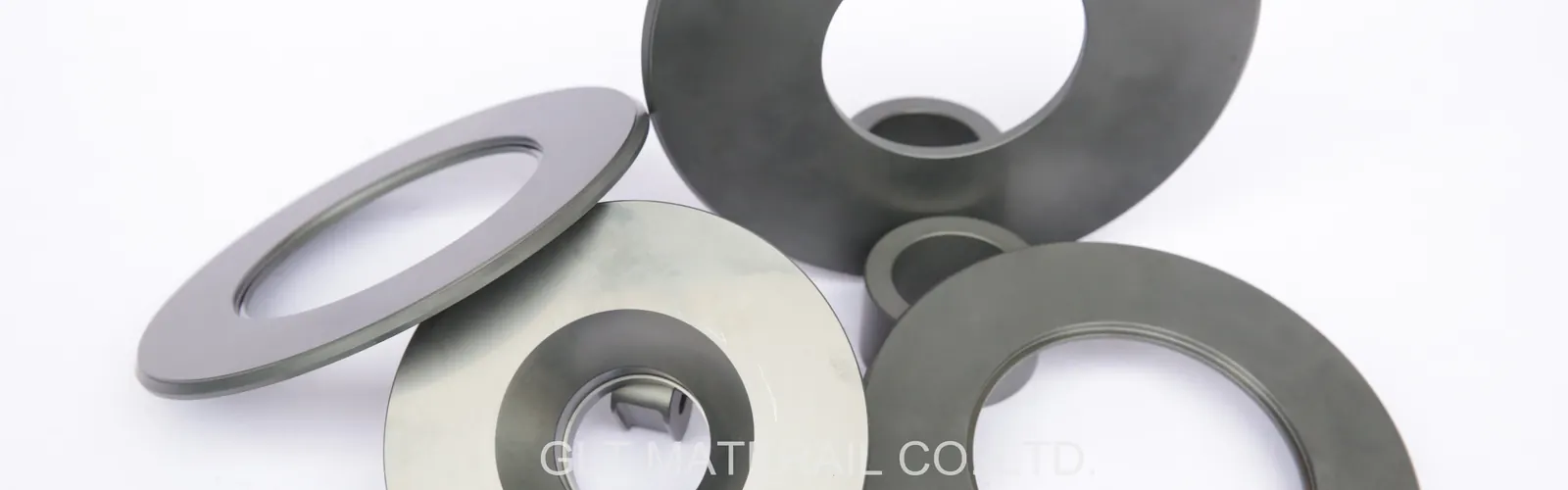

Reaction bonded sintered silicon carbide (RBSiC) products — an economical grade with excellent wear characteristics and good chemical resistance for medium acid or mild alkaline medium.
Overview
About Reaction Bonded Silicon Carbide
Reaction bonded sintered silicon carbide is made from fine particles of silicon carbide and additive compressed into billet, at 1500 °C to 1800 °C high temperature vacuum contact with liquid silicone, free silicon filling the pores, and high density of ceramic material is obtained. It can be used in medium acid or mild alkaline medium. It can be at medium concentration of acid or used in mild alkaline medium, it is widely used in bearing and oil, chemical, automobile and ship, pump valve and other fields.
Products
Products in This Category
Who It Is For
- Buyers who need silicon carbide wear parts at a lower cost
- Pump and valve OEMs working with medium acid or mild alkaline medium
- Automobile and ship equipment manufacturers
- Bearing and oil field equipment makers
Problems It Solves
- Wear in service where SSiC would be over specified
- Chemical attack in medium acid or mild alkaline medium
- Cost pressure on large diameter rings and discs
Core Advantages
- Very economical material with excellent wear characteristics
- Good chemical resistance
- High density obtained by free silicon filling the pores
- Service up to 1000 °C in air
Technical Data
Specifications
| Operating Limits | Units | RBSiC |
|---|---|---|
| Volume Density | g/cm³ | 3.02-3.05 |
| Hardness | HRA | ≥90 |
| Indicated Porosity | % | <0.3 |
| Compressive Strength | Mpa | ≥2000 |
| Flexural Strength | Mpa | >350 |
| Free-Si content | % | <8-12 |
| Purity (SIC Percentage) | % | ≥90 |
| Elastic Modulus | GPa | ≥350 |
| Poisson Ratio | --- | 0.14 |
| Thermal Conductivity | w/m.k | 50-100 |
| Coefficient of Thermal expansion | 10⁶.1/°C | 4.0 |
| Maximum Service Temp Air | °C | 1000 |
Related
Related Pages
FAQ
Category FAQ
What Is In This Category
This category contains Reaction Bonded Sintered Silicon Carbide.
What Medium Can This Grade Handle
Medium acid or mild alkaline medium, and medium concentration of acid.
What Is The Maximum Service Temperature In Air
1000 °C.
Can You Make Parts To Drawing
Yes. We produce the products according to the drawings and requirements of our customers.
Request a Quote for Reaction Bonded Silicon Carbide
Tell us the medium the temperature and the dimensions and we will confirm the grade and the geometry.
