Sintered Silicon-Nozzle
Sintered silicon carbide nozzles with high flexing strength at elevated temperatures and high thermal shock resistance — for burners, kiln furniture and drill bits.
Product Overview

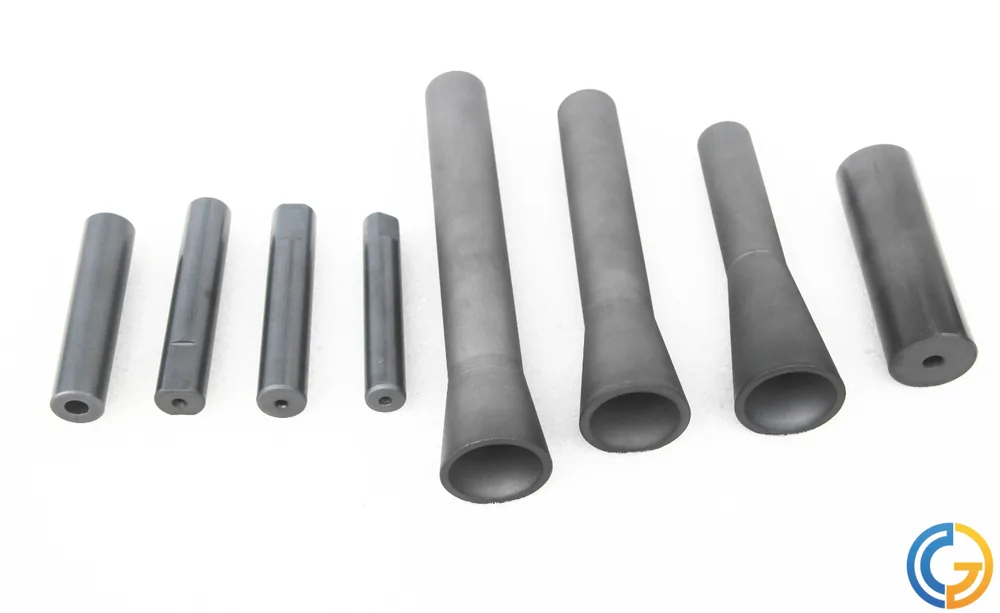

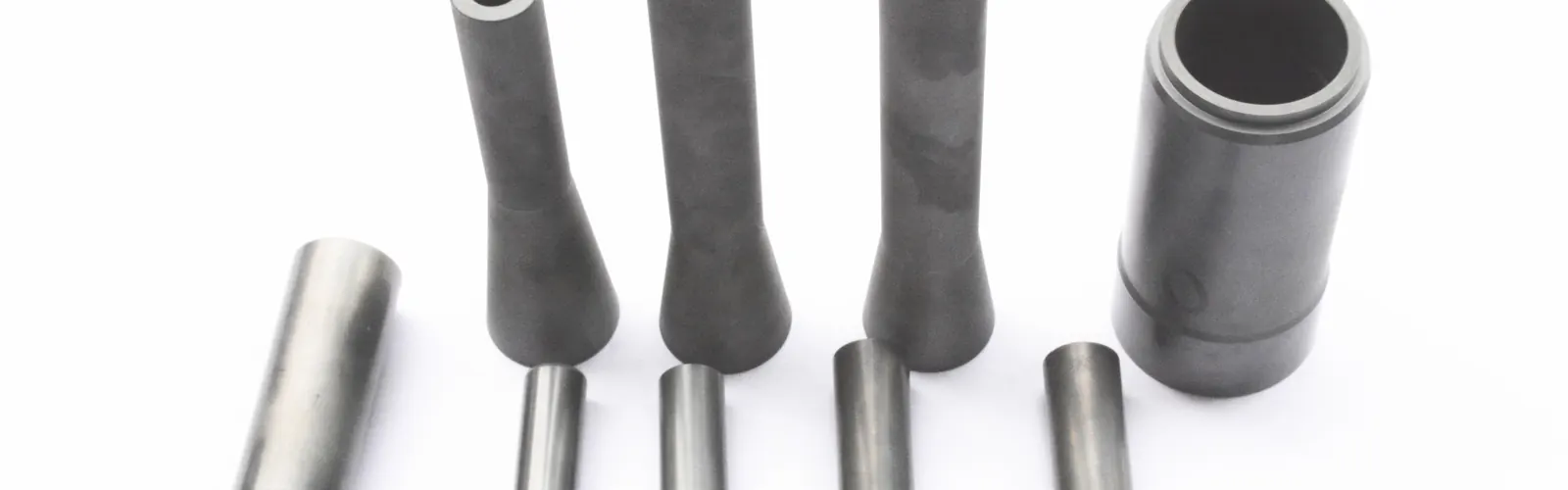

Sintered Silicon-Nozzle
The products have the characteristics of high flexing strength at elevated temperatures, high thermal shock resistance, high corrosion resistance and high thermal conductivity, high resistivity against alkalis.
Sintered silicon carbide burner nozzle application: the products are mainly of kiln furniture in the manufacture of high tension ceramic insulator, construction ceramics, sanitary wares and domestic ceramics. Also, recrystallized carbide refractory are widely used in metallurgy, chemical industries for its unique, excellent properties.
The nozzles are used mainly to PDC drill bits and cone roller bits for flushing, cooling and lubricating drill bit tips and cleaning stone chips in the well bottom with drilling liquid in the working condition of high pressure, vibration, sand and slurry impacting during oil and natural gas prospecting. The products have good wear and impact resistance.
Key Benefits
Why This Part Lasts
- High flexing strength at elevated temperatures
- High thermal shock resistance
- High corrosion resistance and high thermal conductivity
- High resistivity against alkalis
- Good wear and impact resistance
Application Scenarios
Where It Is Used
High Tension Ceramic Insulator
Kiln furniture in the manufacture of high tension ceramic insulators.
Construction Ceramics
Burner nozzles and kiln furniture for construction ceramics.
Sanitary Wares
Firing of sanitary ware bodies.
Domestic Ceramics
Kiln furniture for domestic ceramic production.
Metallurgy And Chemical
Recrystallized carbide refractory used for its unique properties.
Oil And Natural Gas Prospecting
PDC drill bits and cone roller bits for flushing, cooling and lubricating drill bit tips.
Specifications
Silicon Carbide Technical Data
| Operating Limits | Units | SSiC | RBSiC |
|---|---|---|---|
| Volume Density | g/cm³ | 3.08~3.15 | ≥3.03 |
| Hardness | HRA | ≥92 | ≥90 |
| Indicated Porosity | % | <0.2 | <0.2 |
| Compressive Strength | Mpa | ≥2400 | ≥2000 |
| Flexural Strength | Mpa | >400 | >350 |
| Free-Si content | % | <0.1 | <12 |
| Purity (SIC Percentage) | % | ≥99 | ≥98 |
| Elastic Modulus | GPa | ≥400 | 350 |
| Thermal Conductivity | w/m.k | 90-110 | 50-100 |
| Coefficient of Thermal | 10⁶.1/°C | 4.0 | 4.0 |
| Maximum Service Temp Air | °C | 1600 | 1000 |
Data as published for our silicon carbide grades. Confirm the working values for your medium and temperature with our team before ordering.
Gallery
Product Photos
Manufacturing and Quality Control
How This Part Is Made
Production begins with the raw materials in powder form and finishes with a sintered carbide component that achieves all OEM specifications.
1
Powder Preparation
Production begins with the raw materials in powder form, prepared on the spray granulator.
2
Forming
The prepared powder is formed into green parts on the dry press.
3
Sintering
High temperature vacuum sintering in the sintering stove.
4
Grinding And Polishing
CNC grinding and polishing bring the seal faces to final geometry.
5
Testing
Hardness testing and physical testing before the parts are released.
Related Products
Other Silicon Carbide Parts
Sintered Silicon-Wear Sleeves
Silicon carbide wear sleeves for rotating support, aligning, anti-thrust and seal of the axle of submerged electric pumps in the oil field.
View Product
Reaction Bonded Sintered Silicon Carbide
Reaction bonded sintered silicon carbide (RBSiC) — an economical high density ceramic for medium acid or mild alkaline medium.
View ProductFAQ
Sintered Silicon-Nozzle FAQ
What Makes These Nozzles Suitable For Burners
They have high flexing strength at elevated temperatures, high thermal shock resistance, high corrosion resistance and high thermal conductivity.
Where Are The Nozzles Used In Drilling
They are used mainly on PDC drill bits and cone roller bits for flushing, cooling and lubricating drill bit tips and cleaning stone chips in the well bottom.
What Working Conditions Do The Drilling Nozzles Face
High pressure, vibration, sand and slurry impacting during oil and natural gas prospecting. The products have good wear and impact resistance.
Are They Resistant To Alkalis
Yes. The products have high resistivity against alkalis.
Can Non-Standard Sizes Be Produced
We produce the products according to the drawings and requirements of our customers. Send your drawing or sample details by email to confirm.
Get a Quote for Sintered Silicon-Nozzle
Send your drawing or your existing part dimensions together with the medium and the operating temperature.
