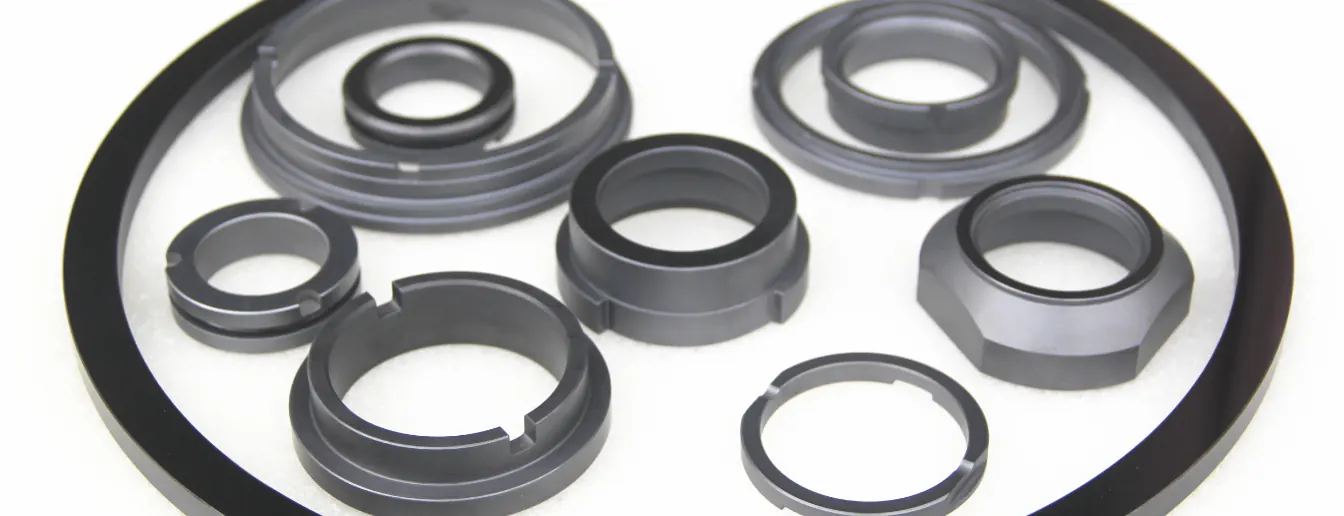

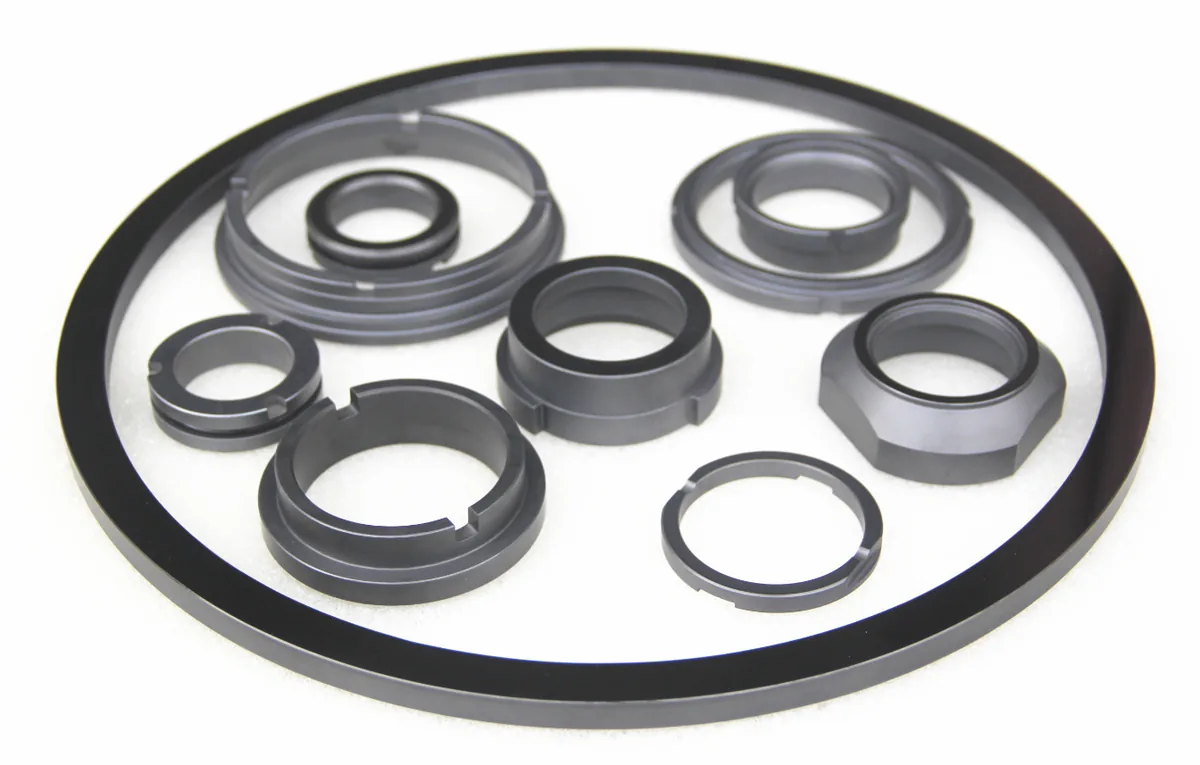

Sintered Silicon Carbide Mechanical Seal Ring
Sintered silicon carbide mechanical seal rings — rotating and stationary rings for pumps working under high speed rotation, sand flush abrasion and corrosion.
View Product
Silicon Carbide Manufacturer Since 2001
Sintered Silicon Carbide Seal Rings Nozzles and Wear Sleeves
GLT Material is a professional hard metal manufacturing and exporting company in Sichuan China. We supply pressureless sintered and reaction bonded silicon carbide components to carbide fabricators and OEM producers worldwide.
Established
2001
Sichuan GLT Material Co., Ltd. was established in 2001.
Quality System
ISO 9001
Certified to ISO 9001 and recognised as a Sichuan high-tech enterprise.
Location
Guanghan, Sichuan
Manufactured locally in Guanghan, which keeps supply times short.
Made For
Carbide Fabricators and OEM
Production starts from raw material in powder form to OEM specifications.
What We Make
Silicon Carbide Components Built for Abrasion and Corrosion
Our main products are sintered SiC mechanical seal rings and reaction SiC mechanical seal rings, together with silicon carbide nozzles and wear sleeves.

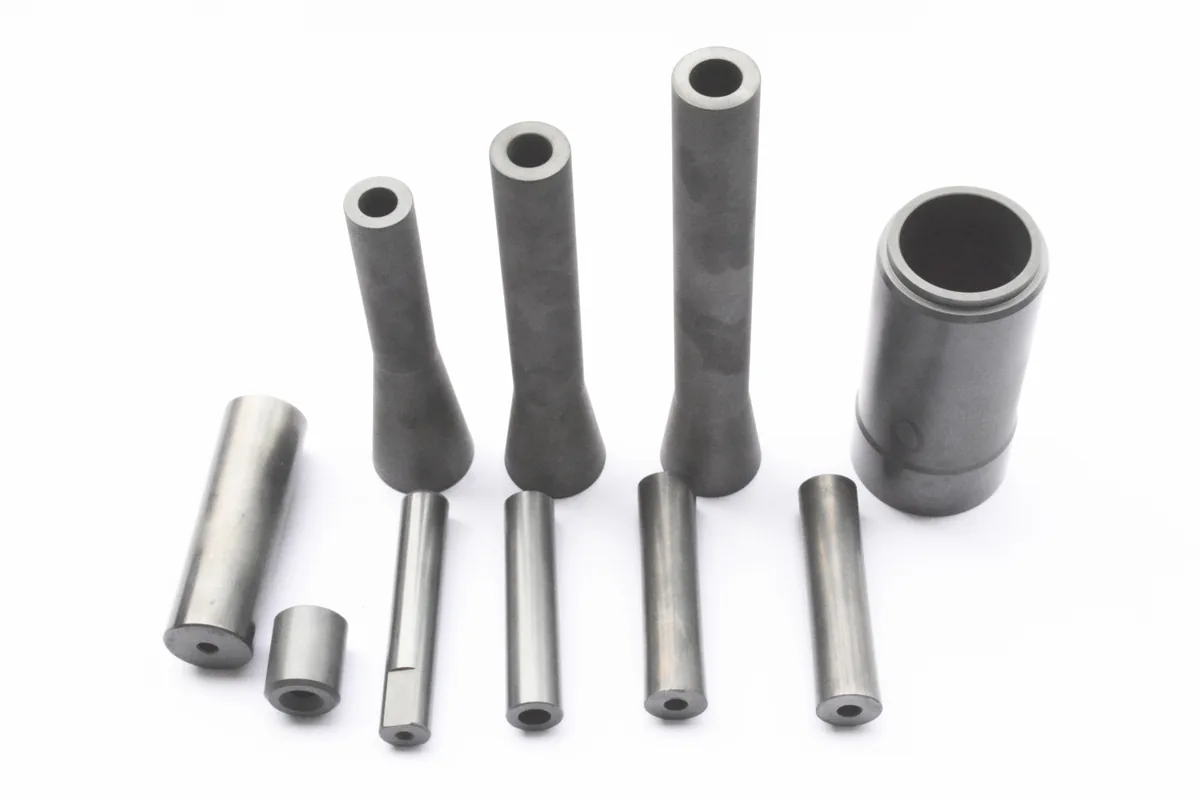

Sintered Silicon-Nozzle
Sintered silicon carbide nozzles with high flexing strength at elevated temperatures and high thermal shock resistance — for burners, kiln furniture and drill bits.
View Product

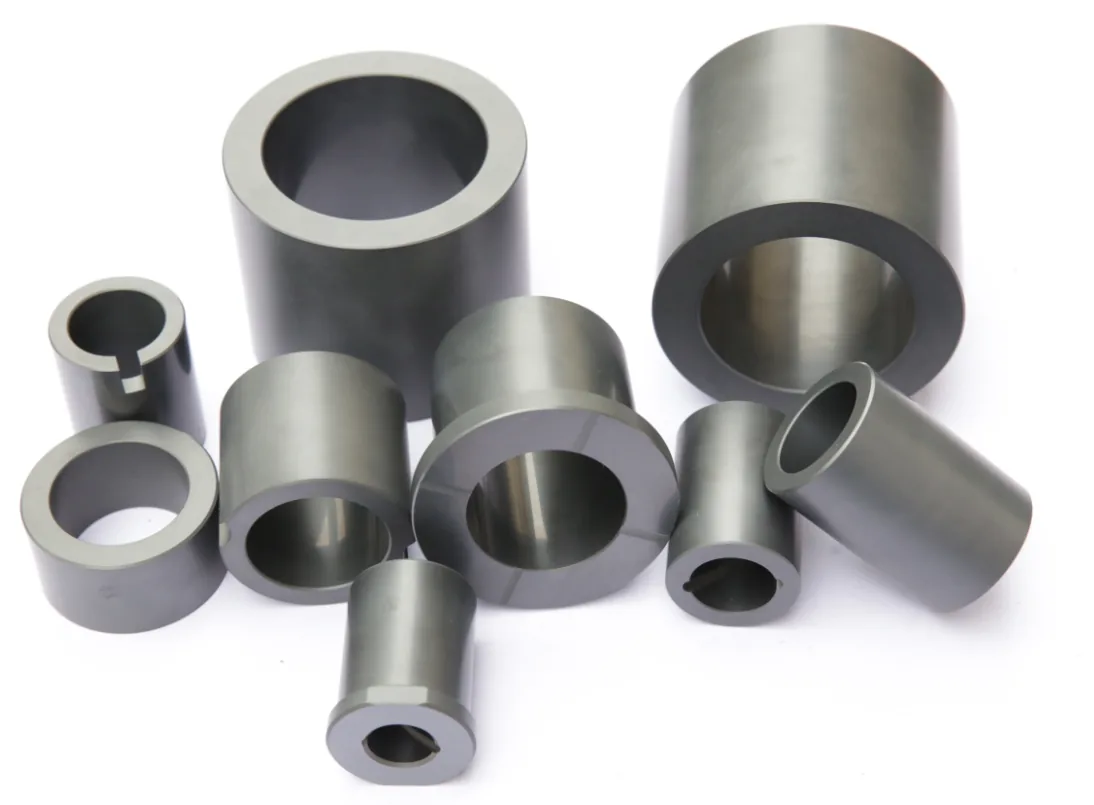

Sintered Silicon-Wear Sleeves
Silicon carbide wear sleeves for rotating support, aligning, anti-thrust and seal of the axle of submerged electric pumps in the oil field.
View Product

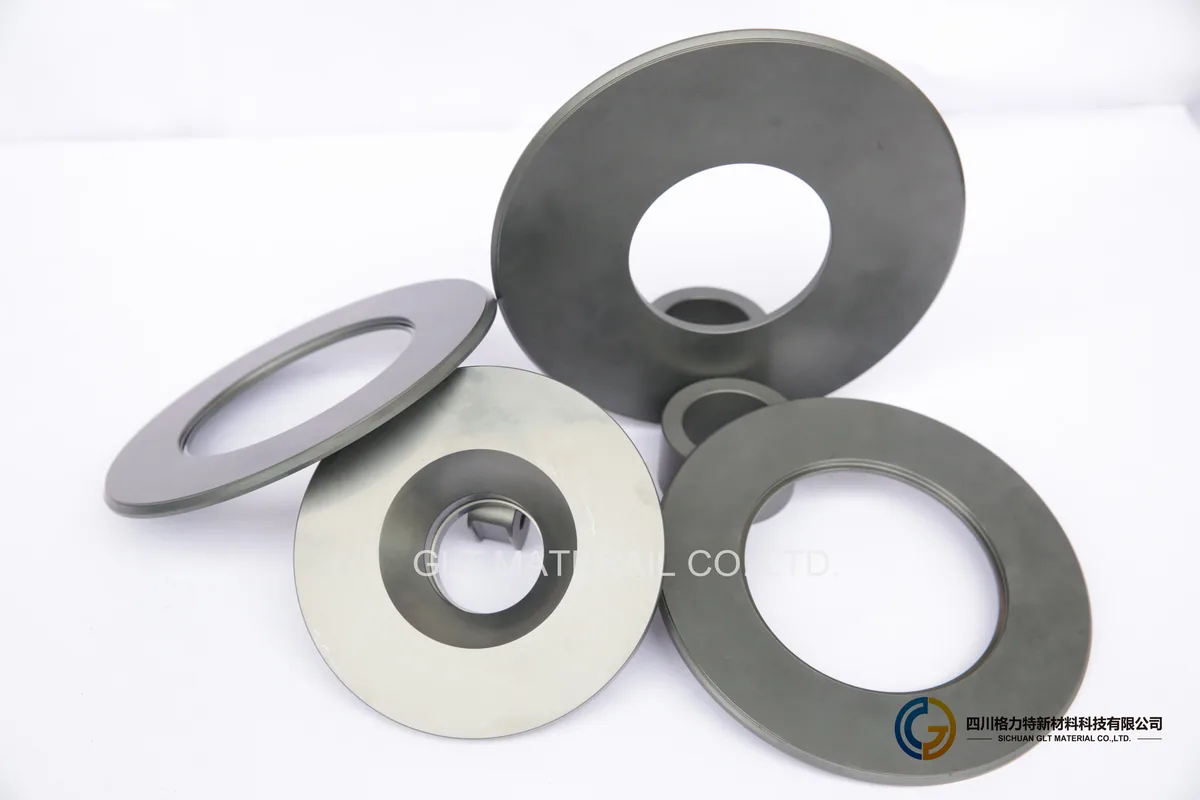

Reaction Bonded Sintered Silicon Carbide
Reaction bonded sintered silicon carbide (RBSiC) — an economical high density ceramic for medium acid or mild alkaline medium.
View ProductMaterial Grades
Two Silicon Carbide Grades for Two Different Duties
Choose the grade by chemistry and service temperature. Both grades are made in house from powder through to finished ground and polished parts.
Pressureless Sintered Silicon Carbide
Pressureless sintered silicon carbide (SSiC) parts made from high purity, ultrafine SiC powder. Seal rings, nozzles and wear sleeves for service in high concentrations of acid or alkali medium.
View Category
Reaction Bonded Silicon Carbide
Reaction bonded sintered silicon carbide (RBSiC) products — an economical grade with excellent wear characteristics and good chemical resistance for medium acid or mild alkaline medium.
View Category| Operating Limits | Units | SSiC | RBSiC |
|---|---|---|---|
| Volume Density | g/cm³ | 3.08~3.15 | ≥3.03 |
| Hardness | HRA | ≥92 | ≥90 |
| Indicated Porosity | % | <0.2 | <0.2 |
| Compressive Strength | Mpa | ≥2400 | ≥2000 |
| Flexural Strength | Mpa | >400 | >350 |
| Free-Si content | % | <0.1 | <12 |
| Purity (SIC Percentage) | % | ≥99 | ≥98 |
| Elastic Modulus | GPa | ≥400 | 350 |
| Thermal Conductivity | w/m.k | 90-110 | 50-100 |
| Coefficient of Thermal | 10⁶.1/°C | 4.0 | 4.0 |
| Maximum Service Temp Air | °C | 1600 | 1000 |
What Problem We Solve
Seal Faces That Survive High Speed Rotation Sand and Acid
Waste water pumps mine discharge pumps centrifugal pumps centrifuges and slurry pumps all fail at the seal first. Silicon carbide faces answer that.
Problems It Solves
- Seal faces worn away by sand flush abrasion in slurry service
- Corrosion of seal faces in high concentrations of acid or alkali medium
- Short life of pump shaft sleeves under high speed rotation
- Nozzle erosion under high pressure vibration sand and slurry impacting
- Kiln furniture that cannot take repeated thermal shock
Why Customers Choose Us
- Manufacturing from raw material in powder form to finished OEM part
- Products manufactured locally in Guanghan for timely supply
- Quality remains the No.1 key to success and our highest priority
- Experienced manufacturing network for a wide range of solutions
- Greater value for your manufacturing dollars
Manufacturing Process
From Silicon Carbide Powder to a Finished Seal Face
1

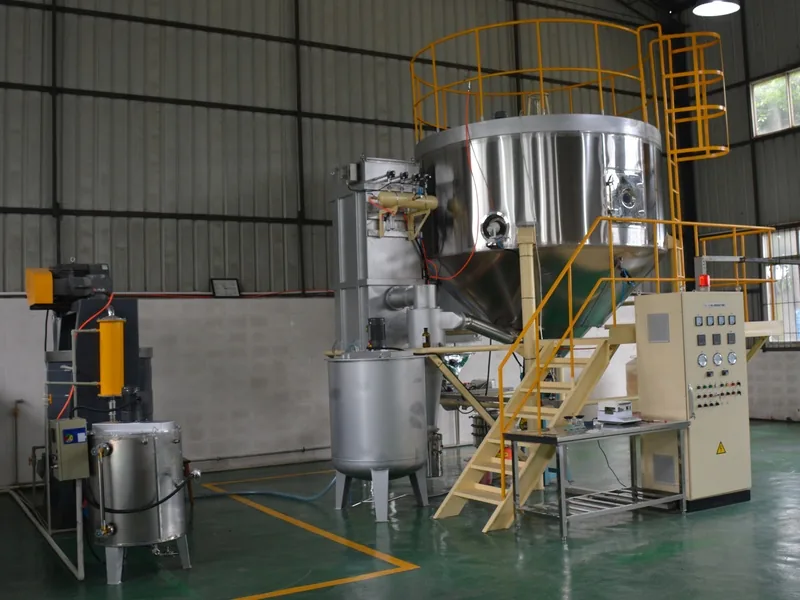

Powder Preparation
Production begins with the raw materials in powder form, prepared on the spray granulator.
2

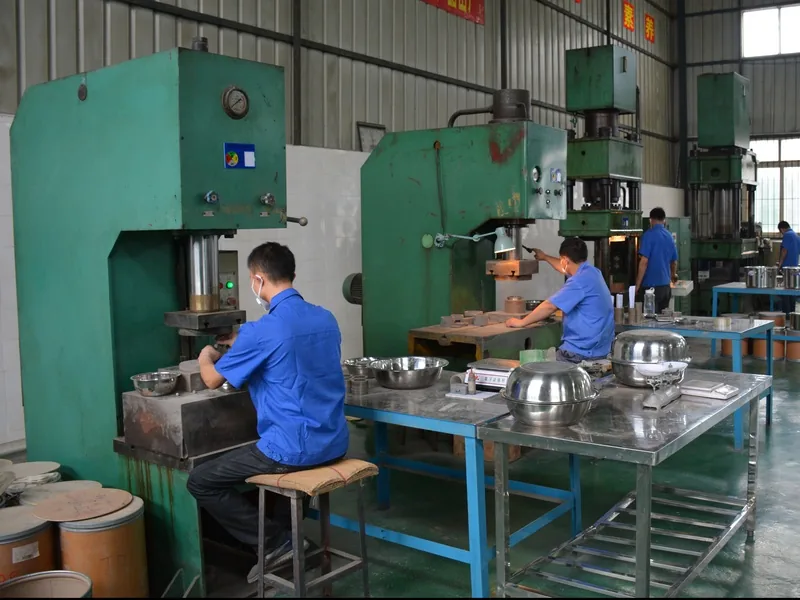

Forming
The prepared powder is formed into green parts on the dry press.
3

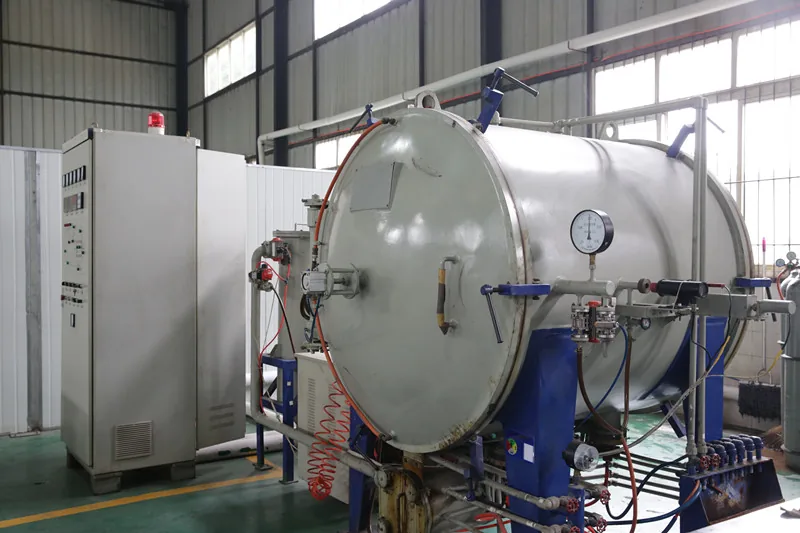

Sintering
High temperature vacuum sintering in the sintering stove.
4

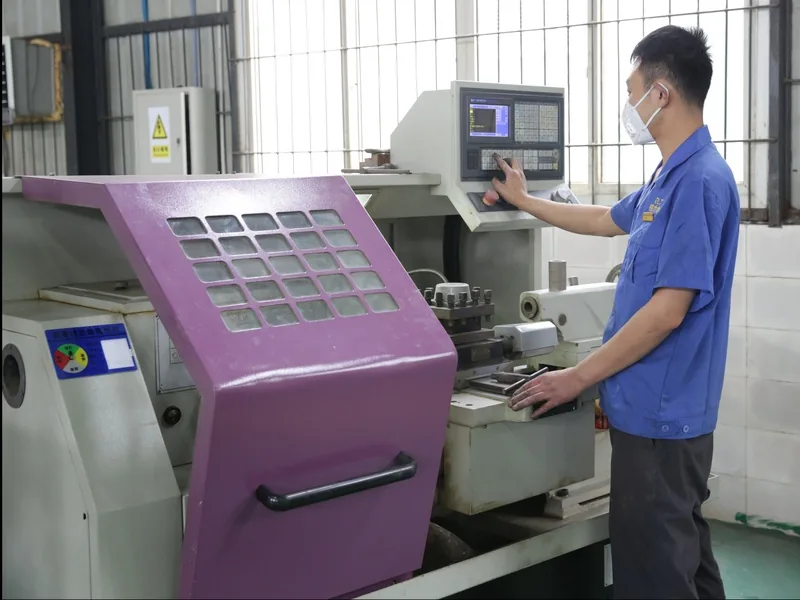

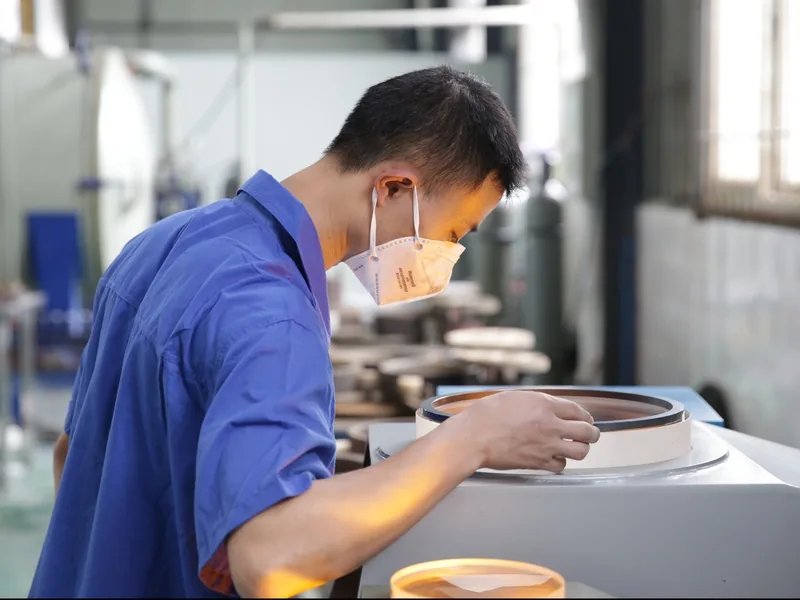

Grinding And Polishing
CNC grinding and polishing bring the seal faces to final geometry.
5

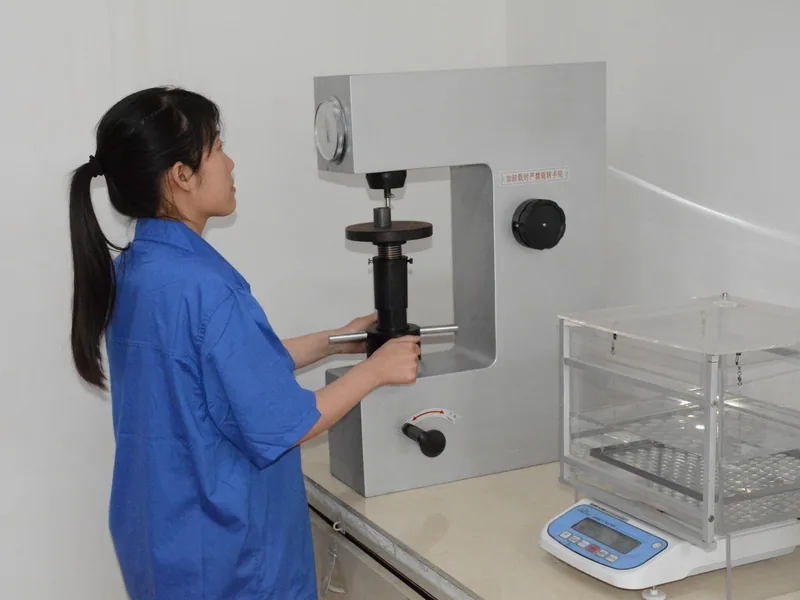

Testing
Hardness testing and physical testing before the parts are released.
Who We Serve
Industries We Supply
- Machinery
- Metallurgy
- Chemical
- Pump Valve
- Automobile
- Petroleum
- Defence
- Aerospace
Plant and Facility Equipment
Real Equipment Real Production
Spray granulation dry pressing vacuum sintering CNC grinding polishing and testing all run at our Guanghan plant.
FAQ
Frequently Asked Questions
What Does GLT Material Make
Sintered silicon carbide mechanical seal rings, sintered silicon carbide nozzles, sintered silicon carbide wear sleeves and reaction bonded sintered silicon carbide products.
Who Do You Supply
Carbide fabricators and OEM producers. Production begins with the raw materials in powder form to produce a sintered carbide component that achieves all OEM specifications.
Which Industries Use Your Products
Machinery, metallurgy, chemical, pump valve, automobile, petroleum, defence, aerospace and other fields.
What Is The Difference Between SSiC And RBSiC
SSiC has almost no free silicon, which makes it most resistant to chemically-aggressive fluids and ideal for high temperature applications, with a maximum service temperature in air of 1600 °C. RBSiC is a very economical material with excellent wear characteristics and good chemical resistance, for medium acid or mild alkaline medium, up to 1000 °C.
Can You Work To Our Drawings
Yes. We produce the products according to the drawings and requirements of our customers, and we also recommend, design and develop new types against the customer needs.
Where Is The Factory
Industries Zone, GaoPing Town, GuangHan, SiChuan, China.
Talk to Us About Your Silicon Carbide Part
Send your drawing your working medium and your operating temperature and our team will recommend the grade and the geometry.
