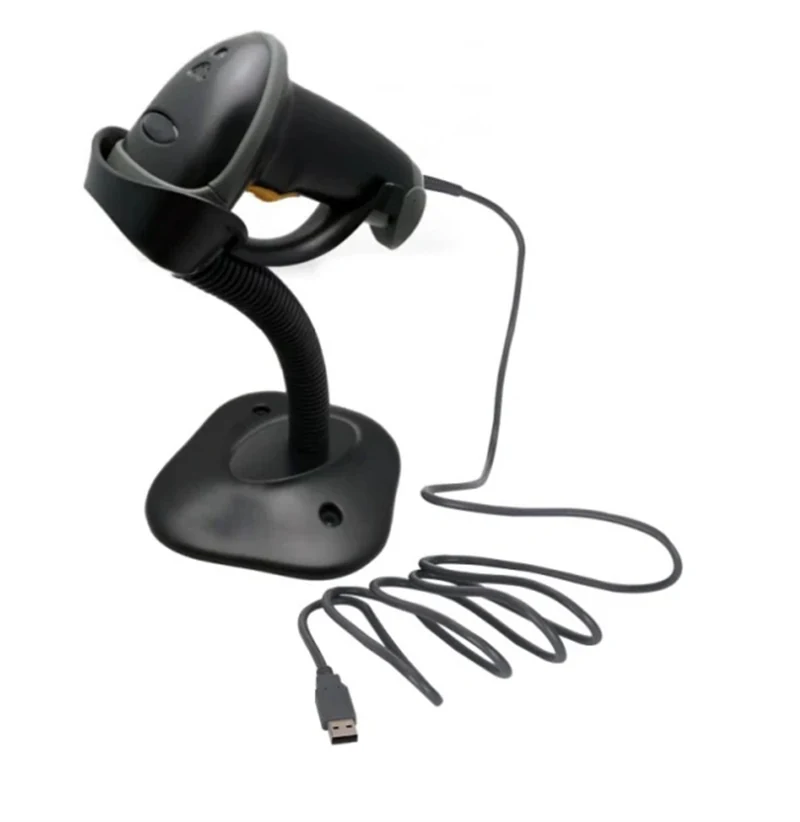

SG1202 Wired 2D CMOS Barcode Scanner held in the hand

Handheld Scanning Gun

SG1202 Wired 2D CMOS Barcode Scanner

A cabled CMOS gun rated -20°C to 60°C, for positions where wireless is not wanted.

Handheld Scanning GunModel SG1202
Quote on WhatsApp Email for a quotation

Manufacturer feature list

  • Plug & Play, no need driver and user friendly
  • CMOS, 1D, 2D and QR code Supported
  • Rugged: 1.5M Drop Resistance
  • Strong Decoding Ability: PDF417, Data Matrix, EAN13, EAN8, UPC, Code128, Code39 etc.
  • Fast Speed
  • Can Work At Harsh Environment from -20°C~60°C
  • Widely Application: Supermarket, Warehouse & Inventory, Medical Pharmacy Store, Book Shop, Express & Logistics, Restaurant etc.

Overview

What this model is for

Plenty of scanning positions should not be wireless: a fixed till, a regulated counter, a station where a flat battery is not acceptable. The SG1202 is the cabled answer — plug and play with no driver, powered from the host, and always paired because it is physically connected.

It reads 1D, 2D and QR codes on a CMOS imager, covering PDF417, Data Matrix, EAN13, EAN8, UPC, Code128 and Code39, with 1.5m drop resistance and an operating range of -20°C to 60°C.

What it fixes

  • Wireless guns at a fixed till are a battery and pairing liability.
  • Regulated environments often prohibit unmanaged radios.
  • Consumer-grade guns crack on the first drop.

Who buys it

Supermarkets, warehouses and inventory counters, pharmacies, bookshops, express and logistics desks, restaurants.

Typical positions

  • Fixed checkout till
  • Regulated dispensing counter
  • Goods-in desk
  • Returns processing station

Why it holds up

Four things that decide whether this works in your position

No battery to manage

Powered from the host, so it never goes flat mid-shift.

No pairing

Physically connected, so it cannot associate with the wrong host.

-20°C to 60°C

Rated well beyond a normal indoor counter.

1.5m drop resistance

Survives being dropped off the counter.

Specifications

Published specification

Specifications as published by the manufacturer for this model.
ModelSG1202
Product NameWired Barcode Scanner 2D CMOS Hand free Bar Code Reader High Speed Supermarket Warehouse Handheld QR Code Reader Rugged Barcode Scanner With Stand
ModelSG1202
CPU32bit
Camera640 X480 CMOS, 30fps
Angel31°
Reading Angel360, ±55°
Reading depth of fieldEAN13: 40~200mm (13mil)
Working VoltageUSB5V
Working Current125mA
Communication PortUSBHID-KBW (defaut)
Cable length1.8 meters
Dimension110mmL*71mmW*158mmH
Working environmentWorking temperature: -20°C~60°C
Reading barcodesOpen 1D barcodes(default): EAN13, EAN8, UPC-A, UPC-E0, UPC-E1, Code128, Code39Code93, CodaBar Closed 1D barcodes(default): Interleaved2of5, Industrial25, Matrix2of5, Code11, MSI Plessey, RSS-14, RSS

Questions

About the SG1202 Wired 2D CMOS Barcode Scanner

Which codes does the SG1202 Wired 2D CMOS Barcode Scanner read?
It reads the mainstream 1D families together with 2D codes including QR, PDF417 and Data Matrix. Send a photograph or a sample of the exact label you need to read and we will confirm against this model before you order.
Does the SG1202 Wired 2D CMOS Barcode Scanner need a driver installed?
The plug-and-play models in this range present to the host without a driver, which is what makes a multi-site rollout practical. Confirm the host OS with us and we will state exactly what is required for this model.
Can the SG1202 Wired 2D CMOS Barcode Scanner be supplied under our own brand?
Yes. OEM and ODM are supported with experienced engineers and an in-house production line, and for some products the software can be customised as well as the hardware. Mini and mix orders are accepted, so a specification can be validated in a pilot first.
What is the lead time and warranty on the SG1202 Wired 2D CMOS Barcode Scanner?
Samples of stock items are dispatched in 1 to 2 working days after payment is received. OEM and bulk order lead times are quoted per project. Warranty is 12 months after delivery; during that period damage caused by non-human factors is repaired free of charge.
Which documents can you provide for the SG1202 Wired 2D CMOS Barcode Scanner?
CE, RoHS, MSDS and UN38.3 approvals are stated for the product range. Request the certificate document for this specific model before relying on it in a tender, and we will send what exists for it.

Compare

Related models

SG1202 2D CMOS Wired Scanning Gun, front product view

Handheld Scanning Gun

SG1202 2D CMOS Wired Scanning Gun

The SG1202 in its general-purpose scanning gun configuration for counters and back offices.

View specifications

Quote the SG1202 Wired 2D CMOS Barcode Scanner

Tell us the quantity, the destination country and the host operating system, and we will come back with a price, a lead time and the certificate documents that exist for this model.
