Bluetooth and 2.4G Wireless QR Code Scanner, front product view

Handheld Scanning Gun

Bluetooth and 2.4G Wireless QR Code Scanner

A triple-mode gun with a replaceable 2000mAh pack and multi-language keyboard output.

Handheld Scanning Gun
Quote on WhatsApp Email for a quotation

Manufacturer feature list

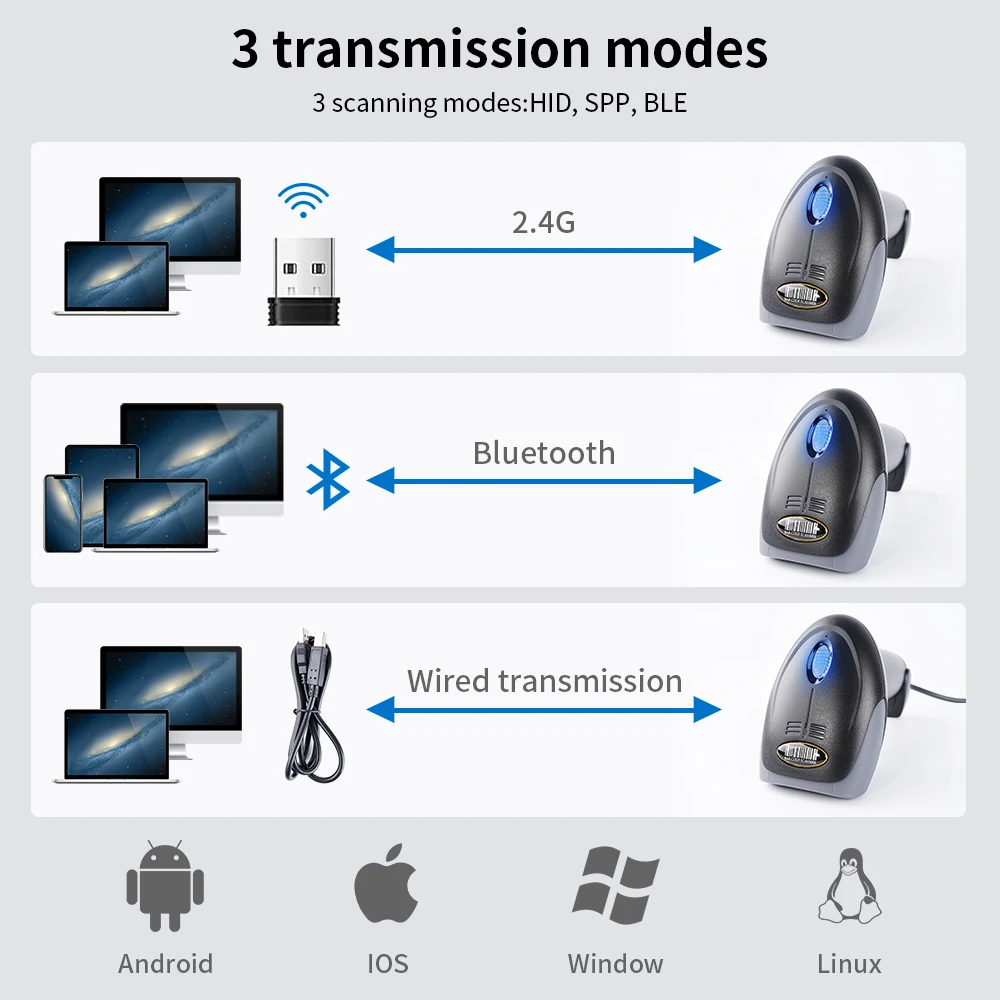

  • Bluetooth +2.4G wireless + Wired
  • 2000mAh rechargeable replaceable large capacity battery
  • CMOS, 1D, 2D and QR code Supported
  • Support offline storage model : 5000-20000 records
  • Support multi-language such as: Italy, German, France, UK, USA, Belgium, Turky etc.
  • Rugged: 1.5M Drop Resistance
  • Strong Decoding Ability: PDF417, Aztec, Data Matrix, EAN13, EAN8, UPC, Code128, Code39 etc.
  • Fast Speed
  • Can Work At Harsh Environment from -20°C~60°C
  • Widely Application: Supermarket, Warehouse & Inventory, Medical Pharmacy Store, Book Shop, Express & Logistics, Restaurant etc.

Overview

What this model is for

This handheld covers all three connection paths — Bluetooth, 2.4G wireless and cable — and carries a 2000mAh rechargeable battery that is also replaceable, so a spare pack keeps a 24-hour operation running without a spare scanner.

It buffers 5,000 to 20,000 records in offline storage mode, reads 1D, 2D and QR codes on a CMOS imager including PDF417, Aztec, Data Matrix, EAN13, EAN8, UPC, Code128 and Code39, and outputs in multiple keyboard layouts — Italy, Germany, France, UK, USA, Belgium and Turkey among them. It is rated -20°C to 60°C with 1.5m drop resistance.

What it fixes

  • Sealed batteries put a scanner out of service for a whole charge cycle.
  • Wrong keyboard layout silently corrupts scanned data in European deployments.
  • Single-mode scanners cannot follow a device from aisle to desk.

Who buys it

Multi-site European retailers, warehouses and inventory teams, pharmacies, bookshops, logistics depots and restaurants.

Typical positions

  • 24-hour warehouse operation
  • Multi-country retail rollout
  • Offline stock audits
  • Mixed desk and aisle scanning

Why it holds up

Four things that decide whether this works in your position

Replaceable 2000mAh pack

A charged spare replaces a charging break.

Three connection modes

Bluetooth, 2.4G and wired from one part number.

5,000-20,000 record buffer

Offline counting where there is no coverage.

Multi-language keyboard output

Correct characters on Italian, German, French, Belgian and Turkish layouts.

Specifications

Published specification

Specifications as published by the manufacturer for this model.
Product NameBluetooth QR Code Scanner Wireless QR Code Reader 2D CMOS High Speed Scanning Gun Handheld Rugged Barcode Scanner
Input voltageDC 5 volts ± 0.25 volts
Power1.60 watts (working); 0.40 watts (standby)
Current320 mA (operating); 80 mA (standby) 5 +/-10% VDC @ 350 mA
SensorGlobal Exposure CMOS
Differentiation640 × 480 pixels
Field of view angle±42°, ±32° (horizontal, vertical)
Battery capacity2000mA
Wireless distance50-80 meters; Blue-tooth about 10 meters
Wireless storage5000-20000
Wireless continuous operation72 hours
Wireless standby30 days
Transfer mode2.4G wireless+Blue-tooth, USB charging cable can be used as wired transmission dat

Questions

About the Bluetooth and 2.4G Wireless QR Code Scanner

Which codes does the Bluetooth and 2.4G Wireless QR Code Scanner read?
It reads the mainstream 1D families together with 2D codes including QR, PDF417 and Data Matrix. Send a photograph or a sample of the exact label you need to read and we will confirm against this model before you order.
Does the Bluetooth and 2.4G Wireless QR Code Scanner need a driver installed?
The plug-and-play models in this range present to the host without a driver, which is what makes a multi-site rollout practical. Confirm the host OS with us and we will state exactly what is required for this model.
Can the Bluetooth and 2.4G Wireless QR Code Scanner be supplied under our own brand?
Yes. OEM and ODM are supported with experienced engineers and an in-house production line, and for some products the software can be customised as well as the hardware. Mini and mix orders are accepted, so a specification can be validated in a pilot first.
What is the lead time and warranty on the Bluetooth and 2.4G Wireless QR Code Scanner?
Samples of stock items are dispatched in 1 to 2 working days after payment is received. OEM and bulk order lead times are quoted per project. Warranty is 12 months after delivery; during that period damage caused by non-human factors is repaired free of charge.
Which documents can you provide for the Bluetooth and 2.4G Wireless QR Code Scanner?
CE, RoHS, MSDS and UN38.3 approvals are stated for the product range. Request the certificate document for this specific model before relying on it in a tender, and we will send what exists for it.
