SG102 Long Range Bluetooth QR Code Scanner, front product view

Handheld Scanning Gun

SG102 Long Range Bluetooth QR Code Scanner

Up to 250m of communication range in open space, so the host stays where it is.

Handheld Scanning GunModel SG102
Quote on WhatsApp Email for a quotation

Manufacturer feature list

  • Over 100M, even 250M long distance communication distance (open space)
  • Area Imager, high performance 1D, 2D and QR code Supported, such as PDF417, Data Matrix, EAN13, EAN8, UPC, Code128, Code39 etc.
  • Long working timer: continuously work for 12 hours if 1times/sec.
  • IP42 drop resistance
  • Rugged: 1.5M Drop Resistance
  • Fast Speed
  • Widely Application: Supermarket, Warehouse & Inventory, Medical Pharmacy Store, Book Shop, Express & Logistics, Restaurant etc.

Overview

What this model is for

Range is what usually forces a second terminal into a yard or a high-bay aisle. The SG102 communicates over 100m — up to 250m in open space — so the operator can walk the length of a yard while the host PC stays at the desk.

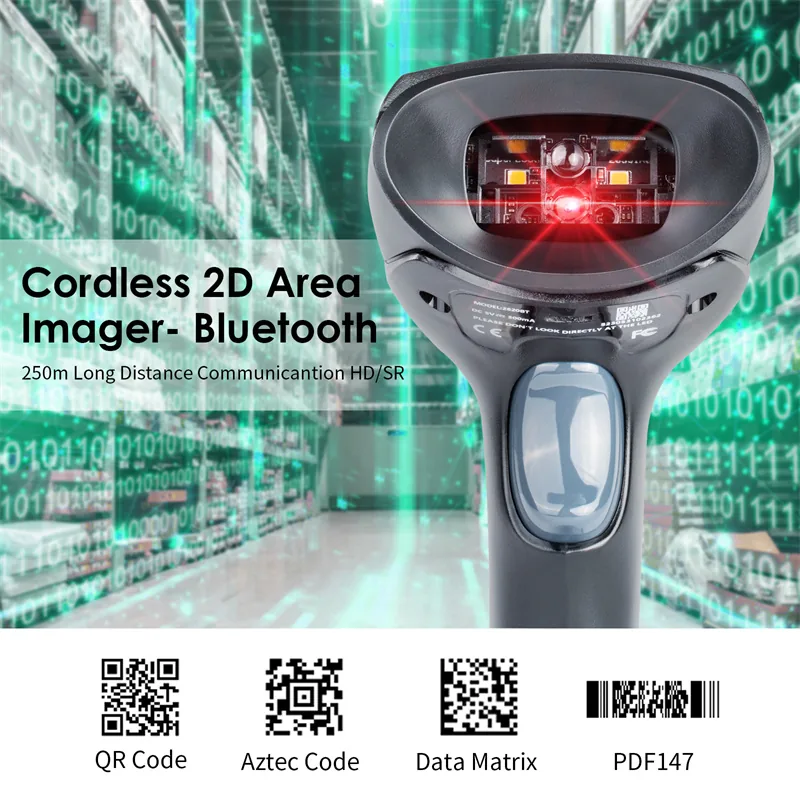

It is an area imager reading 1D, 2D and QR codes including PDF417, Data Matrix, EAN13, EAN8, UPC, Code128 and Code39, quoted at 12 hours of continuous work at one scan per second, and built to survive the environment: IP42 sealing and 1.5m drop resistance.

What it fixes

  • Short-range Bluetooth scanners force a laptop trolley into the aisle.
  • Batteries sized for a shop counter die halfway through a warehouse shift.
  • Unsealed guns fail in a yard within a wet season.

Who buys it

Warehouse and inventory teams, express and logistics yards, supermarkets, pharmacies, bookshops and restaurants.

Typical positions

  • Yard and trailer checks
  • High-bay aisle counting
  • Goods-in across a large dock
  • Outdoor stock audits

Why it holds up

Four things that decide whether this works in your position

Over 100m, up to 250m open space

One base station covers a yard or a full aisle run.

12 hours continuous

At one scan per second, a full shift without a charge break.

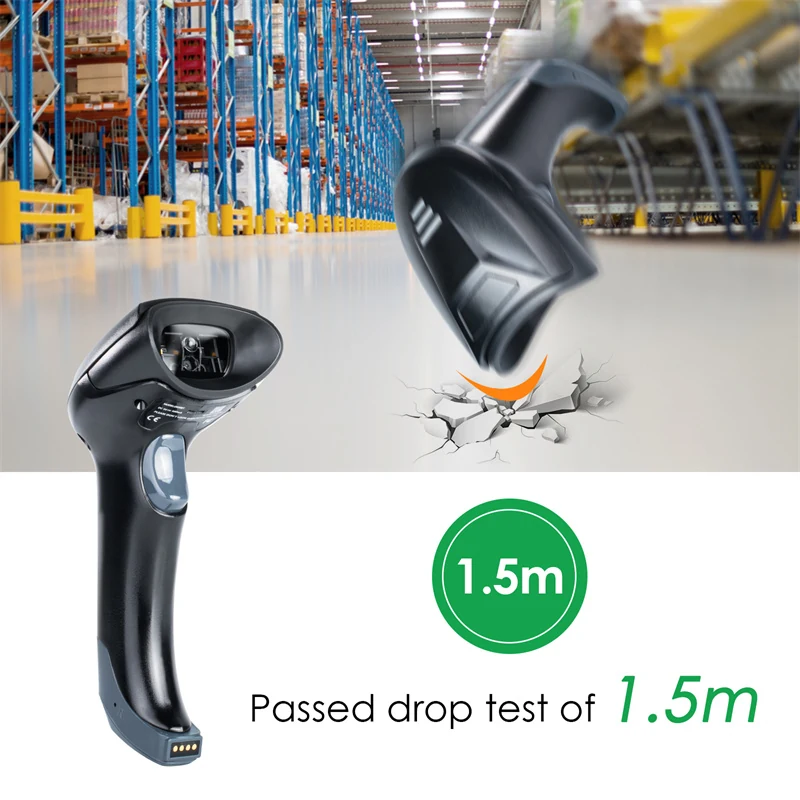

1.5m drop resistance

Survives being dropped from working height onto concrete.

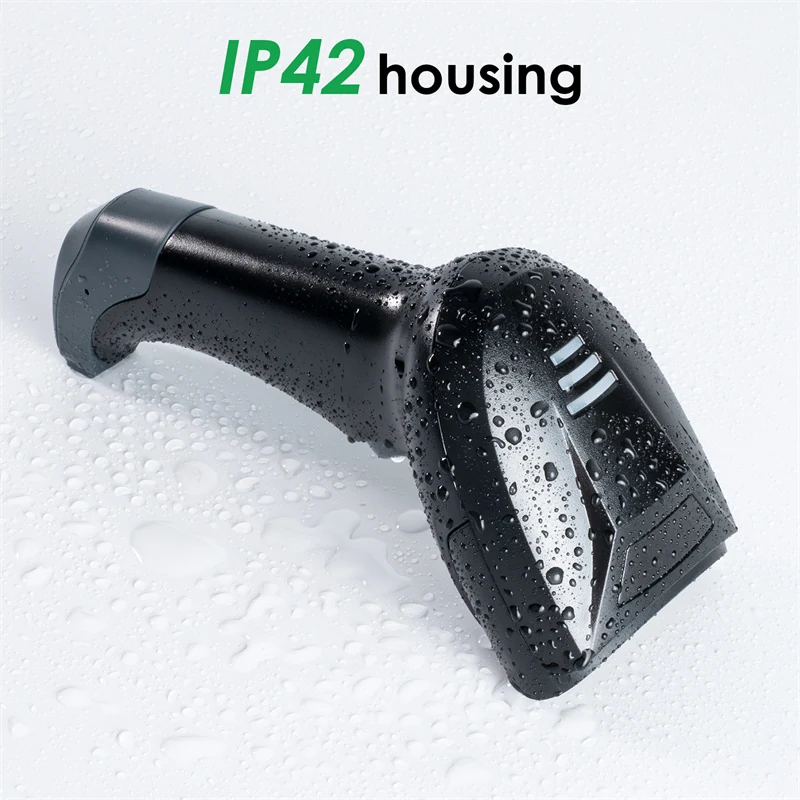

IP42 sealed

Rated against dust and dripping water in a working yard.

Specifications

Published specification

Specifications as published by the manufacturer for this model.
ModelSG102
Product NameLong Range QR code Scanner Bluetooth 2D Area Imager QR code Reader
ModelSG102
Dimensions208mm x 81mm x 115mm
Weight460g
Voltage/Current5 VDC +/-10% @ 500 mA
Image (Pixels)640 pixels (H)x 480 pixels (V)
Light sourceAiming: 617 nm LED; illumination: 6500K LED
Field of view40° (H) x 32° (V)
Roll / Pitch / Yaw360°, ±65°, ±60°
Battery volume4.2v/2500mAh
Charging time5-6 h
Working time1S/per scan, continuously work for 12 hours
Wireless technolngyBluetooth 5.0
Operation distance250 meters (open space)
Print contrast25% minimum reflective difference
Interfaces supportedUSB, OTA
Motion tolerancesup to 25 in. (63.5 cm) per second
1-DUPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI Plessey, GS1 DataBar, China Postal, Korean Postal, etc.
2-DPDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin,etc
Operating temperature0°C to 50°C
Storage temperature-40°C to 70°C
Humidity0% to 95% relative humidity,non-condensing
Shock specificationsDesigned to withstand 1.5m(5’) drops
Ambient light immunity100.000 Lux.
5 mil (Code 39)30mm-90mm
13 mil (100% Upca)40mm-170mm
1D minimal resolution4mil

Questions

About the SG102 Long Range Bluetooth QR Code Scanner

What temperature range is the SG102 Long Range Bluetooth QR Code Scanner rated for?
The stated operating range is 0°C to 50°C. Confirm the coldest point the device will actually see — condensation on the way out of a cold store is as damaging as the cold itself.
Does the SG102 Long Range Bluetooth QR Code Scanner need a driver installed?
The plug-and-play models in this range present to the host without a driver, which is what makes a multi-site rollout practical. Confirm the host OS with us and we will state exactly what is required for this model.
Can the SG102 Long Range Bluetooth QR Code Scanner be supplied under our own brand?
Yes. OEM and ODM are supported with experienced engineers and an in-house production line, and for some products the software can be customised as well as the hardware. Mini and mix orders are accepted, so a specification can be validated in a pilot first.
What is the lead time and warranty on the SG102 Long Range Bluetooth QR Code Scanner?
Samples of stock items are dispatched in 1 to 2 working days after payment is received. OEM and bulk order lead times are quoted per project. Warranty is 12 months after delivery; during that period damage caused by non-human factors is repaired free of charge.
Which documents can you provide for the SG102 Long Range Bluetooth QR Code Scanner?
CE, RoHS, MSDS and UN38.3 approvals are stated for the product range. Request the certificate document for this specific model before relying on it in a tender, and we will send what exists for it.

Compare

Related models

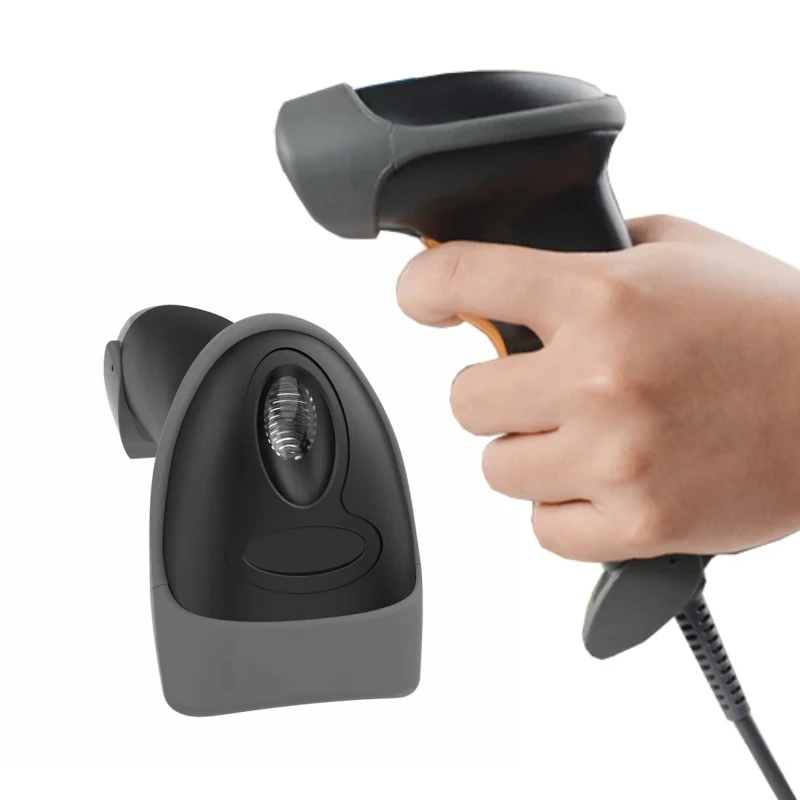

SG1202 2D CMOS Wired Scanning Gun, front product view
