SG102 Long Range Barcode Scanner With Bluetooth Cradle

Handheld Scanning Gun

SG102 Long Range Barcode Scanner With Bluetooth Cradle

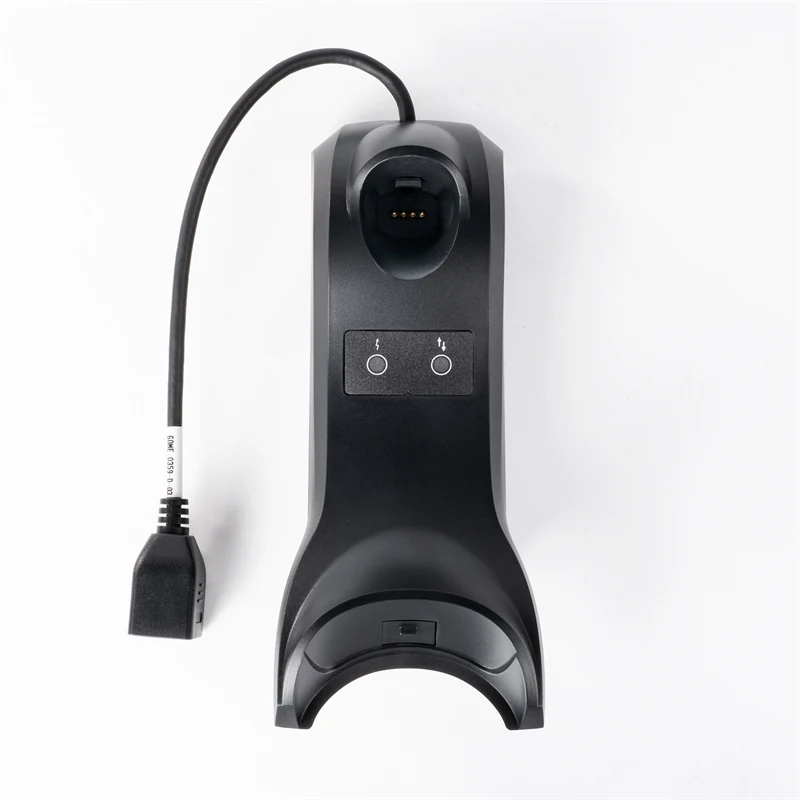

The SG102 supplied with an adjustable cradle that charges, connects and presents the gun.

Handheld Scanning GunModel SG102

Quote on WhatsApp Email for a quotation

Manufacturer feature list

Over 100M, even 250M long distance communication distance (open space)
Area Imager, high performance 1D, 2D and QR code Supported, such as PDF417, Data Matrix, EAN13, EAN8, UPC, Code128, Code39 etc.

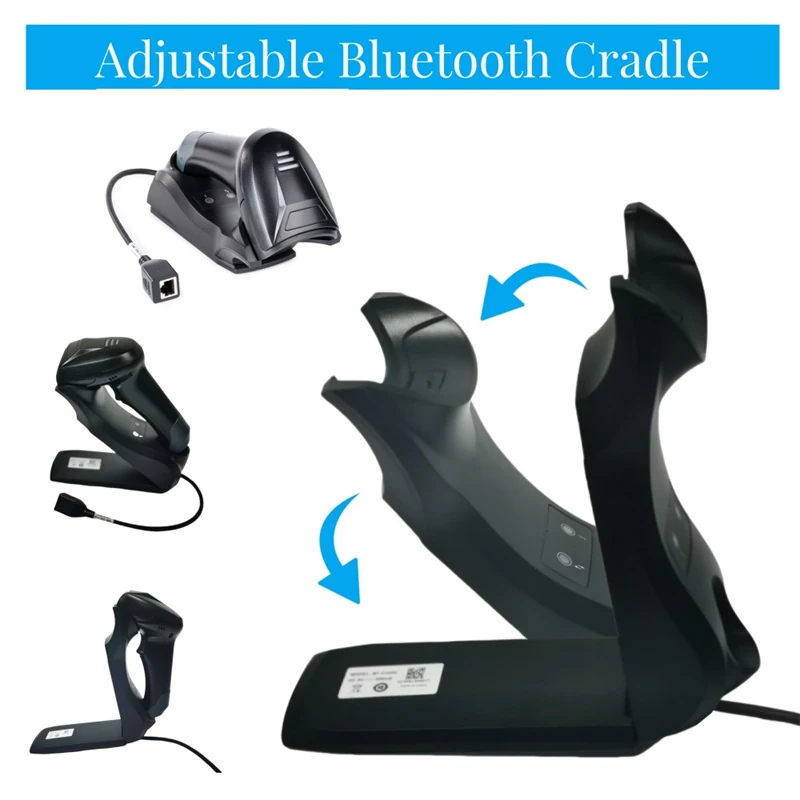

Multi-function adjustable bluetooth cradle = A bluetooth cradle & an adjustable stand, convenient and use-friendly
Long working timer: continuously work for 12 hours if 1times/sec.
IP42 drop resistance
Rugged: 1.5M Drop Resistance
Fast Speed
Widely Application: Supermarket, Warehouse & Inventory, Medical Pharmacy Store, Book Shop, Express & Logistics, Restaurant etc.

Overview

What this model is for

This is the SG102 configured for a fixed base position: the multi-function cradle is both a Bluetooth base and an adjustable stand, so the gun becomes a hands-free presentation scanner at the desk and a long-range mobile scanner in the yard.

The scanner itself is unchanged — an area imager for 1D, 2D and QR codes including PDF417, Data Matrix, EAN13, EAN8, UPC, Code128 and Code39, communicating over 100m and up to 250m in open space, quoted at 12 hours of continuous work at one scan per second, IP42 rated with 1.5m drop resistance.

What it fixes

Handheld guns left on a desk get knocked off and damaged.
Separate charging bases and stands take two footprints on one counter.
Counters need hands-free presentation, yards need mobility — usually two devices.

Who buys it

Warehouse and inventory, express and logistics, supermarkets, pharmacies, bookshops and restaurants.

Typical positions

Counter presentation scanning
Yard scanning from a desk base
Goods-in station
Back-office receipt

Why it holds up

Four things that decide whether this works in your position

Cradle is base and stand

Hands-free presentation scanning at the desk, mobile scanning away from it.

Adjustable angle

Set the presentation height to the counter and the operator.

Same long range

Over 100m, up to 250m in open space, from the cradled base.

Charges in place

The gun returns to the cradle and charges between uses.

Specifications

Published specification

Specifications as published by the manufacturer for this model.
Model	SG102
Product Name	Long Range Barcode Scanner Bluetooth 2D CMOS Hand free Bar Code Reader With Cradle Stand
Model	SG102
Dimensions	208mm x 81mm x 115mm
Weight	460g
Voltage/Current	5 VDC +/-10% @ 500 mA
Image (Pixels)	640 pixels (H)x 480 pixels (V)
Light source	Aiming: 617 nm LED; illumination: 6500K LED
Field of view	40° (H) x 32° (V)
Roll / Pitch / Yaw	360°, ±65°, ±60°
Battery volume	4.2v/2500mAh
Charging time	5-6 h
Working time	1S/per scan, continuously work for 12 hours
Wireless technolngy	Bluetooth 5.0
Operation distance	250 meters (open space)
Print contrast	25% minimum reflective difference
Interfaces supported	USB, OTA
Motion tolerances	up to 25 in. (63.5 cm) per second
1-D	UPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI Plessey, GS1 DataBar, China Postal, Korean Postal, etc.
2-D	PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin,etc
Operating temperature	0°C to 50°C
Storage temperature	-40°C to 70°C
Humidity	0% to 95% relative humidity,non-condensing
Shock specifications	Designed to withstand 1.5m(5’) drops
Ambient light immunity	100.000 Lux.
5 mil (Code 39)	30mm-90mm
13 mil (100% Upca)	40mm-170mm
1D minimal resolution	4mil

Questions

About the SG102 Long Range Barcode Scanner With Bluetooth Cradle

What temperature range is the SG102 Long Range Barcode Scanner With Bluetooth Cradle rated for?

The stated operating range is 0°C to 50°C. Confirm the coldest point the device will actually see — condensation on the way out of a cold store is as damaging as the cold itself.

Does the SG102 Long Range Barcode Scanner With Bluetooth Cradle need a driver installed?

The plug-and-play models in this range present to the host without a driver, which is what makes a multi-site rollout practical. Confirm the host OS with us and we will state exactly what is required for this model.

Can the SG102 Long Range Barcode Scanner With Bluetooth Cradle be supplied under our own brand?

Yes. OEM and ODM are supported with experienced engineers and an in-house production line, and for some products the software can be customised as well as the hardware. Mini and mix orders are accepted, so a specification can be validated in a pilot first.

What is the lead time and warranty on the SG102 Long Range Barcode Scanner With Bluetooth Cradle?

Samples of stock items are dispatched in 1 to 2 working days after payment is received. OEM and bulk order lead times are quoted per project. Warranty is 12 months after delivery; during that period damage caused by non-human factors is repaired free of charge.
