PF701 Megapixel Payment Reader for POS Systems

Platform Desktop Scanner

PF701 Megapixel Payment Reader for POS Systems

A 1280x800 imager at 120 scans per second, for tills and unattended machines alike.

Platform Desktop ScannerModel PF701

Quote on WhatsApp Email for a quotation

Manufacturer feature list

1D, 2D and QR code , CMOS
Image Pixels:1280×800 pixels
Fast Decoding Speed: 120scans/S
Reading Precision: ≥4mil
Plug & Play, no need driver and user friendly
Automatic sleep and wake-up
Multi-device compatible: Windows, IOS, Linux etc.

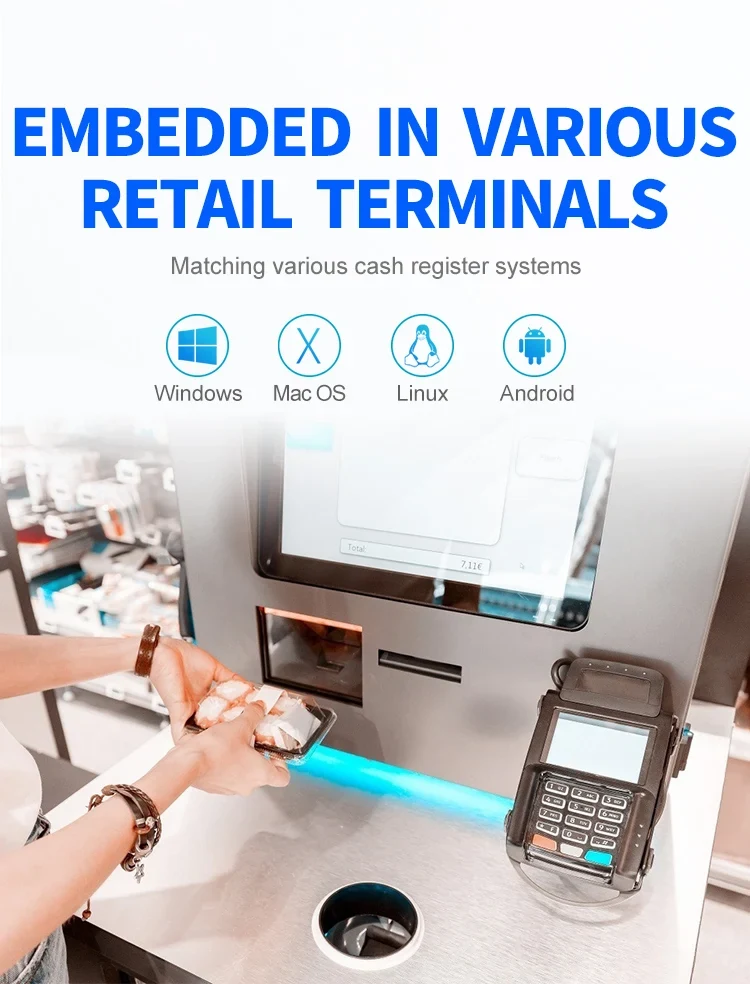

Multi-mounted way: embedded into vending machine or kiosk termiinal and table mount are both ok
Strong decodeing ability:
Widely Application: Supermarket Cashier, Library, Stationary, Pharmacy Shop, Shopping Mall Center, Warehouse, Healthy Care & Pharmacy, cafe, convenience store, retail shop, library, drugstore, Lottery, restaurants, chain stores,grocery stores

Overview

What this model is for

The PF701 is specified for payment QR codes, which are harder than product barcodes: they arrive on a scratched phone screen at an awkward angle, often backlit. A 1280 x 800 CMOS imager at 120 scans per second and 4 mil reading precision is what makes that reliable.

It is plug and play with no driver, works with Windows, iOS and Linux hosts, sleeps and wakes automatically, and mounts either embedded into a vending machine or kiosk terminal or standing on a counter — one part for both attended and unattended positions.

What it fixes

Low-resolution imagers fail on cracked phone screens at the till.
Separate counter and kiosk SKUs complicate spares and service.
Driver-dependent readers break with every OS update on a POS fleet.

Who buys it

Supermarket cashiers, libraries, pharmacies, shopping malls, warehouses, cafes, convenience stores, chain stores and grocery.

Typical positions

Counter payment scanning
Vending machine payment
Library self-service
Unattended kiosk terminals

Why it holds up

Four things that decide whether this works in your position

1280 x 800 resolution

Resolves payment QR codes on damaged and dim phone screens.

Embeds or stands

Same unit for a vending machine cut-out or a checkout counter.

Cross-platform

Windows, iOS and Linux without a driver.

120 scans per second

Payment does not wait for the reader.

Specifications

Published specification

Specifications as published by the manufacturer for this model.
Model	PF701
Image sensor	1280×800 pixels
Scan rate	120scans/S
Reading precision	≥4mil
1D symbologies	UPC-A, UPC-E0, UPC-E1, EAN-8, EAN13, Code128, GS1-128, Code39, Code32, Code93, Code11, Interleaved 2 of 5, Industrial 25
2D symbologies	QR Code, Data Matrix (DM), PDF417, Maxi Code, Aztec Code, ISSN, NEC-25, COMPOSITE, Screen code

Questions

About the PF701 Megapixel Payment Reader for POS Systems

Which codes does the PF701 Megapixel Payment Reader for POS Systems read?

It reads the mainstream 1D families together with 2D codes including QR, PDF417 and Data Matrix. Send a photograph or a sample of the exact label you need to read and we will confirm against this model before you order.

Does the PF701 Megapixel Payment Reader for POS Systems need a driver installed?

The plug-and-play models in this range present to the host without a driver, which is what makes a multi-site rollout practical. Confirm the host OS with us and we will state exactly what is required for this model.

Can the PF701 Megapixel Payment Reader for POS Systems be supplied under our own brand?

Yes. OEM and ODM are supported with experienced engineers and an in-house production line, and for some products the software can be customised as well as the hardware. Mini and mix orders are accepted, so a specification can be validated in a pilot first.

What is the lead time and warranty on the PF701 Megapixel Payment Reader for POS Systems?

Samples of stock items are dispatched in 1 to 2 working days after payment is received. OEM and bulk order lead times are quoted per project. Warranty is 12 months after delivery; during that period damage caused by non-human factors is repaired free of charge.

Which documents can you provide for the PF701 Megapixel Payment Reader for POS Systems?
