Platform Desktop Scanner

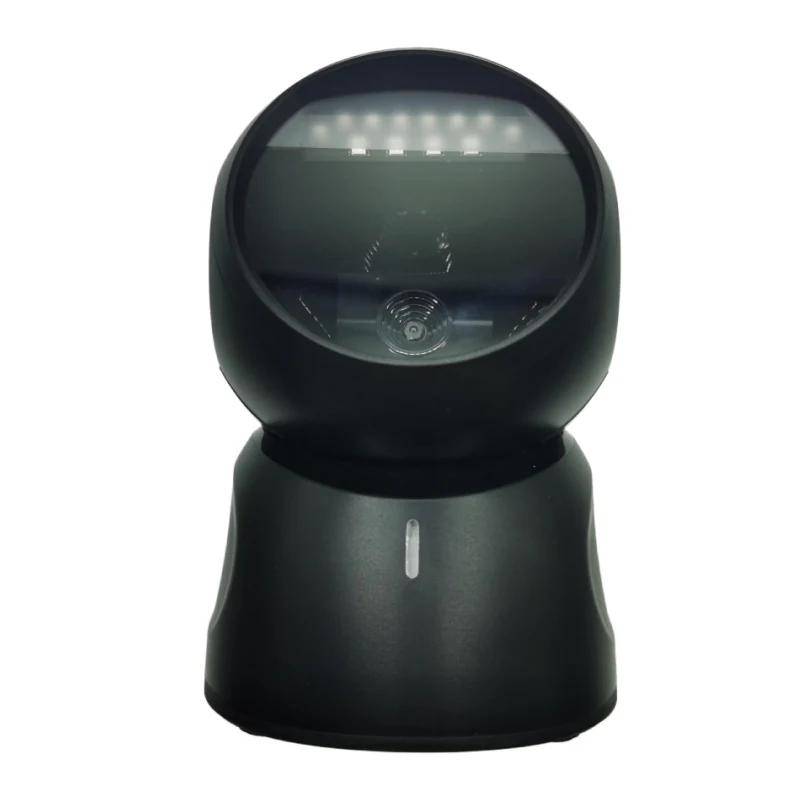

PF1501 Cold Chain Desktop Barcode Reader

Rated from -30°C to 60°C, for scanning points inside the cold store.

Platform Desktop ScannerModel PF1501

Manufacturer feature list

  • Plug & Play, no need driver and user friendly
  • 1D, 2D and QR code CMOSr
  • Image Pixels: 640 pixels (H) X 480 pixels (V)
  • Drop resistance: 1.2M
  • Workable under -30 °C to 60 °C
  • Angle adjustable
  • Automatic sleep and wake-up
  • Low power consumption
  • Widely Application: Supermarket, Warehouse & Inventory, Medical Pharmacy Store, Book Shop, Express & Logistics, Restaurant etc.

Overview

What this model is for

Most fixed scanners are specified for an office. The PF1501 is specified for the freezer: an operating range of -30°C to 60°C and 1.2m drop resistance, so a scanning point can live inside cold storage instead of at the door where the pallet has to be dragged out to be read.

It reads 1D, 2D and QR codes on a 640 x 480 CMOS imager, is plug and play with no driver, adjusts its angle to the operator's working height, and sleeps and wakes automatically to keep power consumption down at a station that is idle much of the day.

What it fixes

  • Scanners rated to 0°C fail within weeks in a freezer aisle.
  • Moving goods out of the cold to scan them breaks the chain and wastes energy.
  • Fixed-angle readers force operators into awkward postures.

Who buys it

Cold chain and frozen logistics, food distribution, pharmaceutical storage, supermarkets, warehouses and pharmacy stores.

Typical positions

  • Cold store inbound check
  • Freezer cycle counting
  • Chilled pick verification
  • Cold-chain dispatch

Why it holds up

Four things that decide whether this works in your position

-30°C to 60°C

Placed inside the cold store rather than outside its door.

1.2m drop resistance

Survives the handling that gloved work produces.

Angle adjustable

Set once to the operator's height and left alone.

Low idle power

Automatic sleep for stations that scan in bursts.

Specifications

Published specification

Specifications as published by the manufacturer for this model.
ModelPF1501
Image sensor640 pixels (H) X 480 pixels (V)
Drop resistance1.2M
1D symbologiesUPC-A, UPC-E, EAN-13, ISBN10, ISBN13, EAN-8, CODE39, CODE 11, CODE 93, CODE128, INTERLEAVED25, INDUSTRIAL25, MATRIX25, S25, CODE 32, TRIOPTIC39, GS1_128, CODABAR, MSI, China Postal, TELEPEN, RSS, GS1_DATABAR, GS1_DATABAR_LIM, GS1_DATABAR_EXP
2D symbologiesQR, MICRO QR, PDF417, MICRO PDF, Hanxin, DATAMATRIX, MAXICODE, AZTEC

Questions

About the PF1501 Cold Chain Desktop Barcode Reader

Which codes does the PF1501 Cold Chain Desktop Barcode Reader read?
It reads the mainstream 1D families together with 2D codes including QR, PDF417 and Data Matrix. Send a photograph or a sample of the exact label you need to read and we will confirm against this model before you order.
Does the PF1501 Cold Chain Desktop Barcode Reader need a driver installed?
The plug-and-play models in this range present to the host without a driver, which is what makes a multi-site rollout practical. Confirm the host OS with us and we will state exactly what is required for this model.
Can the PF1501 Cold Chain Desktop Barcode Reader be supplied under our own brand?
Yes. OEM and ODM are supported with experienced engineers and an in-house production line, and for some products the software can be customised as well as the hardware. Mini and mix orders are accepted, so a specification can be validated in a pilot first.
What is the lead time and warranty on the PF1501 Cold Chain Desktop Barcode Reader?
Samples of stock items are dispatched in 1 to 2 working days after payment is received. OEM and bulk order lead times are quoted per project. Warranty is 12 months after delivery; during that period damage caused by non-human factors is repaired free of charge.
Which documents can you provide for the PF1501 Cold Chain Desktop Barcode Reader?
CE, RoHS, MSDS and UN38.3 approvals are stated for the product range. Request the certificate document for this specific model before relying on it in a tender, and we will send what exists for it.

Compare

Related models

Quote the PF1501 Cold Chain Desktop Barcode Reader

Tell us the quantity, the destination country and the host operating system, and we will come back with a price, a lead time and the certificate documents that exist for this model.
