Bluetooth NFC QR Code Scanner With Digital Screen, front product view

Platform Desktop Scanner

Bluetooth NFC QR Code Scanner With Digital Screen

The cordless screen reader configured as a desktop platform scanner.

Platform Desktop Scanner
Quote on WhatsApp Email for a quotation

Manufacturer feature list

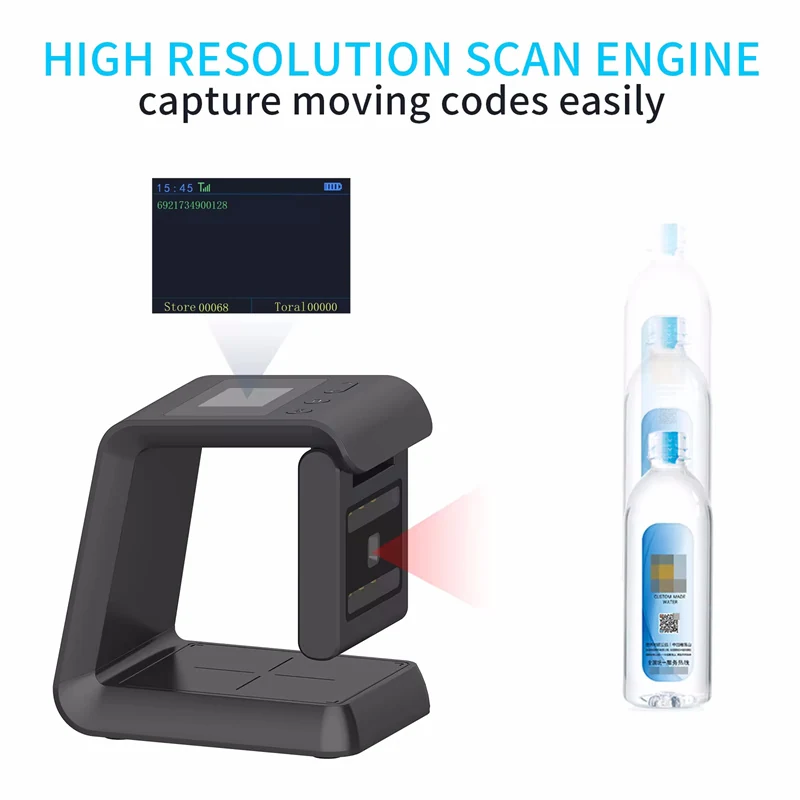

  • Real time data visible on digital screen on the top

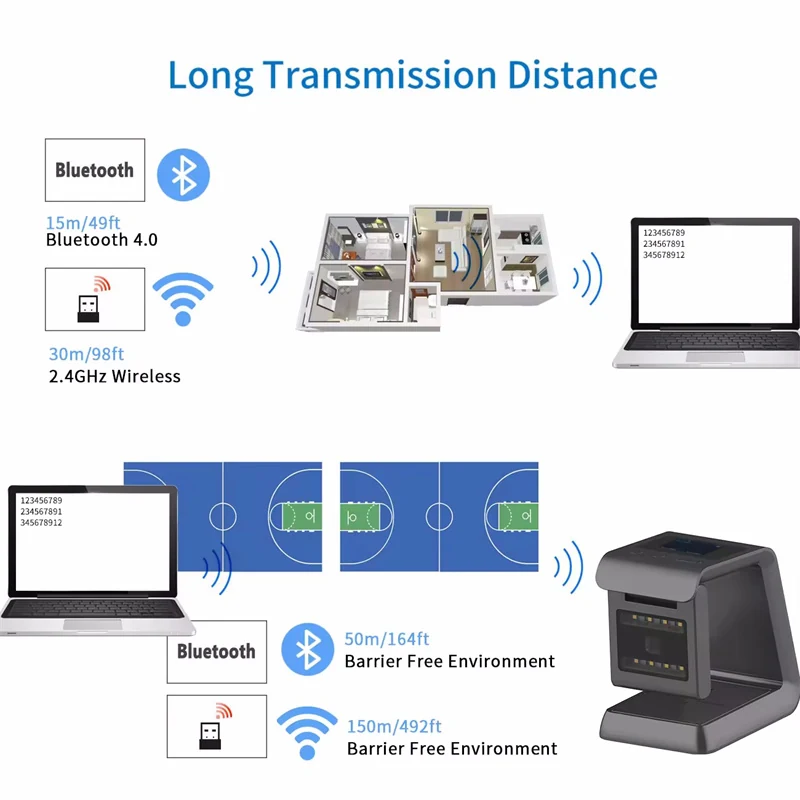

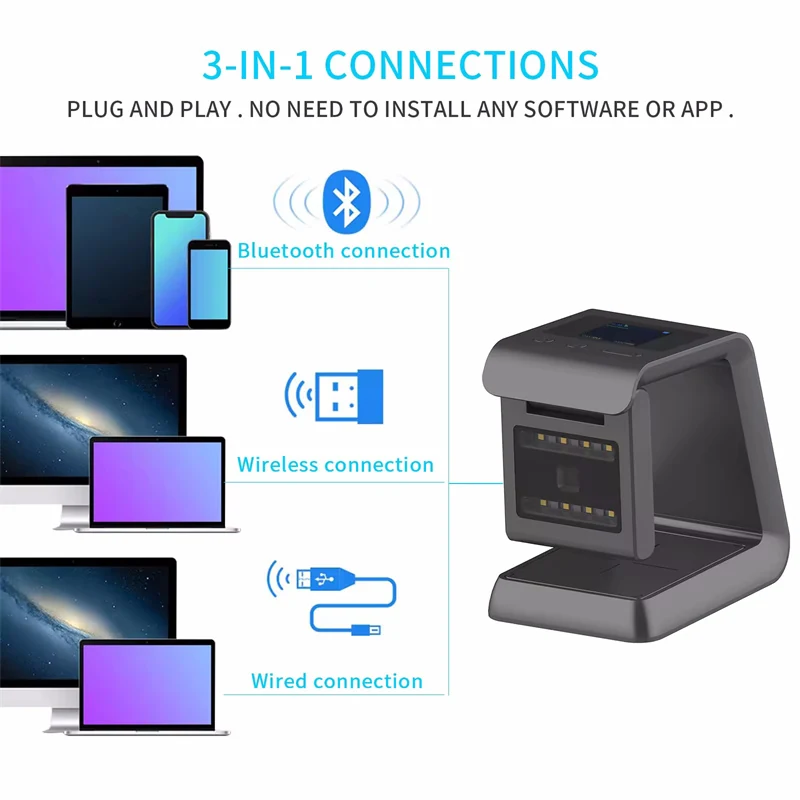

  • Multi-communication: Bluetooth, 2.4G Wireless, NFC, USB Plug & Play wired
  • Large battery capacity &: 3000mAh which can

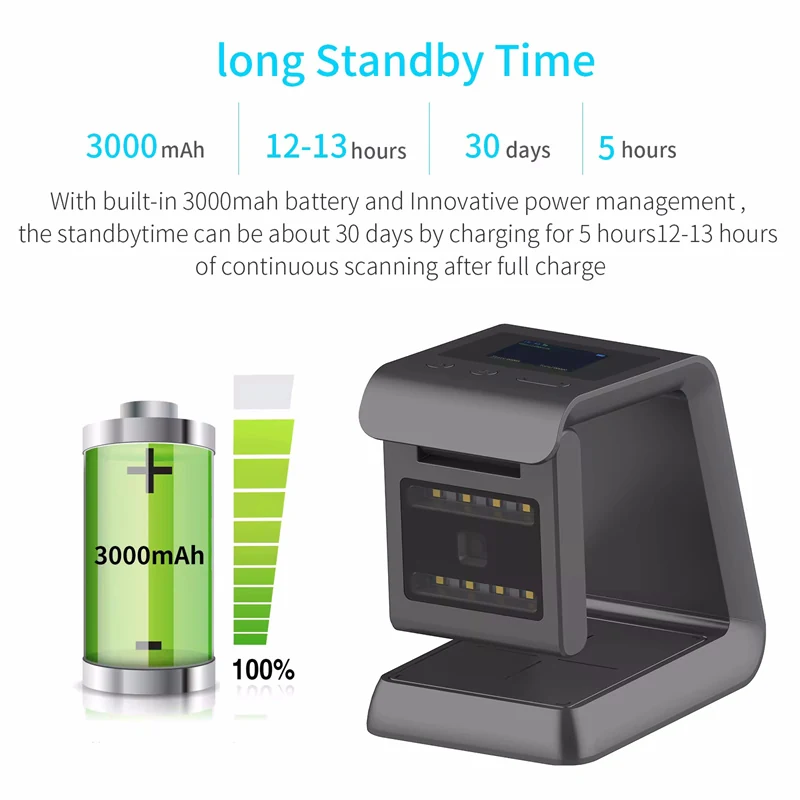

  • Low power consumption: continuous work for 12-13hours, standby time 30days
  • 1D, 2D and QR code CMOS

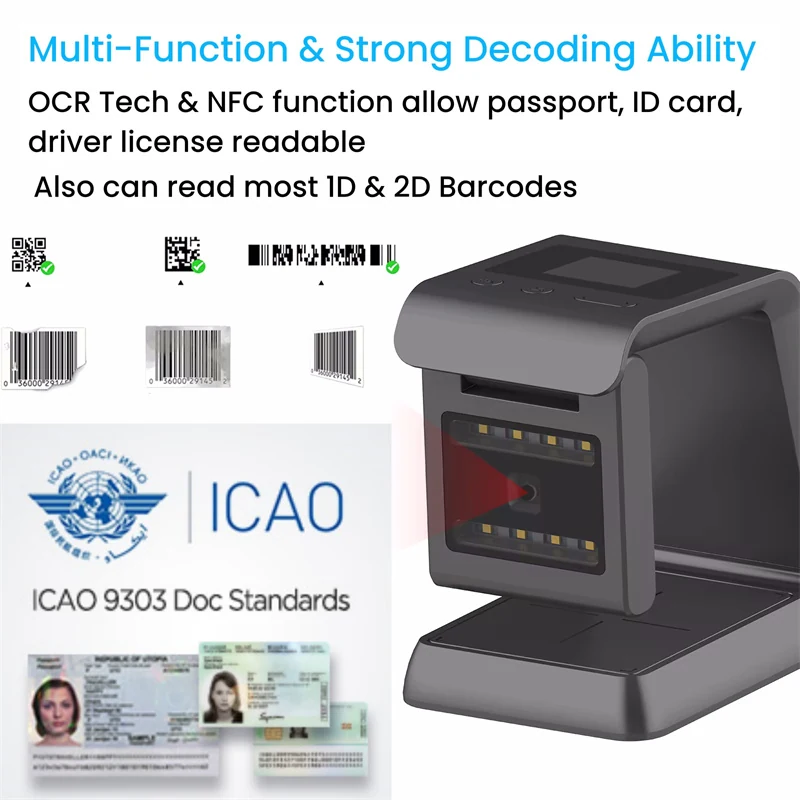

  • OCR MRZ Code workable for any ICAO9303 document such as passport, visa, ID card
  • NFC read electronic ticketing, access control card, and ID Card compliance with ISO14443 TypeA/B, M1 etc.
  • Image Pixels: 640 pixels (H) X 480 pixels (V)
  • Reading procision:≥3.9mil
  • Offline storage: over 200000 records
  • Automatic sleep and wake-up
  • compatible with windows, Linux, MAC etc.
  • Drop Resistance: 1.5M
  • Protection grade: IP 42

Overview

What this model is for

Listed under platform desktop scanners, this configuration puts the cordless capture platform on the counter: it reads 1D, 2D and QR codes on a CMOS imager, NFC electronic tickets and access cards to ISO14443 Type A/B and M1, and OCR MRZ on ICAO 9303 documents, with the read shown on a digital screen on top of the unit.

It runs from a 3000mAh battery at a quoted 12-13 hours of continuous work with 30 days standby, connects by Bluetooth, 2.4G wireless, NFC or USB plug and play, holds over 200,000 offline records, and is rated IP42 with 1.5m drop resistance across Windows, Linux and macOS.

What it fixes

  • Cabled counter scanners cannot be taken to a customer in the aisle.
  • Screen-free readers make cashiers double-check on the POS.
  • Ticketing, payment QR and ID checks usually need three separate readers.

Who buys it

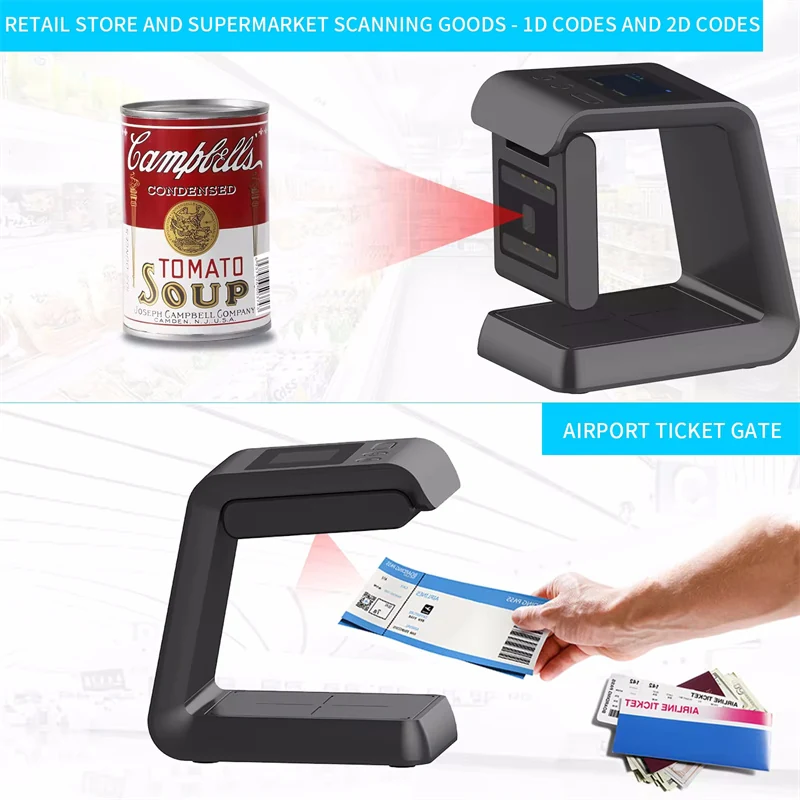

Retail and supermarket checkouts, hospitality, cinemas and venues, transport counters and service desks.

Typical positions

  • Counter checkout
  • Ticket redemption
  • Membership card reading
  • Queue-busting mobile checkout

Why it holds up

Four things that decide whether this works in your position

Counter unit that can be lifted

Sits as a desktop scanner but works cordless when the queue moves.

Screen feedback

Cashiers see the read without looking up at the POS display.

Automatic sleep and wake

Idle between customers without draining the pack.

Offline record buffer

POS outages do not stop transactions being captured.

Specifications

Published specification

Specifications as published by the manufacturer for this model.
Image sensor640 pixels (H) X 480 pixels (V)
Reading precision≥3.9mil
Offline storageover 200000 records
Drop resistance1.5M
Protection gradeIP 42
Battery3000mAh which can
ConnectionBluetooth, 2.4G wireless, USB wired, NFC

Questions

About the Bluetooth NFC QR Code Scanner With Digital Screen

What environmental protection does the Bluetooth NFC QR Code Scanner With Digital Screen have?
It is rated IP 42. Tell us the height it may fall from and whether it will be washed down, and we will confirm whether this rating is the right one for the position.
How does the Bluetooth NFC QR Code Scanner With Digital Screen connect to a host?
Supported connection modes are: Bluetooth, 2.4G wireless, USB wired, NFC. Tell us the host operating system and whether a radio is permitted at that position, and we will advise which mode to order.
Can the Bluetooth NFC QR Code Scanner With Digital Screen be supplied under our own brand?
Yes. OEM and ODM are supported with experienced engineers and an in-house production line, and for some products the software can be customised as well as the hardware. Mini and mix orders are accepted, so a specification can be validated in a pilot first.
What is the lead time and warranty on the Bluetooth NFC QR Code Scanner With Digital Screen?
Samples of stock items are dispatched in 1 to 2 working days after payment is received. OEM and bulk order lead times are quoted per project. Warranty is 12 months after delivery; during that period damage caused by non-human factors is repaired free of charge.
Which documents can you provide for the Bluetooth NFC QR Code Scanner With Digital Screen?
CE, RoHS, MSDS and UN38.3 approvals are stated for the product range. Request the certificate document for this specific model before relying on it in a tender, and we will send what exists for it.
