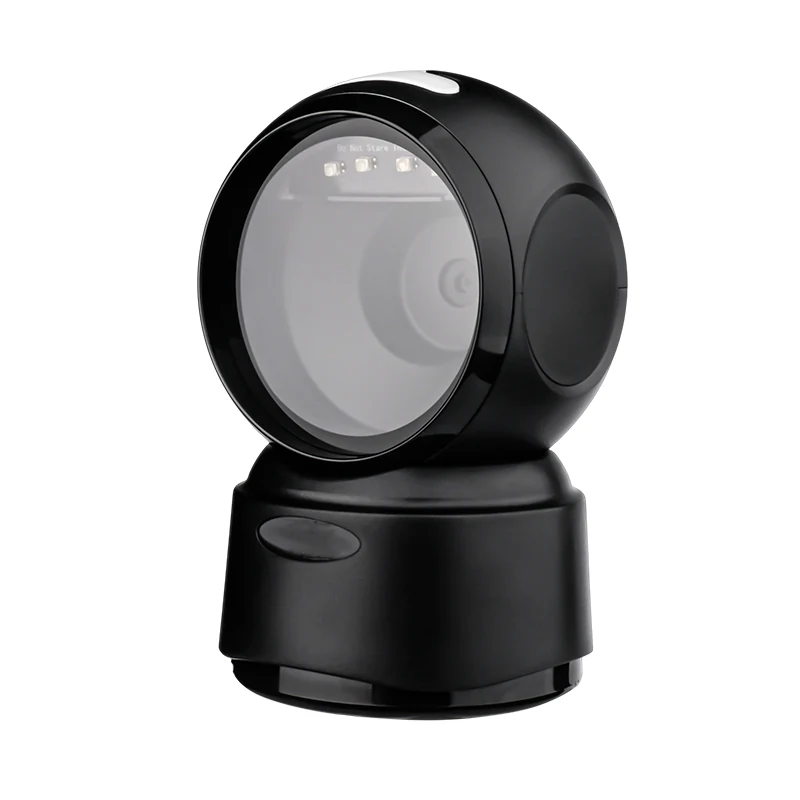

PF1301 Hands-Free Desktop QR Code Reader, front product view

Platform Desktop Scanner

PF1301 Hands-Free Desktop QR Code Reader

A plug-and-play counter reader at 120 scans per second for high-volume checkouts.

Platform Desktop ScannerModel PF1301
Quote on WhatsApp Email for a quotation

Manufacturer feature list

  • Plug & Play, no need driver and user friendly
  • 1D, 2D and QR code Area Imaging Scanner
  • Scanning Rate: 120 times/sec
  • Image Pixels: 640 pixels (H) X 480 pixels (V)
  • Sensor: CMOS global exposure
  • Reading Precision: ≥4mil
  • Automatic sleep and wake-up
  • Strong Decoding Ability:
  • Fast Speed
  • Widely Application: Supermarket, Warehouse & Inventory, Medical Pharmacy Store, Book Shop, Express & Logistics, Restaurant etc.

Overview

What this model is for

The PF1301 is the straightforward counter unit: plug it into USB, and it presents as a keyboard. No driver, no configuration utility, no IT ticket — which is what a chain with hundreds of tills actually needs.

It reads 1D, 2D and QR codes on a CMOS global-exposure area imager at 640 x 480, scanning at 120 times per second with reading precision of 4 mil or better, and sleeps and wakes automatically between customers.

What it fixes

  • Driver-based scanners multiply support load across a large estate.
  • Slow readers turn the scan into the bottleneck at the till.
  • Hand-held guns slow down high-volume basket scanning.

Who buys it

Supermarkets, warehouses and inventory counters, pharmacies, bookshops, express and logistics desks, restaurants.

Typical positions

  • Supermarket checkout
  • Pharmacy dispensing counter
  • Parcel drop-off desk
  • Restaurant order pickup

Why it holds up

Four things that decide whether this works in your position

No driver

Deploys across a till estate without a software rollout.

120 scans per second

Keeps up with a sweep across a basket rather than one aimed shot.

Global exposure sensor

Reads codes as items move across the window.

Auto sleep and wake

Idle power drops without staff switching anything off.

Specifications

Published specification

Specifications as published by the manufacturer for this model.
ModelPF1301
Image sensor640 pixels (H) X 480 pixels (V)
Scan rate120 times/sec
Reading precision≥4mil
1D symbologiesEAN13, EAN8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93,Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodeBar, MSI, RSS-14,Decoding type RSS- Ltd, RSS- Exp, Standard 2 of 5, Plessey, ChinaPost 25, GS1 Composite
2D symbologiesQR Code, Data Matrix (DM), PDF417, Han Xin, Micro PDF417, Micro QRCode, MaxiCode, Aztec Code, Code16K，Support reading mobile phone screen code

Questions

About the PF1301 Hands-Free Desktop QR Code Reader

Which codes does the PF1301 Hands-Free Desktop QR Code Reader read?
It reads the mainstream 1D families together with 2D codes including QR, PDF417 and Data Matrix. Send a photograph or a sample of the exact label you need to read and we will confirm against this model before you order.
Does the PF1301 Hands-Free Desktop QR Code Reader need a driver installed?
The plug-and-play models in this range present to the host without a driver, which is what makes a multi-site rollout practical. Confirm the host OS with us and we will state exactly what is required for this model.
Can the PF1301 Hands-Free Desktop QR Code Reader be supplied under our own brand?
Yes. OEM and ODM are supported with experienced engineers and an in-house production line, and for some products the software can be customised as well as the hardware. Mini and mix orders are accepted, so a specification can be validated in a pilot first.
What is the lead time and warranty on the PF1301 Hands-Free Desktop QR Code Reader?
Samples of stock items are dispatched in 1 to 2 working days after payment is received. OEM and bulk order lead times are quoted per project. Warranty is 12 months after delivery; during that period damage caused by non-human factors is repaired free of charge.
Which documents can you provide for the PF1301 Hands-Free Desktop QR Code Reader?
CE, RoHS, MSDS and UN38.3 approvals are stated for the product range. Request the certificate document for this specific model before relying on it in a tender, and we will send what exists for it.
