Sliding Cold Storage Door
Same insulation material as cold room panels. Double-sided color steel. Anti-freeze and electric heating protection.
- Manual insulated slide
What The Sliding Cold Storage Door Does
Howcool Manual Sliding Cold Storage Doors are designed for frequent personnel access in walk-in cold rooms and freezer rooms. The door leaf uses the same insulation as our cold-room panels — full PU foam core with galvanized or stainless-steel skin, guaranteeing zero thermal bridges. The ground anti-freeze heater prevents ice build-up at the threshold.
All doors come standard with safety escape device (releasable from inside), high-elasticity EPDM sealing strips with built-in magnetic strip, stainless-steel hardware, and aluminum-alloy guide rail. Door sizes fully customizable from 1000×1800mm up to 2500×3200mm. Single or double-leaf configurations available.
Our sliding cold storage doors are made with the same insulation material as our cold room panels, featuring double-sided color steel plates for durability. The ground part includes an anti-freezing device, while the electric heating protection device ensures safety and prevents leakage.
Why Buyers Choose This Model
Seamless Insulation
Same PU foam core as cold-room panels — no thermal bridging, no cold leakage. EPDM seal with embedded magnet for tight closure.
Safety Escape Device
Internal release handle — never trap a worker inside. Meets international cold-storage safety standards.
Anti-Freeze Heating
220V/36V automatic constant-temperature heating strip around the frame and threshold prevents ice-sealing the door shut.
Customizable Size
Single/double leaf. Widths 1000-2500mm, heights 1800-3200mm. Stainless-steel or color-coated steel skin.
Cold Room Doors Failure Modes
Cold loss at every opening
High-speed roll-up doors opening at 2.5 m/s with around 30% energy saving against a conventional door on the same traffic.
Doors that ice shut
Heated frames and gaskets rated from minus 60 to plus 120 degrees on electric sliding doors.
Damage from forklift traffic
Flip flap doors with adjustable spring hinges for constant passage, and vertical lift doors with 40 mm sectional panels where floor space is tight.
Technical Data
Values below are the manufacturer's standard range. Anything not listed is confirmed against your heat load calculation before order.
| Door Type | Single / Double-leaf sliding |
|---|---|
| Door Size | Custom: W 800-3000 × H 1800-3500 mm |
| Core | PU foam 100-150mm |
| Surface | Double-sided color steel |
| Frame Material | Aluminium alloy + ABS edges |
| Heating Cable | Frame-embedded, 60W/m, auto thermostat |
| Heating Frame | Yes (below 0℃) |
| Sealing | Triple-lip rubber seal |
| Hardware | Stainless steel, food-grade |
| Lock Type | Inside emergency release standard |
|---|---|
| Anti-freezing | Ground section anti-freeze device |
| Temperature Range | +5℃ to -60℃ |
| Production Lead Time | 20-30 days after deposit |
| Warranty | 5 years on core components |
| Packing | Wooden case for export, ship-ready |
| Certification | ISO 9001, CE |
| Origin | Beijing, China |
| After-Sales | 24/7 remote support, on-site available |

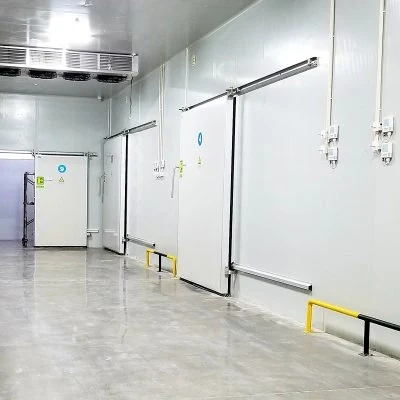

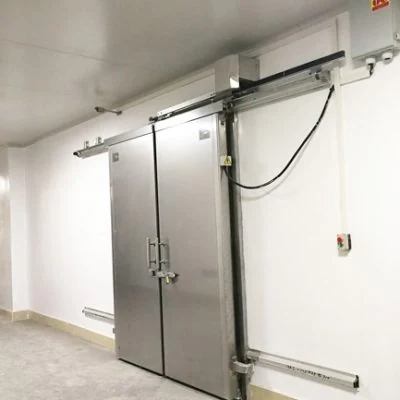

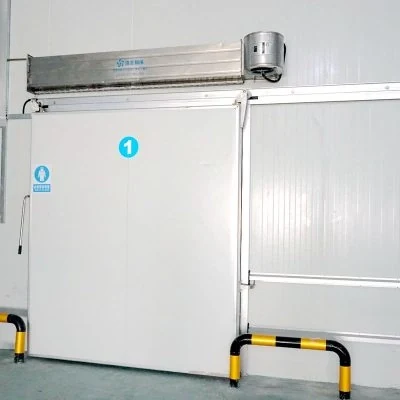

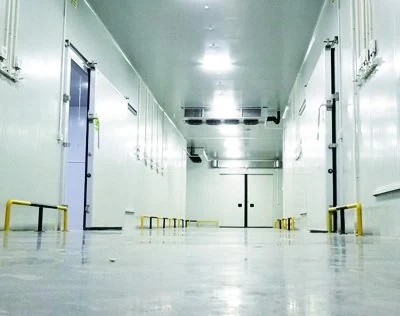

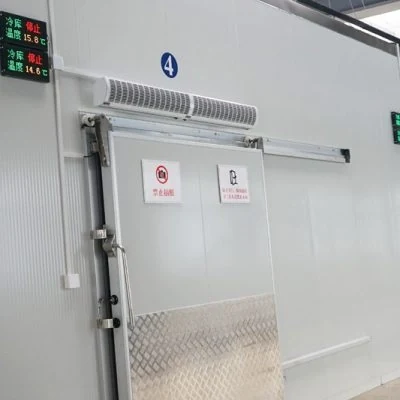

Sliding Cold Storage Door In Production And On Site
Sectors Using This Equipment
Cold Chain Logistics
A distribution cold store is judged on pallet movements, not on storage volume. Dock design, door speed and racking layout decide...
Industrial and Special
Some cold rooms are not about food at all. Lithium battery storage, nuclear plant supplies, laboratory reagents and industrial...
Sliding Cold Storage Door Questions
What capacity range does the Sliding Cold Storage Door cover?
The standard range is Manual insulated slide. All models are customised to the calculated heat load of your room or line, so send volume, temperature and product type for exact selection.
What temperature range can it hold?
+5℃ to -60℃. Selection depends on the room duty and ambient conditions at your site.
What is the production lead time?
20-30 days after deposit. Equipment is packed in wooden case for export, ship-ready.
What warranty applies?
5 years on core components, backed by 24/7 remote support. On-site service is available for export projects.
Is the equipment certified?
ISO 9001, CE. Howcool's quality management system is certified to ISO 9001:2015 by CFL Certification Center.
Often Specified Together
Electric Sliding Cold Storage Door
Latest synchronous motor control. -60°C to 120°C: cold storage, freezer and high-temperature warehouses.
Vertical Lift Cold Storage Door
High-strength 40mm thermal insulation panels. Sectional panels with dynamic balance system.
Insulated Flip Flap Door
Adjustable spring hinge. Flexible rotation body. Perfect for goods channels in cooling environments.
High-Speed Roll-Up Door
Engineered to withstand extreme cold. Saves up to 30% in energy costs.
Facilities Built With This Equipment Family
50,000m³ Cold-Chain Logistics — Wuhan Xinpu Fruit
Two-stage 50,000 m³ cold-chain logistics centre for Wuhan Xinpu Fruit — fruit & meat distribution hub.
Cold-Chain Logistics — Seafood 20,000t
20,000-ton seafood refrigeration project. PIR, Freon, PLC control, electric cold storage doors.
2,420m³ Explosion-Proof Battery Cold Storage
EX-rated cold storage for Li-ion battery raw materials and testing.
Request A Quotation For The Sliding Cold Storage Door
Tell us the room volume, target temperature and product type and we will confirm the model, capacity and delivered price.
