Insulated Flip Flap Door
Adjustable spring hinge. Flexible rotation body. Perfect for goods channels in cooling environments.
- Adjustable spring hinge
What The Insulated Flip Flap Door Does
Howcool Insulated Flip-Flap (Hinged) Doors are traditional swing doors with PU-core leaves, used for personnel and hand-trolley access in cold rooms and processing areas. Half of the door sits embedded in the frame — air-tightness and insulation performance are excellent, making them suitable for ambient -45℃ to 50℃ environments.
Plastic and panel combine into the shell with integrated polyurethane foaming — no cold bridge, excellent thermal preservation. Color steel sheet skin with arc processing around the door for smooth cleaning. Door frame fitted with self-temperature-control electric heating strip — no external thermostat needed. Flexible plastic sealing string with built-in magnetic strip seals against minor manufacturing tolerances.
Innovative adjustable spring hinge design ensures a sturdy and reliable structure. Flexible rotation body allows easy adjustment, perfect for goods channels in various cooling environments. Insulation prevents heat exchange.
Why Buyers Choose This Model
-45℃ to 50℃ Range
Suitable for small cold storage, freezers, blast chillers, and processing rooms. Integrated PU foaming eliminates cold bridges.
Magnetic Sealing String
Flexible plastic seal with built-in magnetic strips automatically closes minor manufacturing gaps. Excellent air-tightness.
Self-Heating Frame
Electric heating string in door frame prevents frost build-up. Self-temperature-controlled — no manual adjustment needed.
Safety Escape
Internal release handle. Stainless-steel or galvanized fittings. Arc-processed edges for easy cleaning.
Cold Room Doors Failure Modes
Cold loss at every opening
High-speed roll-up doors opening at 2.5 m/s with around 30% energy saving against a conventional door on the same traffic.
Doors that ice shut
Heated frames and gaskets rated from minus 60 to plus 120 degrees on electric sliding doors.
Damage from forklift traffic
Flip flap doors with adjustable spring hinges for constant passage, and vertical lift doors with 40 mm sectional panels where floor space is tight.
Technical Data
Values below are the manufacturer's standard range. Anything not listed is confirmed against your heat load calculation before order.
| Hinge Type | Adjustable spring hinge |
|---|---|
| Leaf Material | Self-extinguishing PU + abrasion-resistant edges |
| Hinge | Heavy-duty adjustable spring (10-50 kg) |
| Rotation | Flexible bi-directional |
| Door Size | Single: W 600-1500 × H 1800-2500mm |
| Vision Panel | Optional acrylic window |
| Edge Protection | Stainless steel kick plate, 200mm |
| Wear Resistance | Reinforced edges |
| Insulation | PU core |
| Application Temperature | 0℃ to -25℃ |
|---|---|
| Applications | Goods channels / Pedestrian passage |
| Production Lead Time | 20-30 days after deposit |
| Warranty | 5 years on core components |
| Packing | Wooden case for export, ship-ready |
| Certification | ISO 9001, CE |
| Origin | Beijing, China |
| After-Sales | 24/7 remote support, on-site available |

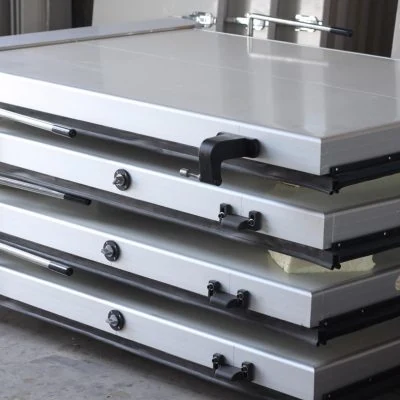

Insulated Flip Flap Door In Production And On Site
Sectors Using This Equipment
Cold Chain Logistics
A distribution cold store is judged on pallet movements, not on storage volume. Dock design, door speed and racking layout decide...
Industrial and Special
Some cold rooms are not about food at all. Lithium battery storage, nuclear plant supplies, laboratory reagents and industrial...
Insulated Flip Flap Door Questions
What capacity range does the Insulated Flip Flap Door cover?
The standard range is Adjustable spring hinge. All models are customised to the calculated heat load of your room or line, so send volume, temperature and product type for exact selection.
What is the production lead time?
20-30 days after deposit. Equipment is packed in wooden case for export, ship-ready.
What warranty applies?
5 years on core components, backed by 24/7 remote support. On-site service is available for export projects.
Is the equipment certified?
ISO 9001, CE. Howcool's quality management system is certified to ISO 9001:2015 by CFL Certification Center.
Often Specified Together
Sliding Cold Storage Door
Same insulation material as cold room panels. Double-sided color steel. Anti-freeze and electric heating protection.
Electric Sliding Cold Storage Door
Latest synchronous motor control. -60°C to 120°C: cold storage, freezer and high-temperature warehouses.
Vertical Lift Cold Storage Door
High-strength 40mm thermal insulation panels. Sectional panels with dynamic balance system.
High-Speed Roll-Up Door
Engineered to withstand extreme cold. Saves up to 30% in energy costs.
Facilities Built With This Equipment Family
50,000m³ Cold-Chain Logistics — Wuhan Xinpu Fruit
Two-stage 50,000 m³ cold-chain logistics centre for Wuhan Xinpu Fruit — fruit & meat distribution hub.
Cold-Chain Logistics — Seafood 20,000t
20,000-ton seafood refrigeration project. PIR, Freon, PLC control, electric cold storage doors.
2,420m³ Explosion-Proof Battery Cold Storage
EX-rated cold storage for Li-ion battery raw materials and testing.
Request A Quotation For The Insulated Flip Flap Door
Tell us the room volume, target temperature and product type and we will confirm the model, capacity and delivered price.
