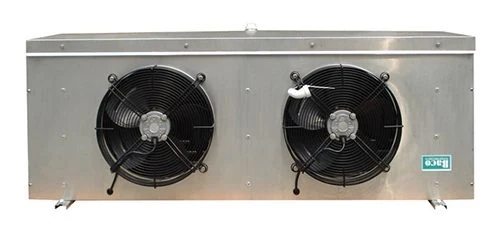

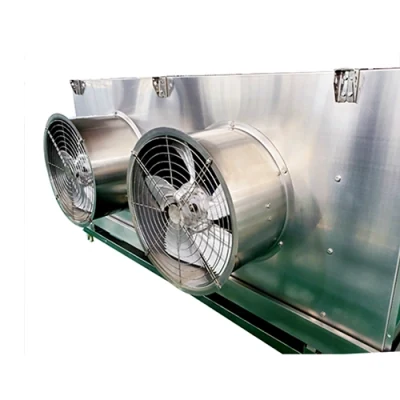

Dual Discharge Air Cooler
Low-temperature fresh-keeping storage, food processing, sorting & packing rooms, corridors.
- Two-way Airflow
What The Dual Discharge Air Cooler Does
Howcool Dual-Discharge Air Coolers (two-way airflow evaporators) are designed for long, narrow cold-rooms where single-direction airflow cannot reach both ends. Fans are mounted in the centre of the unit and discharge air simultaneously left and right, ensuring uniform temperature distribution across the entire room.
Widely used in corridor-shaped cold storage, processing-line chillers, logistics warehouses with long aisles, and fruit/vegetable CA rooms. Same spray-molded construction, internally-threaded copper tubes, hydrophilic aluminum fins and low-noise external-rotor motors as our standard D-type evaporators.
Perfect for low-temperature fresh-keeping storage, food processing, selection and packing rooms, anterooms and corridors. Built to enhance your cooling experience with balanced two-way airflow and even temperature distribution.
Why Buyers Choose This Model
Two-way Airflow
Fans in the middle, air discharged to both ends. Temperature uniformity ±0.5℃ across rooms up to 40m long.
Long-Room Coverage
Ideal for 20-40m long cold storage rooms where single-direction evaporators would create hot/cold spots.
Robust Construction
Spray-molded galvanized-steel casing, stainless-steel drain pan, integrated defrost drain heater prevents ice build-up.
Air Cooler / Evaporator Failure Modes
Uneven temperature across the room
Cubic evaporators from 5 to 200 kW and dual-discharge coolers sized to throw air the full depth of the chamber.
Ice build-up and lost capacity
Defrost method matched to room temperature — electric for freezers, off-cycle for chillers.
Wasted floor area
Two-way airflow units mounted centrally cover both sides of a corridor layout from one position.
Technical Data
Values below are the manufacturer's standard range. Anything not listed is confirmed against your heat load calculation before order.
| Airflow | Dual-direction (two-way) |
|---|---|
| Discharge Direction | Bi-directional (180°) |
| Coil Material | Cu tube + hydrophilic Al fin |
| Fin Spacing | 4mm / 6mm / 8mm |
| Fan Motor | EBM external rotor, IP54 |
| Mounting | Ceiling-suspended with brackets |
| Drain Pan | Stainless steel, slope-formed |
| Temperature Range | -5℃ to +15℃ |
| Defrost | Electric / Hot-gas |
|---|---|
| Applications | Selection rooms / Corridors / Anterooms |
| Production Lead Time | 20-30 days after deposit |
| Warranty | 5 years on core components |
| Packing | Wooden case for export, ship-ready |
| Certification | ISO 9001, CE |
| Origin | Beijing, China |
| After-Sales | 24/7 remote support, on-site available |

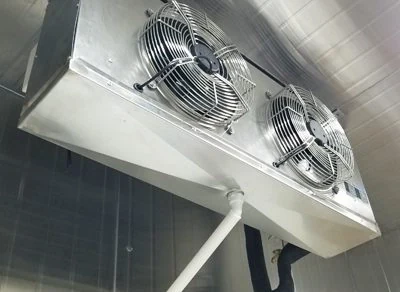

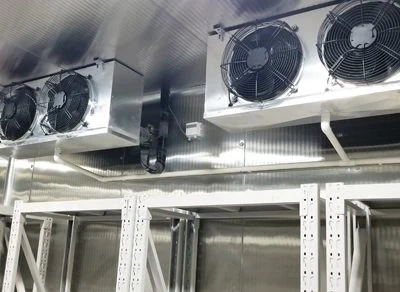

Dual Discharge Air Cooler In Production And On Site
Dual Discharge Air Cooler Questions
What capacity range does the Dual Discharge Air Cooler cover?
The standard range is Two-way Airflow. All models are customised to the calculated heat load of your room or line, so send volume, temperature and product type for exact selection.
What temperature range can it hold?
-5℃ to +15℃. Selection depends on the room duty and ambient conditions at your site.
What is the production lead time?
20-30 days after deposit. Equipment is packed in wooden case for export, ship-ready.
What warranty applies?
5 years on core components, backed by 24/7 remote support. On-site service is available for export projects.
Is the equipment certified?
ISO 9001, CE. Howcool's quality management system is certified to ISO 9001:2015 by CFL Certification Center.
Often Specified Together
Industrial Cubic Evaporator
Spray-molded, anti-corrosive evaporator. New coil arrangement reduces wind-side resistance.
Insulated Flip Flap Door
Adjustable spring hinge. Flexible rotation body. Perfect for goods channels in cooling environments.
Remote Monitoring & SMS / Email Alarm System
Cloud-based remote monitoring with SMS + email alarms. Watch your cold storage from anywhere — see all temperatures, get alarms, audit data.
IQF Self-Stacking Spiral Freezer
Vertical cold airflow for individual freezing. Ice-crystal formation area ensures even freezing.
Facilities Built With This Equipment Family
1,643 m² Controlled-Atmosphere Cold Storage
1,643 m²/5,749 m³ CA cold storage with 6 partitioned rooms and Hanbell screw parallel refrigeration system.
1,000-Ton Strawberry CA Cold Storage — Dandong
1,000-ton strawberry CA cold storage divided into 12 partition rooms — extends harvest season.
Request A Quotation For The Dual Discharge Air Cooler
Tell us the room volume, target temperature and product type and we will confirm the model, capacity and delivered price.
