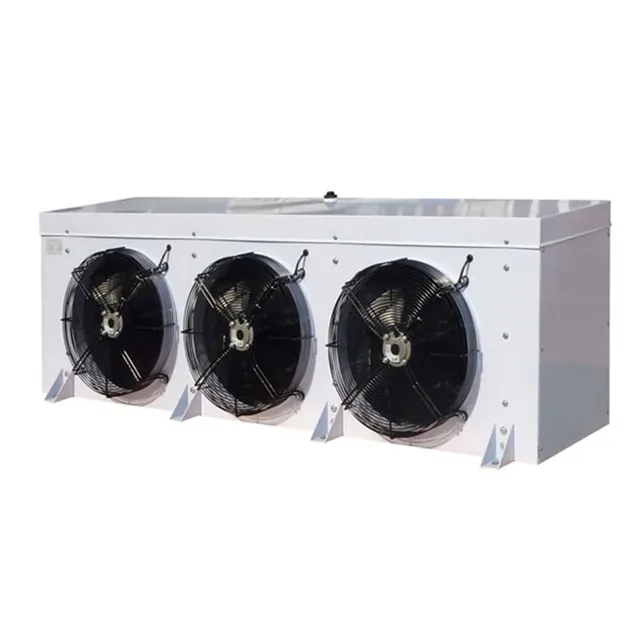

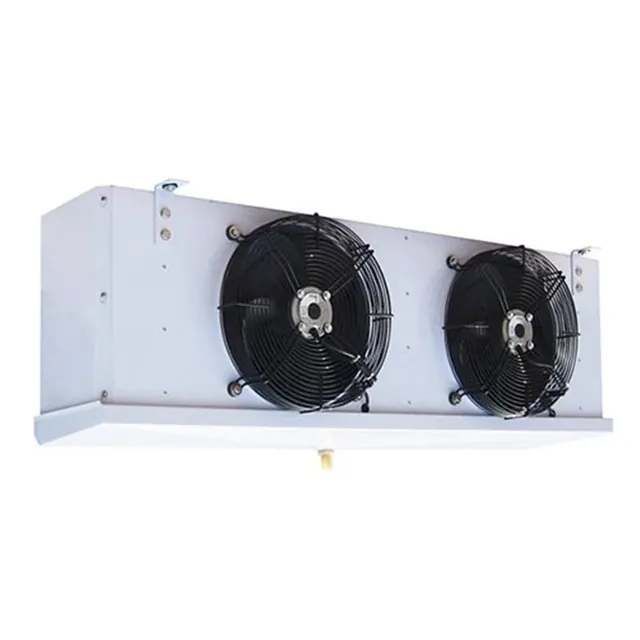

Industrial Cubic Evaporator
Spray-molded, anti-corrosive evaporator. New coil arrangement reduces wind-side resistance.
- High-Efficiency Air Cooler
What The Industrial Cubic Evaporator Does
Howcool Industrial Cubic Evaporators (D-type ceiling-mounted air coolers) adopt spray-molding technology for the outer casing — corrosion-resistant and aesthetically clean. The heat exchanger coil is arranged in a new pattern that reduces wind-side resistance while maintaining high heat-transfer efficiency. Aluminum fins are mechanically expanded onto copper tubes, ensuring reliable thermal contact over the long term.
Selected fan motors deliver low noise, high airflow and steady operation. All electrical connections terminate in a dedicated junction box for convenient installation and maintenance. U-shaped stainless-steel electric heating tubes embedded in the coil provide high-efficiency defrost. Every unit is pressure-retained and nitrogen-charged before leaving the factory — ready for field installation.
Our industrial cubic evaporator boasts a spray-molded design that's anti-corrosive and has a respectable appearance. The coil is arranged in a new way to reduce wind-side resistance, while aluminum sheets wrapped on the copper pipe with mechanical expansion tubes ensure high heat transfer efficiency.
Why Buyers Choose This Model
Copper Tube
High-quality bright internally-threaded copper tubes with guaranteed wall thickness. Hydraulic mechanical expansion ensures reliable tube-fin tension.
Aluminum Fins
Hydrophilic and epoxy-coated aluminum foil stamped into corrugated fins for higher anti-corrosion performance. Fin spacing adjustable by temperature (4/6/8/10mm).
Premium Motor
Ziehl-Abegg and EBM external-rotor motors — advanced fan blade design delivers large airflow, low power consumption, low noise, long service life.
Air Cooler / Evaporator Failure Modes
Uneven temperature across the room
Cubic evaporators from 5 to 200 kW and dual-discharge coolers sized to throw air the full depth of the chamber.
Ice build-up and lost capacity
Defrost method matched to room temperature — electric for freezers, off-cycle for chillers.
Wasted floor area
Two-way airflow units mounted centrally cover both sides of a corridor layout from one position.
Technical Data
Values below are the manufacturer's standard range. Anything not listed is confirmed against your heat load calculation before order.
| Design | Spray-molded anti-corrosive |
|---|---|
| Coil Material | Cu tube + Al fin, mechanical expansion |
| Fin Spacing | 4mm / 6mm / 8mm / 10mm |
| Fan Diameter | 300 / 400 / 500 / 630mm |
| Fan Voltage | 380V/3ph or 220V/1ph |
| Fan Motor | EC / AC IP54 |
| Cabinet | Spray-coated galvanized steel, anti-corrosion |
| Drain Pan | Insulated, integrated heating tube |
| Pressure Test | Each unit nitrogen-tested at 2.5 MPa |
| Defrost Methods | Electric / Hot-gas / Water / Natural |
|---|---|
| Capacity | 5 – 200 kW |
| Applications | Pharma / Food Processing / Logistics |
| Production Lead Time | 20-30 days after deposit |
| Warranty | 5 years on core components |
| Packing | Wooden case for export, ship-ready |
| Certification | ISO 9001, CE |
| Origin | Beijing, China |
| After-Sales | 24/7 remote support, on-site available |

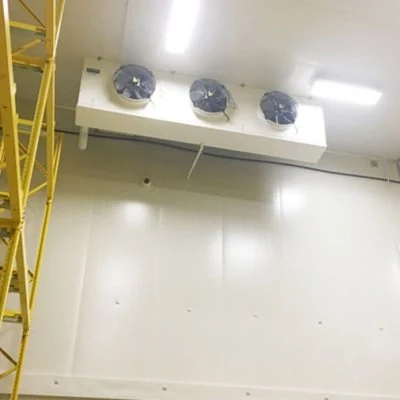

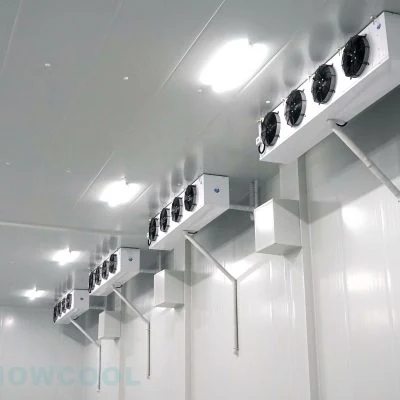

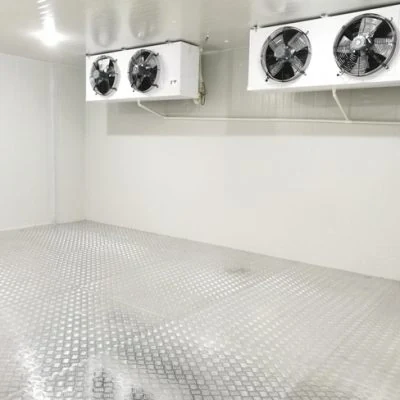

Industrial Cubic Evaporator In Production And On Site
Industrial Cubic Evaporator Questions
What capacity range does the Industrial Cubic Evaporator cover?
The standard range is High-Efficiency Air Cooler. All models are customised to the calculated heat load of your room or line, so send volume, temperature and product type for exact selection.
What is the production lead time?
20-30 days after deposit. Equipment is packed in wooden case for export, ship-ready.
What warranty applies?
5 years on core components, backed by 24/7 remote support. On-site service is available for export projects.
Is the equipment certified?
ISO 9001, CE. Howcool's quality management system is certified to ISO 9001:2015 by CFL Certification Center.
