R10 24W /1960lm/10-110V Tail Light Reverse+steering+driving+braking beam pattern
The R10 24W /1960lm/10-110V Tail Light Reverse+steering+driving+braking beam pattern is a 24W LED lamp from the Dantech LED Signal Lights range and rated IP67.
- 24W
- 1960 lm
- IP67
- 10-110V DC
What This Lamp Is Built to Do
It runs on 10-110V DC, produces 1960 lm of effective output.
Combined tail, reverse, brake and direction indicator lamps in a single sealed unit.
Key Benefits
- 1960 lm of effective output from a 24W draw, so the figure on the sheet is what reaches the work area rather than what the bare LED chips produce
- Sealed to IP67, which keeps field dust and wash-down water out of the driver compartment
- A 10-110V DC input window means the same part number covers more than one machine voltage in your fleet
- Rated at 50,000 hours lifespan, which cuts the number of replacement visits over the life of the machine
Photography of the R10 24W /1960lm/10-110V Tail Light Reverse+steering+driving+braking beam pattern supplied by the factory.
Application Scenarios
- Rear lighting clusters on trailers and semi-trailers
- Tipper and refuse body rear lighting
- Agricultural trailer road lighting
- Service and recovery body rear lighting
Who It Is For
- Trailer and semi-trailer builders
- Truck body and tipper manufacturers
- Agricultural trailer makers
- Replacement lamp distributors
Why Buyers Replace the Lamp That Is Already Fitted
Separate lamp pods mean more harness joins, and every join on a trailer is somewhere water can get in.
Water and dust entering the housing after a season in the field. This model is sealed to IP67.
Halogen lamps in this position draw current the machine cannot spare. This lamp draws 24W.
Construction
- Sturdy ABS housing with an acrylic lens for indoor material handling duty
Materials
Die-cast aluminium housing with a UV stable polyester powder coat, and a polycarbonate lens rather than glass. The housing is the heat sink, which is why the material matters as much as the LED specification.
Specifications
Taken from the specification sheet for this model. Where a value is not published for this model it is left out rather than estimated.
| Model No | DT-1027 |
|---|---|
| Power | 24W |
| Effective Lumens | 1960 lm |
| Operating Voltage | 10 - 110V DC |
| Operating Temperature | 30 deg~+60 deg C |
| Rated Lifespan | 50,000 hours lifespan |
| Ingress Protection | IP67 Reverse+steering+driving+braking beam pattern |

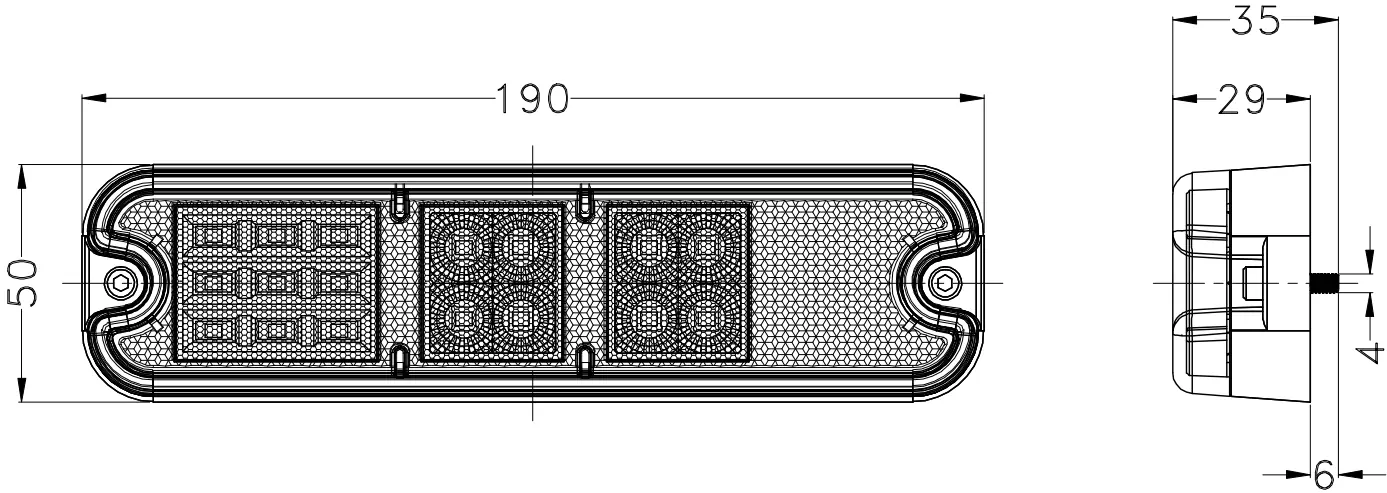

| Dimensions | 7.5", 190*50*35mm |
How the Lamp Is Made and What Is Checked
Die casting of
Die casting of the aluminium housing
SMT assembly and
SMT assembly and reflow of the LED board
Optic and lens
Optic and lens fitting with sealed bonding
Potting, sealing and
Potting, sealing and connector fitting
Electrical test, beam
Electrical test, beam check and packing
Quality Control
- Incoming inspection of LEDs, drivers and housings
- In-line electrical test after board assembly
- Sealing check before the lamp leaves the line
- Final beam and function check on every unit
- Quality system certified to ISO 9001:2015 and IATF 16949
Certification
Certificate references for this model are confirmed against the file held at the factory when you order.
At factory level the company states certification under the ISO 9001:2015 and IATF 16949 quality management systems, together with TUV certification.
Customisation Options
- Beam pattern selection where the model offers more than one option
- Cable length, connector type and harness termination
- Housing and lens marking for private label programmes
- Carton print and retail packaging artwork
- Mounting bracket variations on request
Use Guide
- Check the machine system voltage against the operating voltage line before wiring
- Fuse the lamp circuit at the supply and switch multiple lamps through a relay
- Mount so the housing can shed heat and is not packed hard against a panel
- Route the cable so it hangs below the gland rather than feeding water in
- Aim the beam at the working distance, then lock the bracket
How This Compares With the Alternatives
| Halogen lamp of similar output | Draws 24W where a halogen of comparable usable output draws considerably more, and is rated at 50,000 hours lifespan |
|---|---|
| Unbranded LED lamp with no approval line | Carries documented test certification, so it can be shipped and inspected without argument |
| Plastic bodied work lamp | Die-cast aluminium housing carries LED heat away instead of trapping it, which is what determines service life |
Other Models in the Signal Lights Range
Sectors That Use This Lamp
Trucks and Trailers
Work, scene and signal lighting for tippers, box bodies, trailers and service vehicles.
Read the application notes →Agricultural Machinery
Tractor, harvester and sprayer lighting that survives a full season of vibration, dust and wash-down.
Read the application notes →Guides Worth Reading Before You Order
ECE R10 Explained for Vehicle Lighting Buyers
R10 is the regulation buyers see most often on auxiliary lamps, and it is also the one most often misread as a road approval.
Read the guide →Choosing Colours and Beam Shapes for Forklift Safety Lights
A safety lamp only works if everyone on the floor reads the marking the same way.
Read the guide →Voltage Ranges on 12V 24V and 80V Vehicle Systems
A wide input range is not a marketing line. It is what stops one lamp specification turning into four stock codes.
Read the guide →Questions About This Model
What supply voltage does the R10 24W /1960lm/10-110V Tail Light Reverse+steer need?
Is the lumen figure raw or effective output?
Can this lamp be washed down?
Can this model be supplied under our own brand?
What is the lead time and the warranty period?
Request Pricing on the R10 24W /1960lm/10-110V Tail Light Reverse+steering+driving+
Send the quantity and the mounting position and we come back with a price, the lead time and the certificate references held for this model.
