30w 110V High Brightness Safety Lamp Blue Red Green Led Straight Line for Forklift
The 30w 110V High Brightness Safety Lamp Blue Red Green Led Straight Line for Forklift is a 30W LED lamp from the Dantech LED Forklift Safety Lights range, supplied with a line beam and rated IP68.
- 30W
- 2,400 lm
- IP68
- 9-110V DC
- ECE R10
- CE
- RoHS
What This Lamp Is Built to Do
It runs on 9-110V DC, produces 2,400 lm of effective output and is listed with ECE R10, CE, RoHS.
Blue, red and green projected beam lamps that mark where a truck is about to be.
Key Benefits
- 2,400 lm of effective output from a 30W draw, so the figure on the sheet is what reaches the work area rather than what the bare LED chips produce
- Sealed to IP68, which keeps field dust and wash-down water out of the driver compartment
- A 9-110V DC input window means the same part number covers more than one machine voltage in your fleet
- Listed with ECE R10, CE, RoHS, so the paperwork is ready when the shipment is inspected
- Available with a line beam, matched to the working distance rather than to a wattage figure

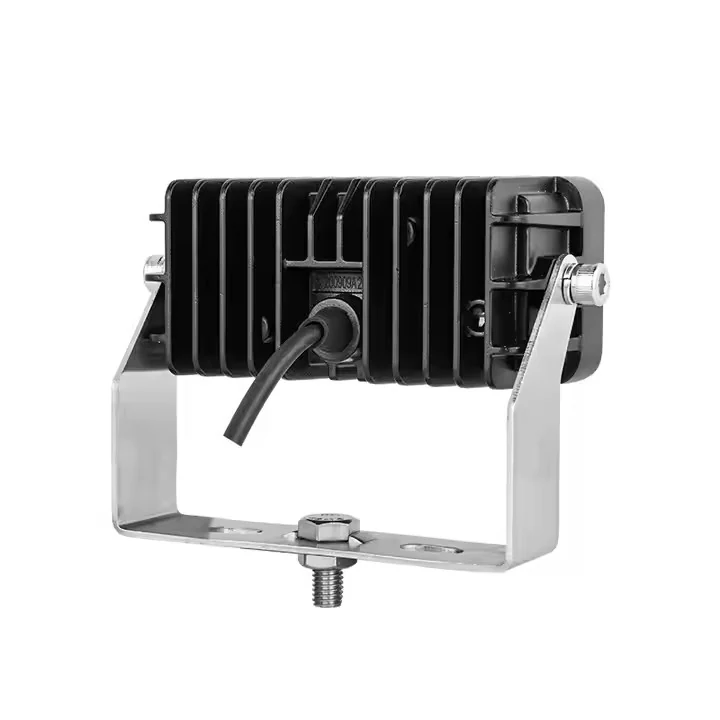

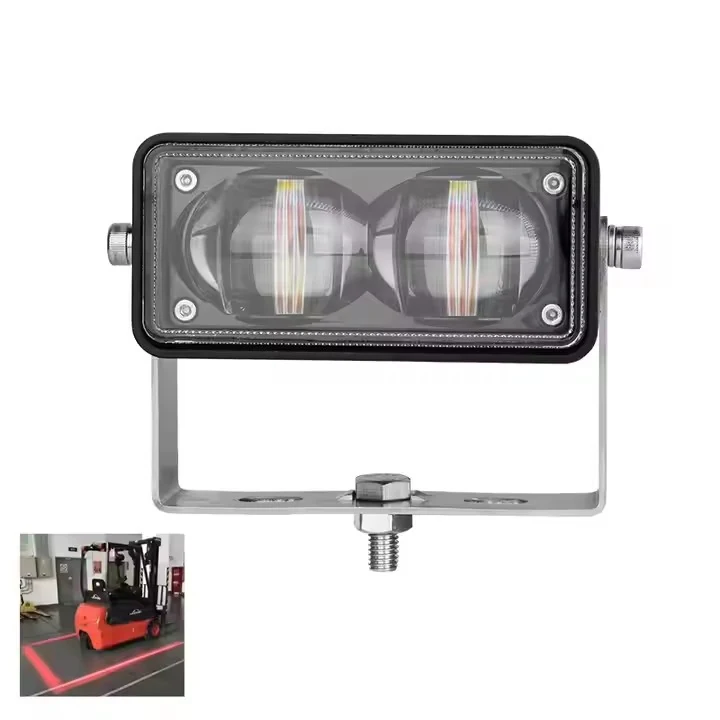

Photography of the 30w 110V High Brightness Safety Lamp Blue Red Green Led Straight Line for Forklift supplied by the factory.
Application Scenarios
- Blue spot warning at aisle ends and blind corners
- Red line marking of a keep-out zone beside the truck
- Arch beam marking of the full working width
- Pedestrian crossing points inside distribution centres
Who It Is For
- Forklift OEMs and dealers
- Warehouse and logistics safety managers
- Material handling equipment distributors
- Fleet maintenance contractors
Why Buyers Replace the Lamp That Is Already Fitted
Warehouse aisles put pedestrians and forklifts on the same floor, and engine noise alone does not warn anyone in a busy building.
Water and dust entering the housing after a season in the field. This model is sealed to IP68.
Auxiliary lighting that disturbs cab electronics. This model is listed with ECE R10.
Halogen lamps in this position draw current the machine cannot spare. This lamp draws 30W.
Construction
- UV-stable polyester powder coated housing that resists chalking after long outdoor exposure
- Die-cast aluminium housing that carries LED junction heat away from the board
- Impact resistant polycarbonate lens instead of glass, so stone strike does not shatter it
- Over-voltage protection on the driver stage
- Over-temperature protection that throttles drive current before the LEDs degrade
Materials
Die-cast aluminium housing with a UV stable polyester powder coat, and a polycarbonate lens rather than glass. The housing is the heat sink, which is why the material matters as much as the LED specification.
Specifications
Taken from the specification sheet for this model. Where a value is not published for this model it is left out rather than estimated.
| Model No | DT-5301 |
|---|---|
| Power | 15W X 2(30W) |
| Raw Lumens | 3,000 LM |
| Effective Lumens | 2,400LM |
| Operating Voltage | 9 - 110V DC |
| Operating Temperature | 40 deg~+85 deg C |
| Colour Temperature | 6000k |
| Beam Pattern | line beam |
| Rated Lifespan | 50,000 hours lifespan |
| Ingress Protection | IP68 |
| Certificates | R10, CE,ROHS |
How the Lamp Is Made and What Is Checked
Die casting of
Die casting of the aluminium housing
SMT assembly and
SMT assembly and reflow of the LED board
Optic and lens
Optic and lens fitting with sealed bonding
Potting, sealing and
Potting, sealing and connector fitting
Electrical test, beam
Electrical test, beam check and packing
Quality Control
- Incoming inspection of LEDs, drivers and housings
- In-line electrical test after board assembly
- Sealing check before the lamp leaves the line
- Final beam and function check on every unit
- Quality system certified to ISO 9001:2015 and IATF 16949
Certification
This model is recorded with ECE R10, CE, RoHS.
At factory level the company states certification under the ISO 9001:2015 and IATF 16949 quality management systems, together with TUV certification.
Customisation Options
- Beam pattern selection where the model offers more than one option
- Cable length, connector type and harness termination
- Housing and lens marking for private label programmes
- Carton print and retail packaging artwork
- Mounting bracket variations on request
Use Guide
- Check the machine system voltage against the operating voltage line before wiring
- Fuse the lamp circuit at the supply and switch multiple lamps through a relay
- Mount so the housing can shed heat and is not packed hard against a panel
- Route the cable so it hangs below the gland rather than feeding water in
- Aim the beam at the working distance, then lock the bracket
How This Compares With the Alternatives
| Halogen lamp of similar output | Draws 30W where a halogen of comparable usable output draws considerably more, and is rated at 50,000 hours lifespan |
|---|---|
| Unbranded LED lamp with no approval line | Carries ECE R10, CE, RoHS, so it can be shipped and inspected without argument |
| Plastic bodied work lamp | Die-cast aluminium housing carries LED heat away instead of trapping it, which is what determines service life |
Other Models in the Forklift Safety Range
Sectors That Use This Lamp
Guides Worth Reading Before You Order
What IP67 and IP68 Actually Cover on a Vehicle Lamp
The ingress protection rating tells you about dust and immersion. It does not tell you about pressure washing, salt or thermal shock.
Read the guide →Choosing Colours and Beam Shapes for Forklift Safety Lights
A safety lamp only works if everyone on the floor reads the marking the same way.
Read the guide →Voltage Ranges on 12V 24V and 80V Vehicle Systems
A wide input range is not a marketing line. It is what stops one lamp specification turning into four stock codes.
Read the guide →Questions About This Model
What supply voltage does the 30w 110V High Brightness Safety Lamp Blue Red Gr need?
Is the lumen figure raw or effective output?
Which approvals does this model carry?
Can this lamp be washed down?
Can this model be supplied under our own brand?
What is the lead time and the warranty period?
Request Pricing on the 30w 110V High Brightness Safety Lamp Blue Red Green Led Stra
Send the quantity and the mounting position and we come back with a price, the lead time and the certificate references held for this model.
