Dump Trailers

Tri Axles 40-60 Tons Tipper Semi Trailer

A 3-axle dump semi trailer with a 40-60 ton payload capacity, built on a steel Q345 B frame, featuring three 13-ton Fuwa-brand axles, leaf spring suspension, and ABS braking. The trailer measures 8500 x 2500 x 1800 mm and is designed for heavy-duty material transport where on-site tipping is required. It is supplied with 1200R20 or 12R22.5 tyres and is certified under ISO CCC for export compliance.

Use TruckTrailer
Size 8500*2500*1800mm
Color Option
Suspension LeafSpringSuspension
Dimensions 8500*2500*1800mm

Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 10391

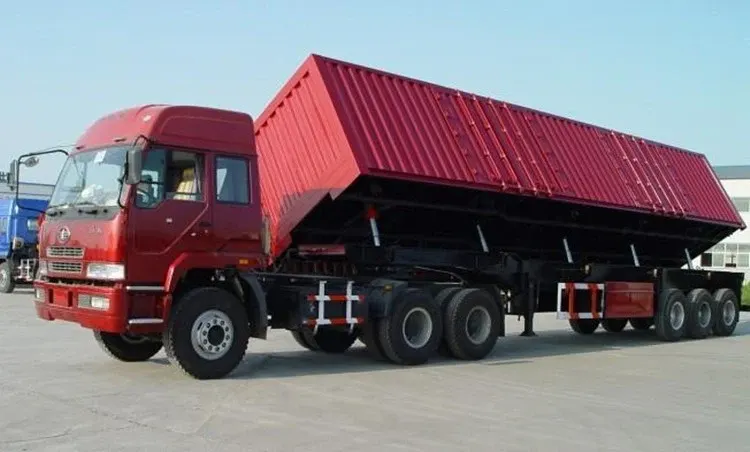

Side view of a 3-axle dump semi trailer with 1200R20 tyres and leaf spring suspension

Key Benefits

What This Unit Does Well

Three 13-ton Fuwa axles provide stable load distribution across heavy payloads up to 60 tons
Leaf spring suspension offers durability and low maintenance in rough terrain and unpaved haul routes
ABS braking system improves stopping safety on loaded downhill runs and wet surfaces
1200R20 or 12R22.5 tyre options allow matching to local truck fleet tyre standards
ISO CCC certification supports customs clearance in markets requiring Chinese manufacturing compliance
8500mm length fits standard container loading and road transport dimensions without oversize permits

Application Scenarios

Where It Is Used

Coal transport from open-pit mines to processing plants on unsealed access roads
Aggregate hauling for road construction projects where tipping at site is required
Bulk material transport in mining or quarry operations with frequent loading and unloading cycles
Long-haul freight between inland depots and ports where trailer must carry maximum payload

Fit

Who It Is For

Contractors managing bulk material hauls in mining, quarrying or infrastructure projects
Fleet operators standardising on a single trailer type with shared axle and tyre specs
Logistics companies importing trailers for resale in African, Middle Eastern or Southeast Asian markets
Government procurement teams sourcing dump trailers for public works or road maintenance fleets

Buyer Pain

Problems It Solves

Inconsistent axle and brake fitment across different trailer models causing spare parts shortages
Lack of ABS in trailers leading to brake fade and safety risks on steep grades
Trailer frame strength insufficient for 40-60 ton loads resulting in early fatigue and failure
Uncertainty over export certification when importing Chinese trailers into regulated markets
No standard tyre size across suppliers, complicating spare tyre procurement and fleet maintenance

Engineering

Technical Features

Steel Q345 B frame construction with welded joints for high tensile strength
Three 13-ton Fuwa-brand axles in a 3-axle configuration with 1200R20 or 12R22.5 tyres
Leaf spring suspension system for load stability and reduced maintenance
ABS anti-lock braking system for improved control under heavy braking
Dump semi trailer function with hydraulic lift system for controlled tipping
Dimensions of 8500 x 2500 x 1800 mm with a 40-60 ton maximum payload capacity

Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

Specification of Tri Axles 40-60 Tons Tipper Semi Trailer
Use	TruckTrailer
Size	850025001800mm
Color	Option
Suspension	LeafSpringSuspension
Dimensions	850025001800mm
Material	Steel
Certification	ISOCCC
Axle	13TonFuwaBrand
Tyre	1200R20or12R22.5
Function	DumpSemiTrailer
Type	Semi-Trailer
Trailer Type	Semi-Trailer
Axle Number	3 Axles
Axle Capacity	13 Ton Fuwa Brand
Dimensions L x W x H	8500 x 2500 x 1800 mm
Max Loading Capacity	40-60 Tons
Brake System	ABS
Place of Origin	Shandong, China (Mainland)
Max Payload	40-60
Tons Place of Origin	Shandong, China (Mainland)
Product Name	Tri Axles 40-60 Tons
Tipper Semi Trailer Axle	13
Ton Fuwa Brand Function	Dump
Semi Trailer Suspension	Leaf Spring
Suspension Axle Number	3
Alxes Brake System	ABS

Materials

Materials and Build

Steel Q345 B frame with welded construction for high load-bearing strength
Cast steel axle housings from Fuwa brand with standard bolt-on hubs
Leaf spring assemblies with galvanised steel components for corrosion resistance
1200R20 or 12R22.5 radial tyres on steel rims with standard tread pattern
Hydraulic lift cylinder and pivot arms for controlled tipping action

Process

How an Order Is Handled

You provide the payload, route conditions, and preferred tyre size
We confirm availability of the 3-axle configuration with Fuwa axles and ABS
You select the colour and confirm the final spec sheet before deposit
Unit is assembled, tested for hydraulic lift and brake function, then photographed
We arrange bulk shipment or container loading and provide export documents

Quality Control

Checks Before Loading

Axle, suspension, and brake components are inspected before assembly
Weld joints are checked for consistency and structural integrity using visual and dimensional checks
Hydraulic lift system is tested under load to confirm smooth operation
ABS system is verified with a functional test before shipment
Final trailer is photographed and video recorded before loading at port

Customisation

What Can Be Changed

Choice of trailer colour other than standard grey or white
Adjustment of tipping angle or lift cylinder stroke if required
Option to specify 1200R20 or 12R22.5 tyres based on local truck fleet standards
Addition of side or rear guards for material containment
Custom marking or branding for fleet identification

Honest Comparison

How It Compares With the Alternatives

2-axle dump trailer	The 3-axle unit supports higher payloads and better weight distribution but requires more space and has higher tyre and axle maintenance
Air suspension trailer	Leaf spring suspension is more robust and cheaper to maintain in dusty or off-road conditions, but offers less ride comfort
Non-ABS trailer	ABS improves braking safety on loaded grades and wet surfaces, but adds cost and complexity to the system

Use Guide

Using It Well

Check hydraulic fluid level and lift cylinder seals before each tipping cycle
Use only 1200R20 or 12R22.5 tyres as specified to avoid mismatched load capacity
Keep the ABS sensor clean and free from mud to prevent false fault codes
Store the trailer with the dump bed lowered to reduce stress on the lift mechanism

Photographs

More Views of This Unit

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.

Front view of the trailer showing the hydraulic lift cylinder and front axle

Rear view of the trailer with the dump bed in the lowered position and mud flaps

Top-down view of the trailer deck with side rails and tie-down points

Source Specification

Manufacturer Text We Hold for This Listing

Tri Axles 40-60 Tons Tipper Semi Trailer Tri Axles 40-60 Tons Tipper Semi Trailer Product Information Product Name Tri Axles 40-60 Tons Tipper Semi Trailer Type Semi-Trailer Material Steel Q345 B Certificate ISO CCC Size 8500*2550*1800mm Max Loading Capacity 40-60 Tons Brand Shengxing Function Dump Semi Trailer Axle 13 Ton Fuwa Brand Axle Number 3 Axles Brake System ABS Tyre 1200R20 or 12R22.5 Origin Shandong, China Suspension Leaf Spring Suspension Accessories Show More Choice Packing & Delivery About Us the factory covers an area of 14,500 square meters, including the plant area of 11,300 square meters, the warehouse area of 900 square meters, and the supporting construction area of 1,200 square meters. We have 160 units advanced large scale equipment, and more than 50 units testing machines. With strong technical force and advanced manufacturing technology, the company is a large-scal

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.
