Dump Trailers
Tri Axles 40-60 Tons Tipper Semi Trailer
- UseTruckTrailer
- Size8500*2500*1800mm
- ColorOption
Dump Trailers
China Made 3 Axles 40-60 Tons Side Dump Semi Trailer for Sale
A 3-axle side dump semi trailer built for 40-60 ton payload, featuring a steel Q345 B frame, 13-ton Fuwa-brand axles, leaf spring suspension, and ABS braking. The 8500 x 2500 x 1800mm body is designed for bulk material transport with side discharge, and it is certified to ISO CCC. This configuration is used in mining, quarrying and construction fleets across Africa, Southeast Asia and the Middle East where ruggedness and local spare parts access are critical.
- Use TruckTrailer
- Size 8500*2500*1800mm
- Color Option
- Suspension LeafSpringSuspension
- Dimensions 8500*2500*1800mm
Stock number held for this listing: 10392
Key Benefits
What This Unit Does Well
- 13-ton Fuwa axles are standard in Chinese heavy trailers, so replacement bearings and wheel hubs are available in most regional markets
- Leaf spring suspension handles uneven terrain and heavy loads without requiring frequent maintenance
- ABS braking system reduces stopping distance on wet or loose surfaces, improving safety during dumping cycles
- Side dump design allows faster unloading at sites without conveyor systems or tipping ramps
- 8500mm length fits standard container shipping and RoRo loading without requiring special transport
- ISO CCC certification supports customs clearance in markets that require Chinese-made vehicle component compliance
Application Scenarios
Where It Is Used
- Transport of gravel and crushed stone from a quarry to a road construction site with unsealed access roads
- Bulk haulage of coal or ore in mining operations where side dumping reduces loading time at transfer points
- Delivery of sand or aggregate to infrastructure projects in remote areas with no dedicated unloading equipment
- Long-haul transport of construction materials between inland depots and coastal ports using RoRo shipping
Fit
Who It Is For
- Contractors managing earthmoving or aggregate transport fleets in Africa and Southeast Asia
- Machinery dealers stocking dump trailers for resale in markets with limited access to European or North American models
- Fleet owners replacing older trailers and seeking a lower-cost alternative with local parts availability
- Government procurement teams sourcing durable trailers for public works projects with tight delivery timelines
Buyer Pain
Problems It Solves
- Trailer breakdowns caused by axle failures due to mismatched or low-grade components from unverified suppliers
- Long delays in getting spare parts when using imported trailers with proprietary axle or brake systems
- Inconsistent trailer dimensions that prevent container loading or RoRo transport without disassembly
- Lack of local certification for Chinese-made trailers that prevents customs clearance in regulated markets
Engineering
Technical Features
- Steel Q345 B frame construction with welded joints for high load-bearing strength
- Three 13-ton Fuwa-brand axles with 1200R20 or 12R22.5 tyres, rated for 40-60 ton payload
- Leaf spring suspension system with adjustable leaf packs for uneven terrain
- ABS anti-lock braking system on all axles for improved stopping control
- Side dump mechanism with hydraulic cylinder actuation for controlled material discharge
- 8500 x 2500 x 1800mm body dimensions with reinforced sides for bulk material containment
- ISO CCC certification for Chinese vehicle component export compliance
Specification
Specification Table for This Listing
Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.
| Use | TruckTrailer |
|---|---|
| Size | 8500*2500*1800mm |
| Color | Option |
| Suspension | LeafSpringSuspension |
| Dimensions | 8500*2500*1800mm |
| Material | Steel |
| Certification | ISOCCC |
| Axle | 13TonFuwaBrand |
| Tyre | 1200R20or12R22.5 |
| Function | DumpSemiTrailer |
| Type | Semi-Trailer |
| Trailer Type | Semi-Trailer |
| Axle Number | 3 |
| Axle Capacity | 13 Ton Fuwa Brand |
| Max Loading Capacity | 40-60 Tons |
| Dimensions L x W x H | 8500 x 2500 x 1800 mm |
| Brake System | ABS |
| Tyre Size | 1200R20 or 12R22.5 |
| Origin | Shandong, China (Mainland) |
| Brand Name | Shengxing |
| OEM No. | 2018101601 |
| Max Payload | 40-60 |
| Tons Place of Origin | Shandong, China (Mainland) |
| Trailer for Sale Axle | 13 |
| Ton Fuwa Brand Function | Dump |
| Semi Trailer Suspension | Leaf Spring |
Materials
Materials and Build
- Steel Q345 B frame with welded construction for high tensile strength
- 13-ton Fuwa-brand axles with forged steel housing and alloy steel shafts
- Leaf spring suspension with galvanised steel springs and rubber bushings
- 1200R20 or 12R22.5 radial tyres on steel rims with reinforced sidewalls
- Side dump gate with hydraulic cylinder and pivot hinges for controlled dumping
Process
How an Order Is Handled
- You provide the payload, route terrain, and preferred tyre size (1200R20 or 12R22.5)
- We confirm the available stock or production schedule based on the OEM part availability
- You approve the final spec sheet, colour, and axle configuration before deposit
- The trailer is built, tested for hydraulic dump function, and photographed at the yard
- We book RoRo or container shipment and provide export documents including commercial invoice and certificate of origin
Quality Control
Checks Before Loading
- Axle, tyre, and brake components are inspected upon receipt from the supplier
- Weld joints are checked with visual and non-destructive methods before final assembly
- Hydraulic dump system is tested under load to verify smooth operation and no leaks
- ABS system is verified with a test run on a dynamic brake tester before shipment
- Photos and video of the trailer are sent before loading, including the chassis number and axle labels
Customisation
What Can Be Changed
- Choice of trailer colour (white, yellow, red, or custom RAL code)
- Selection between 1200R20 and 12R22.5 tyres based on road conditions
- Adjustment of dump gate height or angle for specific site requirements
- Addition of side guards or protective skirting for high-wear zones
- Optional fifth wheel plate or coupling type to match your tractor head
Honest Comparison
How It Compares With the Alternatives
| 2-axle dump trailer | The 3-axle unit supports higher payload and better weight distribution but requires more space for turning and storage |
|---|---|
| Air suspension trailer | Leaf springs are more durable in dusty, off-road environments and have lower maintenance cost |
Use Guide
Using It Well
- Inspect hydraulic cylinder seals and hoses before first use, especially after long storage
- Use only 1200R20 or 12R22.5 tyres as specified; mixing sizes affects handling and safety
- Keep the dump gate hinge and hydraulic cylinder pivot clean and lubricated to prevent jamming
- Test the ABS system monthly by braking at low speed on dry pavement to confirm warning light function

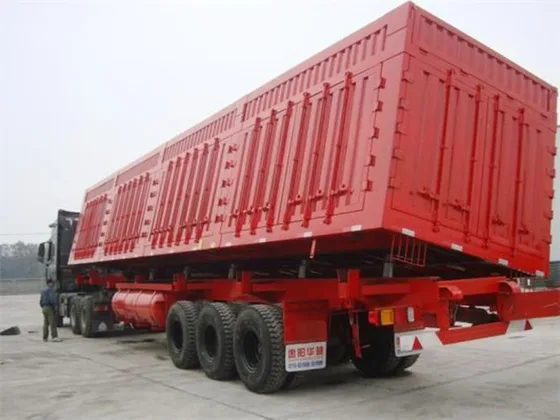

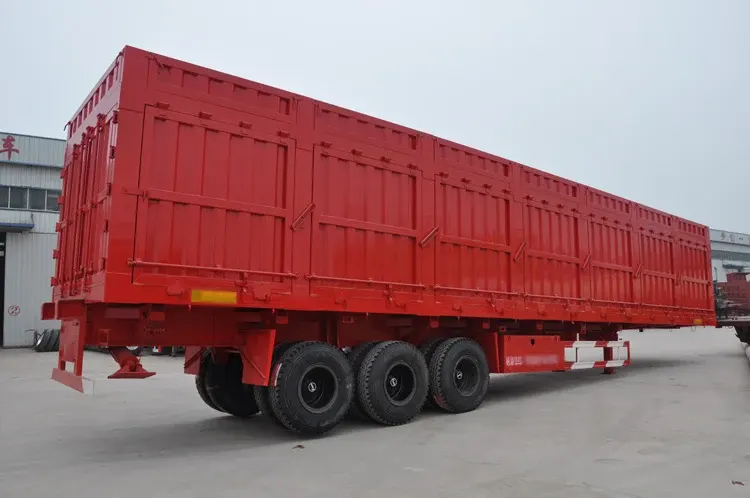

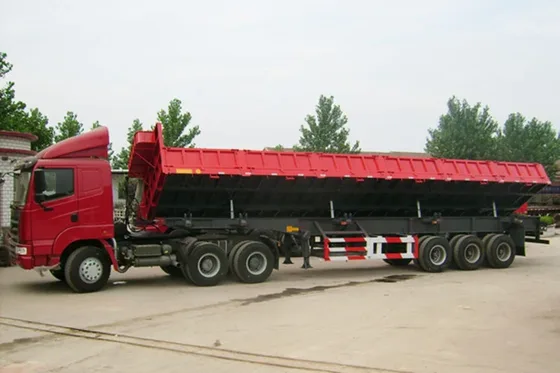

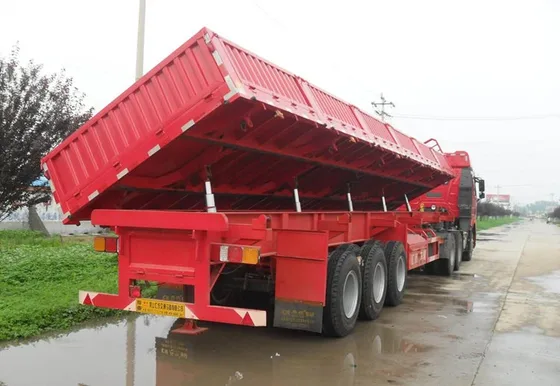

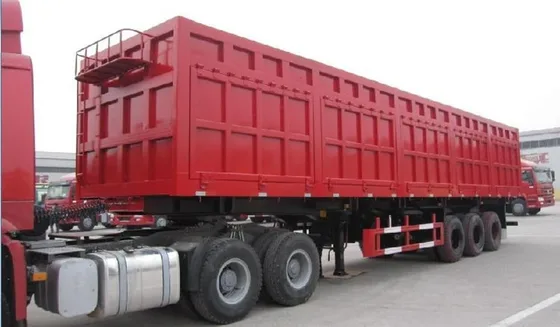

Photographs
More Views of This Unit
Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.
Source Specification
Manufacturer Text We Hold for This Listing
China Made 3 Axles 40-60 Tons Side Dump Semi Trailer For Sale China Made 3 Axles 40-60 Tons Side Dump Semi Trailer For Sale Product Information Product Name China Made 3 Axles 40-60 Tons Side Dump Semi Trailer For Sale Type Semi-Trailer Material Steel Q345 B Certificate ISO CCC Size 8500*2550*1800mm Max Loading Capacity 40-60 Tons Brand Shengxing Function Dump Semi Trailer Axle 13 Ton Fuwa Brand Axle Number 3 Axles Brake System ABS Tyre 1200R20 or 12R22.5 Origin Shandong, China Suspension Leaf Spring Suspension Accessories Show More Choice Packing & Delivery About Us the factory covers an area of 14,500 square meters, including the plant area of 11,300 square meters, the warehouse area of 900 square meters, and the supporting construction area of 1,200 square meters. We have 160 units advanced large scale equipment, and more than 50 units testing machines. With strong technical force and
Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.
