Dump Trailers

2 Axles 50 Tons Dump Semi Trailer

It features a dual-line braking system with ABS and can be fitted with 1200R20 or 12R22.5 tyres. Designed for construction and mining transport, it is supplied from Shandong, China, with ISO CCC certification and available for bulk or container shipment.

  • Use TruckTrailer
  • Size 13000*2550*1500mm
  • Color Option
  • Suspension LeafSpringSuspension
  • Dimensions 13000*2550*1500mm
Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 10399

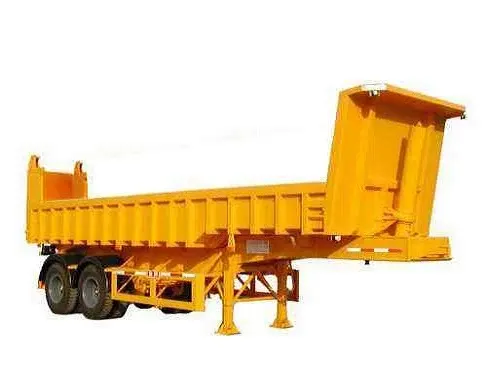

Side view of the trailer showing leaf spring suspension and 1200R20 tyres
Side view of the trailer showing leaf spring suspension and 1200R20 tyres
Key Benefits

What This Unit Does Well

  • 13-ton Fuwa axles are widely used in Chinese-built trailers, so replacement parts are easier to source locally
  • Leaf spring suspension is durable and requires less maintenance than air suspension in rough terrain
  • Dual-line braking with ABS improves safety on loaded downhill runs and uneven ground
  • ISO CCC certification ensures compliance with Chinese export standards and simplifies customs clearance
Application Scenarios

Where It Is Used

  • Transport of aggregate, gravel or sand from a quarry to a construction site with unpaved access roads
  • Dumping of excavated soil or rock at a landfill or grading site with limited access infrastructure
  • Bulk material haulage in mining operations where trailer stability and axle strength are critical
  • Long-haul transport of construction materials between regional depots where trailer durability matters
Fit

Who It Is For

  • Contractors operating in Africa, Southeast Asia or the Middle East needing rugged trailers for mining or road projects
  • Fleet managers replacing older dump trailers and seeking parts compatibility with existing Chinese-built units
  • Machinery dealers stocking semi trailers for resale in markets with limited access to European or North American brands
  • Logistics operators managing bulk material transport where low maintenance and high payload are priorities
Buyer Pain

Problems It Solves

  • Trailer breakdowns caused by weak or non-standard axles that fail under repeated 50-ton loads
  • Delays from parts not available locally when using imported trailers with proprietary components
  • Inconsistent braking performance on steep grades due to single-line systems or missing ABS
  • Cargo instability during dumping due to high bed height or poor suspension response
  • Customs rejection due to missing or invalid certification for export vehicles
Engineering

Technical Features

  • Steel Q345B frame with welded construction for high load-bearing strength
  • Leaf spring suspension on both axles for durability in off-road and rough conditions
  • 13-ton Fuwa-brand axles with forged steel components and sealed bearings
  • Dual-line braking system with ABS for improved stopping performance under load
  • 1200R20 or 12R22.5 tyres as standard, with optional fitment based on terrain and load
  • Dump mechanism with hydraulic lift cylinders and safety locking pins
  • ISO CCC certification for export compliance and customs clearance
Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

UseTruckTrailer
Size13000*2550*1500mm
ColorOption
SuspensionLeafSpringSuspension
Dimensions13000*2550*1500mm
MaterialSteel
CertificationISOCCC
Axle13TonFuwaBrand
Tyre1200R20or12R22.5
FunctionTransportation
TypeSemi-Trailer
Trailer Model2 Axles 50 Tons Dump Semi Trailer
Axle Number2
Dimensions L x W x H13000 x 2550 x 1500 mm
Max Payload50 Tons
Brake SystemDual Line with ABS
Place of OriginShandong, China
Brand NameShengxing
Loading Capacity50 Tons
Trailer TypeSemi-Trailer
Tons Place of OriginShandong, China (Mainland)
Product NameDump
Semi Trailer Axle13
Ton Fuwa Brand FunctionTransportation
Suspension Axle Number2
Alxes Brake SystemDual Line Braking
Materials

Materials and Build

  • Steel Q345B for the main frame and cargo bed structure
  • Forged steel axles with sealed bearings and heavy-duty leaf springs
  • 1200R20 or 12R22.5 radial tyres with reinforced sidewalls
  • Welded steel side and end panels with anti-slip floor coating
Process

How an Order Is Handled

  • You send the route conditions, payload type and desired tyre size
  • We confirm availability of the 2-axle 50-ton model with Fuwa axles and your chosen tyre size
  • You approve the final spec sheet, including colour and suspension setup before deposit
  • Trailer is prepared, tested for brake and lift function, and photographed before loading
  • We book bulk shipment or container load and issue export documents for customs
Quality Control

Checks Before Loading

  • Axle and suspension components are inspected before assembly using in-house testing machines
  • Weld joints are checked for integrity using visual and non-destructive methods
  • Brake and hydraulic lift systems are tested under load before shipment
  • Final trailer is photographed and video recorded showing all key components
Customisation

What Can Be Changed

  • Bed colour other than standard grey
  • Tyre brand and size: 1200R20 or 12R22.5
  • Optional extra side panels or reinforcement for heavy-duty use
  • Custom paint or logo application on the cab or trailer sides
  • Adjustment of dump angle or lift cylinder position for specific site needs
Honest Comparison

How It Compares With the Alternatives

3-axle 60-ton dump trailerThe 2-axle model has lower purchase cost and simpler maintenance, but carries less weight and may exceed axle load limits on some roads
Air suspension trailerLeaf spring suspension is more robust in dusty or muddy environments and requires less upkeep, but offers less ride comfort on paved roads
Trailer with no ABSThis model's dual-line ABS system reduces stopping distance and prevents wheel lockup under heavy braking, improving safety on steep grades
Use Guide

Using It Well

  • Keep brake linings and ABS sensors clean, especially in dusty or wet environments
  • Use only the tyre size specified in the spec sheet to avoid overloading the axles
  • Verify that the dump mechanism locks securely at the top position before driving
Source Specification

Manufacturer Text We Hold for This Listing

2 Axles 50 Tons Dump Semi Trailer Product Description 2 Axles Dump Semi Trailer Product Information Product Name 3 Axles Dump Semi Trailer Type Semi-Trailer Material Steel Q345 B Certificate ISO CCC Size 13000*2550*1600mm Max Loading Capacity 60 Tons Brand Shengxing Function Construction Transportation Axle 13 Ton Fuwa Brand Axle Number 3 Axles Brake System Dual Line Braking System with ABS Tire 1200R20 or 12R22.5 Origin Shandong, China Suspension Leaf Spring Suspension Product Display Accessories Show More Choice Packing & Delivery About Us the factory covers an area of 14,500 square meters, including the plant area of 11,300 square meters, the warehouse area of 900 square meters, and the supporting construction area of 1,200 square meters. We have 160 units advanced large scale equipment, and more than 50 units testing machines. With strong technical force and advanced manufacturing te

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.

Related Listings

Other Dump Trailers Buyers Compare With This

All 33 Dump Trailers Full product index

Buyer Questions

Questions About This Unit

Is this trailer new or used

All trailers are new, built to order or from current stock. We provide photos and serial numbers before payment.

What is the lead time

15 workdays after prepayment. Larger orders may extend the timeline; we confirm the date in writing with the proforma invoice.

Can you supply spare parts later

Yes. Fuwa axles, leaf springs, brake components and hydraulic cylinders are available for separate order and can be shipped with the trailer or later.

Do you ship by container or bulk

We ship by bulk (RoRo) or container. Bulk is standard for trailers; container shipment is possible with the bed lowered and may affect loading height.
