Dump Trailers

Low Price Reliable Quality Side Dump Semi Trailer

A 3-axle side dump semi trailer with a 8500 x 2500 x 1800mm cargo bed, built from Q345B steel and fitted with a 13-ton Fuwa-brand axle on leaf spring suspension. It features ABS braking, 1200R20 or 12R22.5 tyres, and is designed for bulk material transport where quick unloading and rugged construction are required. The unit is certified under ISO CCC and originates from Shandong, China.

  • Use TruckTrailer
  • Size 8500*2500*1800mm
  • Color Option
  • Suspension LeafSpringSuspension
  • Dimensions 8500*2500*1800mm
Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 10389

Side dump semi trailer in white, parked on a yard with side gate open
Side dump semi trailer in white, parked on a yard with side gate open
Key Benefits

What This Unit Does Well

  • Q345B steel construction provides strength and durability for repeated dumping cycles
  • 13-ton Fuwa-brand axles are standard in Chinese heavy-duty trailers, so replacement parts are widely available
  • Leaf spring suspension is simple to maintain and performs reliably on rough terrain
  • ABS braking system improves control during dumping and downhill runs
  • 3-axle layout supports 40-60 ton payload without exceeding axle load limits
  • Side dump function allows fast unloading without needing a tipping platform
Application Scenarios

Where It Is Used

  • Coal transport from mine to rail loading point on unpaved access roads
  • Aggregate haulage between quarry and construction site with limited turning space
  • Sand and gravel delivery to roadworks where quick dumping is needed
  • Bulk material transfer in mining or quarry operations with frequent unloading
Fit

Who It Is For

  • Contractors managing multiple dump trailer operations in Africa, the Middle East or Southeast Asia
  • Fleet owners replacing older trailers with a low-cost, high-reliability option
  • Machinery dealers stocking semi trailers for resale in markets with limited spare parts access
  • Logistics operators needing consistent trailer specs for bulk cargo routes
Buyer Pain

Problems It Solves

  • Trailer frames that crack under repeated dumping stress due to weak steel or poor welding
  • Lack of spare axle or brake parts in remote regions where OEMs are not present
  • Overloaded axles causing premature suspension or tyre failure on rough roads
  • Slow unloading times when using rear dump trailers in tight or congested sites
  • Uncertainty over trailer weight and axle count when applying for import permits
Engineering

Technical Features

  • Side dump mechanism with hydraulic lift system for controlled material discharge
  • Q345B steel cargo bed and frame with welded construction
  • Three 13-ton Fuwa-brand axles with leaf spring suspension
  • ABS braking system on all axles
  • 1200R20 or 12R22.5 tyres as standard, depending on order
  • 8500 x 2500 x 1800mm cargo bed dimensions
  • Side dump gate with hydraulic cylinder actuation
Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

UseTruckTrailer
Size8500*2500*1800mm
ColorOption
SuspensionLeafSpringSuspension
Dimensions8500*2500*1800mm
MaterialSteel
CertificationISOCCC
Axle13TonFuwaBrand
Tyre1200R20or12R22.5
FunctionDumpSemiTrailer
TypeSemi-Trailer
Trailer ModelLow Price Reliable Quality Side Dump Semi Trailer
Dimensions L x W x H8500 x 2500 x 1800 mm
Max Loading Capacity40-60 Tons
Axle Number3
Axle Type13 Ton Fuwa Brand
Brake SystemABS
Tyre Size1200R20 or 12R22.5
Place of OriginShandong, China
OEM Number2018101601
Trailer TypeSemi-Trailer
Max Payload40-60
Tons Place of OriginShandong, China (Mainland)
Product NameLow Price Reliable Quality Side
Dump Semi Trailer Axle13
Ton Fuwa Brand FunctionDump
Materials

Materials and Build

  • Q345B steel for the cargo bed and frame structure
  • Cast steel 13-ton Fuwa-brand axles
  • Leaf spring assemblies with galvanised components
  • 1200R20 or 12R22.5 radial tyres on steel rims
  • Hydraulic cylinders for side dump gate operation
Process

How an Order Is Handled

  • You provide the payload, route conditions, and preferred tyre size
  • We confirm availability of the 8500 x 2500 x 1800mm trailer with 3 axles and your chosen tyre
  • You approve the final spec sheet and colour option before deposit
  • Unit is built, tested for hydraulic dump function, and photographed
  • We book bulk shipment or container load and issue export documents
Quality Control

Checks Before Loading

  • Axle, tyre, and hydraulic cylinder numbers are recorded and matched to the spec sheet
  • Hydraulic lift cycle is tested and video recorded before loading
  • Weld joints are inspected for continuity and porosity using visual and non-destructive methods
  • ABS system is tested under load to confirm brake response
  • Photos of loading and lashing are sent before departure
Customisation

What Can Be Changed

  • Custom colour for the trailer body beyond the default option
  • Choice between 1200R20 or 12R22.5 tyres
  • Additional side guard or reinforcement on the dump gate
  • Optional fifth wheel plate or coupling height adjustment
  • Custom paint or logo application
Honest Comparison

How It Compares With the Alternatives

Rear dump semi trailerSide dump allows faster unloading in tight spaces but requires more ground clearance and has higher maintenance on the gate mechanism
2-axle trailer3-axle layout supports higher payload without exceeding axle load limits, but increases rolling resistance and fuel cost
Air suspension trailerLeaf spring is more robust and cheaper to maintain in dusty or rough terrain, but offers less ride comfort on paved roads
Use Guide

Using It Well

  • Inspect hydraulic cylinder seals and hoses before first use and check for leaks
  • Check tyre pressure weekly and adjust for load and temperature
  • Verify ABS sensor clearance on all axles before long hauls
  • Use only the recommended hydraulic fluid grade for the lift system
Photographs

More Views of This Unit

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.

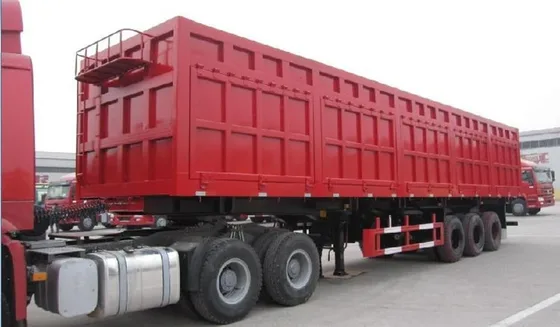

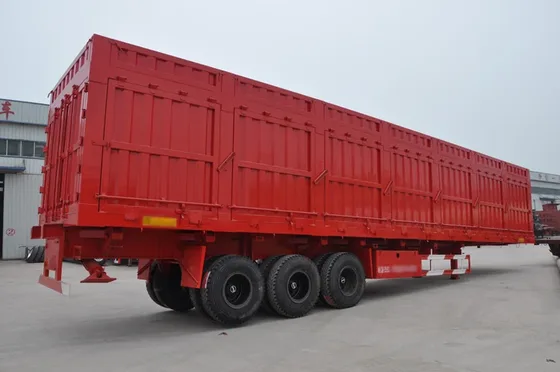

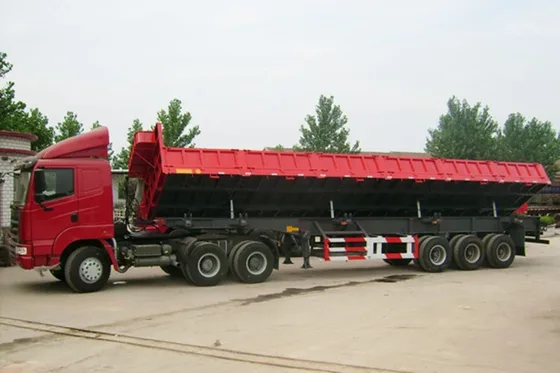

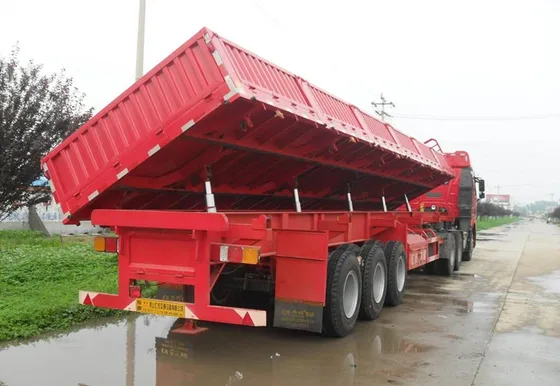

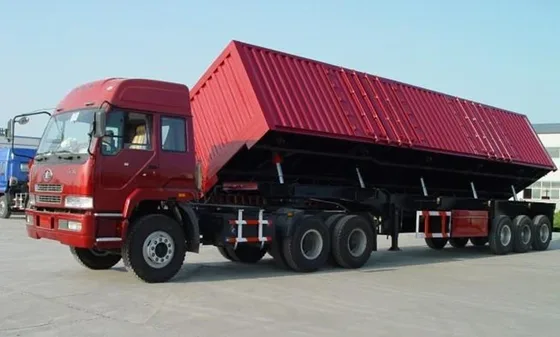

Front view of the trailer showing the 13-ton Fuwa axles and leaf spring suspensionRear view showing the hydraulic cylinder and side gate mechanismClose-up of the 1200R20 tyre and steel rim on the trailer axleCargo bed interior with Q345B steel walls and reinforced floorLow Price Reliable Quality Side Dump Semi Trailer - photo 6
Source Specification

Manufacturer Text We Hold for This Listing

Low Price Reliable Quality Side Dump Semi Trailer Low Price Reliable Quality Side Dump Semi Trailer Product Information Product Name Low Price Reliable Quality Side Dump Semi Trailer Type Semi-Trailer Material Steel Q345 B Certificate ISO CCC Size 8500*2550*1800mm Max Loading Capacity 40-60 Tons Brand Sea Lion Function Dump Semi Trailer Axle 13 Ton Fuwa Brand Axle Number 3 Axles Brake System ABS Tyre 1200R20 or 12R22.5 Origin Shandong, China Suspension Leaf Spring Suspension Accessories Show More Choice Packing & Delivery About Us The factory covers an area of 14,500 square meters, including the plant area of 11,300 square meters, the warehouse area of 900 square meters, and the supporting construction area of 1,200 square meters. We have 160 units advanced large scale equipment, and more than 50 units testing machines. With strong technical force and advanced manufacturing technology, t

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.

Related Listings

Other Dump Trailers Buyers Compare With This

All 33 Dump Trailers Full product index

Buyer Questions

Questions About This Unit

Is this trailer new or used

All units are new. We supply directly from production, and each trailer is built to order with full documentation.

What is the lead time

15 workdays after prepayment. This includes production, testing, and preparation for shipment.

Can you supply spare parts for this trailer later

Yes. Fuwa-brand axles, leaf springs, hydraulic cylinders, and tyres are available for purchase separately and can be shipped with your order or later.

Do you ship by container or bulk

We ship by bulk for standard trailers. Container shipment is possible but requires lowering the cab or removing the dump gate. We quote both options for your cost comparison.

What documents do I get for customs

Commercial invoice, packing list, bill of lading, certificate of origin, and ISO CCC certificate are included. Additional inspection certificates can be arranged.
