Manufacturer 40CBM U Shape Tipper Semi Trailer

A 40CBM U shape tipper semi-trailer designed for rear dump applications. The chassis uses a heavy-duty, welded steel I-beam construction with Q610 steel. It offers options for mechanical or airbag suspension and FUWA, BPW, or HUAJING axles. The trailer is 10500mm long, 2460mm wide, and 3500mm high, with a tare weight between 8000-11500KGS and a payload capacity of 35000-45000KGS. It is suited to bulk material transport where on-site tipping is required.

Use OtherTrailers
Size 10500*2460*3500MM
Color Red
Suspension MechanicalSuspensionor
Material CarbonSteel

Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 10515

White 40CBM U shape tipper semi-trailer, side view

Key Benefits

What This Unit Does Well

Heavy-duty chassis construction ensures durability in demanding loading and unloading cycles
FUWA, BPW, or HUAJING axle options provide proven reliability and parts availability
Mechanical or airbag suspension choice adapts to road conditions and cargo sensitivity
HYVA or Binotto cylinder options offer established tipping performance
6-8mm steel body sheet provides resistance to abrasion and impact damage
Multiple tyre size options allow matching to operating environment and budget

Application Scenarios

Where It Is Used

Transporting aggregates from a quarry to a construction site requiring on-site discharge
Hauling excavated material from a civil engineering project to a disposal area
Moving bulk grain or fertilizer to agricultural locations with limited unloading facilities
Delivering coal to power plants or industrial users with tipping capabilities
Transporting mining ore from the mine to the processing plant

Fit

Who It Is For

Construction companies needing to move large volumes of materials efficiently
Quarry operators requiring reliable trailers for aggregate transport
Agricultural businesses needing to transport bulk grain and fertilizer
Mining companies needing to haul ore and overburden
Logistics providers specialising in bulk material transport

Buyer Pain

Problems It Solves

Manual unloading of materials which is slow and labour intensive
Damage to trailers from overloading or rough terrain
High maintenance costs due to unreliable components
Difficulty sourcing spare parts for non-standard trailers
Inefficient loading and unloading cycles
Lack of flexibility in handling different types of bulk materials

Engineering

Technical Features

Heavy-duty I-beam chassis constructed from high tensile Q610 steel
Options for mechanical spring or air bag suspension
FUWA, BPW, or HUAJING axles with ABS system available
HYVA or Binotto hydraulic cylinder for tipping operation
JOST brand 2" bolt-in king pin and two-speed landing gear
WABCO RE6 relay valve and T30/30 spring brake chamber

Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

Specification of Manufacturer 40CBM U Shape Tipper Semi Trailer
Use	OtherTrailers
Size	1050024603500MM
Color	Red
Suspension	MechanicalSuspensionorairbag
Material	CarbonSteel
Axle	FUWA/BPW/HUAJING
Type	TractorTippingTrailer
Cylinder	HYVAorBinotto
Trailer Type	Tractor Tipping Trailer
Dimensions L x W x H	1050024603500MM
Tare Weight	8000-11500KGS
Payload	35000-45000KGS
Chassis Material	CarbonSteel
Axle Brand	FUWA/BPW/HUAJING
Hydraulic Cylinder	HYVAorBinotto
King Pin	JOST Brand
Brake System	WEBCO
Landing Gear	JOST Brand
Tyre Options	11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5
OTHER Max Payload	60T
Place of Origin	Shandong, China (Mainland)
Model Number	LHY9406
Product Name	Manufacturer 60Ton U shape Dumpe
Tipper Semi Trailer Type	Tractor
Tipping Trailer Color	Red
FUWA/BPW/HUAJING Cylinder	HYVA or

Materials

Materials and Build

High tensile Q610 steel for chassis construction
6-8mm steel sheet for the tipping body
FUWA, BPW, or HUAJING steel axles
WABCO RE6 relay valve and T30/30 spring brake chamber components

Process

How an Order Is Handled

You specify the required payload, tipping angle and material density
We confirm the chassis length, axle configuration and suspension type
You approve the final specification sheet including tyre brand and cylinder choice
The trailer is assembled, sandblasted, primed and painted to your colour
We send photos and video of the completed trailer before loading for shipment

Quality Control

Checks Before Loading

Chassis welding is inspected using ultrasonic and radiographic testing
Axle alignment and brake system functionality are checked before dispatch
Paint thickness and adhesion are verified to prevent corrosion
Hydraulic cylinder operation is tested under full load

Customisation

What Can Be Changed

Choice of axle brand (FUWA, BPW, HUAJING)
Suspension type (mechanical or airbag)
Hydraulic cylinder manufacturer (HYVA or Binotto)
Tyre brand and size
Colour of the chassis and body
Addition of toolboxes or other accessories

Honest Comparison

How It Compares With the Alternatives

Fixed-bed trailer	A tipping trailer allows for rapid and complete unloading of bulk materials without manual intervention
Smaller capacity tipper	A 40CBM trailer reduces the number of trips required for large-volume transport
Air suspension	Mechanical suspension is more cost-effective for rough terrain applications, but less comfortable
HYVA cylinder	Binotto cylinders offer a cost-effective alternative with similar performance characteristics

Use Guide

Using It Well

Grease all pivot points and sliding surfaces regularly
Inspect tyre pressure and tread depth before each trip
Check hydraulic fluid level and hose condition frequently
Ensure the load is evenly distributed to maintain stability
Follow the manufacturer's recommended maintenance schedule for the axles and suspension

Photographs

More Views of This Unit

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.

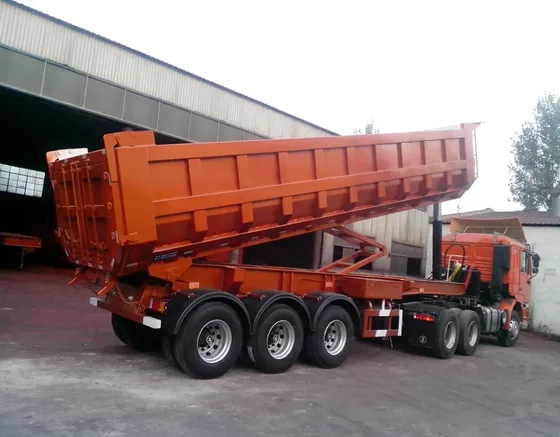

Rear view of the tipper trailer showing the U-shaped body

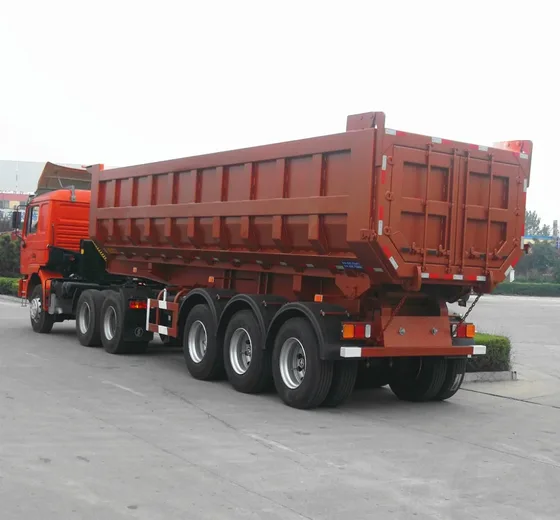

Close-up of the hydraulic cylinder mechanism

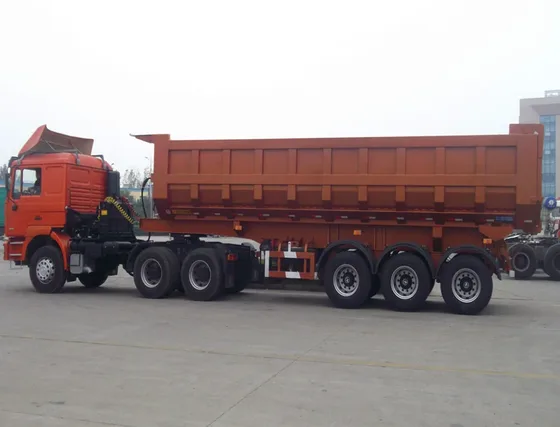

Landing gear and king pin connection on the trailer

Source Specification

Manufacturer Text We Hold for This Listing

Manufacturer 40CBM U shape Tipper semi trailer U type rear dump semi trailer /U shape dumper truck /U type tipper semi trailer Product Description DIMENSIONS Tare weight 8000-11500KGS Payload 35000-45000KGS Overall length 7800-10500mm Overall Width 2420-2465mm SPECIFICATION Chassis Heavy duty and extra durability designed I beam;opting for high tensile steel Q610,welded by automatic submerged-Aac processes.Top flange 16mm,width140mm;Middle Flange 8m;bottom flange18mm,width 140mm Axle 2-3 axles Brand name:BPW.L1 or FUWA -optional upon choice Suspension Mechanical suspension or air suspension Spring Leaf spring or air bag King pin JOST brand2'' bolt-in king pin Twist lock 12 no.of ISO twist lock for 1x20ft,2x20ft,1x40ft container Landing gear JOST brand two-speed,manual operating,heavy duty landing gear Wheel rim 8.5-20,9.0-20,8.25-22.5,9.0-22.5 steel wheel rim optional upon choice Tyre 11

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.
