Electric Trucks

Electric Van Cargo CE Certificate Mini Electric Utility Truck

A 2018 model Mini Electric Truck with unitary construction body, RWD drive, and left-hand steering. Powered by a 72V 4.0KW AC motor and 6 x 12V lead-acid batteries (180AH each), it has a curb weight of 800kg, rated load of 500kg, and a summer endurance of 90km. The 145/70R12 tyres on macphersan front and plate spring rear suspension support a 2025mm wheelbase, with a 35km/h top speed and 5m braking distance. It carries a 2600 x 1400mm cargo box and is CE-certified for use in European markets.

  • Condition New
  • Others Headinglight
  • Steering Left
  • Color required
  • Suspension Frontmacphersan/RearPl
Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 11519

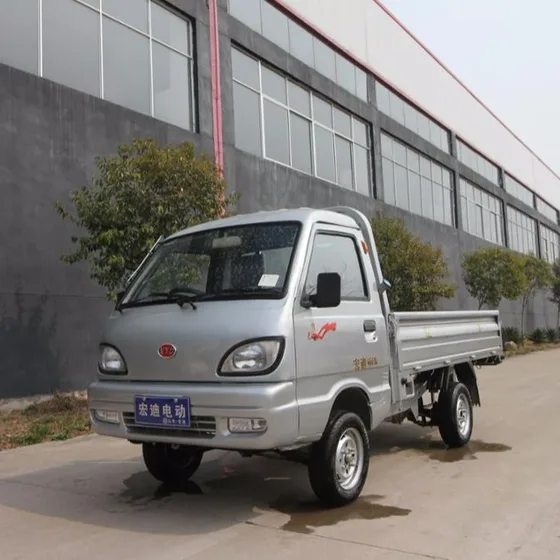

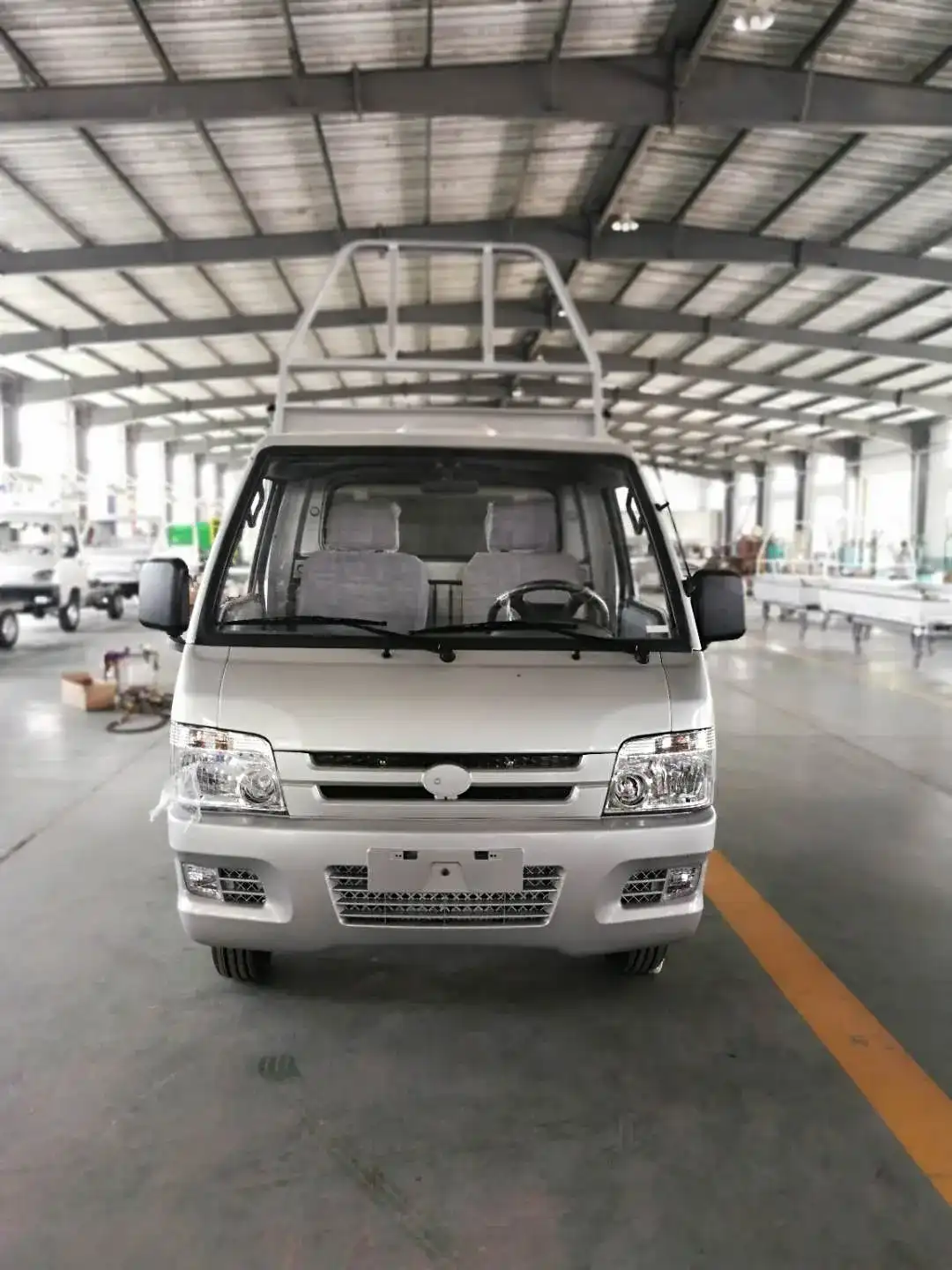

Front three-quarter view of a white Mini Electric Truck with headlight and 145/70R12 tyres
Front three-quarter view of a white Mini Electric Truck with headlight and 145/70R12 tyres
Key Benefits

What This Unit Does Well

  • CE certification allows direct import into EU and other regulated markets without retesting
  • 72V AC motor delivers consistent torque for urban and light off-road delivery routes
  • Lead-acid battery pack is low-cost to replace and widely available in Asia and Africa
  • 2025mm wheelbase improves stability on narrow city streets and uneven ground
  • 145/70R12 tyres are standard in many developing markets, reducing spare tyre sourcing risk
  • 2-seat cab with headlight and drum brakes meets basic safety and visibility requirements
Application Scenarios

Where It Is Used

  • Last-mile delivery in urban zones with narrow streets and low speed limits
  • Warehouse internal transport where electric operation avoids emissions and noise
  • Maintenance and inspection rounds on construction sites with unpaved access roads
  • Utility transport in small towns where fuel costs and emissions are restricted
  • Short-haul logistics between a depot and a distribution hub within 90km range
Fit

Who It Is For

  • Fleet operators replacing petrol-powered microvans in EU or Middle East markets
  • Contractors needing a low-cost, low-emission vehicle for site inspections and tool transport
  • Machinery dealers stocking CE-certified electric utility vehicles for resale in regulated markets
  • Government procurement teams sourcing compliant electric vehicles for municipal services
Buyer Pain

Problems It Solves

  • CE certification eliminates the need for costly re-certification when importing into EU countries
  • Lead-acid batteries avoid the high cost and supply risk of lithium-ion packs in emerging markets
  • Standard tyre size and suspension type reduce spare parts inventory complexity
  • 2025mm wheelbase prevents overhang issues on tight urban routes and loading docks
  • RWD layout provides better traction on wet or loose surfaces compared to FWD microvans
  • Fixed 90km range allows accurate route planning without over-provisioning battery capacity
Engineering

Technical Features

  • Unitary construction body with integrated chassis and cargo box
  • 72V 4.0KW AC electric motor with permanent magnet rotor
  • 6 x 12V lead-acid batteries (180AH each), total 37.5kg, 72V nominal voltage
  • Drum brakes on all four wheels with mechanical linkage
  • MacPhersan front suspension and plate spring rear suspension
  • 145/70R12 tyres on steel rims with 140mm minimum ground clearance
  • 2025mm wheelbase with 5m braking distance at 35km/h
  • 2600 x 1400mm cargo box with 2-seat cab and headlight
Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

ConditionNew
OthersHeadinglight
SteeringLeft
Colorrequired
SuspensionFrontmacphersan/RearPlatespring
Tyre145/70R12
Month1
TypeElectrictruckantomobiles
Year2018
FuelELECTRIC
ModelMiniElectrictruck
DriveRWD
Chassis TypeUnitary construction body
Overall Dimension L x W x H4000 x 1400 x 1750 mm
Cargo Box Dimension L x W2600 x 1400 mm
Wheelbase2025 mm
Front Tread1230 mm
Rear Tread1130 mm
Min Ground Clearance140 mm
Front SuspensionMacPhersan type
Rear SuspensionPlate spring
MotorAC 72V 4.0KW
BatteryLead acid 6 x 12V/180AH
Curb Weight800 kg
Rate Load Weight500 kg
Max Speed35 km/h
Materials

Materials and Build

  • Galvanised steel body and frame with unitary construction
  • Lead-acid battery cells in sealed, vented casing with plastic housing
  • AC motor with cast iron housing and copper windings
  • Drum brakes with steel backing plates and rubber-lined shoes
  • MacPhersan front suspension with coil springs and dampers
  • Plate spring rear suspension with steel leaf springs and bushings
  • 145/70R12 radial tyres on steel rims with tread depth 8mm
Process

How an Order Is Handled

  • You confirm the required colour, delivery terms, and destination port
  • We check stock availability and provide a specification sheet with photos
  • You approve the final configuration, including colour and battery status
  • We prepare the unit, test all systems, and record video of the start-up and brake test
  • We book shipment via container or RoRo based on your port and volume needs
  • We issue the commercial invoice, packing list, certificate of origin, and CE documentation
Quality Control

Checks Before Loading

  • All units undergo 100% electrical and mechanical testing before shipment
  • Battery voltage and capacity are verified at 72V nominal and 180AH per cell
  • Brake function and stopping distance are tested at 35km/h on level ground
  • Suspension and wheel alignment are checked for play and wear before loading
  • CE documentation is cross-checked against the EU low-speed vehicle directive
  • Loading and lashing photos are sent before departure, with video of final inspection
Customisation

What Can Be Changed

  • Custom cab colour other than standard white or grey
  • Optional front or rear bumper upgrade for site use
  • Additional headlight or fog light for low-visibility routes
  • Tyre type change to off-road or high-wear compound if required
Honest Comparison

How It Compares With the Alternatives

Lithium-ion electric microvanLead-acid is cheaper to replace and more stable in hot climates, but has lower energy density and shorter cycle life
FWD electric utility vehicleRWD provides better traction on wet or loose surfaces, but may have slightly higher rolling resistance
30km/h max speed model35km/h allows faster delivery in urban zones, but requires more careful route planning for battery life
Use Guide

Using It Well

  • Charge the battery fully before first use and avoid deep discharge below 20%
  • Check battery water levels monthly if using flooded lead-acid cells
  • Inspect brake shoes and drum clearance every 1000km or quarterly
  • Keep the front suspension bushings lubricated to prevent noise and wear
  • Use only the 26A charger provided to avoid overcharging and battery damage
  • Avoid steep gradients above 20% to prevent motor overload and battery drain
Photographs

More Views of This Unit

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.

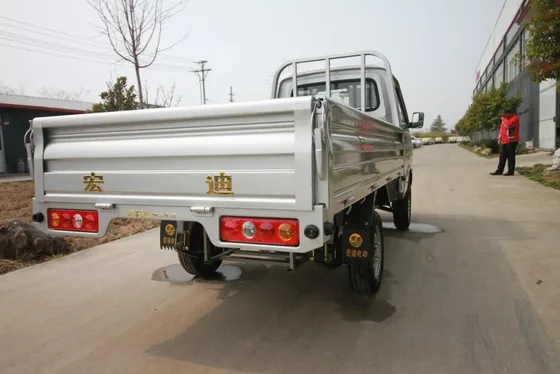

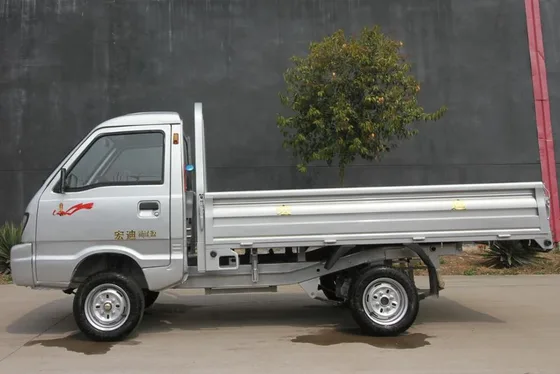

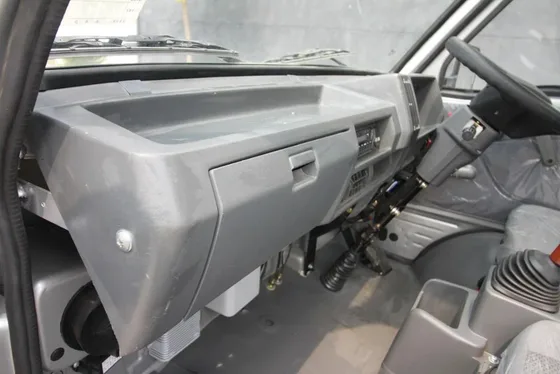

Side view showing the 2025mm wheelbase and 140mm ground clearanceRear view with cargo box, plate spring suspension, and rear lightsCab interior with two seats, steering wheel, and dashboard controlsUnder-chassis view showing the 72V AC motor and lead-acid battery packFront suspension detail with macphersan coil spring and damperCargo box interior with 2600 x 1400mm dimensions and flat floor
Source Specification

Manufacturer Text We Hold for This Listing

Electric van cargo CE certificate mini electric utility truck Product Description Chassis type Unitary construction body Container dimension 2600*1400mm Endurance mileage(summer) ≥90KM Climbing capicity <20% Radius of turn circle <5m seats 2 Wheel base 2025mm Brake distant 5m Front tread 1230mm Tyre 145/70R12 Front suspension type MacPhersan type Rear tread 1130mm Min ground clearance 140mm Rear suspension type Plate spring Motor AC72V4.0KW Curb weight 800kg Battery Lead acid battery6*12V/180AH(37.5KG) Rate load weight 500kg Max speed 35KM/H Brake type Drum brake Overall dimension 4000*1400*1750mm Charge time 8-10H NOTE:Semi - floating microcar rear axle, standard with 1800 yuan spreader, 26A charger Other Products Our Company We are founded in 1991, is a comprehensive enterprise devoting himself to the new energy electric quadricycle and electric tricycle's technology research and devel

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.

Related Listings

Other Electric Trucks Buyers Compare With This

All 7 Electric Trucks Full product index

Buyer Questions

Questions About This Unit

Is this unit new or used

New. It is a 2018 model with no prior operational use, stored in a dry warehouse since production.

What is the lead time

30 to 60 days after advance payment. The exact date depends on stock availability and shipping schedule.

Can you supply spare parts for this truck later

Yes. We supply lead-acid batteries, brake shoes, suspension parts, and motors as spares. They can be shipped separately or with the truck.

Do you ship by container or RoRo

We ship by container. The unit fits in a 20ft container with the cab lowered. RoRo is not available for this model.

What documents do I get for customs

Commercial invoice, packing list, bill of lading, certificate of origin, and CE certificate are included. Additional inspection certificates can be arranged.

Price This Unit Against Your Port

Send the destination and quantity. A written specification, landed cost and shipping option comes back.

Get a Quotation on WhatsApp Write to Mr. Danny Xi
