Electric Trucks
Four Wheels Electric Pickup Truck Cargo Vehicle
- MotorAC72v3.0kw
- Size3100*1300*1570mm
- Seats2
Electric Trucks

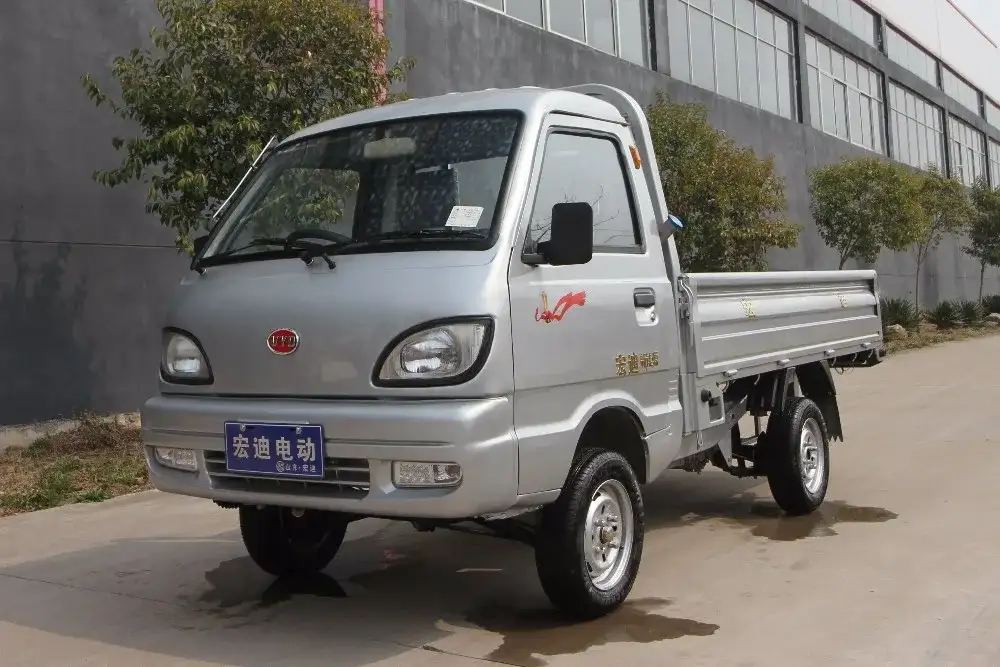

4 Kw Electric Mini Truck/ Pickup with Ce
A 4 kW electric mini truck with unitary construction body, RWD drive, and AC72V4.0KW motor, designed for short-range urban and site logistics. It has a 2025mm wheelbase, 145/70R12 tyres, and a 140mm ground clearance, with a 90km endurance in summer and a 35km/h top speed. The 800kg curb weight supports a 500kg rated load, and it is built for use in controlled environments with standard 26A charging. It is CE-certified and available in 2018 model year with left-hand steering.
- Condition New
- Others Headinglight
- Steering Left
- Color required
- Suspension Frontmacphersan/RearPl
Stock number held for this listing: 11511
Key Benefits
What This Unit Does Well
- 4 kW AC motor provides stable performance for low-speed site transport and urban delivery
- 90km range in summer meets daily loop requirements for warehouse and yard operations
- 145/70R12 tyres and 140mm ground clearance allow passage on uneven paved and compacted gravel surfaces
- RWD layout improves traction on light inclines and wet surfaces common in construction sites
- Unitary chassis construction reduces assembly points and simplifies maintenance
- 140mm ground clearance avoids undercarriage damage on low-grade site roads and curbs
Application Scenarios
Where It Is Used
- Internal transport within a factory yard or warehouse complex with limited access roads
- Delivery of tools and materials between site offices and work zones on construction projects
- Short-haul logistics within a mining or quarry site where emissions must be avoided
- Urban last-mile delivery in restricted zones with low speed limits and no diesel access
Fit
Who It Is For
- Fleet managers replacing old electric carts with a more robust and certified vehicle
- Site supervisors needing a low-maintenance, low-emission transport option for site logistics
- Contractors operating in urban zones with zero-emission vehicle regulations
- Government or municipal departments managing internal logistics in public facilities
Buyer Pain
Problems It Solves
- Older electric carts with no certification or safety standards that fail local inspections
- Short range and low load capacity that require multiple daily recharges and trips
- Lack of reliable spare parts for non-standard electric vehicles from unknown brands
- Inconsistent braking and suspension performance on uneven site terrain
Engineering
Technical Features
- Unitary construction body with welded steel frame and integrated body shell
- AC72V4.0KW motor with 4 kW output and 35km/h maximum speed
- Lead acid battery 6*12V/180AH (37.5KG) with 8-10 hour charge time
- Drum brake system on both front and rear axles with 5m stopping distance
- Front MacPhersan suspension and rear plate spring suspension for basic road absorption
- Left-hand steering with 2025mm wheelbase and 5m turning circle radius
- 145/70R12 tyres on steel rims with 1230mm front and 1130mm rear tread
- 2-seat cab with factory-installed headlight and standard 26A charger
- CE certification as stated by supplier, with 2018 model year and January production month
Specification
Specification Table for This Listing
Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.
| Condition | New |
|---|---|
| Others | Headinglight |
| Steering | Left |
| Color | required |
| Suspension | Frontmacphersan/RearPlatespring |
| Tyre | 145/70R12 |
| Month | 1 |
| Type | Electrictruckantomobiles |
| Year | 2018 |
| Fuel | ELECTRIC |
| Drive | RWD |
| Model | 4 Kw Electric Mini Truck/Pickup |
| Place of Origin | Shandong, China (Mainland) |
| Fuel Type | ELECTRIC |
| Motor | AC72V4.0KW |
| Curb Weight | 800 kg |
| Rated Load Weight | 500 kg |
| Max Speed | 35 km/h |
| Endurance Mileage (Summer) | ≥90 km |
| Climbing Capacity | <20% |
| Turning Circle Radius | <5 m |
| Wheelbase | 2025 mm |
| Brake Distance | 5 m |
| Front Tread | 1230 mm |
| Rear Tread | 1130 mm |
| Min Ground Clearance | 140 mm |
Materials
Materials and Build
- Welded steel unitary frame and body shell
- Steel rims with 145/70R12 radial tyres
- Lead acid battery pack with 6 x 12V cells
- Cast iron drum brake drums and shoes
- MacPhersan front suspension with coil springs
- Plate spring rear suspension with leaf springs
- Steel cab shell with factory paint finish
Process
How an Order Is Handled
- You confirm the required colour, delivery location, and any special handling needs
- We check stock availability for the 2018 model with left-hand steering and CE certification
- You receive photos of the unit, battery status, and chassis number before deposit
- We prepare the truck, charge the battery, and conduct a 100% test before loading
- We book container shipment and issue export documents including commercial invoice and bill of lading
Quality Control
Checks Before Loading
- All units undergo 100% testing before delivery, including motor, brake, and battery function
- Battery voltage and charge level are recorded and verified before shipment
- Brake performance and steering response are tested on a flat surface before loading
- Chassis number and motor number are photographed and matched to the specification
- Loading and lashing photos are sent before the vessel departs
Customisation
What Can Be Changed
- Colour other than the default white (must be specified)
- Addition of extra lighting or reflective strips
- Replacement of standard 26A charger with a faster model if available
- Installation of a rear spreader (standard with 1800 yuan value)
- Adjustment of seat position or cab trim for operator comfort
Honest Comparison
How It Compares With the Alternatives
| 3 kW electric cart | 4 kW unit has better hill climbing and load response, but consumes more battery per km |
|---|---|
| Diesel-powered mini truck | Electric version has lower operating cost and no emissions, but limited range and longer recharge time |
| Higher capacity 1000kg electric truck | This model has lower load and speed, but is simpler to maintain and cheaper to import |
Use Guide
Using It Well
- Charge the battery fully before first use to stabilise the lead acid cells
- Avoid deep discharges below 20% state of charge to extend battery life
- Check brake pad wear and drum clearance every 1000km or quarterly
- Inspect suspension components and wheel nuts after every 500km on rough terrain
- Use only the provided 26A charger to prevent overcharging and battery damage
Photographs
More Views of This Unit
Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.
Source Specification
Manufacturer Text We Hold for This Listing
4 Kw Electric Mini Truck/ Pickup With Ce Product Description Chassis type Unitary construction body Container dimension 2600*1400mm Endurance mileage(summer) ≥90KM Climbing capicity <20% Radius of turn circle <5m seats 2 Wheel base 2025mm Brake distant 5m Front tread 1230mm Tyre 145/70R12 Front suspension type MacPhersan type Rear tread 1130mm Min ground clearance 140mm Rear suspension type Plate spring Motor AC72V4.0KW Curb weight 800kg Battery Lead acid battery6*12V/180AH(37.5KG) Rate load weight 500kg Max speed 35KM/H Brake type Drum brake Overall dimension 4000*1400*1750mm Charge time 8-10H NOTE:Semi - floating microcar rear axle, standard with 1800 yuan spreader, 26A charger Our Company Other Products FAQ Q1. What is your terms of packing? A:Generally, we provide standard,strong,protective package for our products to prevent it from outer damage. Q2.The elderly can use these electri
Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.
Related Listings
Other Electric Trucks Buyers Compare With This
Electric Trucks
China 2022 Electric Vehicle Pickup Truck Cheap Price for Sale
- ConditionNew
- Size3100*1280*1550mm
- ModelFUZHI-C
Electric Trucks
Electric Van Cargo CE Certificate Mini Electric Utility Truck
- ConditionNew
- OthersHeadinglight
- SteeringLeft
Electric Trucks
Chinese 2 Seats Electric Mini Pickup Truck for Sale
- Size4000*1600*1800mm
- Seats2
- CertificationCCC
Electric Trucks
2023 New Type Chinese Cheap Electric Four Wheel Four Seats Pickup Truck
- Motor60v,1.2kw
- Size2950x1300x1660mm
- Battery60v,60Ah
Electric Trucks
Mini 2 Seats Electric Pickup Truck for Sale
- ConditionNew
- SteeringLeft
- MotorBrushlessMotor
Buyer Questions
Questions About This Unit
Is this unit new or used
It is new, with a 2018 model year and January production month. It has not been operated commercially.
What is the lead time
Units in stock can be prepared within 10 days. If not in stock, delivery depends on the plant schedule, with a typical range of 30 to 60 days after advance payment.
Can you supply spare parts for this truck later
Yes. We supply lead acid batteries, brake shoes, suspension parts, and chargers. They can be ordered separately or consolidated with the truck.
Do you ship by container or RoRo
This unit ships in a container. It is not suitable for RoRo due to its low ground clearance and compact size.
What documents do I get for customs
Commercial invoice, packing list, bill of lading, certificate of origin, and CE certificate as standard.
Price This Unit Against Your Port
Send the destination and quantity. A written specification, landed cost and shipping option comes back.
