Electric Trucks

Four Wheels Electric Pickup Truck Cargo Vehicle

A 4-wheel electric pickup cargo vehicle with a 72V AC motor rated at 3.0kW, powered by a 6*12V/120AH lead-acid battery pack. The unit has a curb weight of 660kg, a 200kg rated load, and a summer endurance of at least 100km. It features a unitary construction chassis, disc brakes on the front and drum brakes on the rear, a 1970mm wheelbase, and a 135/70R12 tyre size. Designed for short-range urban and site logistics, it is certified under CCC for use in China and export markets with similar regulatory frameworks.

Motor AC72v3.0kw
Size 3100*1300*1570mm
Seats 2
Certification CCC
Tyre 135/70R12

Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 11516

White four-wheel electric pickup truck parked on a concrete yard, front three-quarter view

Key Benefits

What This Unit Does Well

72V AC motor delivers consistent torque for loading and unloading on uneven site surfaces
Lead-acid battery pack is widely available for replacement and maintenance in developing markets
135/70R12 tyres are standard in many regional markets, reducing spare tyre sourcing risk
1970mm wheelbase allows tight turning in confined yards and narrow access roads
200kg rated load supports small freight, tools, and equipment transport without exceeding local weight limits
CCC certification enables registration in markets that require Chinese vehicle compliance

Application Scenarios

Where It Is Used

Cargo delivery within a construction site where paved roads are limited and speed is not a priority
Last-mile delivery in urban markets with low speed limits and no need for high range
Warehouse internal transport of spare parts and tools between storage and maintenance bays
Site logistics for small-scale mining or quarry operations with short haul distances

Fit

Who It Is For

Fleet managers needing low-cost, low-maintenance vehicles for internal site transport
Contractors operating in remote areas with no access to fuel stations or high-speed roads
Small business owners in Southeast Asia and Africa using electric vehicles for local delivery
Government or municipal teams deploying electric vehicles for urban service duties

Buyer Pain

Problems It Solves

High fuel and maintenance cost of small diesel trucks in low-mileage, short-haul operations
Lack of spare parts availability for imported electric vehicles in remote regions
Uncertainty over vehicle registration in markets without formal electric vehicle standards
Difficulty in finding compact vehicles that fit through narrow gateways and warehouse entrances
Inability to operate in low-speed zones due to high-speed vehicle design or noise

Engineering

Technical Features

Unitary construction chassis with integrated body for structural rigidity
AC 72V 3.0kW motor with direct drive to rear wheels
Lead-acid battery pack: 6 x 12V / 120AH, connected in series for 72V output
Front disc brake and rear drum brake system with 5.0m stopping distance
Girder arm torsion beam front suspension with anti-roll bar for stability
Plate spring rear suspension for load support and shock absorption
135/70R12 tyres on steel rims with 140mm minimum ground clearance
Max speed limited to 40km/h for compliance with low-speed vehicle regulations
Climbing capacity under 20% for moderate inclines on unpaved or gravel surfaces
1970mm wheelbase with turning radius under 5.0m for tight manoeuvring

Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

Specification of Four Wheels Electric Pickup Truck Cargo Vehicle
Motor	AC72v3.0kw
Size	310013001570mm
Seats	2
Certification	CCC
Tyre	135/70R12
Voltage	72V
Battery	Leadacidbattery6*12V/120AH
Power	>800W
Model	Four Wheels Electric Pickup Truck Cargo Vehicle
Curb Weight	660 kg
Rated Load	200 kg
Max Speed	≤40 KM/H
Endurance Mileage (Summer)	≥100 KM
Wheelbase	1970 mm
Overall Dimension L x W x H	3100 x 1300 x 1570 mm
Tyre Size	135/70R12
Front Suspension	Girder arm torsion beam type with anti-roll bar
Rear Suspension	Plate spring
Brake Type	Front disc / Rear drum
Braking Distance	5.0 m
Min Ground Clearance	140 mm
Turning Radius	<5.0 m
Climbing Capacity	<20%
Place of Origin	Shandong, China (Mainland)
Use for	Cargo
Driving Type	ELECTRIC

Materials

Materials and Build

Welded steel unitary chassis with reinforced frame rails
Galvanised steel body panels with powder-coated finish
Steel rims with 135/70R12 radial tyres
Lead-acid battery cells in sealed, vented casing
AC motor housing in die-cast aluminium
Disc brake calipers and drum brake assemblies with steel components

Process

How an Order Is Handled

You confirm the intended use, load type, and operating environment
We provide a specification sheet with exact battery, motor, and tyre details
You approve the final configuration and pay the deposit to secure the unit
The vehicle is tested under load and inspected for electrical and mechanical integrity
We prepare the unit for shipping, including packaging and documentation
We book container shipment and provide tracking and export documents

Quality Control

Checks Before Loading

All vehicles undergo 100% functional testing before shipment, including motor, brake, and battery performance
Battery voltage and capacity are measured under load to verify 72V output and 120AH rating
Brake engagement and stopping distance are verified on a test track
Electrical wiring and connectors are checked for insulation and secure fit
Chassis and body are inspected for paint, welds, and structural damage before packing

Customisation

What Can Be Changed

Battery type: lead-acid only, no lithium option available
Cab colour: standard white, no other colours available
Tyre brand: 135/70R12 standard, no alternative sizes or brands
Battery cover: standard plastic, no custom casing
Fifth wheel or towing hitch: not available, not designed for trailer use

Honest Comparison

How It Compares With the Alternatives

Gasoline-powered small pickup	Electric unit has lower operating cost and no fuel storage risk, but limited range and longer recharge time
Larger electric delivery van	Smaller size fits tighter spaces and lower weight avoids road tolls, but lower load and no air conditioning
Lithium battery electric vehicle	Lead-acid battery is cheaper and easier to replace in remote areas, but heavier and shorter lifespan

Use Guide

Using It Well

Charge the battery fully before first use and avoid deep discharges to extend life
Check battery water levels monthly if the cells are non-sealed (not applicable for sealed lead-acid)
Use only the supplied charger to prevent overcharging and battery damage
Inspect brake pads and tyres weekly for wear, especially on gravel or rough terrain
Avoid prolonged exposure to direct sunlight to reduce battery degradation
Store the vehicle in a dry, covered area when not in use for more than 7 days

Photographs

More Views of This Unit

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.

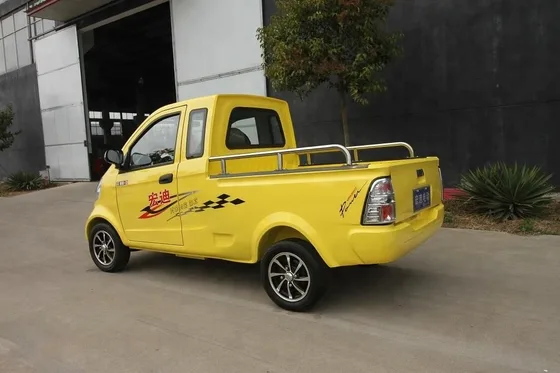

Rear view of the cargo bed with closed body and rear lights

Interior view of the cabin with two seats and control panel

Source Specification

Manufacturer Text We Hold for This Listing

Four Wheels Electric Pickup Truck Cargo Vehicle Product Description Chassis type unitary construction body Climbing capacity <20% seats 2 Radius of turn circle <5.0m Wheel base 1970mm Tyre 135/70R12 Overall dimension 3100*1300*1570mm Endurance mileage (summer) ≥100KM Front suspension type girder arm torsion beam type,anti-roll bar Brake distant 5.0m Min ground clearance 140mm F/R tread 1130/1155mm Motor AC72v3.0kw Rear suspension type Plate spring Battery Lead acid battery 6*12V/120AH Curb weight 660kg Max speed ≤40KM/H Rate load weight 200kg Brake type Front disc/Rear drum Charge time 8-10H Container dimension 1250*1300mm Detailed Images Packaging & Shipping Company Information Our company is founded in 1991, is a comprehensive enterprise devoting himself to the new energy electric quadricycle and electric tricycle's technology research and development, manufacturing, and marketing serv

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.
