Dump Trailers

China Made Low Price 3 Axles 50 Tons Dump Semi Trailer

A 3-axle dump semi trailer with a 40-60 ton payload capacity, built on a steel Q345B frame and fitted with three 13-ton Fuwa-brand axles. The trailer measures 8500 x 2500 x 1800 mm and uses leaf spring suspension with 1200R20 or 12R22.5 tyres. It features an ABS brake system and is certified under ISO CCC. This configuration is used for bulk material transport in mining, construction and quarry operations where high payload and rugged design are required.

Use TruckTrailer
Size 8500*2500*1800mm
Color Option
Suspension LeafSpringSuspension
Dimensions 8500*2500*1800mm

Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 10382

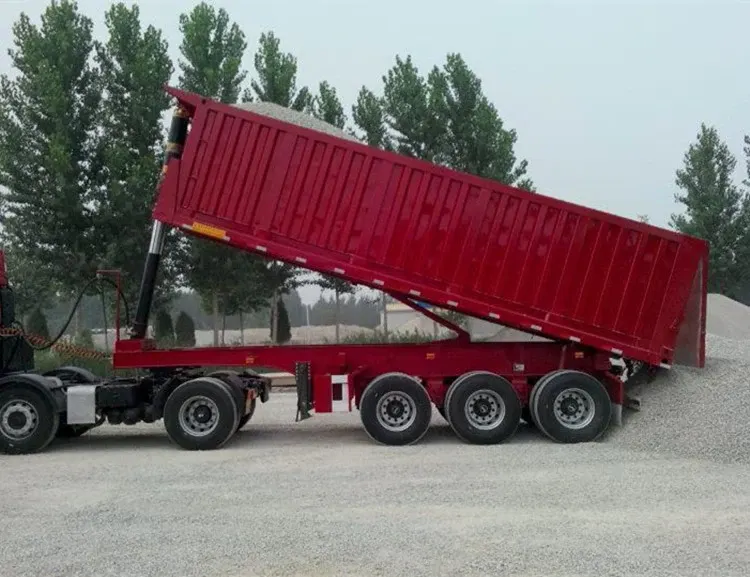

Side view of a 3-axle dump semi trailer with leaf spring suspension and 1200R20 tyres

Key Benefits

What This Unit Does Well

Three 13-ton Fuwa axles support a 40-60 ton payload, suitable for heavy aggregate, coal and ore hauling
Leaf spring suspension provides durability on rough terrain and reduces maintenance in dusty or off-road conditions
ABS brake system improves stopping performance under full load, reducing risk on downhill runs
ISO CCC certification ensures compliance with export standards in markets requiring third-party verification
1200R20 or 12R22.5 tyre options allow local fitment in regions where these sizes are stocked
8500mm length fits standard container loading and road access dimensions in African and Middle Eastern ports

Application Scenarios

Where It Is Used

Coal transport from a mine to a rail loading point on unpaved access roads
Aggregate haulage between a quarry and a construction site with uneven ground
Bulk material transfer in mining operations where trailer durability and payload are critical
Long-haul transport of sand or gravel where consistent brake performance under load is required

Fit

Who It Is For

Contractors sourcing dump trailers for mining or quarry projects with tight budget constraints
Fleet operators replacing older trailers and needing a low-cost, high-capacity unit
Machinery dealers stocking semi trailers for resale in markets with limited access to OEM parts
Government procurement teams requiring certified, bulk-ordered trailers for infrastructure projects

Buyer Pain

Problems It Solves

High cost of imported dump trailers with limited local parts availability
Downtime caused by brake failure or axle failure on rough terrain due to weak suspension
Lack of certification for export in countries requiring ISO CCC or similar standards
Inconsistent payload ratings from unverified suppliers leading to overloading risks
Uncertainty over tyre and axle fitment when importing from multiple Chinese manufacturers

Engineering

Technical Features

Steel Q345B frame with welded construction for high load-bearing strength
Three 13-ton Fuwa-brand axles in a 3-axle layout with 1200R20 or 12R22.5 tyres
Leaf spring suspension system for durability in off-road and heavy-duty conditions
ABS anti-lock braking system for improved control under full load
8500 x 2500 x 1800 mm external dimensions with a 40-60 ton maximum payload capacity
Dump function with hydraulic lift system for controlled material discharge

Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

Specification of China Made Low Price 3 Axles 50 Tons Dump Semi Trailer
Use	TruckTrailer
Size	850025001800mm
Color	Option
Suspension	LeafSpringSuspension
Dimensions	850025001800mm
Material	Steel
Certification	ISOCCC
Axle	13TonFuwaBrand
Tyre	1200R20or12R22.5
Function	DumpSemiTrailer
Type	Semi-Trailer
Trailer Type	Semi-Trailer
Dimensions L x W x H	8500 x 2500 x 1800 mm
Axle Number	3
Axle Type	13 Ton Fuwa Brand
Tyre Size	1200R20 or 12R22.5
Brake System	ABS
Max Loading Capacity	40-60 Tons
Place of Origin	Shandong, China
Payload Range	40-60 Tons
OEM Number	2018101803
Max Payload	40-60
Tons Place of Origin	Shandong, China (Mainland)
Product Name	China Made Low Price 3 Axles 50 Tons
Dump Semi Trailer Axle	13
Ton Fuwa Brand Function	Dump

Materials

Materials and Build

Steel Q345B frame with welded joints for structural integrity
Cast steel 13-ton Fuwa-brand axles with precision-machined hubs
Leaf spring suspension with galvanised steel springs and rubber bushings
1200R20 or 12R22.5 radial tyres with steel rims
Hydraulic lift cylinder and pivot arms for dump function

Process

How an Order Is Handled

You provide the payload, terrain type and destination port for the trailer
We confirm availability of the 3-axle 50-ton model with your preferred tyre size and colour
You approve the final specification sheet and colour before deposit is paid
The trailer is built, tested for hydraulic function and inspected for weld integrity
We arrange bulk or container shipment with a shipping agent and issue export documents

Quality Control

Checks Before Loading

Axle, suspension and tyre components are sourced directly and inspected before assembly
Weld joints are checked with visual and non-destructive methods during production
Hydraulic lift system is tested under full load before delivery
ABS system is verified with brake pressure and sensor response checks
Photos and video of the final trailer are sent before loading for your approval

Customisation

What Can Be Changed

Choice of trailer colour (default white or custom RAL code)
Tyre size selection: 1200R20 or 12R22.5
Optional additional lighting or reflector packages
Custom paint or logo application on the side panels
Adjustment of dump angle or lift cylinder stroke if required

Honest Comparison

How It Compares With the Alternatives

Air suspension trailer	Leaf spring suspension is cheaper and more robust in dusty, off-road conditions but offers less ride comfort
Non-ABS trailer	ABS improves braking safety under full load but adds cost and complexity to maintenance

Use Guide

Using It Well

Inspect hydraulic hoses and connections before first use to prevent leaks during dumping
Check tyre pressure weekly and adjust for load and terrain, especially on 12R22.5 tyres
Test the ABS system monthly by applying brakes at low speed in a safe area
Use only the recommended hydraulic fluid grade to avoid pump and cylinder damage

Photographs

More Views of This Unit

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.

Front view of the trailer showing the hydraulic lift cylinder and dump gate

Rear view of the trailer with the dump gate open and material discharge path visible

Source Specification

Manufacturer Text We Hold for This Listing

China Made Low Price 3 Axles 50 Tons Dump Semi Trailer China Made Low Price 3 Axles 50 Tons Dump Semi Trailer Product Information Product Name China Made Low Price 3 Axles 50 Tons Dump Semi Trailer Type Semi-Trailer Material Steel Q345 B Certificate ISO CCC Size 8500*2550*1800mm Max Loading Capacity 40-60 Tons Brand Shengxing Function Dump Semi Trailer Axle 13 Ton Fuwa Brand Axle Number 3 Axles Brake System ABS Tyre 1200R20 or 12R22.5 Origin Shandong, China Suspension Leaf Spring Suspension Accessories Show More Choice Packing & Delivery About Us The factory covers an area of 14,500 square meters, including the plant area of 11,300 square meters, the warehouse area of 900 square meters, and the supporting construction area of 1,200 square meters. We have 160 units advanced large scale equipment, and more than 50 units testing machines. With strong technical force and advanced manufacturi

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.
