Dump Trailers

Cheap Good Quality Dump Tipper Semi Trailer for Sale

A 3-axle dump semi trailer with a 8500 x 2500 x 1800mm steel frame, built for 40-60 ton payload capacity using a 13-ton Fuwa-brand axle on leaf spring suspension. Equipped with ABS braking and 1200R20 or 12R22.5 tyres, it is designed for bulk material transport in mining, construction and quarry operations where local parts availability and low upfront cost are priorities.

Use TruckTrailer
Size 8500*2500*1800mm
Color Option
Suspension LeafSpringSuspension
Dimensions 8500*2500*1800mm

Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 10388

White 3-axle dump semi trailer parked on a yard, front three-quarter view

Key Benefits

What This Unit Does Well

13-ton Fuwa-brand axles are widely available in African and Middle Eastern markets, reducing long-term repair delays
Leaf spring suspension handles rough terrain and heavy loading without requiring frequent maintenance
ABS braking system improves control during dumping cycles and downhill runs
3-axle layout spreads weight across the chassis, helping meet regional GVW limits
Steel Q345 B construction provides durability for repeated dumping and off-road use
8500mm length allows for high payload per trip while fitting standard transport routes

Application Scenarios

Where It Is Used

Coal transport from open-pit mines to processing yards on unpaved access roads
Aggregate hauling between quarries and construction sites with limited paved infrastructure
Bulk material transfer in mining zones where trailer uptime is critical
Short-haul dump operations where low purchase price and fast delivery are essential

Fit

Who It Is For

Contractors sourcing low-cost dump trailers for temporary or regional projects
Fleet operators replacing worn trailers and standardising on a single axle brand
Machinery dealers stocking trailers for resale in markets with limited spare parts access
Government procurement teams needing bulk units with predictable lead times

Buyer Pain

Problems It Solves

High cost of imported trailers with proprietary parts that are hard to replace
Long lead times for custom-built trailers from European or North American suppliers
Inconsistent axle availability when replacing damaged or worn components
Trailer weight distribution issues that trigger overloading fines on regional roads

Engineering

Technical Features

Steel Q345 B frame with welded construction for high-stress applications
Three 13-ton Fuwa-brand axles in tandem layout with leaf spring suspension
ABS braking system on all axles for controlled dumping and downhill operation
1200R20 or 12R22.5 tyres suitable for mixed asphalt and gravel surfaces
8500 x 2500 x 1800mm external dimensions with 40-60 ton payload capacity
Dump semi trailer function with hydraulic lift system for controlled tipping

Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

Specification of Cheap Good Quality Dump Tipper Semi Trailer for Sale
Use	TruckTrailer
Size	850025001800mm
Color	Option
Suspension	LeafSpringSuspension
Dimensions	850025001800mm
Material	Steel
Certification	ISOCCC
Axle	13TonFuwaBrand
Tyre	1200R20or12R22.5
Function	DumpSemiTrailer
Type	Semi-Trailer
Trailer Type	Semi-Trailer
Dimensions L x W x H	8500 x 2500 x 1800 mm
Max Payload	40-60 Tons
Axle Number	3
Axle Type	13 Ton Fuwa Brand
Brake System	ABS
Tyre Size	1200R20 or 12R22.5
Origin	Shandong, China
Loading Capacity	40-60 Tons
OEM Number	2018101601
Mainland) Product Name	Cheap Good Quality Dump Tipper Semi
Trailer for Sale Axle	13
Ton Fuwa Brand Function	Dump
Semi Trailer Suspension	Leaf Spring
Suspension Axle Number	3

Materials

Materials and Build

Steel Q345 B frame with welded joints for high load resistance
13-ton Fuwa-brand axles with forged steel components
Leaf spring suspension with galvanised steel springs
1200R20 or 12R22.5 radial tyres with steel rims
Hydraulic lift cylinder and pivot arms for controlled dumping

Process

How an Order Is Handled

You confirm the payload, axle count and tyre size you need for your route
We match the available stock or production schedule based on your specification
You review the final specs including colour, axle brand and tyre before deposit
Unit is prepared, tested for hydraulic lift and brake function, then photographed
We book bulk shipment or container load and provide export documents for customs

Quality Control

Checks Before Loading

Axle, suspension and brake components are inspected before assembly
Weld joints are checked visually and with non-destructive testing methods
Hydraulic lift system is tested under full load before shipment
ABS system is verified with a functional test before loading
Photos of the trailer, axles and frame are sent before departure

Customisation

What Can Be Changed

Choice of cab colour or frame paint (white, grey, yellow, red)
Tyre brand and size: 1200R20 or 12R22.5
Optional extra axle or reinforcement for higher payload
Custom frame length or width within 8500 x 2500 x 1800mm limits
Additional tool box or side rail reinforcement

Honest Comparison

How It Compares With the Alternatives

2-axle dump trailer	The 3-axle layout supports higher payload and better weight distribution but increases shipping cost and curb weight
Air suspension trailer	Leaf spring suspension is cheaper and more durable in dusty or rocky environments, but offers less ride comfort

Use Guide

Using It Well

Inspect hydraulic cylinder and pivot arms before first use and check for leaks
Use only 1200R20 or 12R22.5 tyres to match the axle rating and avoid overloading
Keep ABS sensors clean and free from mud to prevent false fault codes
Do not exceed 60 tons payload to avoid chassis or axle damage

Photographs

More Views of This Unit

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.

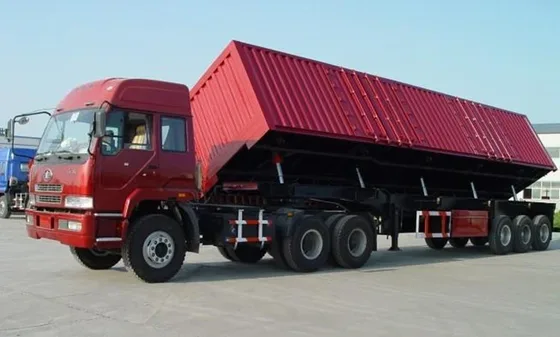

Side view showing the 8500mm length, leaf spring suspension and 1200R20 tyres

Rear view with hydraulic lift cylinder and dump gate mechanism

Frame detail with welded steel Q345 B construction and 13-ton Fuwa axles

Hydraulic system and pivot arms in the trailer bed area

Cab interior with control panel and safety harness mount

Source Specification

Manufacturer Text We Hold for This Listing

Cheap Good Quality Dump Tipper Semi Trailer For Sale Cheap Good Quality Dump Tipper Semi Trailer For Sale Product Information Product Name Cheap Good Quality Dump Tipper Semi Trailer For Sale Type Semi-Trailer Material Steel Q345 B Certificate ISO CCC Size 8500*2550*1800mm Max Loading Capacity 40-60 Tons Brand Sea Lion Function Dump Semi Trailer Axle 13 Ton Fuwa Brand Axle Number 3 Axles Brake System ABS Tyre 1200R20 or 12R22.5 Origin Shandong, China Suspension Leaf Spring Suspension Accessories Show More Choice Packing & Delivery About Us The factory covers an area of 14,500 square meters, including the plant area of 11,300 square meters, the warehouse area of 900 square meters, and the supporting construction area of 1,200 square meters. We have 160 units advanced large scale equipment, and more than 50 units testing machines. With strong technical force and advanced manufacturing tech

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.
