Dump Trailers

3 Axles Rear Dump Truck Trailer

A three-axle rear dump truck trailer with dimensions 9200x2400x3200mm and a volume up to 30 m3. Tare weight is approximately 10000KGS. Options include mechanical or air suspension, 12/13/16T axles from BPW, FUWA or HUAJING, and 12R22.5 or 315/80R22.5 tyres. It is designed for bulk material transport where payload capacity and durability are critical.

  • Category reardumptrailer
  • Use OtherTrailers
  • Size 9200*2400*3200mm
  • Suspension MechanicalorAirsuspens
  • Certification ISO9001,CCC,CQC3axlesr
Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 10512

Rear view of a three-axle dump trailer
Rear view of a three-axle dump trailer
Key Benefits

What This Unit Does Well

  • Up to 30 m3 volume provides efficient transport of bulk materials
  • FUWA/HUAJING axle options offer a balance of cost and reliability
  • Mechanical or air suspension adapts to road conditions and cargo weight
  • Diamond plate or Q235 steel bottom plate resists abrasion and impact
  • Hydraulic lifting system ensures reliable dumping operation
  • WABCO RE 6 relay valve and spring brake chamber provide consistent braking
Application Scenarios

Where It Is Used

  • Transporting aggregate from a quarry to a construction site
  • Hauling coal or ore over short to medium distances
  • Moving demolition debris from a demolition zone
  • Delivering grain or fertilizer to agricultural operations
  • Bulk material transport where loading and unloading speed is essential
Fit

Who It Is For

  • Construction companies needing to move large volumes of material
  • Mining operations transporting ore and overburden
  • Agricultural businesses requiring efficient fertilizer delivery
  • Demolition contractors removing debris from sites
  • Logistics companies specializing in bulk material transport
Buyer Pain

Problems It Solves

  • Inefficient material transport with smaller capacity trailers
  • High maintenance costs associated with low-quality trailers
  • Damage to trailers from abrasive materials
  • Unreliable dumping mechanisms causing delays
  • Difficulty navigating uneven terrain with rigid suspensions
  • Braking system failures compromising safety
Engineering

Technical Features

  • 9200x2400x3200mm dimensions (external)
  • 9000x2200x1500mm workspace dimensions
  • Q345B steel main beams with 500mm height
  • Full set of hydraulic lifting system with 125mm and 140mm cylinders
  • JOST 2.00 or 3.5 inch bolt-in king pin
  • WABCO RE 6 relay valve pneumatic braking system
Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

Categoryreardumptrailer
UseOtherTrailers
Size9200*2400*3200mm
SuspensionMechanicalorAirsuspension
CertificationISO9001,CCC,CQC3axlesreardumptrucktrailer
Axle12/13/16T,BPW/FUWA/HUAJINGbrand
Tyre12R22.5or315/80R22.5
Trailer TypeRear Dump
Dimensions (L x W x H)9200x2400x3200mm
Tare WeightAbout 10000KGS
Volume30 m3 or less
King PinJOST 2.00 or 3.5 inch
Braking SystemWABCO RE 6
Side Wall Thickness2.3mm Q235 steel
Bottom Plate Thickness3mm diamond plate / Q235 steel
Max Payload60T
Place of OriginShandong, China (Mainland)
Air Suspension Tyre12R22.5 or 315/80R22.5
Support LegJOST D200T
Side Wall600mm-1500mm
Brake ChamberWABCO RE 6 relay
Materials

Materials and Build

  • Q345B steel for main beams
  • Q235 steel for side walls and bottom plate
  • FUWA/HUAJING axles
  • JOST king pin and landing gear
  • WABCO RE 6 relay valve
  • 12R22.5 or 315/80R22.5 tyres
Process

How an Order Is Handled

  • You specify the required payload, route and material to be hauled
  • We confirm axle configuration, suspension type and tyre specification
  • You review and approve the final specification sheet before deposit
  • The trailer is prepared, inspected and photographed before loading
  • We arrange shipment by bulk carrier or container to your port
Quality Control

Checks Before Loading

  • Main beam weld quality is inspected by ultrasonic testing
  • Axle alignment and brake function are tested before dispatch
  • Paint finish is checked for corrosion resistance and appearance
  • Photographs of chassis numbers and key components are recorded
Customisation

What Can Be Changed

  • Side wall height to match specific cargo requirements
  • Hydraulic system modifications for faster dumping cycles
  • Tyre brand selection based on local availability
  • Addition of toolboxes or spare tyre carriers
  • Painting in a specific colour to match fleet branding
Honest Comparison

How It Compares With the Alternatives

Two-axle dump trailerA three-axle trailer carries significantly more payload, reducing trip counts but increasing initial cost
Air suspension trailerAir suspension provides a smoother ride and protects cargo, but is more expensive and requires more maintenance
Fixed bed trailerHydraulic lift offers faster and more efficient unloading compared to a fixed bed design
Use Guide

Using It Well

  • Grease wheel bearings and king pin regularly to prevent wear
  • Inspect tyre pressure before each trip and maintain recommended levels
  • Check hydraulic lines for leaks and damage
  • Lubricate all moving parts of the lifting system
  • Periodically inspect and tighten all fasteners
Photographs

More Views of This Unit

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.

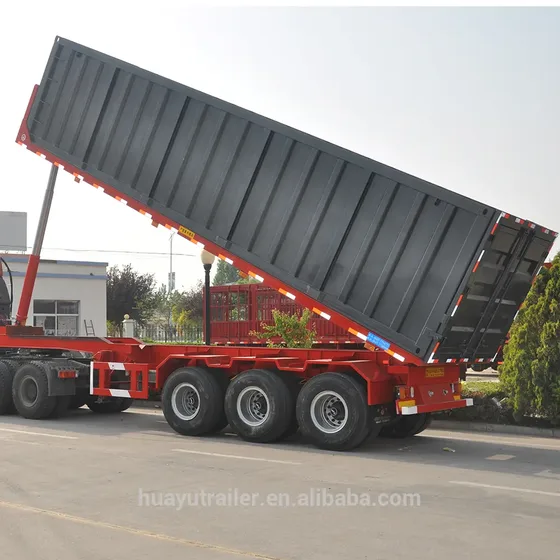

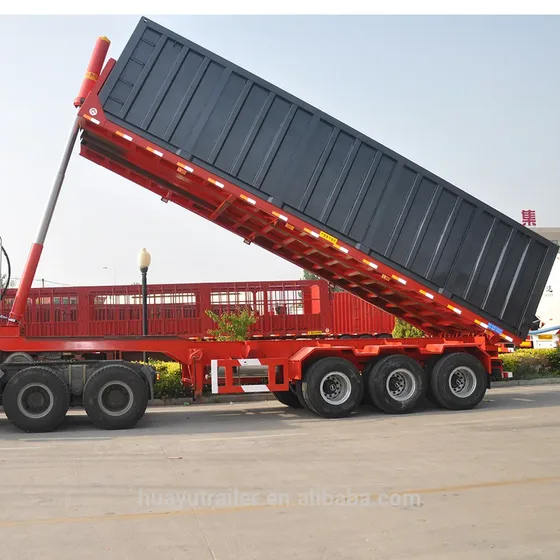

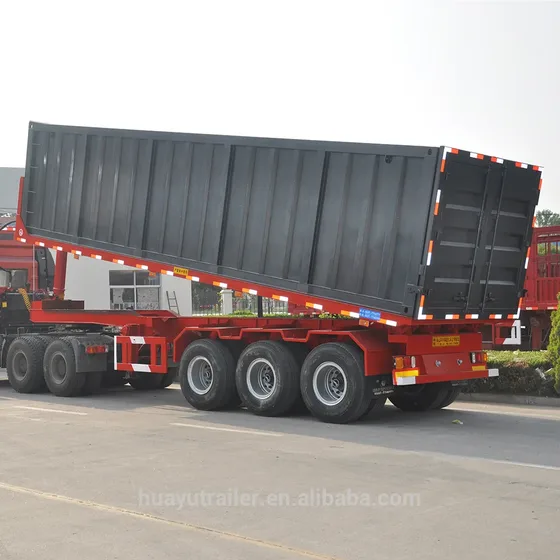

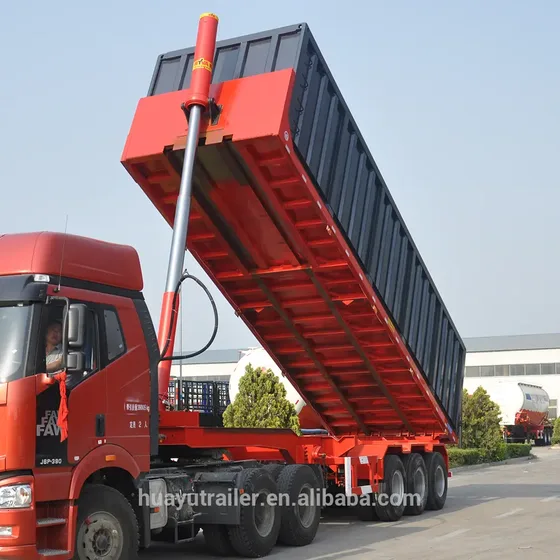

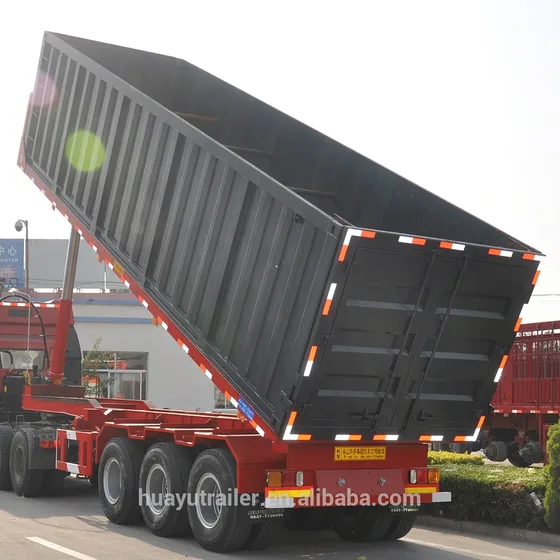

Side view of the dump trailer showing the hydraulic lifting systemClose-up of the trailer's tyre and wheel assemblyView of the trailer's chassis and suspensionFront view of the trailer with the king pin connectionInterior of the trailer's dump bed
Source Specification

Manufacturer Text We Hold for This Listing

China hot sale 3 axles rear dump truck trailer China hot sale 3 axles rear dump truck trailer, we can adjust the specifications as per your special requirements: Main Dimensions Dimension 9200*2400*3200mm ( outside) 9000*2200*1500mm (work space ) Tare weight About 10000KGS Total Volume ( m 3 ) 30 m 3 or less than 50tons Side wall thickness ( mm ) 2.3mm Q235 steel (three or five door opening door ) Bottom plate thickness(mm) 3mm diamond plate /Q235 steel Lifting system Full set of Hydraulic Lifting system (Four diameter125 lifting cylinder, and one diameter140 lifting cylinder.) Chassis Main Beams Height:500mm, upper plate is 16mm,middle is 8mm(double+three plate),down plate is 18mm,material is Q345B steel Axle 3 axles, FUWA/HUAJING brand 13tons or 16tons per axles Landing Gear JOST (D200T ) or CHINA BRAND 28T King Pin JOST 2.00 or 3.5 inch bolt-in king pin Suspension Mechanical suspensio

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.

Related Listings

Other Dump Trailers Buyers Compare With This

All 33 Dump Trailers Full product index

Buyer Questions

Questions About This Unit

What is the lead time for a new trailer

Lead time varies depending on stock levels and customization requirements. We will provide a firm delivery date with the proforma invoice.

What is the minimum order quantity

We can supply a single trailer, but pricing is more competitive for multiple units.

What kind of payment terms do you offer

We typically require a 30% deposit with the order and the balance before shipment. L/C is also acceptable.

Can I specify the axle brand

Yes, we offer axles from FUWA, HUAJING and BPW.

Do you provide spare parts

Yes, we stock a wide range of spare parts for our trailers.

What certifications do you have

We have ISO9001, CCC and CQC certifications.

How is the trailer shipped

We can ship by bulk carrier or container, depending on your location and preference.
