Dump Trailers

3 Axles 60 Ton Rear Tipper Semi Trailer Dump Semi Trailer

A 3-axle rear tipper semi trailer with a 60-ton payload capacity, built on a steel Q345B chassis measuring 8500 x 2500 x 1800 mm. It uses three 13-ton Fuwa-brand axles with leaf spring suspension, 1200R20 or 12R22.5 tyres, and features an ABS brake system. Designed for heavy-duty dumping in mining, quarry, and construction environments, it is supplied from Shandong, China, with ISO CCC certification and standard export packaging.

  • Use TruckTrailer
  • Size 8500*2500*1800mm
  • Color Option
  • Suspension LeafSpringSuspension
  • Dimensions 8500*2500*1800mm
Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 10397

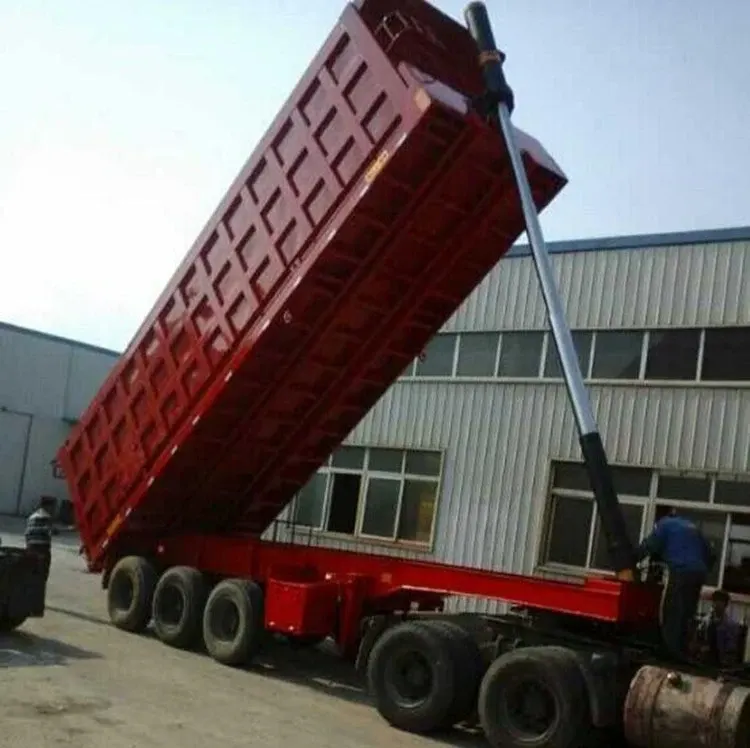

3-axle rear tipper semi trailer parked on a yard, front three-quarter view showing the tipping mechanism and 1200R20 tyres
3-axle rear tipper semi trailer parked on a yard, front three-quarter view showing the tipping mechanism and 1200R20 tyres
Key Benefits

What This Unit Does Well

  • 60-ton payload capacity supports high-volume material transport without exceeding axle limits
  • Three 13-ton Fuwa axles provide balanced load distribution across rough terrain and unpaved haul roads
  • Leaf spring suspension offers durability and low maintenance in dusty or rocky environments
  • ABS braking system improves control during dumping and downhill runs
  • 1200R20 or 12R22.5 tyre options allow local fitment in markets where these sizes are stocked
  • ISO CCC certification ensures compliance with import regulations in many emerging markets
Application Scenarios

Where It Is Used

  • Coal or ore transport from a mine to a rail loading point on unsealed access roads
  • Aggregate or gravel hauling between a quarry and a construction site with uneven ground
  • Bulk material movement in mining operations where frequent dumping is required
  • Long-distance hauls in regions with limited roadside service and spare parts availability
Fit

Who It Is For

  • Contractors managing large-scale earthmoving or material transport projects
  • Fleet operators sourcing heavy-duty dump trailers for mining or quarry use
  • Machinery dealers stocking semi trailers for resale in African, Middle Eastern or Southeast Asian markets
  • Government procurement teams sourcing durable trailers for infrastructure or public works
Buyer Pain

Problems It Solves

  • Inconsistent axle load ratings that cause overloading fines or road access issues
  • Trailer frames that fail under repeated heavy dumping cycles due to weak steel or poor welding
  • Lack of local spare parts for trailer axles, brakes or suspension in remote regions
  • Uncertainty over certification status when importing into markets requiring CCC or ISO compliance
  • High downtime from trailers that cannot handle repeated dumping on rough terrain
Engineering

Technical Features

  • Steel Q345B chassis with welded construction for high tensile strength
  • Three 13-ton Fuwa-brand axles in tandem configuration for even weight distribution
  • Leaf spring suspension system with shock absorption for rough terrain
  • ABS anti-lock braking system on all axles for controlled stopping under load
  • Rear tipper mechanism with hydraulic lift system for efficient unloading
  • Dimensions: 8500 mm long, 2500 mm wide, 1800 mm high (unloaded)
  • Tipping angle designed for full discharge of bulk materials without residue
  • Standard 1200R20 or 12R22.5 tyres with steel rims for durability
Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

UseTruckTrailer
Size8500*2500*1800mm
ColorOption
SuspensionLeafSpringSuspension
Dimensions8500*2500*1800mm
MaterialSteel
CertificationISOCCC
Axle13TonFuwaBrand
Tyre1200R20or12R22.5
FunctionDumpSemiTrailer
TypeSemi-Trailer
Trailer Model3 Axles 60 Ton Rear Tipper Semi Trailer
Dimensions L x W x H unloaded8500 x 2500 x 1800 mm
Axle Number3
Axle Capacity13 Ton each
Axle BrandFuwa
Tyre Size1200R20 or 12R22.5
Brake SystemABS
Max Loading Capacity60 Tons
Place of OriginShandong, China (Mainland)
Brand NameShengxing
Payload Range60-80 Tons
Trailer TypeSemi-Trailer
Max Payload60
Tons Place of OriginShandong, China (Mainland)
Product Name3 Axles 60 Ton Rear Tipper Semi Trailer
Materials

Materials and Build

  • Steel Q345B for the main chassis and tipping body
  • Cast steel axle housings for the Fuwa-brand axles
  • Leaf spring assemblies with galvanised steel components
  • 1200R20 or 12R22.5 radial tyres on steel rims
  • Welded steel frame with spot and continuous welds for structural integrity
Process

How an Order Is Handled

  • You provide the intended use, terrain type, and payload profile
  • We confirm the available stock or production schedule based on your delivery window
  • You approve the final specification including tyre size, colour, and optional fittings
  • Unit is built, tested for tipping function and brake operation, then photographed
  • We arrange bulk or container shipment with a shipping agent and provide export documentation
Quality Control

Checks Before Loading

  • All raw materials and OEM parts (axles, suspension, tyres) are centrally purchased and inspected
  • Welding quality is verified using advanced equipment, not manual inspection only
  • Final trailer is tested for tipping cycle, brake response, and structural stability
  • Photos and video of the assembled trailer are sent before loading
Customisation

What Can Be Changed

  • Custom paint colour or logo application
  • Choice of tyre size: 1200R20 or 12R22.5
  • Optional additional tool box or side step
  • Adjustment of tipping angle or hydraulic system pressure for specific material types
  • Custom marking or numbering for fleet tracking
Honest Comparison

How It Compares With the Alternatives

Hydraulic lift trailer with air suspensionLeaf spring suspension is simpler, cheaper to maintain, and more reliable in dusty or high-temperature environments, but offers less ride comfort on long hauls
Trailer with no ABSABS improves braking safety during dumping and downhill runs, but adds cost and complexity; the absence of ABS may be acceptable in low-speed, controlled environments
Use Guide

Using It Well

  • Inspect all bolts, welds, and hydraulic fittings before first use after transport
  • Test the tipping mechanism at low load to confirm smooth operation and correct angle
  • Check tyre pressure weekly and adjust for load and terrain conditions
  • Keep the ABS system checked annually by a qualified technician, especially after off-road use
Photographs

More Views of This Unit

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.

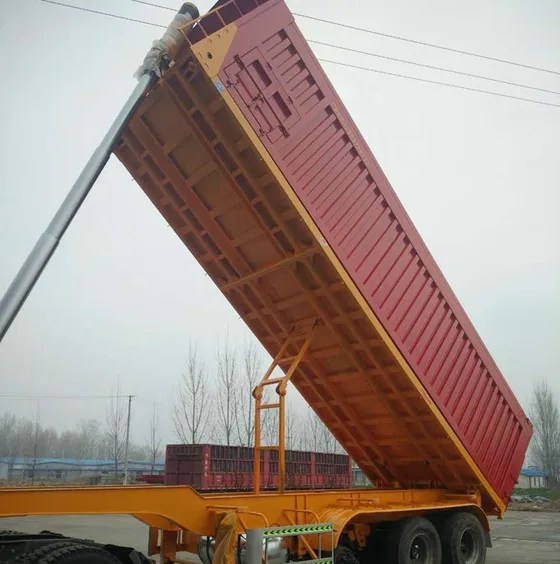

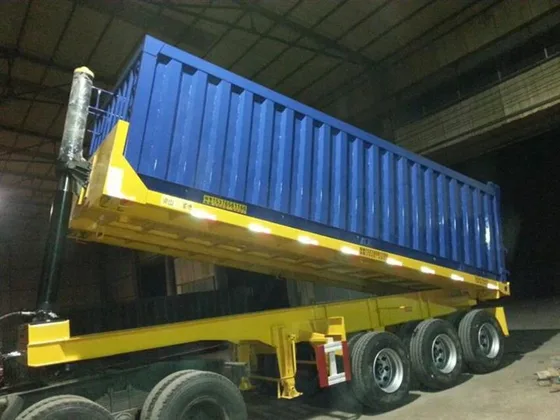

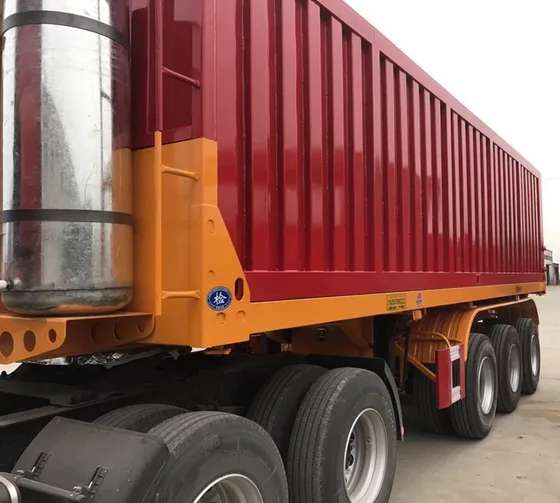

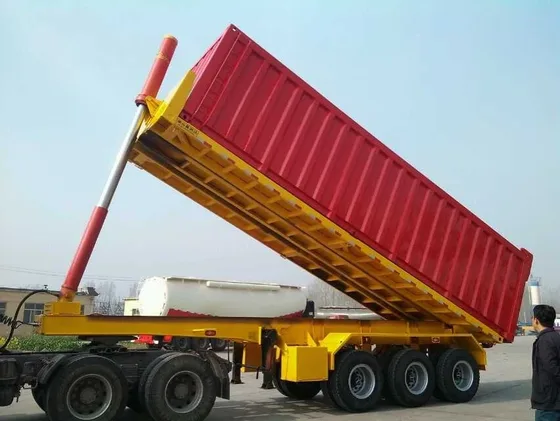

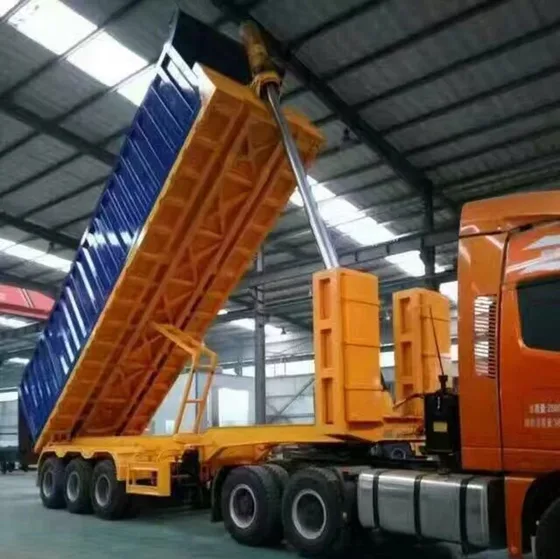

Side view of the trailer showing the 8500mm length, leaf spring suspension, and 12R22.5 tyre optionRear view of the trailer with the hydraulic lift cylinder and tipping platform in the raised positionClose-up of the Fuwa-brand axle and leaf spring assembly on the trailer's rear axleInterior view of the trailer bed showing the steel Q345B construction and reinforced edgesTrailer in a flat position with the hydraulic lines and control valve visible at the rear
Source Specification

Manufacturer Text We Hold for This Listing

3 Axles 60 Ton Rear Tipper Semi Trailer Dump Semi Trailer Product Information Product Name 3 Axles 60 Ton Rear Tipper Semi Trailer Dump Semi Trailer Type Semi-Trailer Material Steel Q345 B Certificate ISO CCC Size 8500*2550*1800mm Max Loading Capacity 60 Tons Brand Shengxing Function Dump Semi Trailer Axle 13 Ton Fuwa Brand Axle Number 3 Axles Brake System ABS Tyre 1200R20 or 12R22.5 Origin Shandong, China Suspension Leaf Spring Suspension Accessories Show More Choice Packing & Delivery About Us the factory covers an area of 14,500 square meters, including the plant area of 11,300 square meters, the warehouse area of 900 square meters, and the supporting construction area of 1,200 square meters. We have 160 units advanced large scale equipment, and more than 50 units testing machines. With strong technical force and advanced manufacturing technology, the company is a large-scale enterpri

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.

Related Listings

Other Dump Trailers Buyers Compare With This

All 33 Dump Trailers Full product index

Buyer Questions

Questions About This Unit

Is this trailer new or used

All units are new. We supply directly from production or stock, and can provide photos and serial numbers before payment.

What is the lead time

15 workdays after prepayment. Larger orders may require longer lead time; we confirm the exact date in writing with the proforma invoice.

Can you supply spare parts later

Yes. Fuwa axles, leaf springs, tyres, and hydraulic components are available for purchase separately and can be shipped with future orders.

Do you ship by container or bulk

We ship by bulk for standard trailers. Container shipment is possible but limited by size; we quote both options to compare landed cost.

What documents do I get for customs

Commercial invoice, packing list, bill of lading, certificate of origin, and ISO CCC certificate are included. Pre-shipment inspection certificates are available on request.
