3 Axles 40-50 Tons Tipper Semi Trailer Rear Dump Semi Trailer

A 3-axle rear-dump semi trailer with a 40-60 ton payload capacity, built on a steel Q345B frame and fitted with three 13-ton Fuwa-brand axles. It features leaf spring suspension, ABS braking, and optional 1200R20 or 12R22.5 tyres. The trailer measures 8500 x 2500 x 1800 mm and is designed for heavy-duty material transport in mining, construction and quarry operations where reliable dumping and axle load distribution are critical.

Use TruckTrailer
Size 8500*2500*1800mm
Color Option
Suspension LeafSpringSuspension
Dimensions 8500*2500*1800mm

Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 10385

3-axle rear-dump semi trailer in grey paint, front three-quarter view with hydraulic lift arms visible

Key Benefits

What This Unit Does Well

Three 13-ton Fuwa axles provide stable load distribution across heavy payloads up to 60 tons
Leaf spring suspension offers durability and low maintenance in rough terrain and unpaved haul roads
ABS braking system improves control during dumping and downhill runs
1200R20 or 12R22.5 tyre options allow matching to local road conditions and spare parts availability
ISO CCC certification supports compliance with import regulations in many markets
Rear-dump design enables fast unloading at sites with limited access or tight space

Application Scenarios

Where It Is Used

Coal or ore transport from a mine to a processing plant on gravel haul roads
Aggregate or gravel delivery to construction sites with no paved access
Bulk material transfer in quarries where frequent dumping is required
Long-haul haulage between a quarry and a port with mixed road surfaces

Fit

Who It Is For

Fleet owners managing heavy material transport in mining or construction sectors
Contractors needing a rear-dump trailer that matches their existing 13-ton axle fleet
Machinery dealers stocking semi trailers for resale in African, Middle Eastern and Southeast Asian markets
Government procurement teams sourcing durable trailers for infrastructure projects

Buyer Pain

Problems It Solves

Trailer instability or axle overload when hauling near the 50-ton limit on uneven ground
Lack of local spare parts for trailer axles and brakes in remote or emerging markets
Inconsistent dump performance due to weak or unbalanced suspension systems
Uncertainty over export documentation and compliance when importing from China

Engineering

Technical Features

Steel Q345B frame construction with rear-dump mechanism
Three 13-ton Fuwa-brand axles in tandem configuration
Leaf spring suspension system for heavy-duty durability
ABS braking system for improved stopping safety
Rear-dump hydraulic lift system with mechanical locking
1200R20 or 12R22.5 tyres as standard, with option to specify
Dimensions: 8500 x 2500 x 1800 mm (L x W x H)
Maximum payload: 40-60 tons
ISO CCC certification for compliance with Chinese export standards

Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

Specification of 3 Axles 40-50 Tons Tipper Semi Trailer Rear Dump Semi Trailer
Use	TruckTrailer
Size	850025001800mm
Color	Option
Suspension	LeafSpringSuspension
Dimensions	850025001800mm
Material	Steel
Certification	ISOCCC
Axle	13TonFuwaBrand
Tyre	1200R20or12R22.5
Function	DumpSemiTrailer
Type	Semi-Trailer
Trailer Type	Semi-Trailer
Axle Number	3
Axle Capacity	13 Ton Fuwa Brand
Dimensions L x W x H	8500 x 2500 x 1800 mm
Max Loading Capacity	40-60 Tons
Brake System	ABS
Tyre Size	1200R20 or 12R22.5
Place of Origin	Shandong, China
Loading Capacity	40-60 Tons
OEM Number	2018101702
Max Payload	40-60
Tons Place of Origin	Shandong, China (Mainland)
Dump Semi Trailer Axle	13
Ton Fuwa Brand Function	Dump
Semi Trailer Suspension	Leaf Spring

Materials

Materials and Build

Steel Q345B frame with welded joints
13-ton Fuwa-brand axles with steel housing
Leaf spring suspension assemblies
1200R20 or 12R22.5 radial tyres on steel rims
Hydraulic lift cylinder and rear-dump gate mechanism

Process

How an Order Is Handled

You provide the payload, route type, and preferred tyre size
We confirm availability of the 3-axle configuration with your chosen axle and tyre specs
You approve the final specification sheet including colour and accessories before deposit
Unit is assembled, tested for hydraulic lift and brake function, then photographed
We arrange bulk shipment or container loading and issue export documents for customs

Quality Control

Checks Before Loading

Axle, tyre and suspension components are inspected before assembly
Welding joints are checked using visual and non-destructive methods
Hydraulic lift and dump mechanism tested under full load before shipping
ABS system tested for response and fault codes
Final trailer is photographed and video recorded before loading

Customisation

What Can Be Changed

Trailer colour other than standard grey
Choice of 1200R20 or 12R22.5 tyres
Additional tool box or side step
Custom paint logo or marking
Adjustment of dump gate height or angle for site-specific unloading

Honest Comparison

How It Compares With the Alternatives

2-axle dump trailer	The 3-axle unit handles heavier payloads without exceeding axle limits, but costs more in fuel and maintenance
Air suspension trailer	Leaf springs are more robust and cheaper to maintain in dusty or rough terrain, but offer less ride comfort
Front-dump trailer	Rear-dump allows unloading from the back, which is better for tight or obstructed sites, but requires more space to turn

Use Guide

Using It Well

Inspect all hydraulic hoses and fittings before first use; replace any damaged seals
Check tyre pressure weekly and adjust for load and terrain conditions
Test the ABS system monthly using a diagnostic tool or by simulating braking

Photographs

More Views of This Unit

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.

Side view of the trailer showing the 8500mm length and leaf spring suspension on all axles

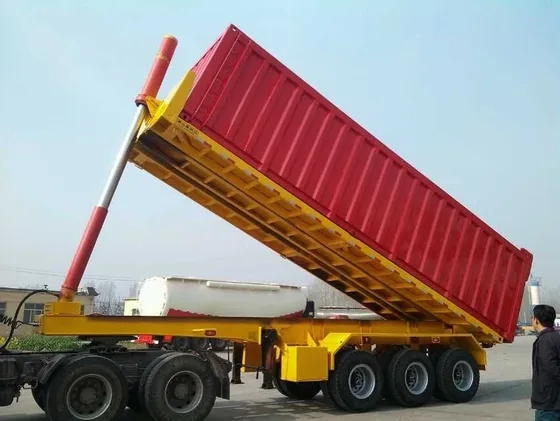

Rear view of the trailer with the dump gate open and hydraulic cylinders in operation

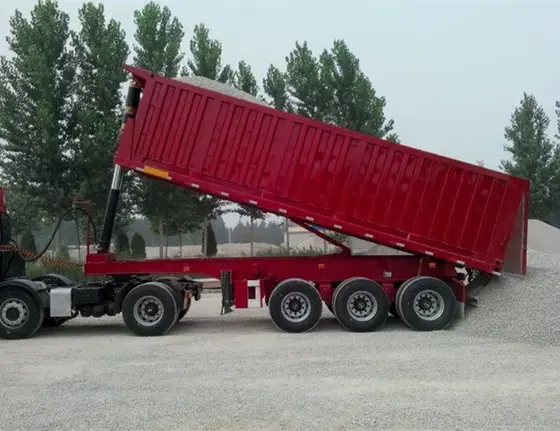

Trailer interior with steel bed and hydraulic lift mechanism in the raised position

Source Specification

Manufacturer Text We Hold for This Listing

3 Axles 40-50 Tons Tipper Semi Trailer Rear Dump Semi Trailer 3 Axles 40-50 Tons Tipper Semi Trailer Rear Dump Semi Trailer Product Information Product Name 3 Axles 40-50 Tons Tipper Semi Trailer Rear Dump Semi Trailer Type Semi-Trailer Material Steel Q345 B Certificate ISO CCC Size 8500*2550*1800mm Max Loading Capacity 40-60 Tons Brand Sea Lion Function Dump Semi Trailer Axle 13 Ton Fuwa Brand Axle Number 3 Axles Brake System ABS Tyre 1200R20 or 12R22.5 Origin Shandong, China Suspension Leaf Spring Suspension Accessories Show More Choice Packing & Delivery About Us The factory covers an area of 14,500 square meters, including the plant area of 11,300 square meters, the warehouse area of 900 square meters, and the supporting construction area of 1,200 square meters. We have 160 units advanced large scale equipment, and more than 50 units testing machines. With strong technical force and

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.
