Dump Trailers

3 Axle Rear Dump Trailer

A 3-axle rear dump semi-trailer with a 10950 x 2500 x 3900mm external dimension, built for heavy-duty bulk transport. The trailer uses a mechanical suspension system with three axles rated at 14T, 16T, and 20T per axle, and features a 25m3 to 37m3 cargo bed with a 3mm flat floor. It is fitted with a full Hyva hydraulic lifting system, 12 x 12.00R22.5 Triangle brand tyres on Zhengxing rims, and a JOST 50# or 90# kingpin. The frame uses 20mm upper and lower plates with a 10mm middle plate, and the structure is designed for high payload and repeated dumping cycles in mining, quarry, and construction environments.

  • Material steel
  • Use OtherTrailers
  • Size 10950*2500*3900mm
  • Type semitrailer
  • Trailer Type Semi-trailer
Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 10508

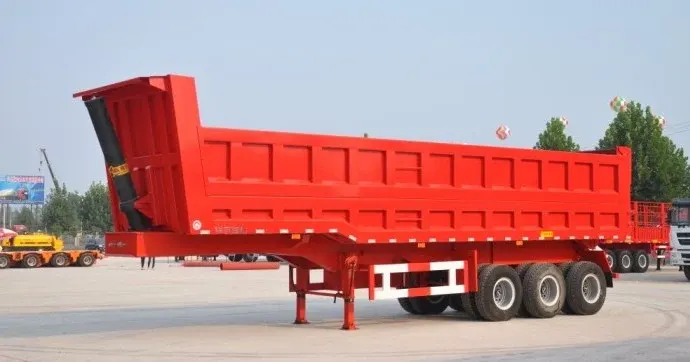

3-axle rear dump trailer parked on a yard, front three-quarter view showing the 10950mm length and 12 tyres
3-axle rear dump trailer parked on a yard, front three-quarter view showing the 10950mm length and 12 tyres
Key Benefits

What This Unit Does Well

  • 3-axle layout with 14T/16T/20T per axle rating allows high payload within standard road weight limits
  • Hyva hydraulic system provides reliable, fast dumping without manual effort
  • 12 x 12.00R22.5 tyres on 9.00*22.5 Zhengxing rims offer strong load support and long tread life
  • 25m3 to 37m3 cargo volume matches common bulk material loads in mining and construction
  • 3mm flat floor resists wear from abrasive materials like gravel and ore
  • JOST kingpin and D200T support leg ensure secure coupling and stable unloading
Application Scenarios

Where It Is Used

  • Quarry operations transporting crushed stone or gravel over rough access roads
  • Coal transport from mine to processing plant with frequent dumping cycles
  • Construction sites moving sand, soil, or aggregate in bulk with minimal downtime
  • Mining operations requiring a rear dump trailer that can handle 60T to 80T payloads
  • Long-haul haulage where a 3-axle configuration avoids overloading single axles
Fit

Who It Is For

  • Fleet owners managing bulk material transport in mining and quarrying sectors
  • Contractors needing a rear dump trailer that matches tractor head axle ratings
  • Machinery dealers stocking semi-trailers for resale in African, Middle Eastern and South American markets
  • Government procurement teams sourcing durable, high-capacity trailers for infrastructure projects
Buyer Pain

Problems It Solves

  • Fleets with inconsistent axle ratings across trailers causing overloading and fines
  • Downtime from unreliable or slow dumping systems in high-frequency operations
  • Trailer frames that warp or crack under repeated heavy loads and dumping stress
  • Lack of spare tyre and rim availability for common trailer sizes in remote regions
  • Inconsistent trailer dimensions leading to mismatched loading and transport planning
Engineering

Technical Features

  • 3-axle mechanical suspension system with 14T/16T/20T per axle rating
  • Full Hyva hydraulic lifting system for rear dumping
  • JOST 50# or 90# kingpin with D200T support leg for secure coupling
  • 12 x 12.00R22.5 Triangle brand tyres on 9.00*22.5 Zhengxing rims
  • 3mm flat bed floor with 20mm upper and lower frame plates and 10mm middle plate
  • Kemi brand brake chamber (two double, two single), ABS (4s/2m), and 24V electrical system
  • 7-way electrical receptacle with orange side marker and turn signal lamps, red rear lamps
Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

Materialsteel
UseOtherTrailers
Size10950*2500*3900mm
Typesemitrailer
Trailer TypeSemi-trailer
Axle Number3
Axle Rating14T / 16T / 20T per axle
Tare Weight8.5T - 10T
Max Payload60T - 80T
Cargo Volume25m3 - 37m3
External Dimensions L x W x H10950 x 2500 x 3900 mm
Internal Dimensions L x W x H10000 x 2300 x 600 mm
Frame Beam Thickness20mm upper and lower, 10mm middle (double/three plate)
Frame Height500 mm
Floor Thickness3 mm flat bed
Lifting SystemFull set of Hyva hydraulic system
Rim Size9.00*22.5 Zhengxing brand
Number of Tyres12 pieces
Spare Tyre Carriers2 pieces
Tyre BrandTriangle
Brake BrandKemi brand of China
Brake ChamberTwo double, two single (TKL brand)
ABSKemi brand of China (4s/2m)
Electrical System24V, 7-way receptacle (7 wire harness)
Light ColourSide marker lamp orange, rear lamp red, turn signal lamp orange
KingpinJOST 50# / 90#
Materials

Materials and Build

  • Steel frame with 20mm upper and lower plates, 10mm middle plate
  • 3mm flat steel floor plate
  • Hyva hydraulic cylinders and lifting arms
  • JOST 50# or 90# kingpin and D200T support leg
  • 12 x 12.00R22.5 Triangle brand tyres on 9.00*22.5 Zhengxing rims
  • Kemi brake chambers and ABS control unit
  • 24V electrical harness with 7-way connector
Process

How an Order Is Handled

  • You provide the load type, route conditions, and axle weight limits you must comply with
  • We confirm the trailer's tare weight, axle rating, and volume against your payload needs
  • You approve the final specification, including tyre brand and kingpin size, before deposit
  • Unit is prepared, photographed, and video recorded before loading
  • We book RoRo or container shipment and issue export documents required by your customs
Quality Control

Checks Before Loading

  • Axle numbers, frame serials, and kingpin size are photographed and matched to the approved spec sheet
  • Hydraulic system is tested for full lift and leak-free operation before loading
  • Tyres, rims, and brake components are checked for damage and correct fitment
  • Electrical wiring and light function are tested under 24V power before shipment
  • Loading and lashing photos are sent before the vessel departs
Customisation

What Can Be Changed

  • Change tyre brand from Triangle to another brand if available in stock
  • Adjust kingpin size to JOST 50# or 90# based on your tractor head
  • Add extra spare tyre carrier if needed
  • Modify frame height or floor thickness for special load types
Honest Comparison

How It Compares With the Alternatives

2-axle rear dump trailerThe 3-axle unit handles higher payloads and distributes weight better on weak roads, but costs more to maintain and has higher fuel drag
Pneumatic suspension trailerMechanical suspension is cheaper and more reliable in dusty or off-road conditions, but offers less ride comfort on long hauls
Single hydraulic cylinder systemFull Hyva system ensures even lifting and faster dumping, but requires more maintenance than a single-cylinder setup
Use Guide

Using It Well

  • Inspect hydraulic hoses and connections before first use; replace any cracked or worn seals
  • Check tyre pressure weekly and adjust for load and temperature, especially in hot climates
  • Lubricate the kingpin and support leg pivot points every 500 hours of operation
  • Replace brake linings when wear reaches 3mm from the backing plate
  • Keep the ABS sensor clean and free of debris to prevent false warnings
Photographs

More Views of This Unit

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.

Side view of the trailer showing the 3-axle mechanical suspension and 12.00R22.5 tyres
Source Specification

Manufacturer Text We Hold for This Listing

3 axle rear dump trailer Weight Tare weight 8.5T-10T Payload 60T-80T(25m3 - 37m3) Axle weight 14T/16T/20T per axle Specification Axle number 3 Axle brand Fuwa/hj/bpw Suspension Mechanical suspension Kingpin JOST50#/90# traction pin Dimensions(L*W*H) 10950X2500X3900mm(outside) 10000X2300X600mm(inner) Rim 9.00*22.5 zhengxing brand 12[ieces Lifting system Full set of hyva hydraulic system Steel spring 10pieces Tire Tire specs 12.00R22.5 triangle brand Number of tire 12 pieces Spare tire carriers 2 pieces Frame Frame beam Upper and lower plate is 20mm.middle is 10mm(double/three plate) height is 500mm Frame floor The thickness is 3mm flat bed Brake Brake brand Kemi brand of china Brake chamber Two double and two single chamber(TKL brand) ABS Kemi brand of china (4s/2m) Electrical system Voltage 24v Receptacle 7ways(7wire harness) Light color Side marker lamp orange Rear lamp red Turn signal

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.

Related Listings

Other Dump Trailers Buyers Compare With This

All 33 Dump Trailers Full product index

Buyer Questions

Questions About This Unit

Is this trailer new or used

All units are new. We supply only new trailers with full factory warranty and documented build records.

What is the lead time

Units in stock can be loaded within 7 days. Custom builds depend on the plant schedule; we confirm a delivery date in writing with the proforma invoice.

Can you supply spare parts later

Yes. We stock Hyva hydraulic parts, Kemi brakes, Triangle tyres, and JOST kingpins. They can be shipped separately or with the trailer.

Do you ship by container or RoRo

RoRo is standard for 3-axle trailers. Container shipment is possible but requires lowering the cab; we quote both options for landed cost comparison.

What documents do I get for customs

Commercial invoice, packing list, bill of lading, certificate of origin, and any pre-shipment inspection certificate your country requires.
