Dump Trailers

3 Axle 20ft Container Transport Rear Dumper Semi Trailer

A 3-axle 20ft rear-dumping semi-trailer designed for container transport, with a tare weight of 8000kg and a payload capacity of 30T. Built on a heavy-duty I-beam chassis using high tensile Q345 steel, it features HYVA hydraulic cylinders, FUWA 13T axles, JOST kingpins, and 12R22.5 double-star tires. The trailer is configured for mechanical suspension with leaf springs and includes a WABCO RE6 relay valve braking system, LED lighting, and a 40L air tank. It is suitable for rugged terrain and long-haul container movement where reliable dumping and axle strength are required.

Clinyder HYVA
Use OtherTrailers
Size 7500*2500*3500
Color Optional
Material steel

Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 10516

3-axle 20ft rear-dumper semi trailer parked on a yard, front three-quarter view showing the hydraulic cylinder and front axle

Key Benefits

What This Unit Does Well

30T payload capacity on a 3-axle layout ensures compliance with weight limits on most international routes
Q345 high tensile steel chassis with automatic submerged-arc welding improves structural integrity and fatigue resistance
HYVA hydraulic cylinders provide consistent and reliable rear dumping performance under heavy loads
FUWA 13T axles are widely available in export markets, reducing spare parts lead time
12R22.5 double-star tires offer good load capacity and durability on mixed road surfaces
JOST kingpin and landing gear provide secure coupling and stable support during loading and unloading

Application Scenarios

Where It Is Used

Container transport between inland depots and seaports on roads with moderate to poor surface quality
Dumping of bulk materials at construction sites with limited access and uneven ground
Long-distance haulage of 20ft containers where axle load distribution must be controlled
Operations in regions with high humidity or salt exposure where corrosion resistance is critical

Fit

Who It Is For

Fleet operators sourcing trailers for container transport in Africa, the Middle East, or Southeast Asia
Contractors needing a rear-dumper trailer for material delivery to remote or off-road sites
Machinery dealers stocking semi-trailers for resale in markets with high demand for dump trailers
Logistics companies standardizing on a single trailer type with shared parts across their fleet

Buyer Pain

Problems It Solves

Overloading on single axles due to poor weight distribution in multi-axle trailers
Downtime caused by hydraulic cylinder failure or weak chassis in high-stress transport
Difficulty finding spare parts for non-standard or obscure trailer brands
Inconsistent dumping performance due to weak or outdated hydraulic systems
Lack of corrosion protection in trailers shipped to coastal or humid climates

Engineering

Technical Features

I-beam chassis with high tensile Q345 steel, automatic submerged-arc welded construction
HYVA hydraulic cylinder for rear dumping, rated for 30T payload
3 axles with FUWA brand 13T axles, mechanical suspension with 10pcs*90*13mm leaf springs
JOST brand 2" bolt-in kingpin and two-speed manual landing gear with 28T capacity
WABCO RE6 relay valve, T30/30 spring brake chamber, and 40L air tanks for braking
12R22.5 double-star tires on 9.0-22.5 rims, 12 tires total, 12 spare wheel carriers
LED lighting: 8 side lights, 2 rear lights, 2 width lamps
Complete chassis treatment: sand blast, one coat anticorrosive primer, two coats final paint
Standard tool box, spare tire carrier, crank, shaft head wrench, and four side lights included

Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

Specification of 3 Axle 20ft Container Transport Rear Dumper Semi Trailer
Clinyder	HYVA
Use	OtherTrailers
Size	750025003500
Color	Optional
Material	steel
Tire	12R22.5triangledoublestar
Type	semitrailer
Certificate	CCCISO9001BV
Trailer Model	3-axle 20ft rear dumper semi trailer
Dimensions L x W x H	7500 x 2500 x 3500 mm
Tare Weight	8000 kg
Payload Capacity	30 T
Max Payload	60 T
Chassis Type	I-beam, high tensile Q345 steel
Hydraulic System	HYVA
Axle Brand	FUWA
Axle Capacity	13 T per axle
Suspension Type	Mechanical, leaf spring
Tire Size	12R22.5 double star
Tire Count	12
Wheel Rim	9.0-22.5
Kingpin	JOST 2" bolt-in
Landing Gear	JOST two-speed, manual, 28T
Braking System	WABCO RE6 relay valve, T30/30 spring brake chamber, 40L air tanks
ABS	Optional
Lighting	LED 8 side lights, 2 rear lights, 2 width lamps

Materials

Materials and Build

Q345 high tensile steel for the I-beam chassis
Steel for the floor, side walls, and structural frame
12R22.5 double-star tires with steel rims
JOST brand kingpin and landing gear components
WABCO braking system parts made from corrosion-resistant steel and cast iron

Process

How an Order Is Handled

You provide the route, payload, and terrain conditions you expect the trailer to operate in
We confirm the chassis, axle, and suspension configuration based on current stock or production schedule
You approve the final specification sheet, including color, tire brand, and accessory list
The trailer is built, inspected, and photographed before loading
We arrange RoRo or container shipment and issue export documents including commercial invoice, packing list, and certificate of origin

Quality Control

Checks Before Loading

Chassis and axle numbers are photographed and matched to the approved specification
Hydraulic cylinder function and dumping cycle are tested and recorded on video
Paint, glass, and structural welds are inspected for damage before loading
Loading and lashing photos are sent before the vessel departs

Customisation

What Can Be Changed

Color other than standard white or grey
Tire brand and size change (within 12R22.5 range)
Additional tool box or spare tire carrier
ABS system installation as an option
Modified landing gear height or manual override for specific site access

Honest Comparison

How It Compares With the Alternatives

2-axle 20ft container trailer	The 3-axle version handles heavier payloads and better distributes weight on poor roads, but has higher purchase and maintenance cost
Front-dump semi trailer	Rear-dump allows for better load control during unloading and avoids spillage on uneven ground, but requires more space to turn
Aluminum trailer	Steel construction is more durable and cheaper to maintain, but heavier than aluminum alternatives

Use Guide

Using It Well

Inspect hydraulic cylinder seals and fluid level before first use and refill if needed
Clean and lubricate the landing gear mechanism every 3 months to prevent seizing
Replace air dryer desiccant cartridge annually or after exposure to high humidity
Use only approved hydraulic fluid for the HYVA system to avoid seal damage

Photographs

More Views of This Unit

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.

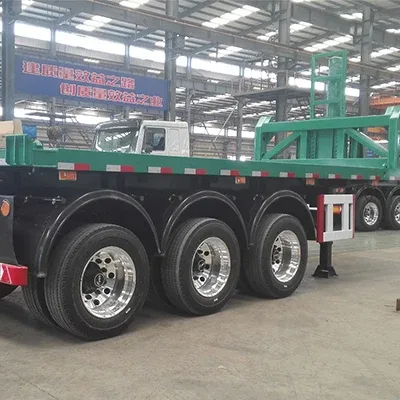

Side view of the trailer showing the 7500mm length, 12R22.5 tires, and mechanical suspension

Rear view of the trailer with the dumping mechanism raised and the landing gear deployed

Source Specification

Manufacturer Text We Hold for This Listing

3 axle 20ft container transport rear dumper semi trailer Product Description 3 axle 20ft container transport rear dumper semi trailer DIMENSIONS Tare weight 8000kg Size 75500mm*2500mm*3500mm Payload 30T Main beam Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 14mm,width140mm;Middle Flange 8mm height 500mm;bottom flange16mm,width 140mm Floor 3mm checkered plate Side wall No Cylinder HYVA 179 Axle 3 axle FUWA brand 13T Suspension Mechanical suspension American type local brand Leaf spring Leaf spring 10pcs*90*13mm Tire 12R22.5 double star brand 12pcs Wheel rim 9.0-22.5 better brand 12pcs Kingpin JOST brand 2" bolt-in king pin Landing gear JOST brand two-speed, manual operating,heavy duty landing gear 28T Twist lock No Braking system WABCO RE6 relay valve;T30/30 spring brake chamber;40L air tanks A

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.
